Flywoo GOKU GM10 GPS Buyer's Guide 2026: Nano vs Mini vs Pro

FLYWOO · GPS BUYER'S GUIDE 2026

Flywoo GOKU GM10 GPS Buyer's Guide 2026 —
Match the Right GPS Module to Your FPV Drone

Q: Which Flywoo GPS module should I use on a 2-inch or sub-2-inch tinywhoop?

Use the GOKU GM10 Nano V3.1 GPS (2.5 g, 12×16×4.5 mm) for the lightest tinywhoop builds where every gram matters. Choose the GM10 Nano V3 GPS w/compass (2.6 g) when that small build also needs QMC5883L compass data for iNav-style navigation, fixed-wing use, or heading-aware workflows.

Q: What is the best Flywoo GPS for a 2-, 3-, 4- or 5-inch freestyle/racing drone?

The GOKU GM10 Mini V3 GPS (4.7 g) is the standard choice for 2- to 5-inch freestyle and racing, including most Betaflight GPS Rescue builds. Upgrade to the GM10 Mini V3 GPS w/compass (4.1 g) when you use iNav Return-to-Home, waypoint features, fixed-wing navigation, or any setup that benefits from compass heading.

Q: Which Flywoo GPS is recommended for 7-inch, 8-inch and 10-inch long-range FPV drones?

The GOKU GM10 Pro V3 GPS w/compass (25×25 mm, 7.3 g) is the performance-first module for larger long-range and cinematic platforms. Its larger antenna class gives more GPS margin than the smaller modules, and the integrated QMC5883L compass supports autonomous and heading-aware workflows.

Q: Do all Flywoo GOKU GM10 V3 GPS modules use the same GNSS platform?

Yes. All five modules use the same M10050 GNSS chip with -162 dBm tracking sensitivity, -160 dBm reacquisition sensitivity, 72 search channels, and a default 10 Hz output rate. They simultaneously receive GPS L1, GLONASS L1, BeiDou B1, Galileo E1, SBAS L1, and QZSS for fast first-fix even in challenging environments.

Q: When do I need a GPS with a compass on an FPV drone?

Choose a compass-equipped GPS (GM10 Nano V3 w/compass, GM10 Mini V3 w/compass, or GM10 Pro V3 w/compass with QMC5883L) when your firmware or flight plan needs heading at low or zero ground speed, such as iNav waypoint missions, fixed-wing navigation, or compass-aware RTH. Betaflight GPS Rescue normally does not require a compass, so pure freestyle pilots can save weight with non-compass variants.

Q: Are these GPS modules plug-and-play, or do I need to solder?

Most Mini and Pro GM10 modules use SH1.0 connectors and are plug-and-play with matching Flywoo flight controllers. Nano versions are the ones to check carefully: the older Nano V3 non-compass is pad-based, while Nano V3.1 is the easier-install updated option. On third-party flight controllers, wire 5V, GND, TX, and RX to a UART, plus SCL/SDA for compass models.

Q: Which satellite systems do Flywoo GOKU GM10 V3 GPS modules support?

All GOKU GM10 V3 GPS modules support GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS simultaneously. The default protocol receives GPS + Galileo + BeiDou (the recommended Betaflight configuration), and you can enable additional constellations via U-Center or BFL CLI for even faster first-fix in dense urban or forest environments.

Five GPS modules. One chip family. Three drone-size brackets. This guide cuts the confusion: from the 2.5 g ultra-micro GM10 Nano V3.1 for tinywhoops, through the 4-gram Mini V3 series for freestyle, all the way to the flagship 7.3 g Pro V3 w/compass built for 7-to-10-inch long-range and cinematic platforms. Every model uses the same M10050 GNSS chip: -162 dBm tracking sensitivity, 72 search channels, 10 Hz update, and simultaneous GPS / GLONASS / Galileo / BeiDou / QZSS / SBAS reception.

Modules in Lineup

5

Tracking Sensitivity

-162 dBm

Update Rate

10 Hz

Best For

FPV

✓

QUICK ANSWER — Pick Your GPS in 30 Seconds

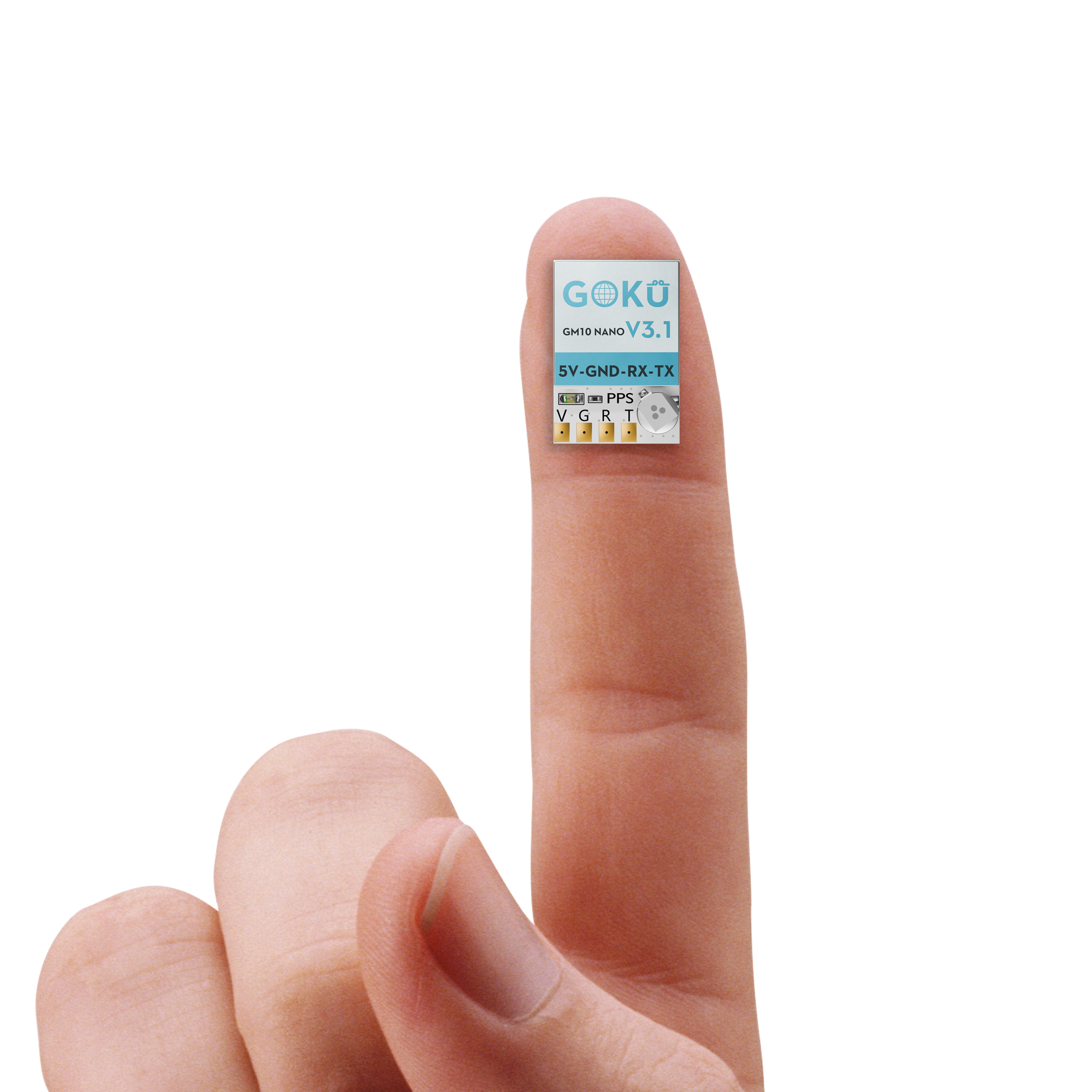

Ultra-micro / Tinywhoop (sub-2"): GM10 Nano V3.1 GPS — 2.5 g, no compass.

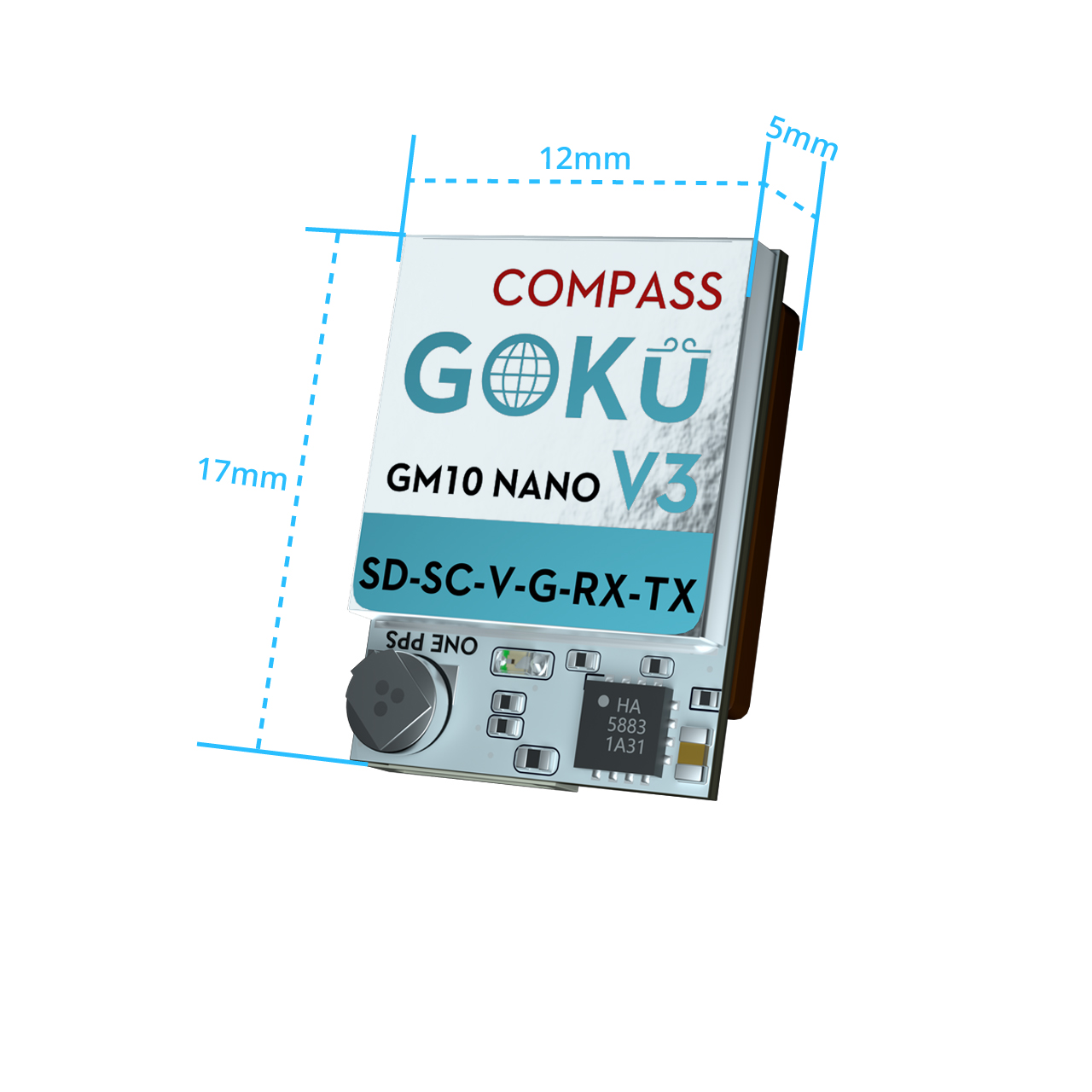

Tinywhoop / Sub-250g long range needing compass: GM10 Nano V3 GPS w/compass — 2.6 g, with QMC5883L.

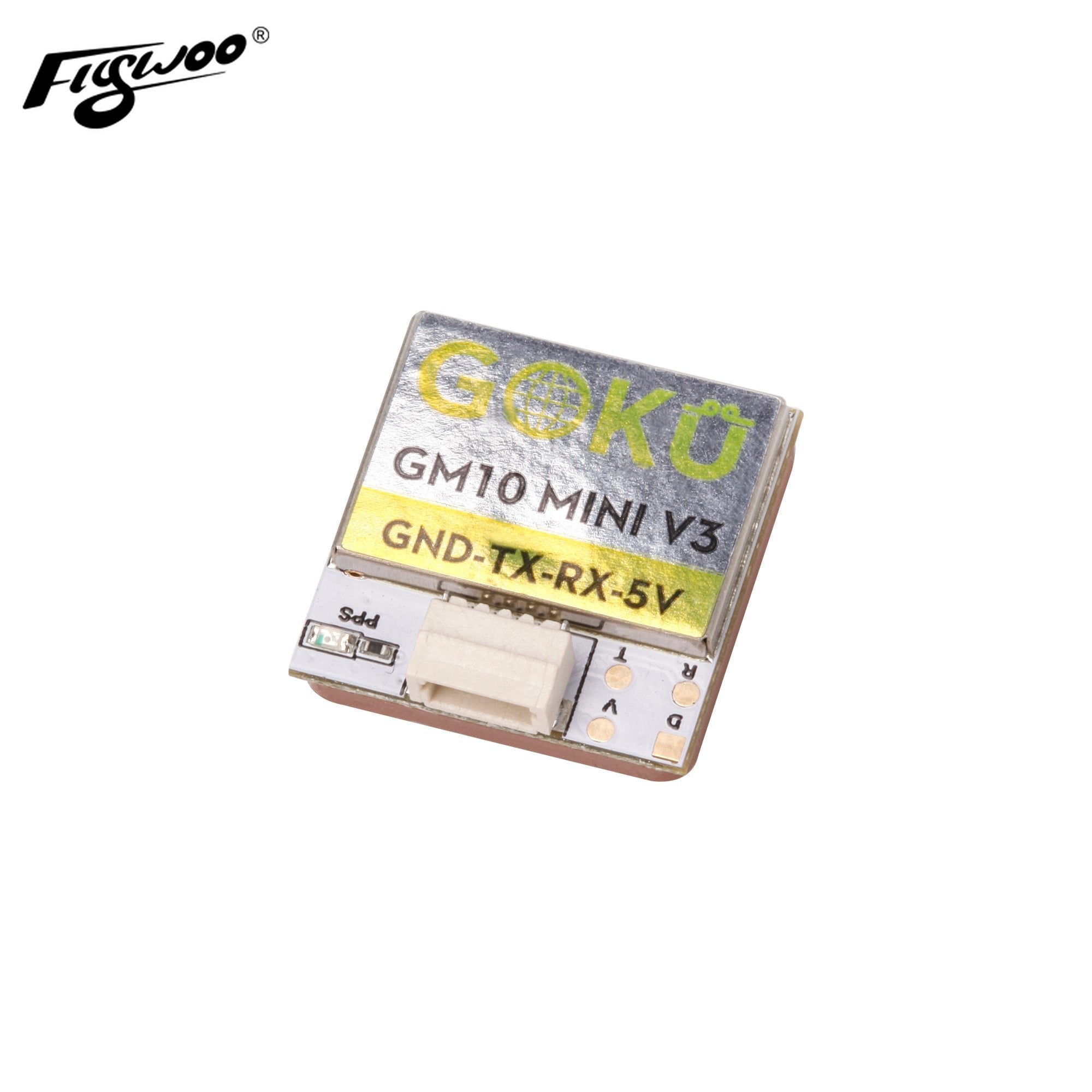

2"–5" Freestyle / Racing: GM10 Mini V3 GPS — 4.7 g, compact non-compass option.

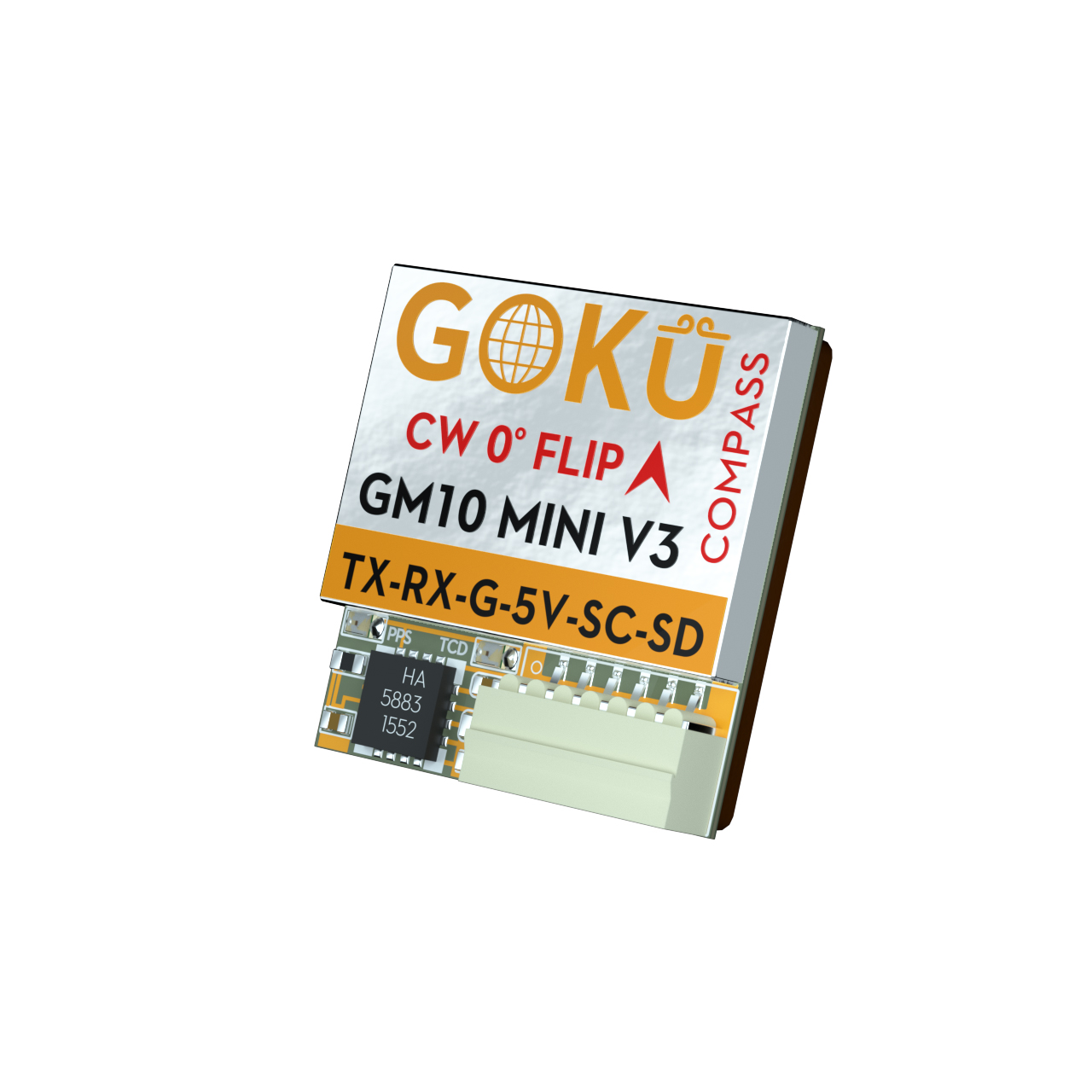

2"–5" Betaflight Rescue or iNav RTH: GM10 Mini V3 GPS w/compass — 4.1 g, the everyday workhorse.

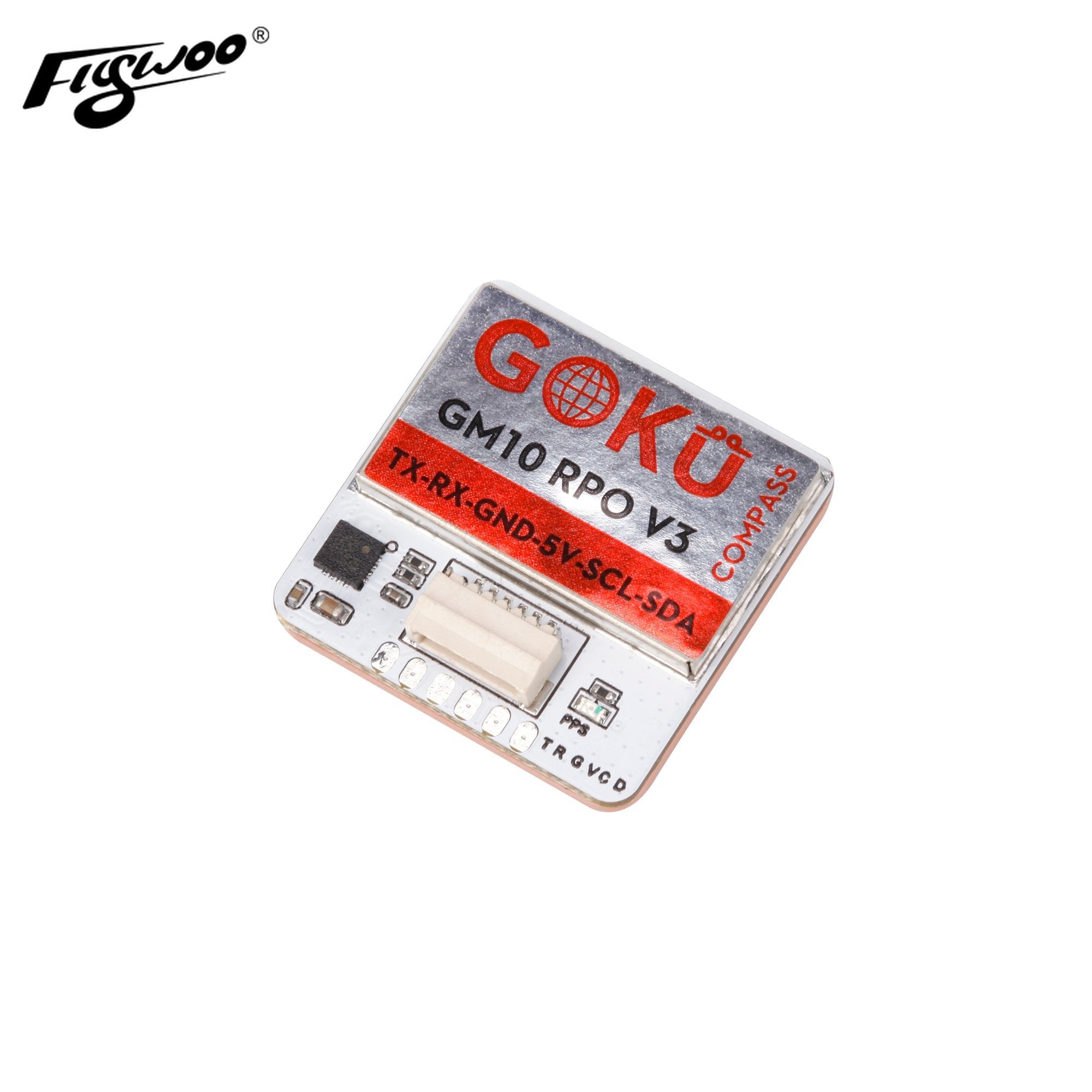

7"–10" Long-Range / Cinelifter: GM10 Pro V3 GPS w/compass — 7.3 g, QMC5883L compass, largest antenna in this lineup.

One Chip Powers Them All — The M10050 GNSS Engine

Every Flywoo GOKU GM10 V3 module uses the same M10050 GNSS platform, so the lineup shares the same core constellation support and 10 Hz positioning target. Real-world GPS performance still depends on antenna size, mounting position, noise shielding, compass presence, and connector style — all driven by which drone class the module is meant for.

-162 dBm

Tracking Sensitivity

Strong lock even under tree canopy or near urban buildings — critical for forest freestyle and rooftop long-range.

72 Channels

Parallel Search

Fast first-fix potential when the antenna has a clear sky view. Receives GPS L1 + GLONASS L1 + BeiDou B1 + Galileo E1 + SBAS L1 simultaneously.

10 Hz

Position Update Rate

High-rate position output for low-latency GPS Rescue, accurate OSD speed/heading, and smooth waypoint missions in iNav.

For Betaflight pilots: set serial X 2 115200 on the UART connected to GPS, enable GPS feature, choose UBLOX protocol, and tick auto-config. Compass-equipped variants expose QMC5883L over I²C; use MAG only when your firmware and flight plan actually need compass data.

The Matching Matrix — Drone Size × Best GPS

Cross-reference your prop size against the recommended GPS module. Scroll horizontally on mobile.

Drone Class	Examples	Best GPS	Compass Needed?	Verdict
Ultra-Micro < 2"	Flylens 75 / Firefly 1S Nano/ Flytimes 85/ Flylens 85 LR	Nano V3.1	No	Best Match
Tinywhoop + Compass/RTH	sub-250 g LR	Nano V3 w/compass	Yes	Best Match
2"–5" Freestyle / Racing	Firefly 20PRO / 25MINI/ Explorer LR 4 V2	Mini V3	No	Best Value
2"–5" Betaflight Rescue / iNav RTH	Cinewhoops, freestyle safety builds, iNav builds	Mini V3 w/compass	Yes	Best Match
7"–10" Long Range / Cinelift	Cinelifter builds	Pro V3 w/compass	Yes	Best Match

Cable: 150 mm included

Pilot fit: MINI and other 7"–10" long-range / cinelifter pilots, iNav waypoint missions, anyone serious about long-distance signal-loss recovery planning.

Full Side-by-Side Specifications

Every spec, every model. Scroll horizontally if needed.

Specification	Nano V3.1	Nano V3 w/Comp.	Mini V3	Mini V3 w/Comp.	Pro V3 w/Comp.
Current Price	Check each Flywoo product page for the latest price and stock status.
Target Drone Size	< 2"	< 2" LR	2"–5"	2"–5"	7"–10"
Dimensions (mm)	12 × 16 × 4.5	12 × 17 × 5	18 × 18 × 4.8	18 × 18 × 4.8	25 × 25 × 6
Weight	2.5 g	2.6 g	4.7 g	4.1 g	7.3 g
GNSS Chipset	M10050 GNSS platform — shared across all 5 modules
Compass IC	—	QMC5883L	—	QMC5883L	QMC5883L
Voltage	3.3–5 V	3.3–5 V	5 V	5 V	5 V
Connector	4-pin pad	6-pin pad	SH1.0 4-pin	SH1.0 6-pin	SH1.0 6-pin
Constellations	GPS L1 · GLONASS L1 · BeiDou B1 · Galileo E1 · QZSS · SBAS L1
Tracking Sensitivity	−162 dBm
Reacquisition Sensitivity	−160 dBm
Search Channels	72 parallel
Update Rate	1–10 Hz (default 10 Hz)
Default Baud	115 200 bps (range 4 800 – 921 600)
Operating Temp	−40 °C to +85 °C
Altitude Limit	50 000 m max
Velocity Limit	500 m/s max
Cable Included	100 mm	100 mm	100 mm	150 mm	150 mm

Installation & Betaflight Setup — 5-Minute Checklist

Mounting Best Practice

Mount the GPS module top of the stack, antenna facing the sky. Never below carbon plate.
Keep the copper foil shield (included) between the GPS and any VTX or video transmitter — 5.8 GHz harmonics will desensitize the receiver.
Mount the compass module (if present) at least 30 mm away from high-current ESC traces and motor wires. Magnetic interference will corrupt heading.
For tinywhoops, glue the Nano modules to the top of the canopy with foam tape — no rigid mounting needed.

Betaflight CLI Snippet

feature -GPS
feature GPS
set gps_provider = UBLOX
set gps_auto_config = ON
set gps_auto_baud = ON
set gps_ublox_use_galileo = ON
# Compass models only:
feature MAG
set mag_hardware = QMC5883
save

Assumes GPS module wired to a free hardware UART (typically UART4 or UART6 on modern Flywoo FCs).

Frequently Asked Questions

Which Flywoo GPS module should I use on a 2-inch or sub-2-inch tinywhoop?

Use the GOKU GM10 Nano V3.1 GPS (2.5 g, 12×16×4.5 mm) for the lightest tinywhoop builds where every gram matters. Choose the GM10 Nano V3 GPS w/compass (2.6 g) when that small build also needs QMC5883L compass data for iNav-style navigation, fixed-wing use, or heading-aware workflows.

What is the best Flywoo GPS for a 2-, 3-, 4- or 5-inch freestyle/racing drone?

The GOKU GM10 Mini V3 GPS (4.7 g) is the standard choice for 2- to 5-inch freestyle and racing, including most Betaflight GPS Rescue builds. Upgrade to the GM10 Mini V3 GPS w/compass (4.1 g) when you use iNav Return-to-Home, waypoint features, fixed-wing navigation, or any setup that benefits from compass heading.

Which Flywoo GPS is recommended for 7-inch, 8-inch and 10-inch long-range FPV drones?

The GOKU GM10 Pro V3 GPS w/compass (25×25 mm, 7.3 g) is the performance-first module for larger long-range and cinematic platforms. Its larger antenna class gives more GPS margin than the smaller modules, and the integrated QMC5883L compass supports autonomous and heading-aware workflows.

Do all Flywoo GOKU GM10 V3 GPS modules use the same GNSS platform?

Yes. All five modules use the same M10050 GNSS chip with −162 dBm tracking sensitivity, −160 dBm reacquisition sensitivity, 72 search channels, and a maximum 10 Hz output rate. They simultaneously receive GPS L1, GLONASS L1, BeiDou B1, Galileo E1, SBAS L1, and QZSS for fast first-fix even in challenging environments.

When do I need a GPS with a compass on an FPV drone?

Choose a compass-equipped GPS (GM10 Nano V3 w/compass, GM10 Mini V3 w/compass, or GM10 Pro V3 w/compass with QMC5883L) when your firmware or flight plan needs heading at low or zero ground speed, such as iNav waypoint missions, fixed-wing navigation, or compass-aware RTH. Betaflight GPS Rescue normally does not require a compass, so pure freestyle pilots can save weight with non-compass variants.

Are these GPS modules plug-and-play, or do I need to solder?

Most Mini and Pro GM10 modules use SH1.0 connectors and are plug-and-play with matching Flywoo flight controllers. Nano versions are the ones to check carefully: the older Nano V3 non-compass is pad-based, while Nano V3.1 is the easier-install updated option. On third-party flight controllers, wire 5V, GND, TX, and RX to a UART, plus SCL/SDA for compass models.

Which satellite systems do Flywoo GOKU GM10 V3 GPS modules support?

The GM10 V3 family lists support for GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS. Flywoo notes GPS + Galileo + BeiDou as the default enabled constellation set. Use the defaults first, then tune protocol or constellation settings only if your firmware workflow requires it.

Ready to Upgrade Your FPV GPS?

Whichever drone class you fly, there's a GOKU GM10 V3 module built for it. Browse the full Flywoo electronics collection, or jump straight to your match using the buttons below.

Nano V3.1 → Nano V3 + Compass → Mini V3 → Mini V3 + Compass → Pro V3 + Compass →
