Update Log:

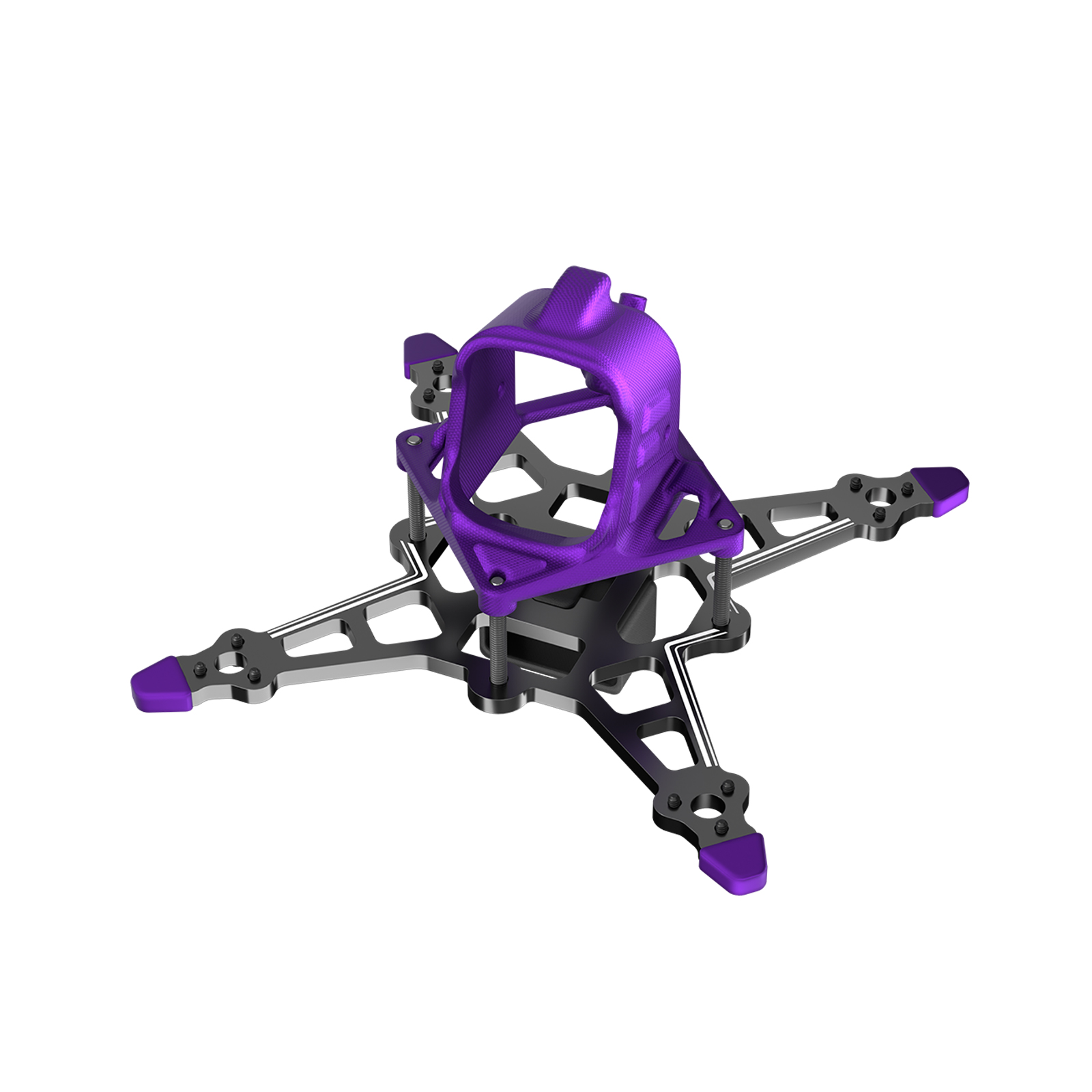

November 7th : Updated O4 canopy design. Compatible with O4 + flywoo wide-angle lens and O4 wide camera（18mm）.

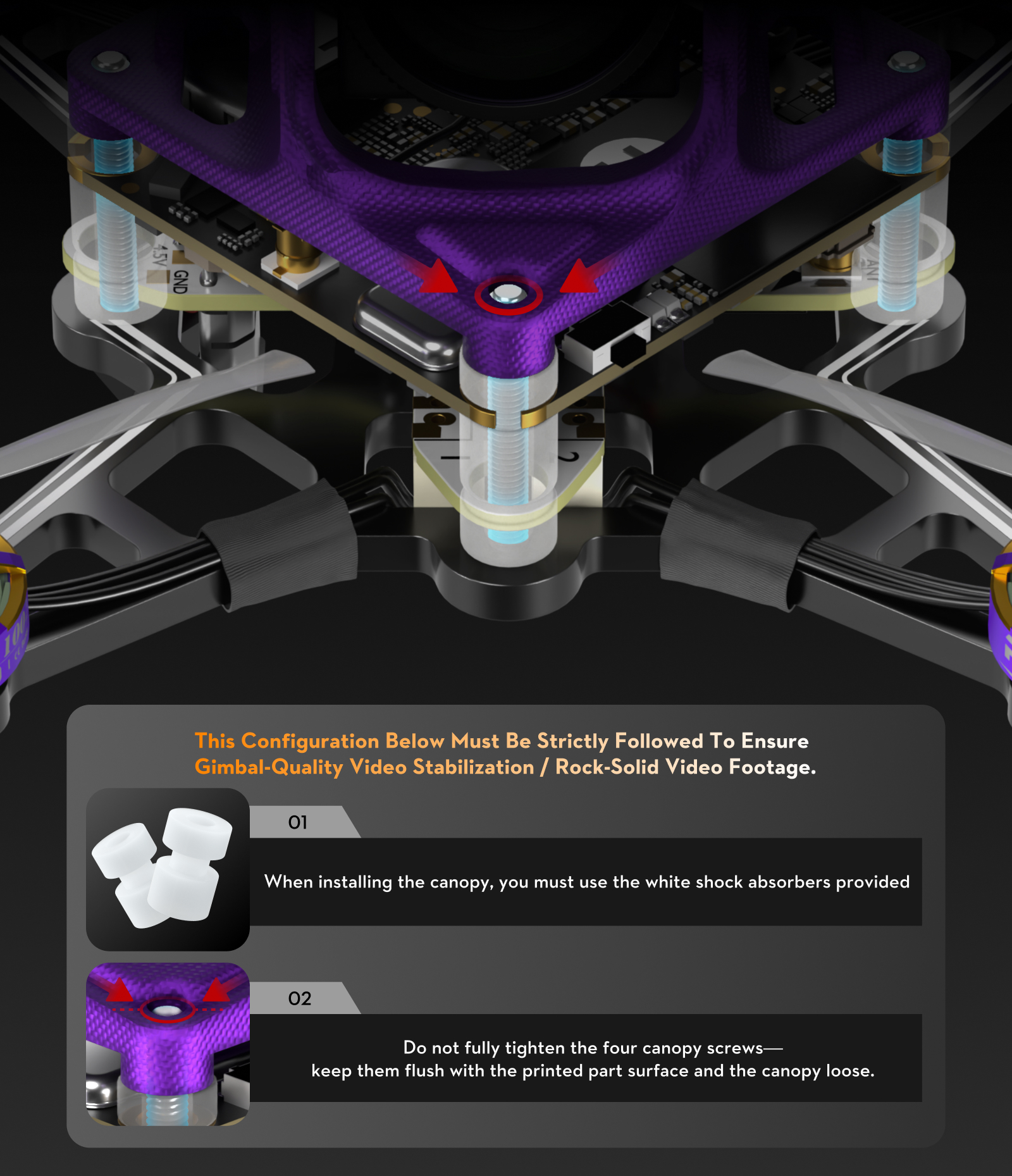

Note： the following two tips when you install Firefly 16 / 18 O4 version.
.jpg?w=1600&h=1859)
About this product

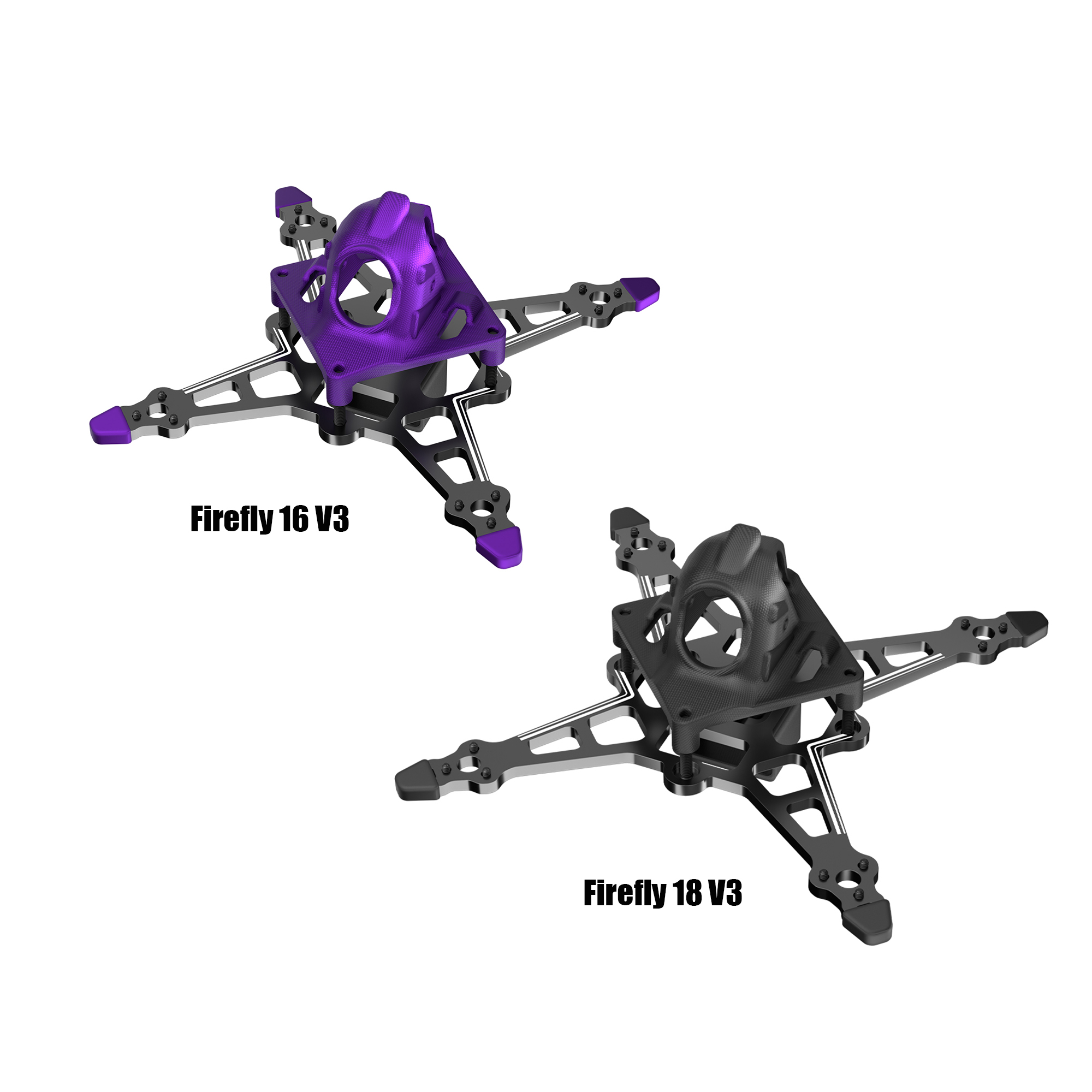

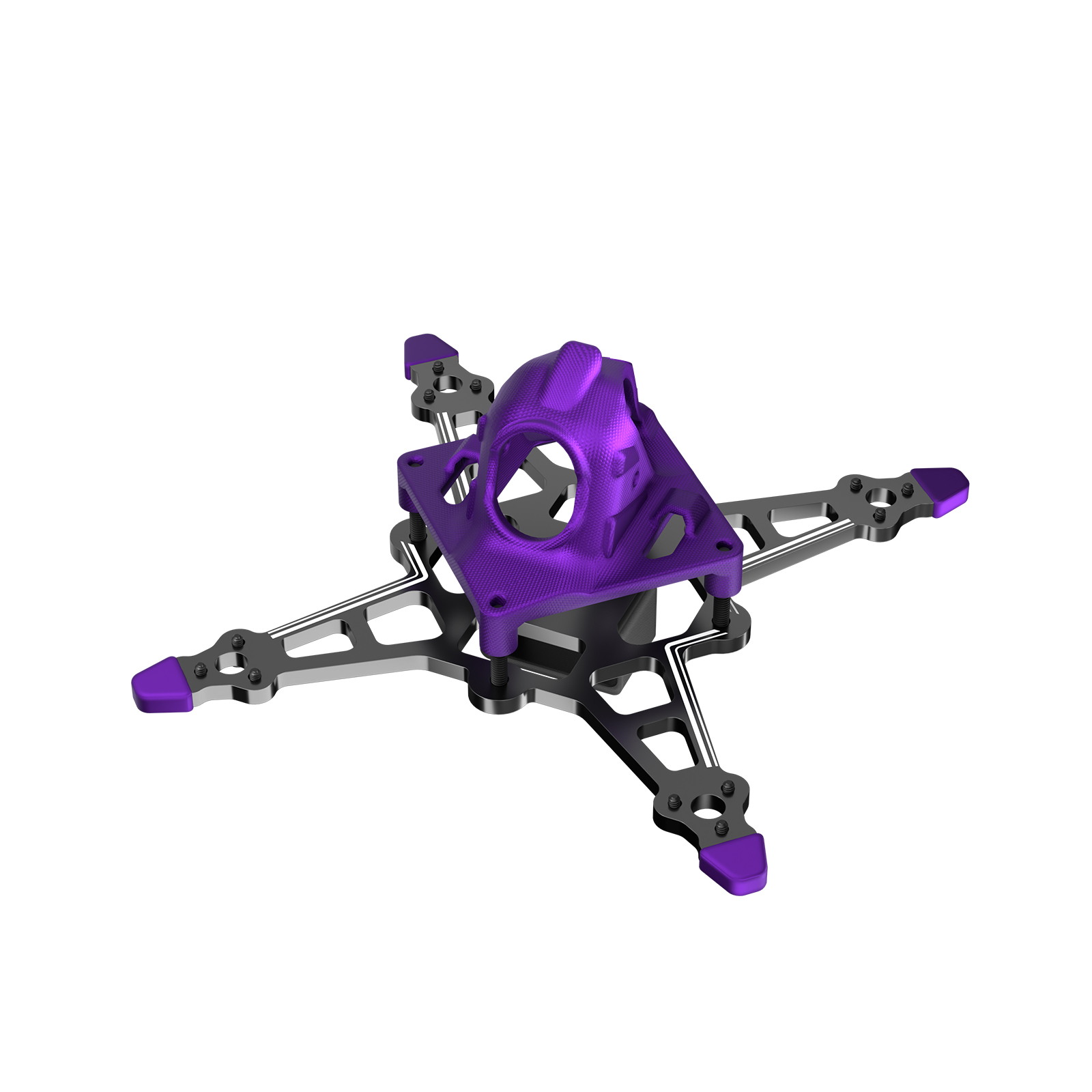

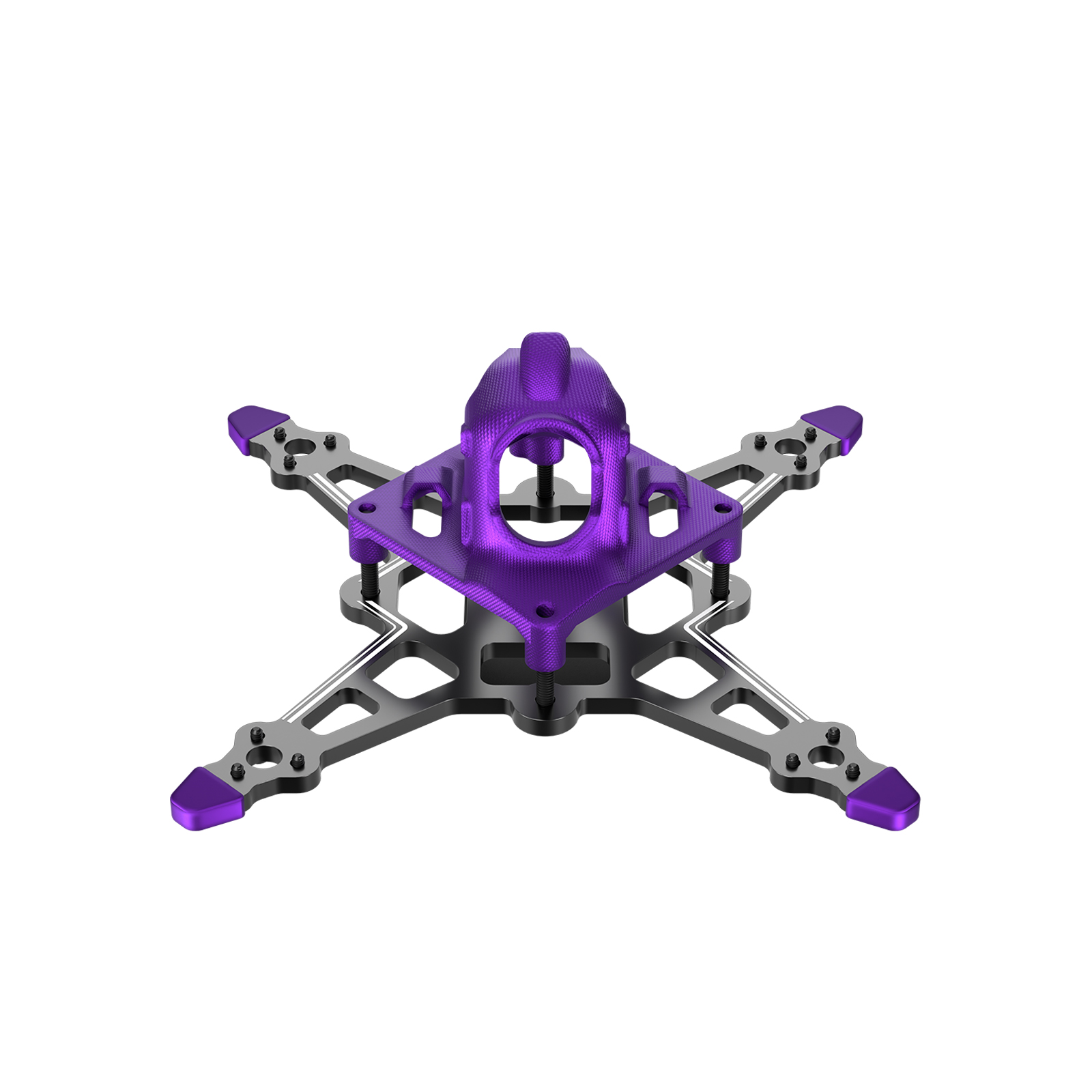

The Firefly 16/18 1S Nano Baby V3 Frame Kit, developed by FLYWOO, is an ultra-lightweight and compact frame solution designed for micro drones. It offers flexible size options (16 or 18 versions), enabling you to build high-performance Nano Baby-class drones with ease.
Specifications:
| Brand | FLYWOO |
| Model | Firefly16 / 18 1S V3 |

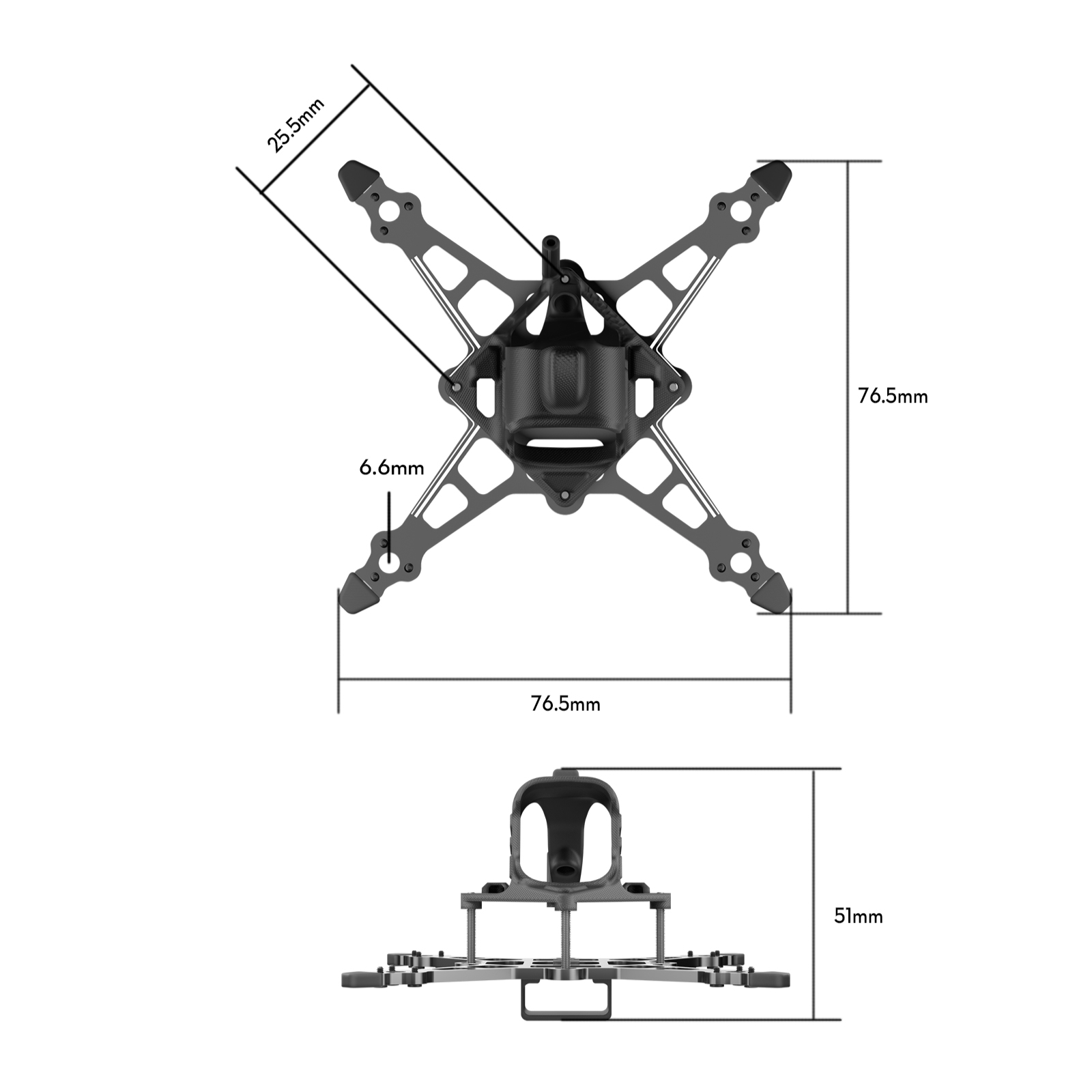

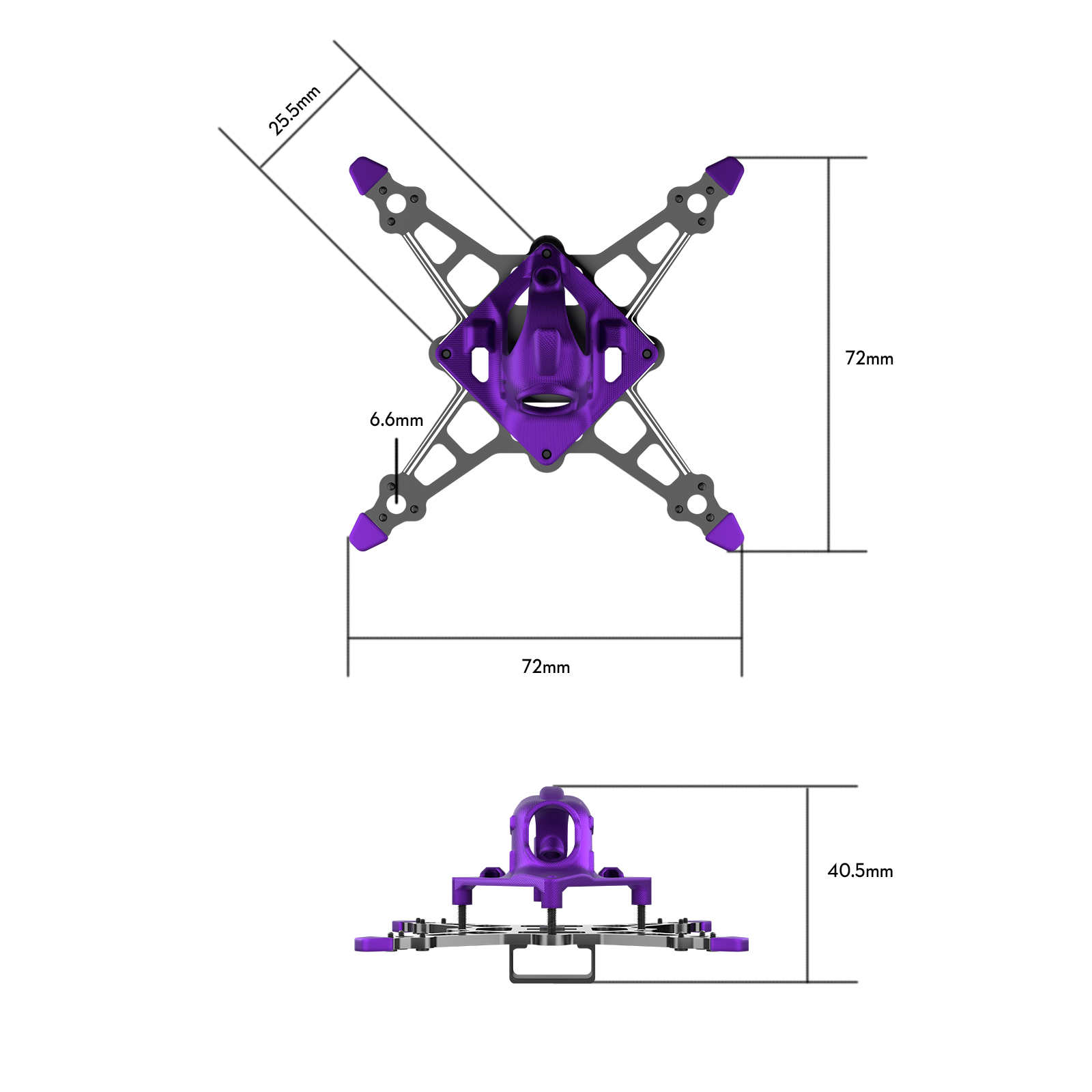

| Main Board Thickness | 2mm |
| Flight Control Hole Position | 25.5x25.5mm |
| Motor Position | 6.6mm |
|
Propeller Size
|
40mm x3 (16 ) / 45mm x2 (18)
|

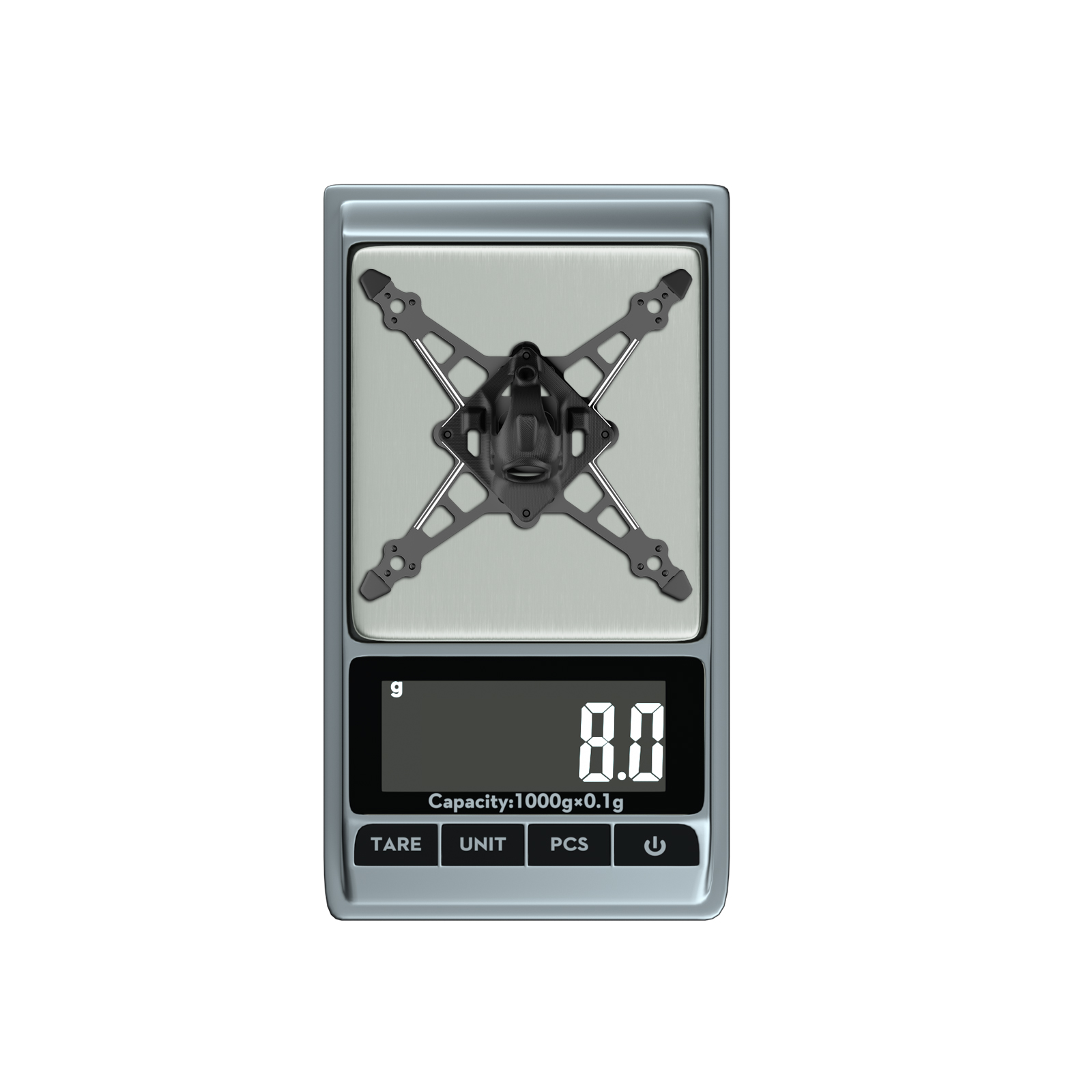

| Weight |

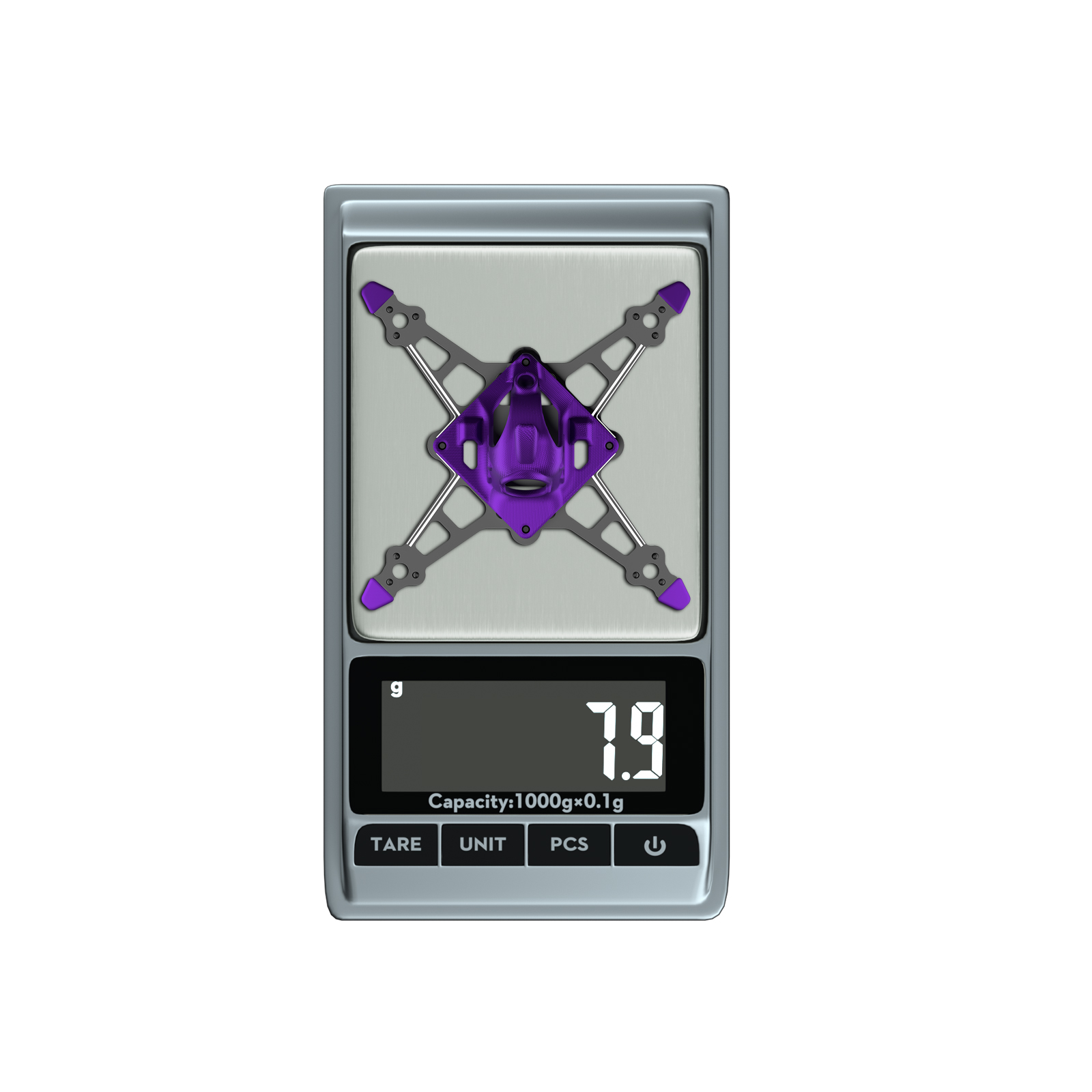

7.9g(16) / 8g(18)
|
Recommmend Configur16ation :
| Model | Firefly18 1S Nano Baby V3 Analog Tiny Drone |
| Frame | Firefly18 1S Nano Baby V3 O4 Frame kit |
| Electronic | |
| Transmission | GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO |
| Camera | Flywoo 1S Nano Camera V3 |
| Propeller | |
| Motor | |
|
Battery Connector
|
A30
|
| Model | Firefly16 / 18 1S Nano Baby V3 O4 Tiny Drone |
| Frame | Firefly16 / 18 1S Nano Baby V3 O4 Frame kit |
| Electronic | |
| Transmission | DJI O4 Air unit |
| Camera | DJI O4 Camera |
| Propeller | |
| Motor | |
|
Battery Connector
|
A30
|
| Model | Firefly 16 / 18 1S Nano Baby V3 HDZero Tiny Drone |
| Frame | Firefly16 / 18 1S Nano Baby V3 HDZero Frame kit |
| Electronic | GOKU F405 HD 1S 1S 5A ELRS AIO |
| Transmission | HDZero Whoop Lite VTX |
| Camera | HDZero Nano V3 Camera |
| Propeller | |
| Motor | |
|
Battery Connector
|
A30
|
| Model | Firefly 16 / 18 1S Nano Baby V3 Walksnail Tiny Drone |
| Frame | Firefly16 / 18 1S Nano Baby V3 Walksnail Frame kit |
| Electronic | GOKU F405 HD 1S 1S 5A ELRS AIO |
| Transmission | Walksnail Avatar HD Mini 1S VTX |
| Camera | Walksnail Avatar HD Nano Camera |
| Propeller | |
| Motor | |
|
Battery Connector
|
A30
|
