Purpose-built for HD digital FPV. Shared dual-platform design for 2-inch high-speed racing and 2.5-inch long-endurance freestyle, breaking the boundaries between frame types.

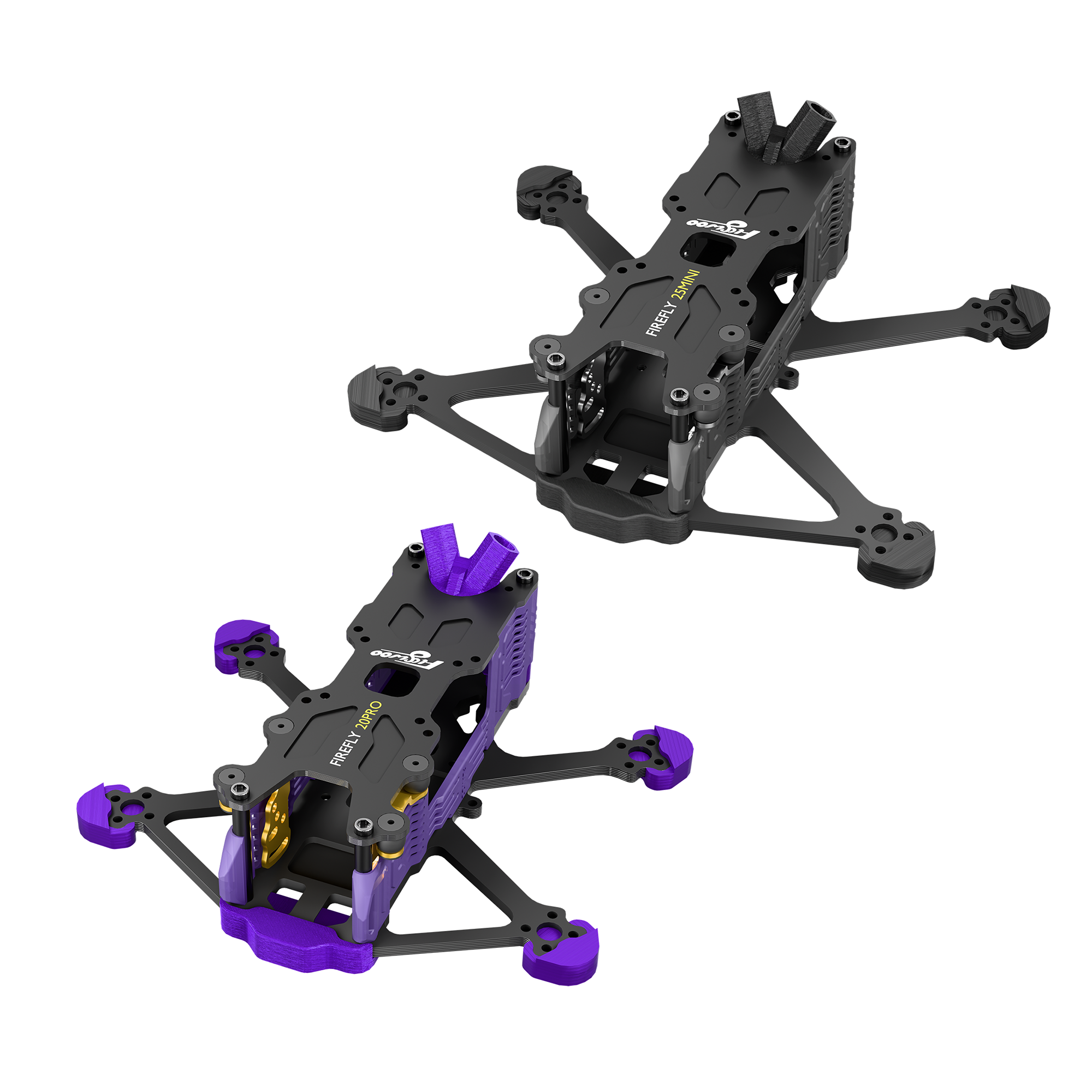

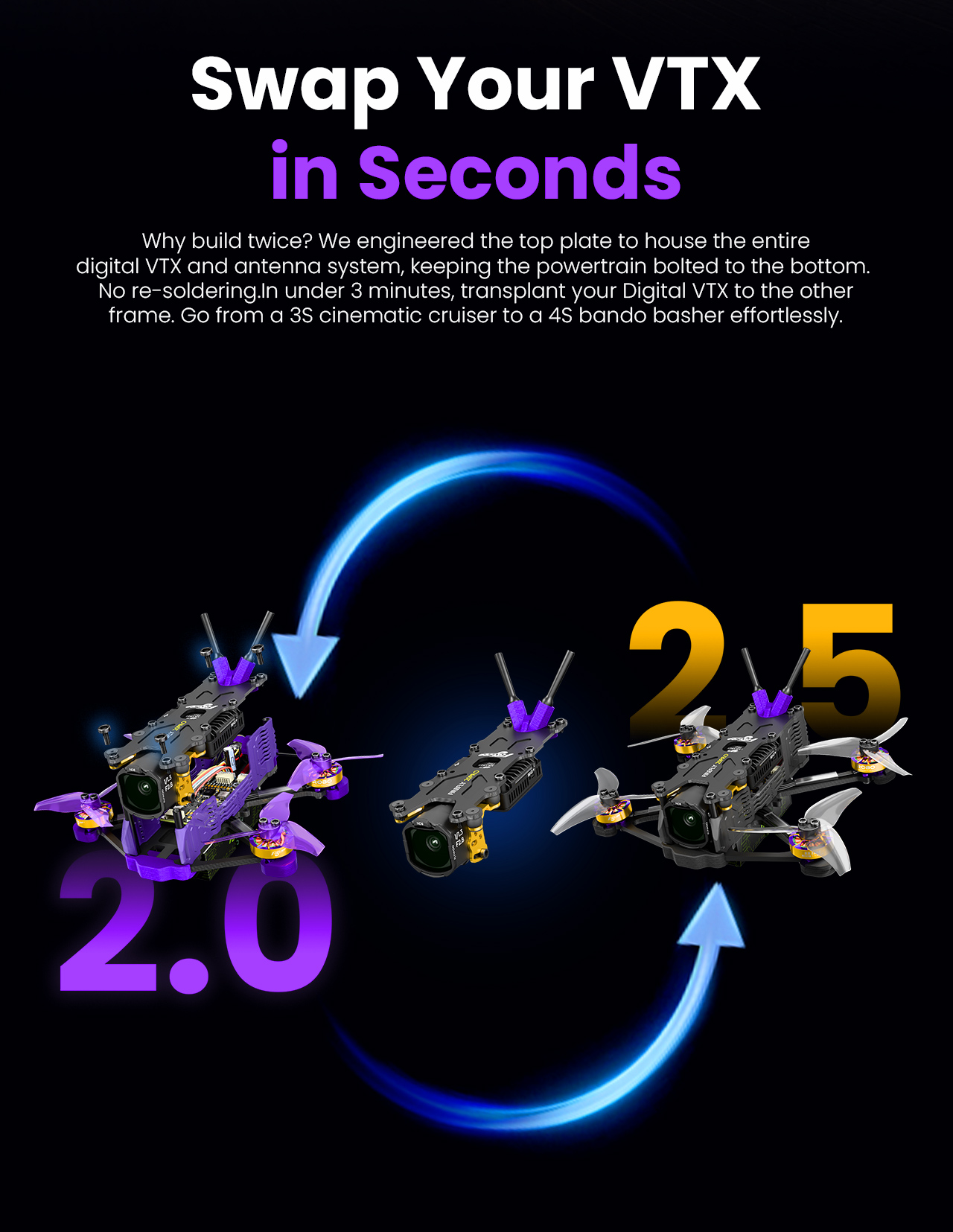

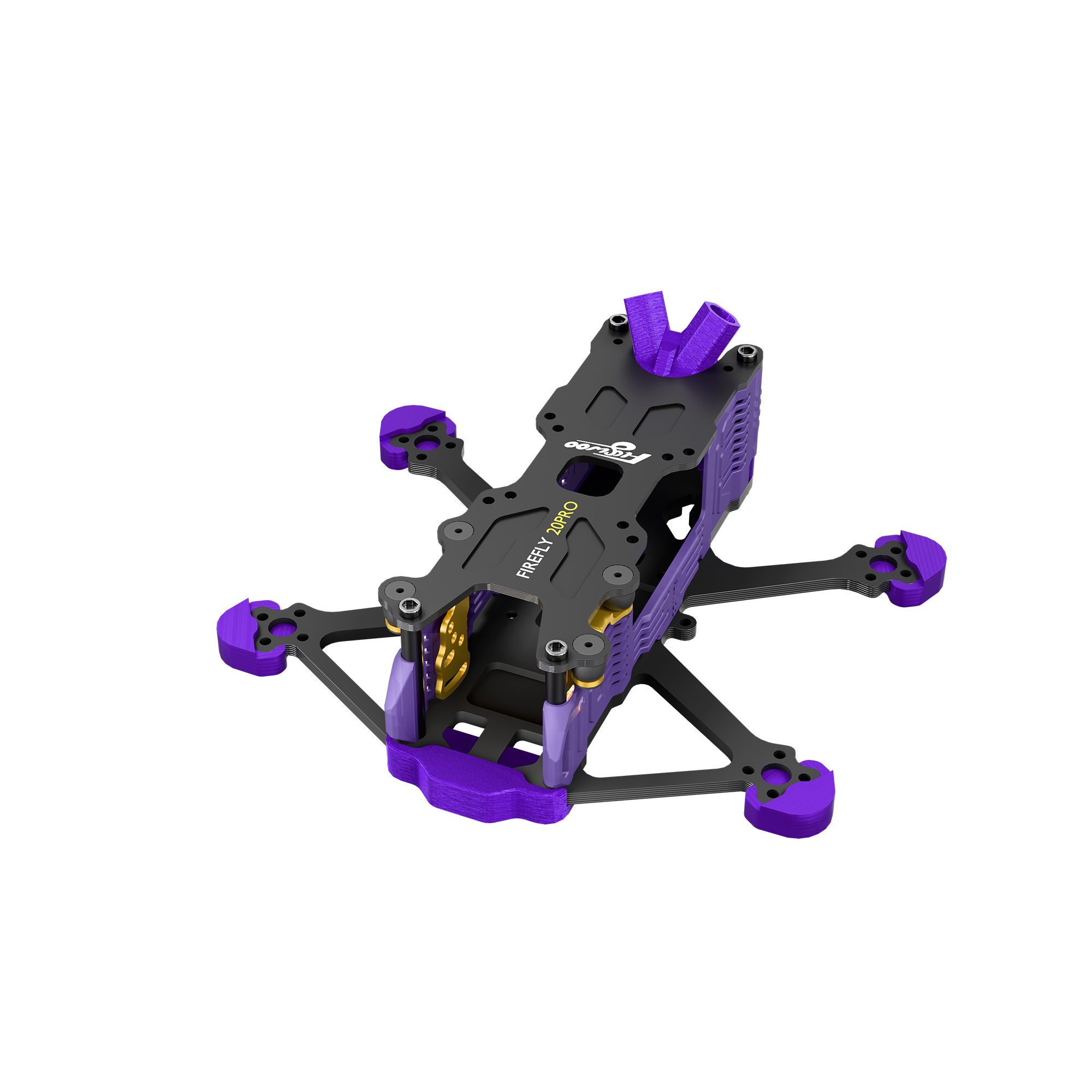

The Firefly 20PRO/25MINI is a dual-format micro FPV frame tailored for pilots. Designed with the core philosophy of "lowering the entry barrier, reducing duplicate investments, and improving crash resilience," it perfectly fits DJI O4 / O4 PRO / Walksnail / HDZero digital FPV systems. One HD VTX setup can be seamlessly swapped between the 2-inch racing and 2.5-inch freestyle builds.

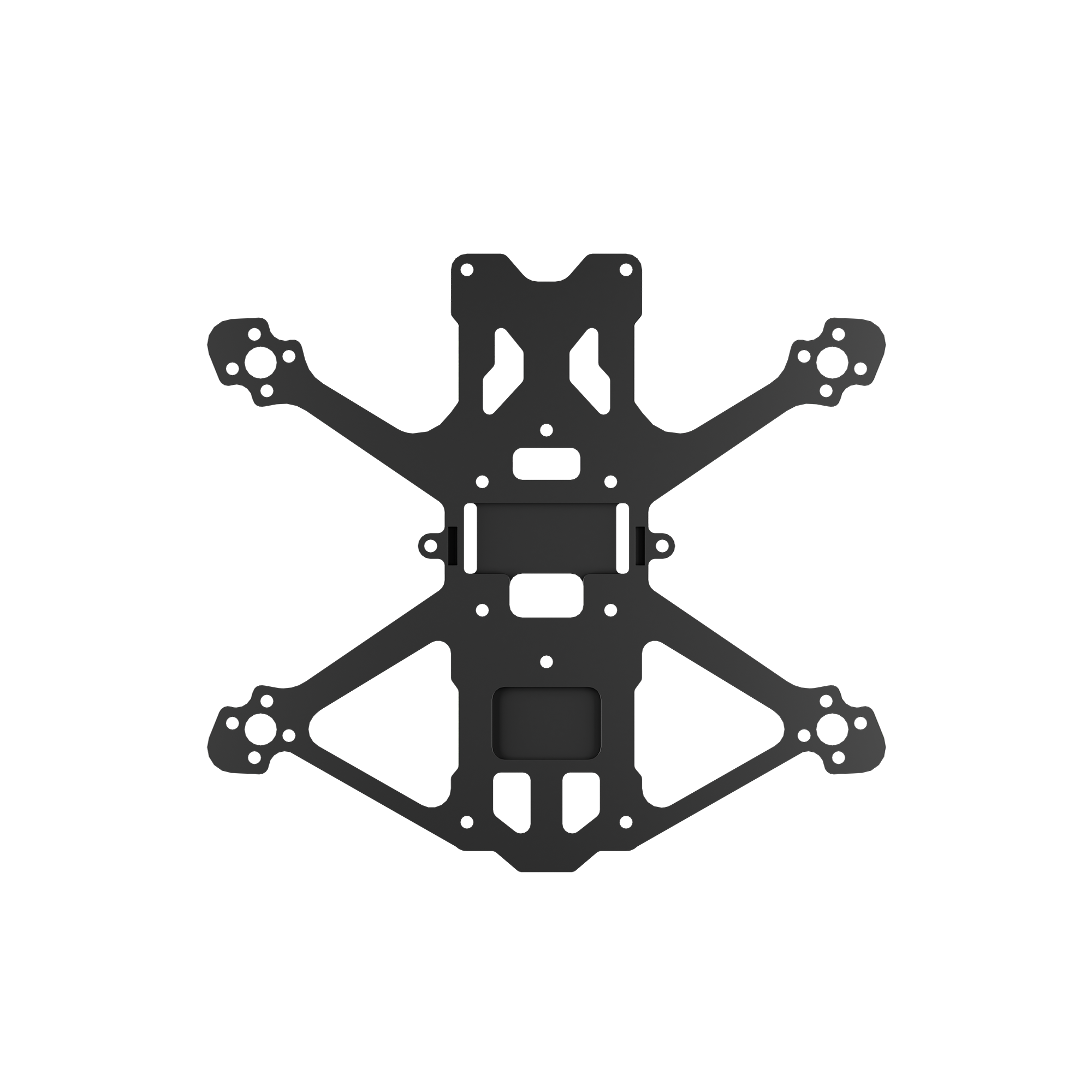

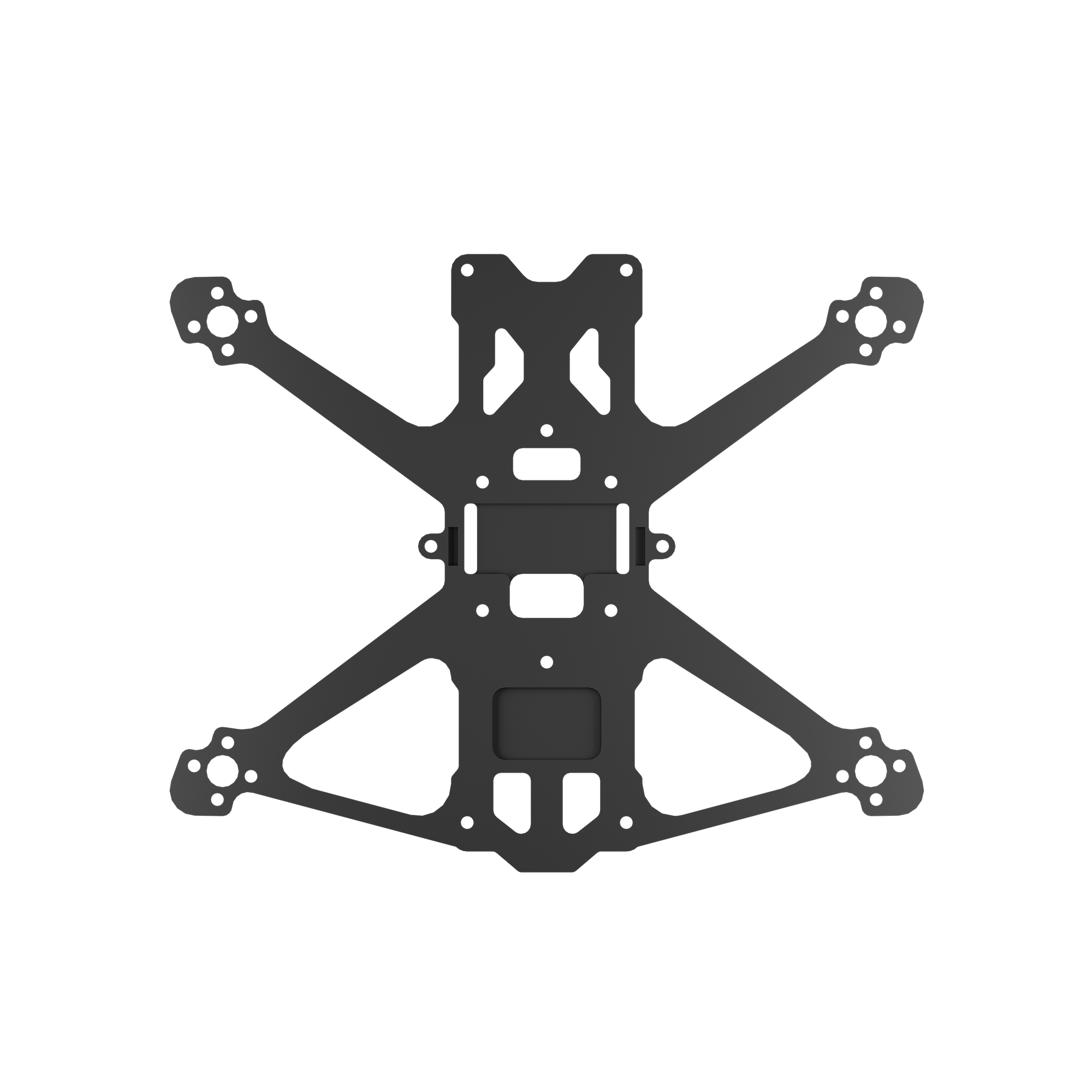

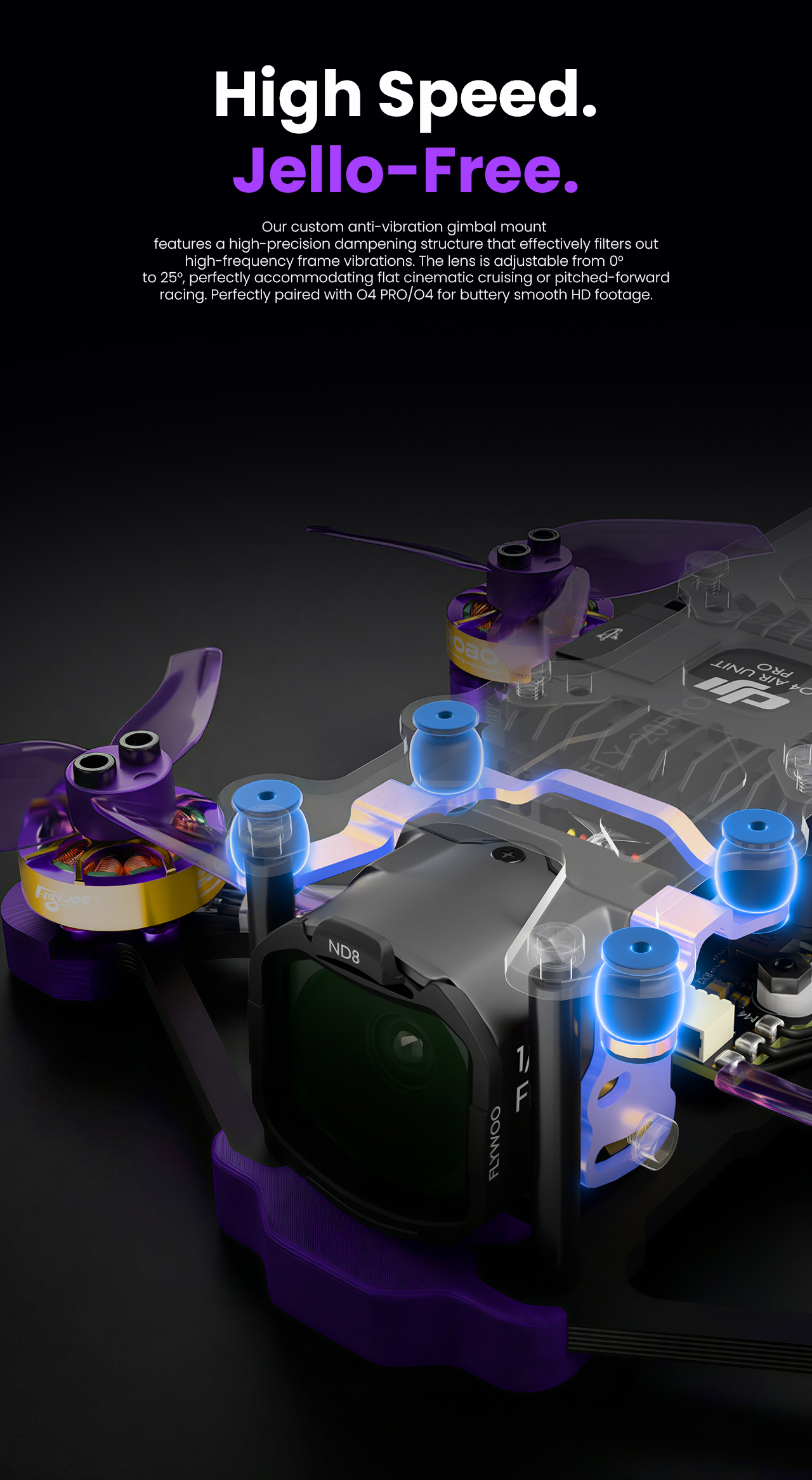

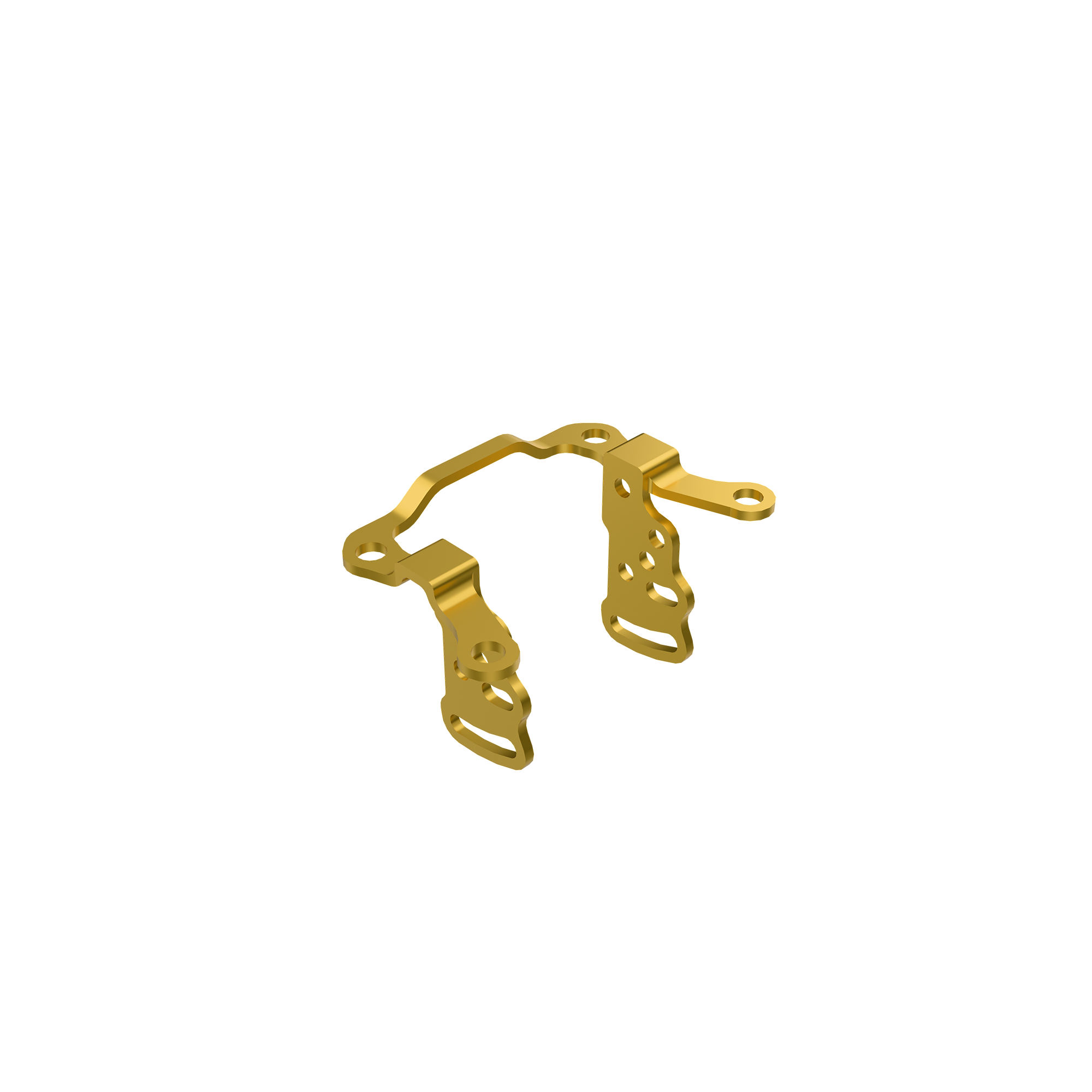

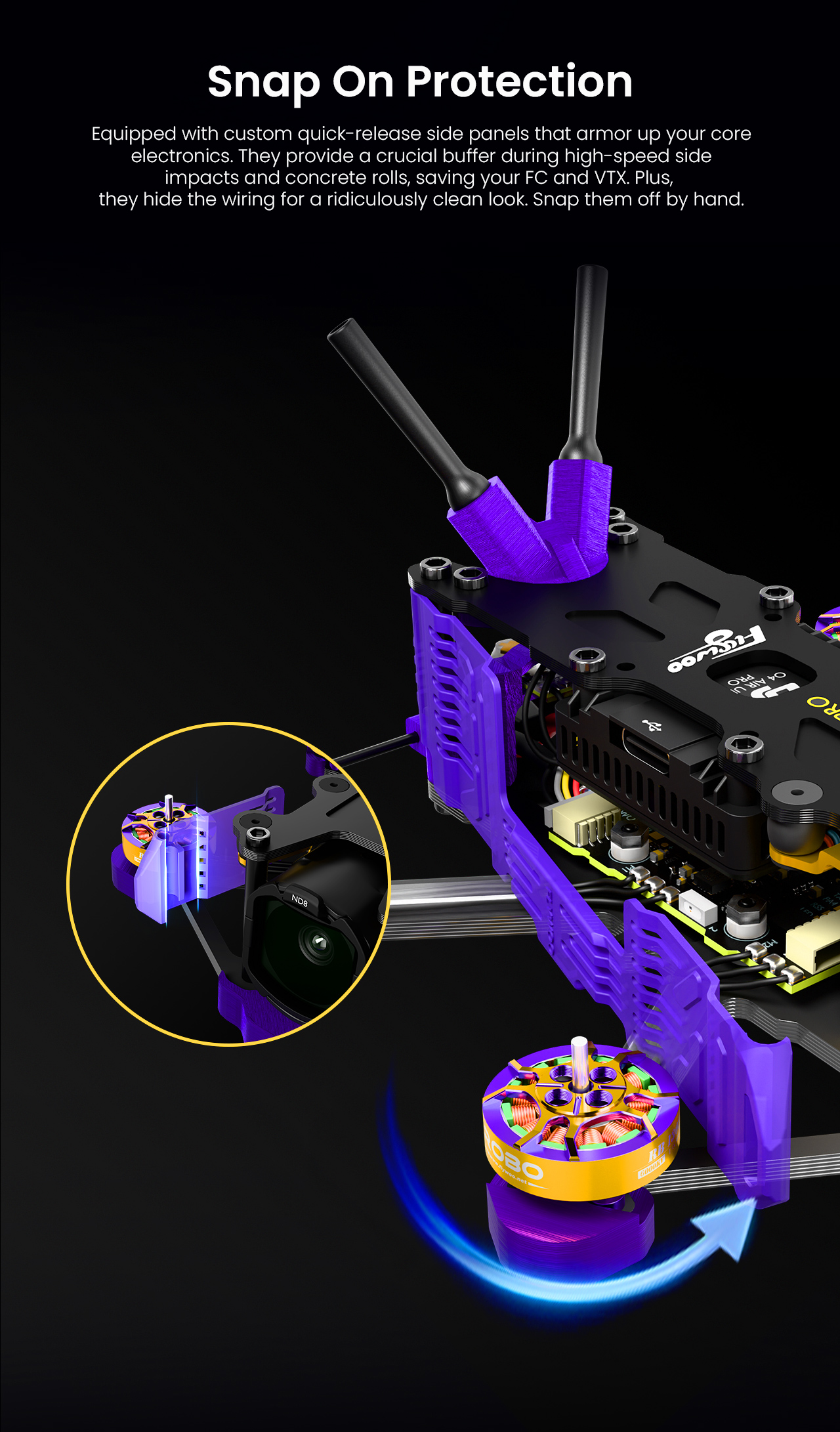

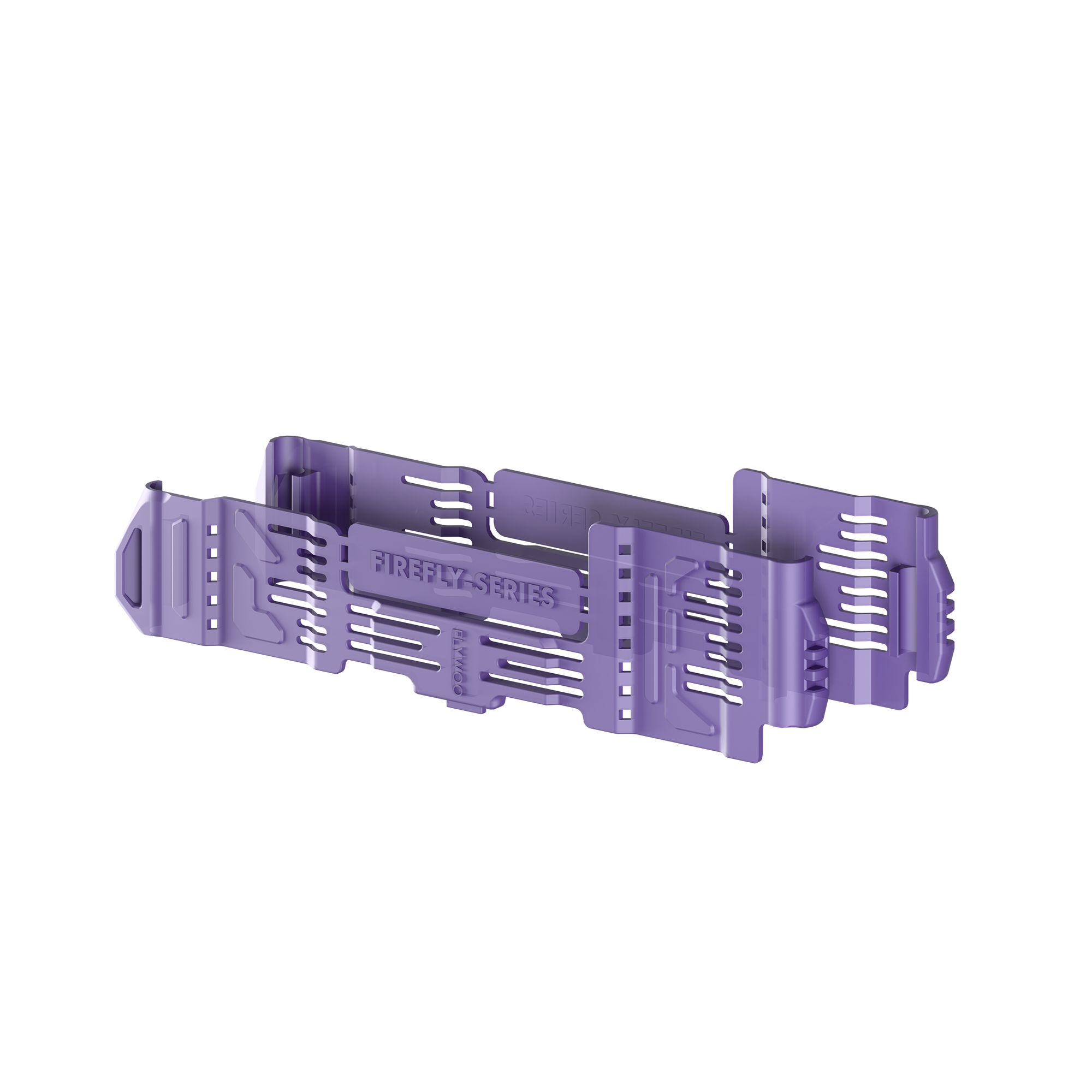

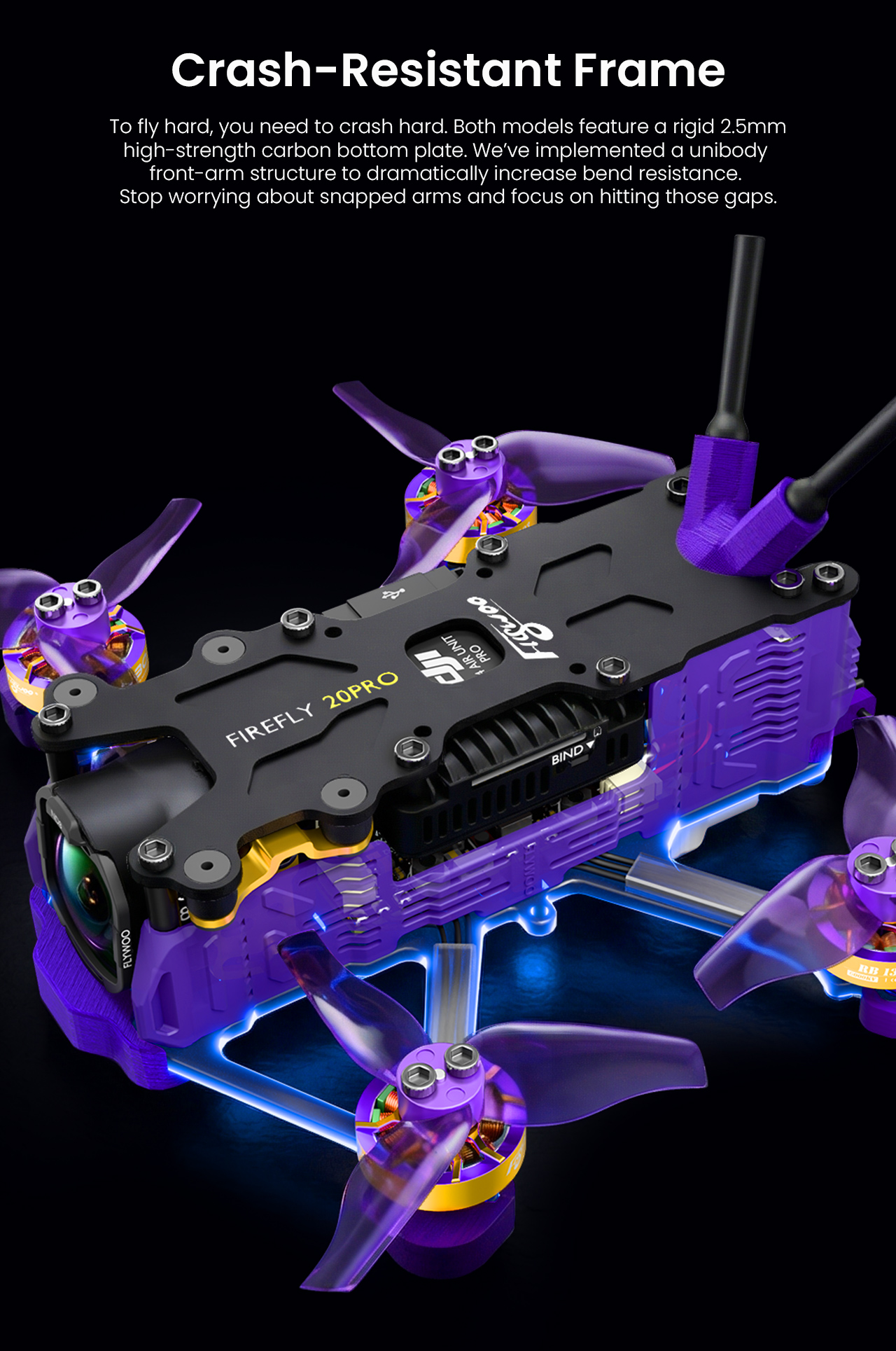

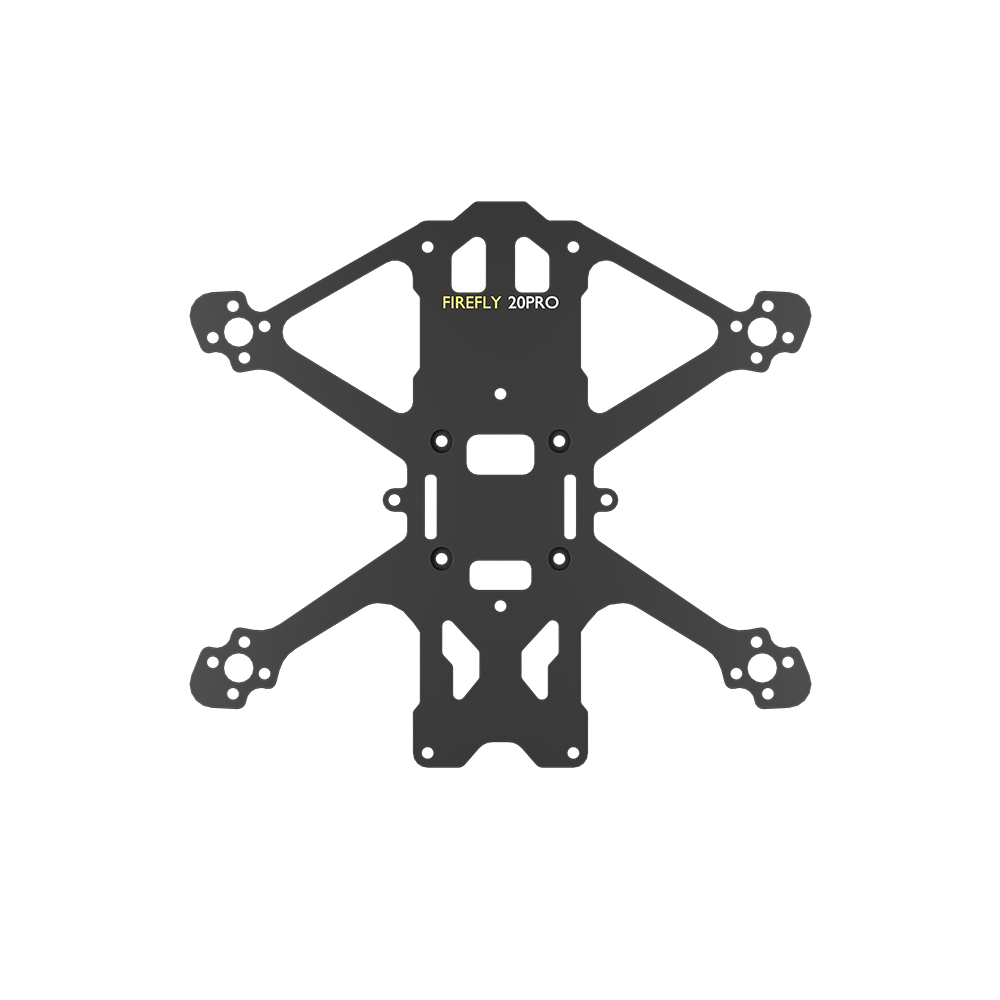

Crafted from high-strength carbon fiber, featuring a 2.5mm thickened base plate combined with reinforced front arm structures, ensuring ultra-high rigidity and impact resistance while maintaining extreme lightness. From the tool-free quick-release side guards and clean wiring layout to the adjustable shock-dampening camera mount, it comprehensively covers all flight scenarios from beginner entry-level to high-tier racing, letting every pilot focus purely on the flight.

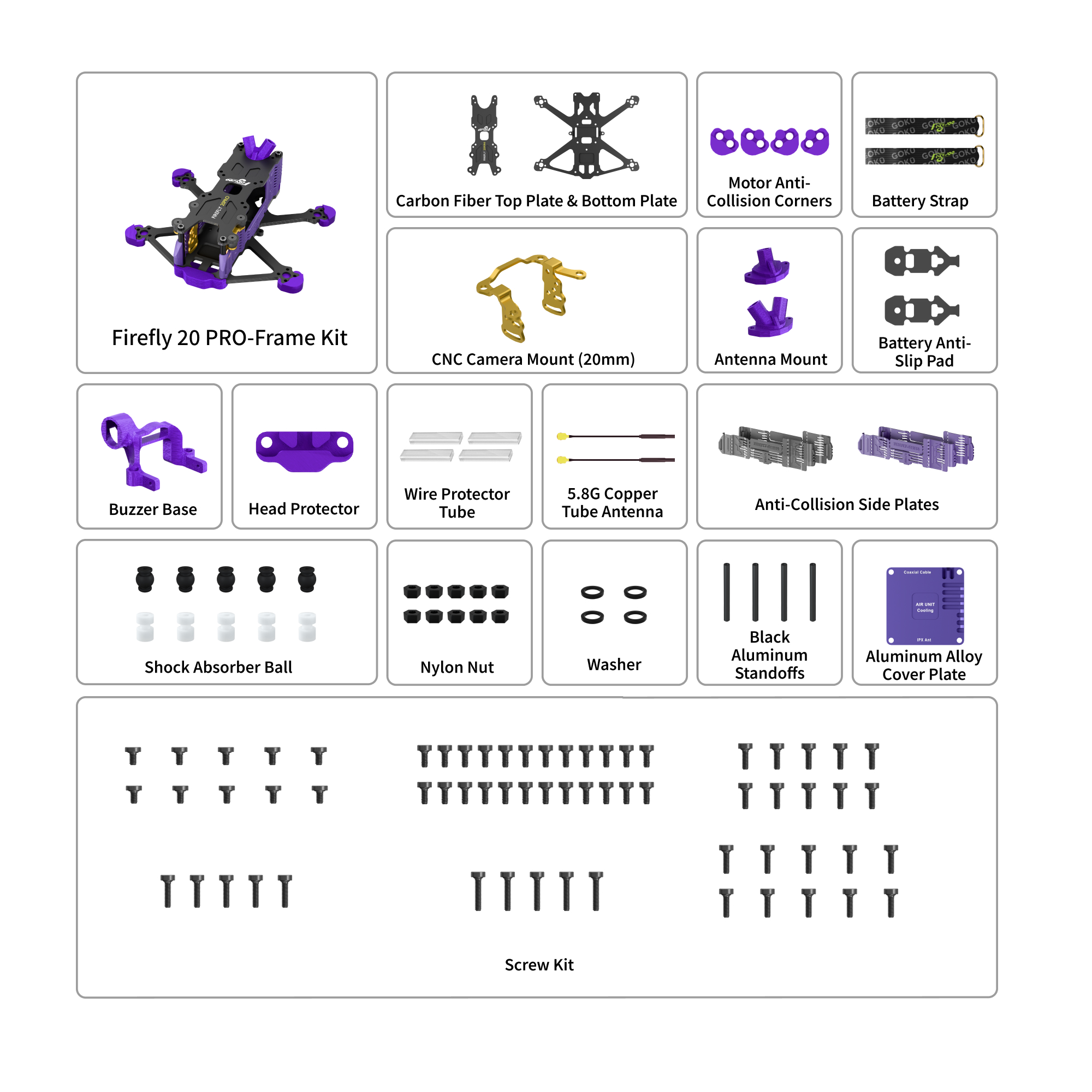

| Product Name | Firefly 20PRO Frame Kit |

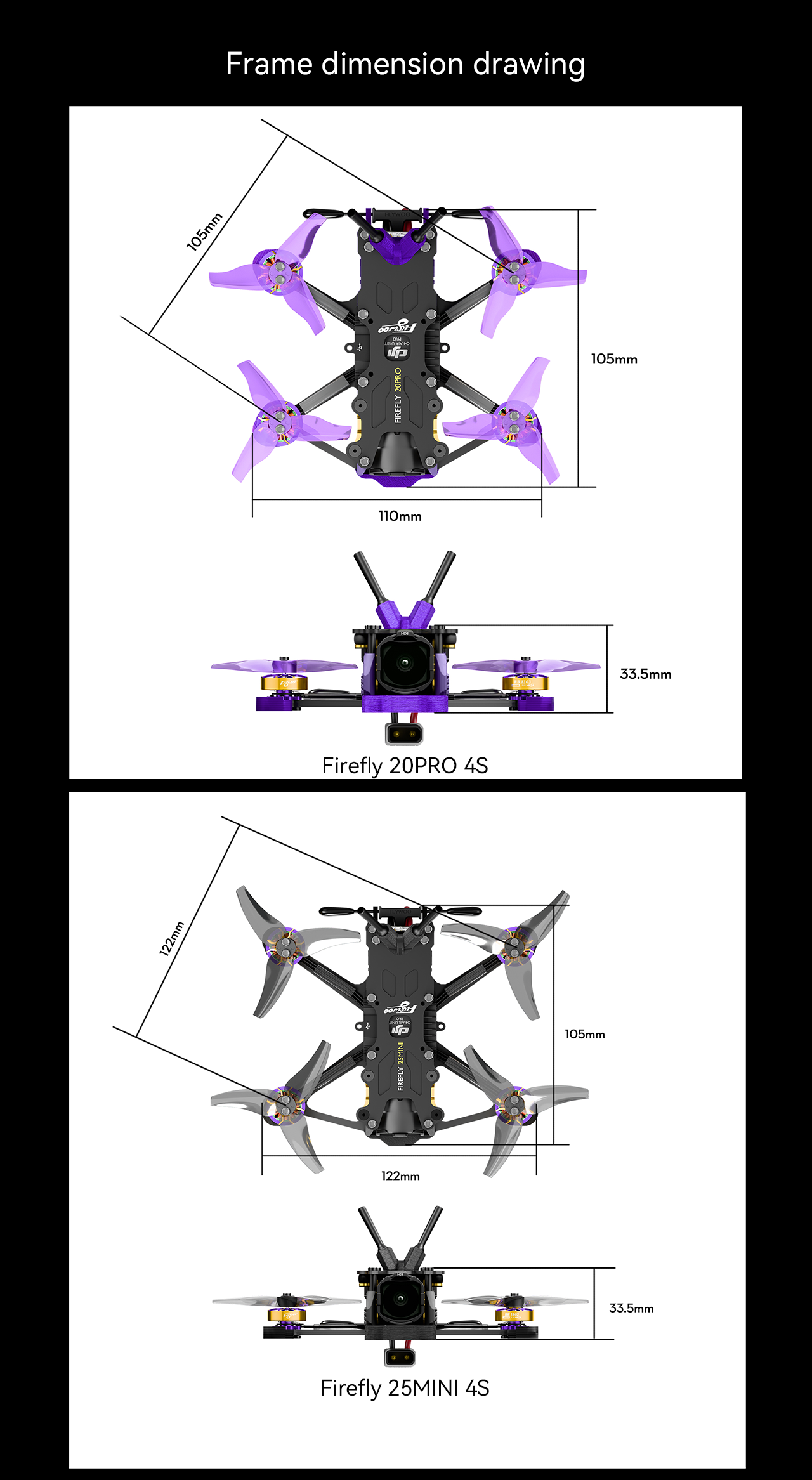

| Dimensions | 110mm*105mm*33mm |
| Wheelbase | 105mm |
| FC Mount Hole | 20*20mm |
| VTX Mount Hole |
20*20mm / 25.5*25.5mm
|
| Motor Mount Hole |
4-M2-φ9mm
|
| Weight |
26g
|
| Propeller |

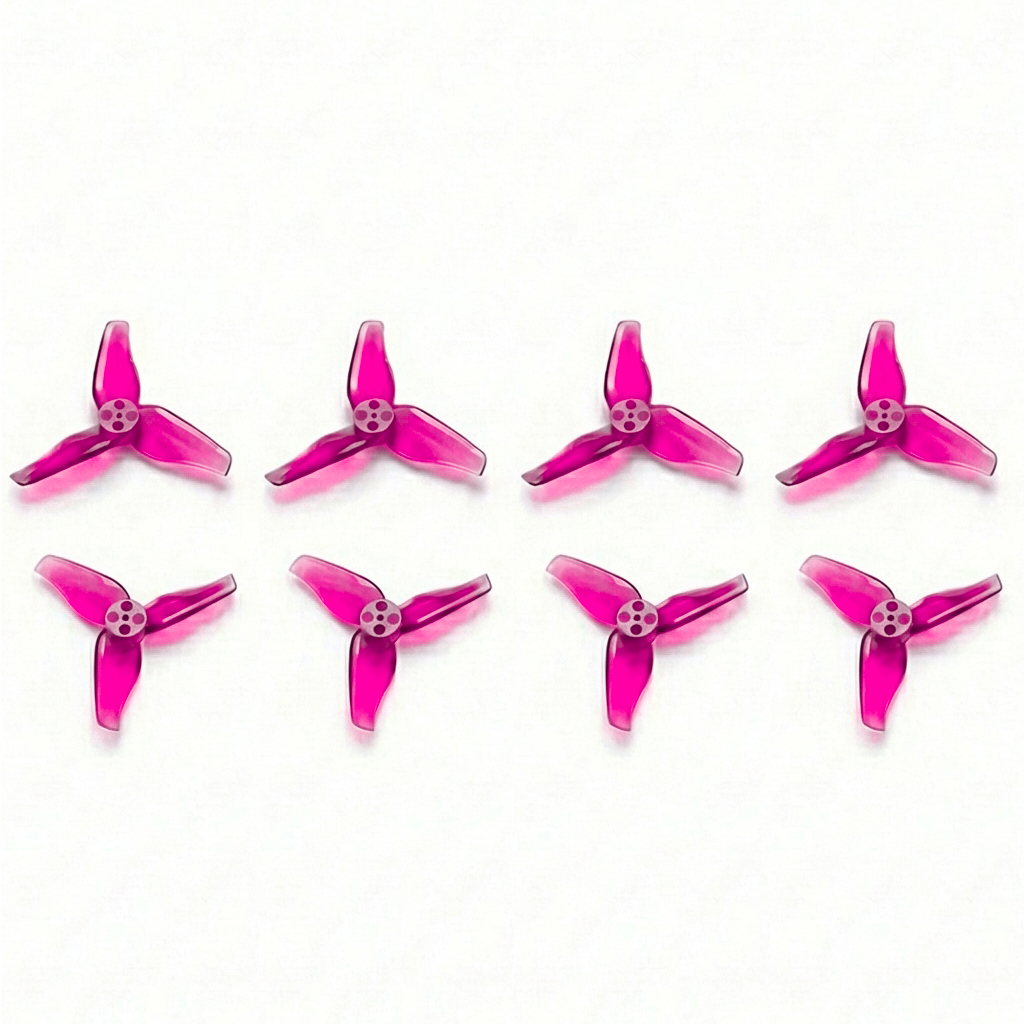

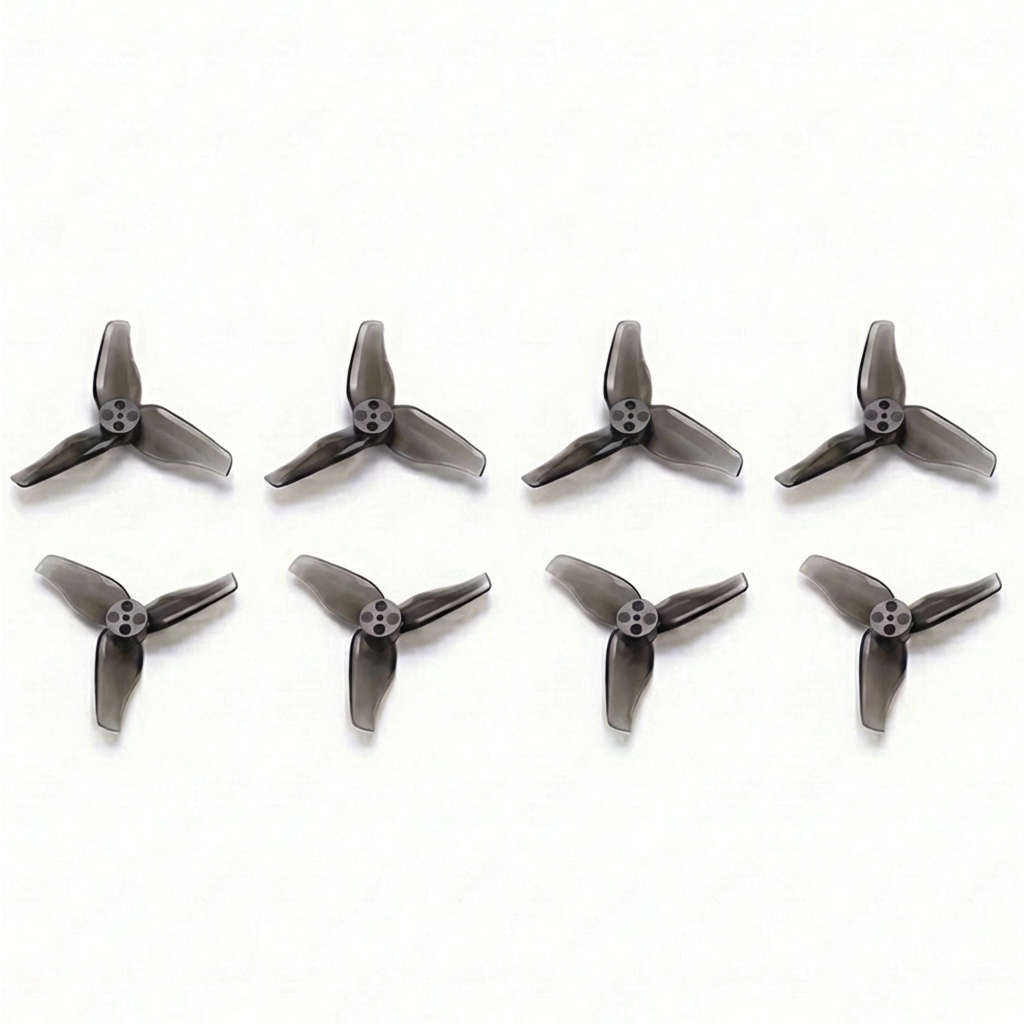

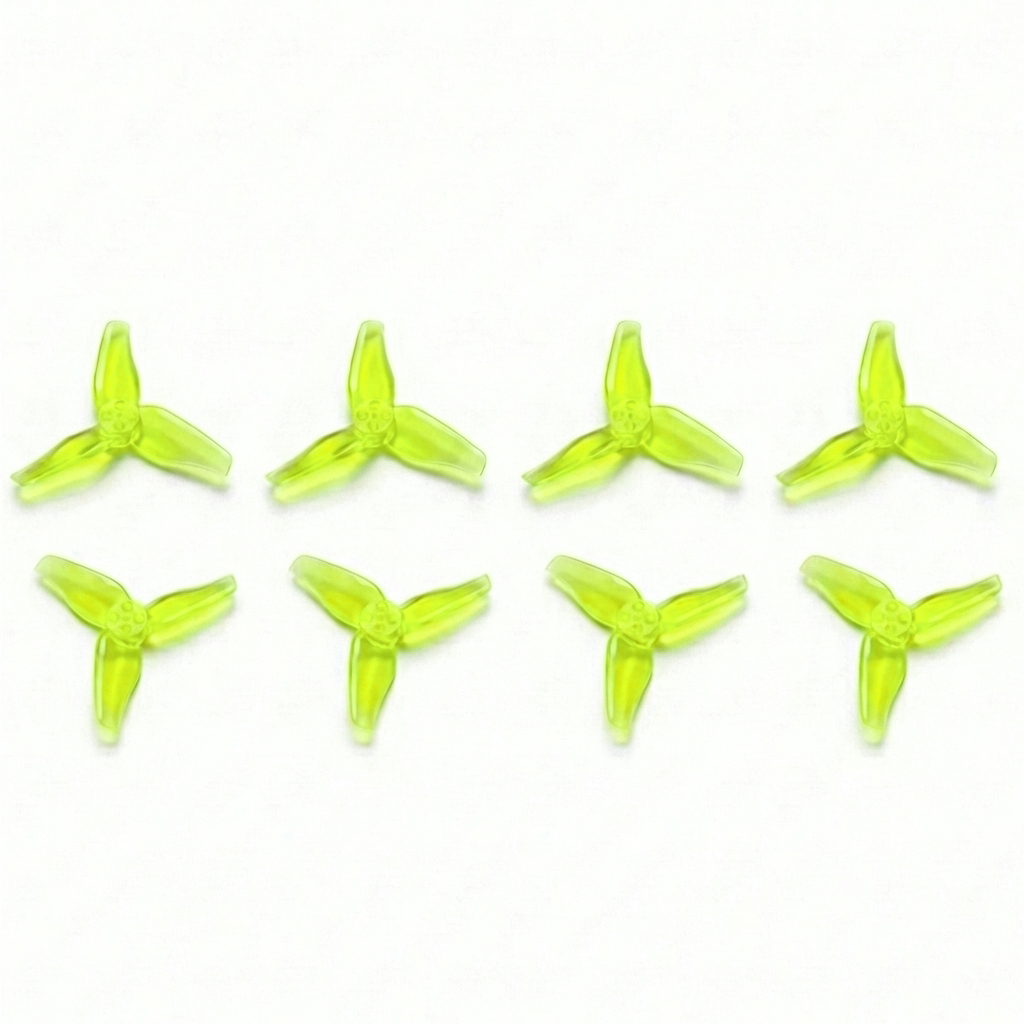

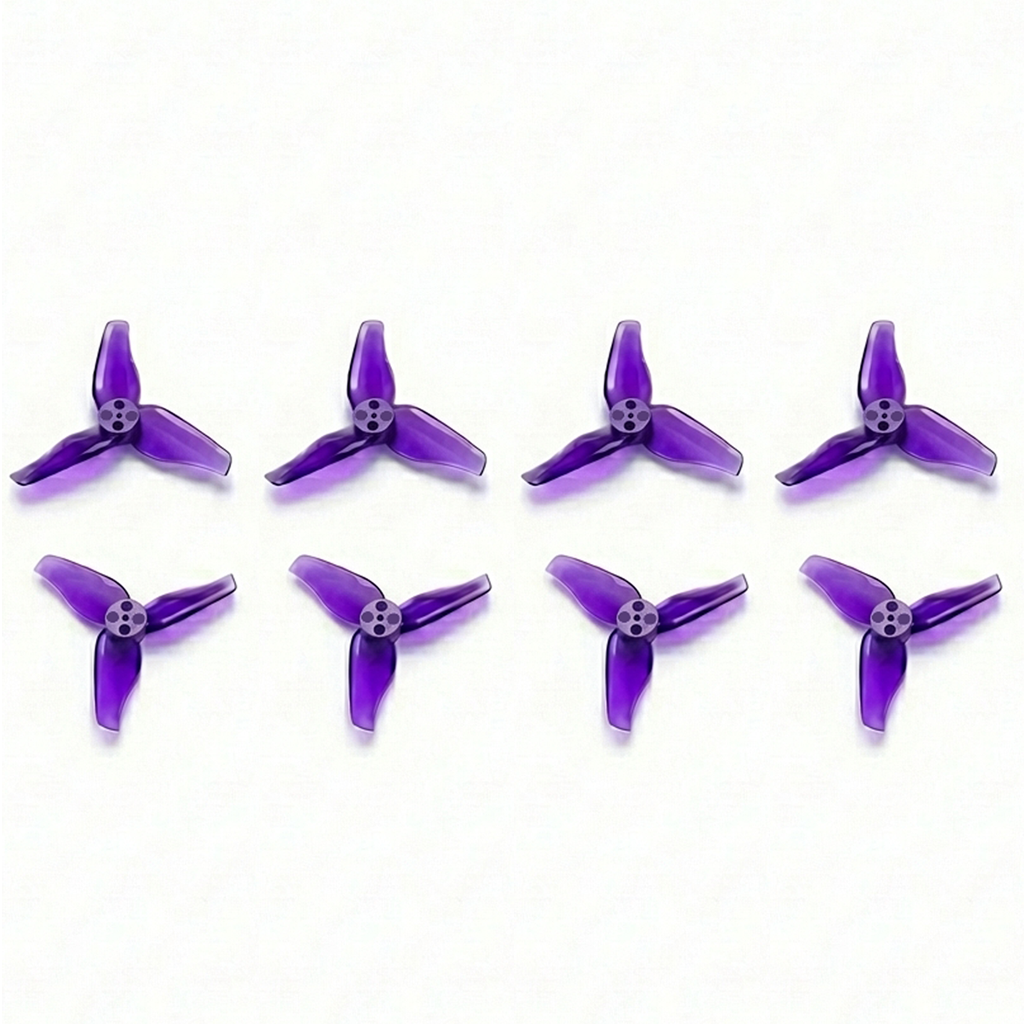

Gemfan 2023-3 3-Blade Prop
|
| FC & ESC | |
| Motor | |
| HD System | |
| Receiver | |
| Recommended Battery |
Flywoo 4S 450mAh LiHV / 4S 750mAh LiHV
|

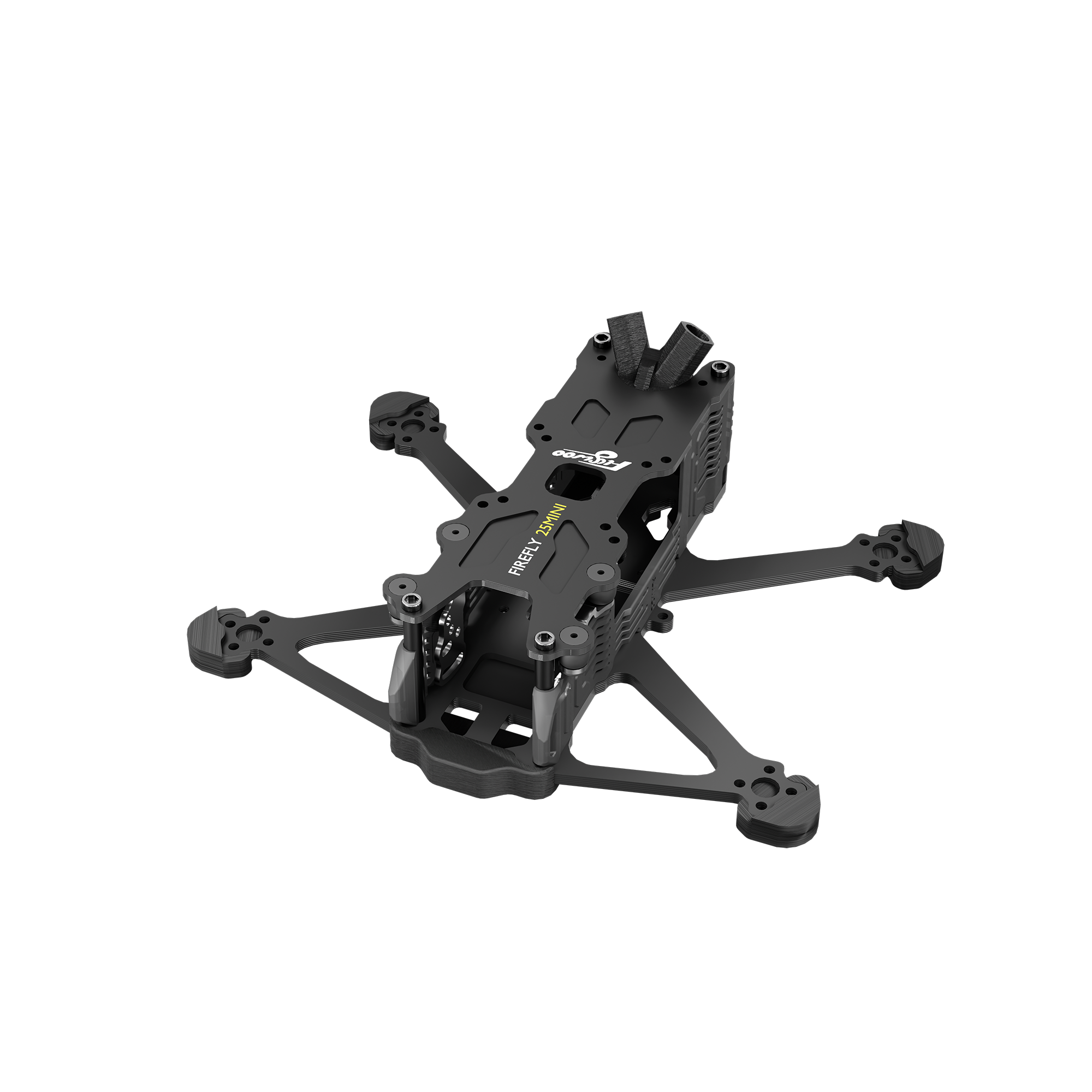

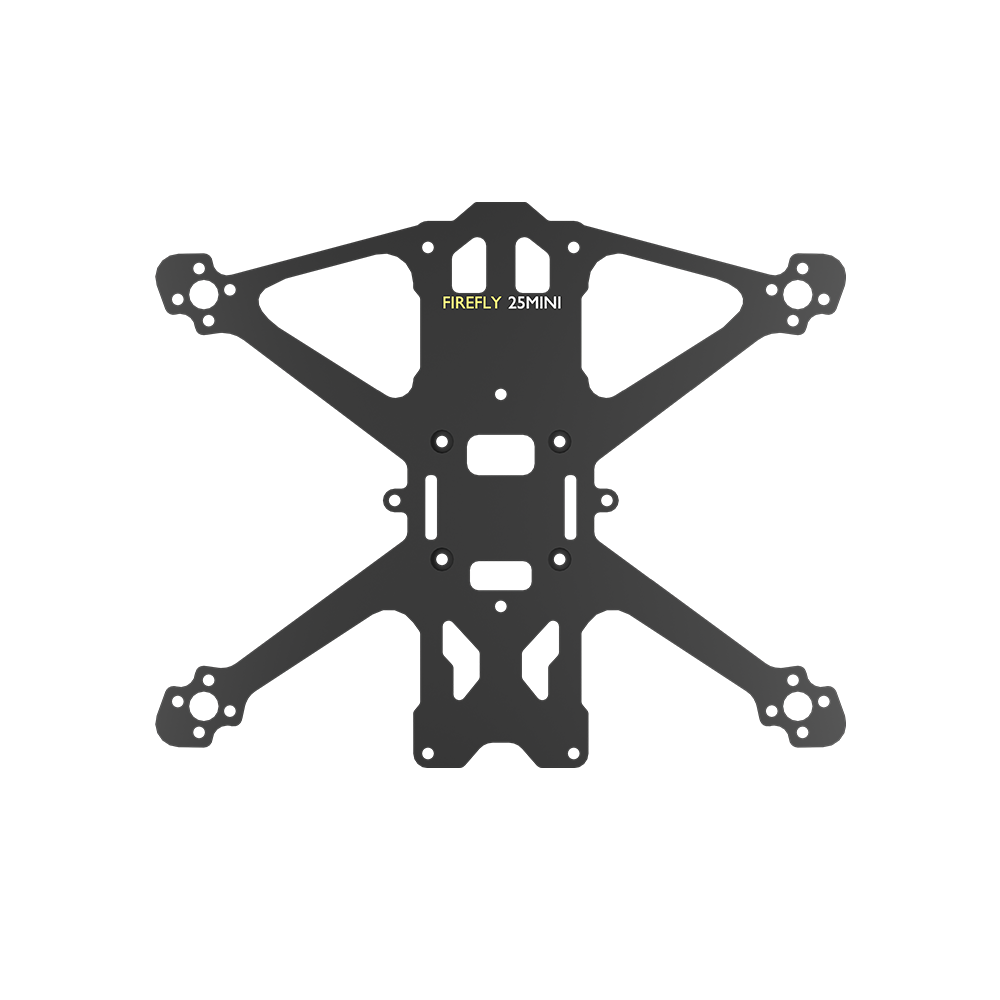

| Product Name | Firefly 25MINI Frame Kit |
| Dimensions | 122mm*105mm*33mm |
| Wheelbase | 122mm |
| FC Mount Hole | 20*20mm |
| VTX Mount Hole |
20*20mm / 25.5*25.5mm
|
| Motor Mount Hole |
4-M2-φ9mm
|
| Weight |
27g
|
| Propeller |
Gemfan 2520-3 3-Blade Prop
|
| FC & ESC | |
| Motor | |
| HD System | |
| Receiver | |
| Recommended Battery |
|
