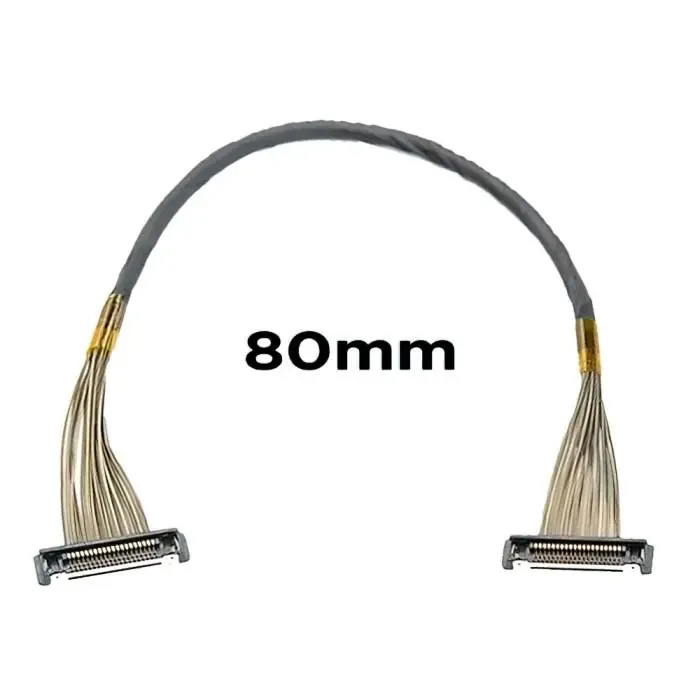

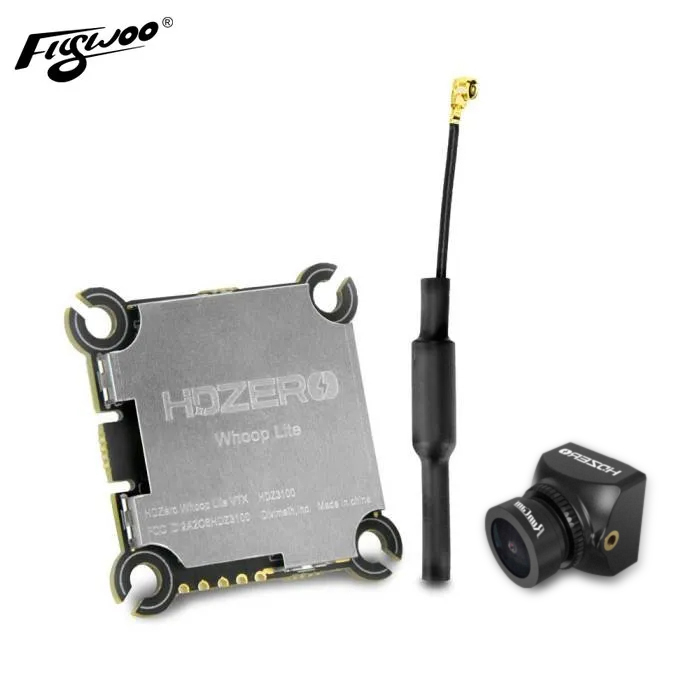

This set is composed of HDZero Whoop Lite VTX and Runcam Micro HD Cam v2. It uses a frame with a 20mm lens hole position. The coaxial cable for the camera suction uses a length of 80, which is very practical for micro drones.
Specifications
HDZERO WHOOP LITE VTX
- Mounting Pattern: 25.5x25.2 M2 (soft mounting)
- Dimensions: 32.4x32.5mm (29x29mm inner)
- Video Connector: 20 Position 0.30mm Pitch
- Resolution Default: 1280*720@60fps
- Interface: 4-lane MIPI CSI YUV422
- RF Power: 25mw/200mw
- Smart Audio: Supported
- Power: 1000mA@5V
- Power input: 1S-3S
- RF Connector: U.FL
- Frequency: 5.8G
- Thickness: 4mm
- SKU: HDZ3100
- Weight: 4.5g
HDZERO Micro Cam V2
- Model Micro V2 HDZero
- Sensor Size 1/2 inch
- Resolution 720p60
- Sensitivity 10650mV/Lux-sec
- Shutter Rolling Shutter
- Operating Temperature 32˚F-104 ˚F (0˚-40˚C)
- Input Power 3.3V
- Power Consumption 0.5W
- Weight 8.5 g
- Dimensions 19x19x21mm
Includes
- 1x HDZero Micro V3 Camera
- 1x HDZero Whoop Lite VTX
- 1x Connecting Wire Set
- 1x Dipole Antenna
- 1x Hardware Set
- 1x MIPI Cable
- 4x Dampers
- 2x Zip Ties
