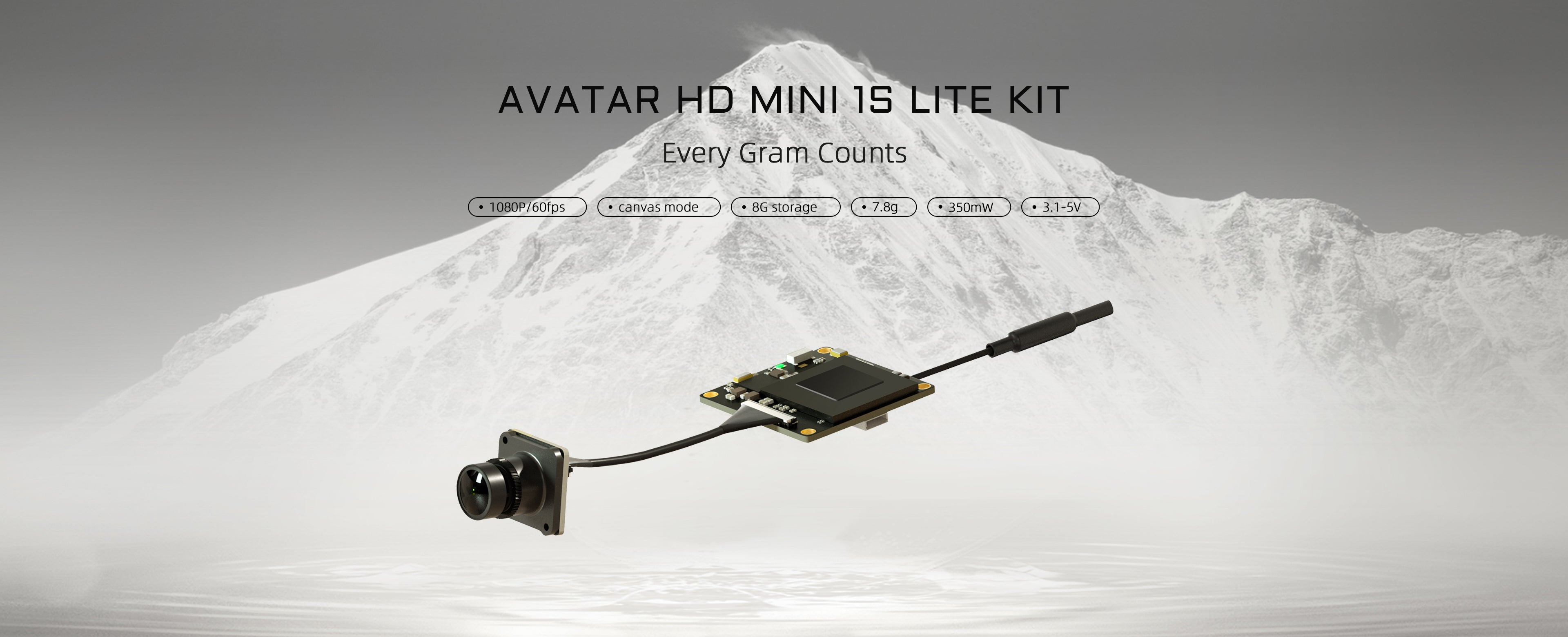

Walksnail Avatar HD mini 1s lite kit


Price:
$89.99
Stock:
In stock
  • Description
  • Reviews
  • Description

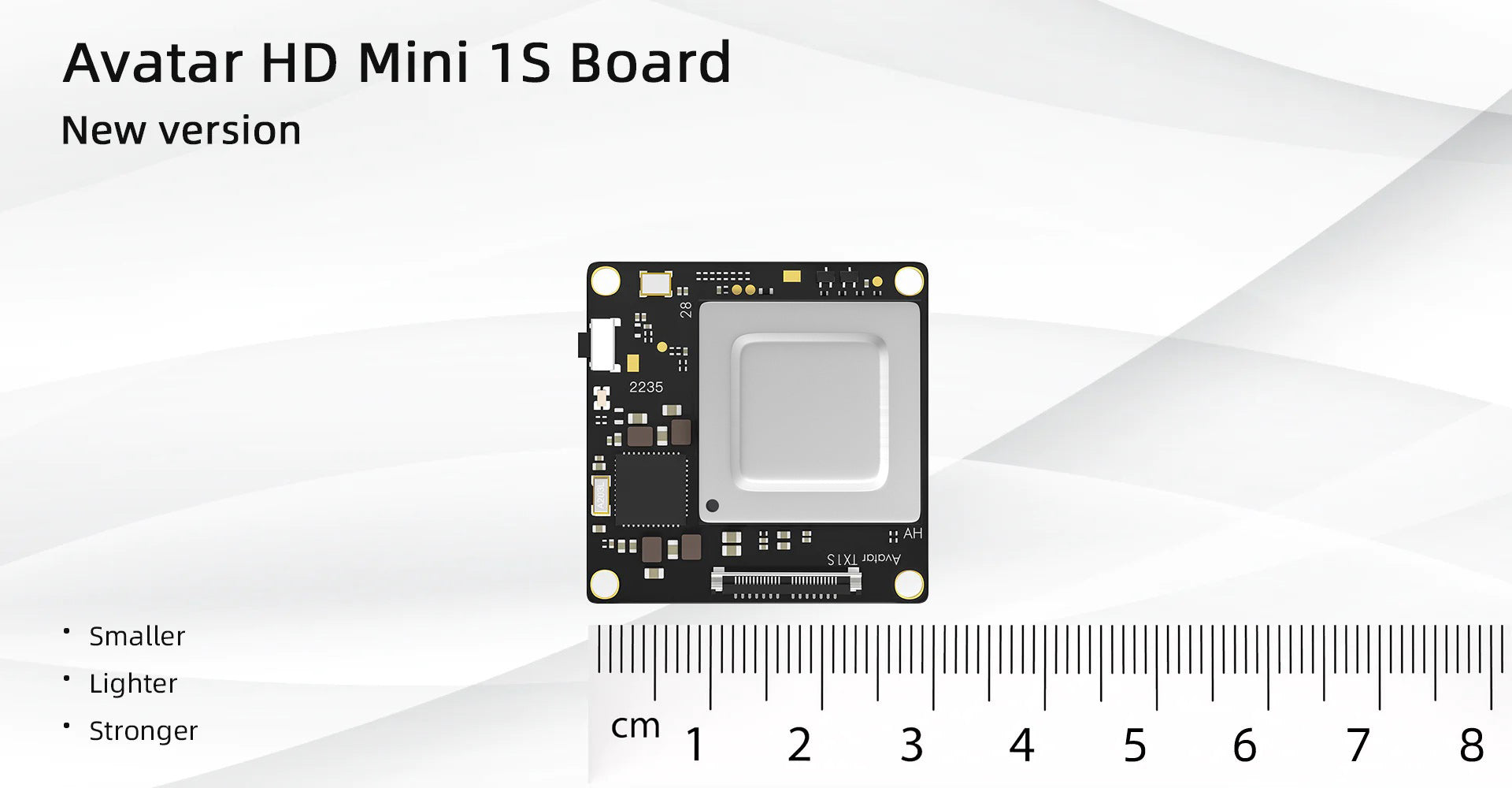

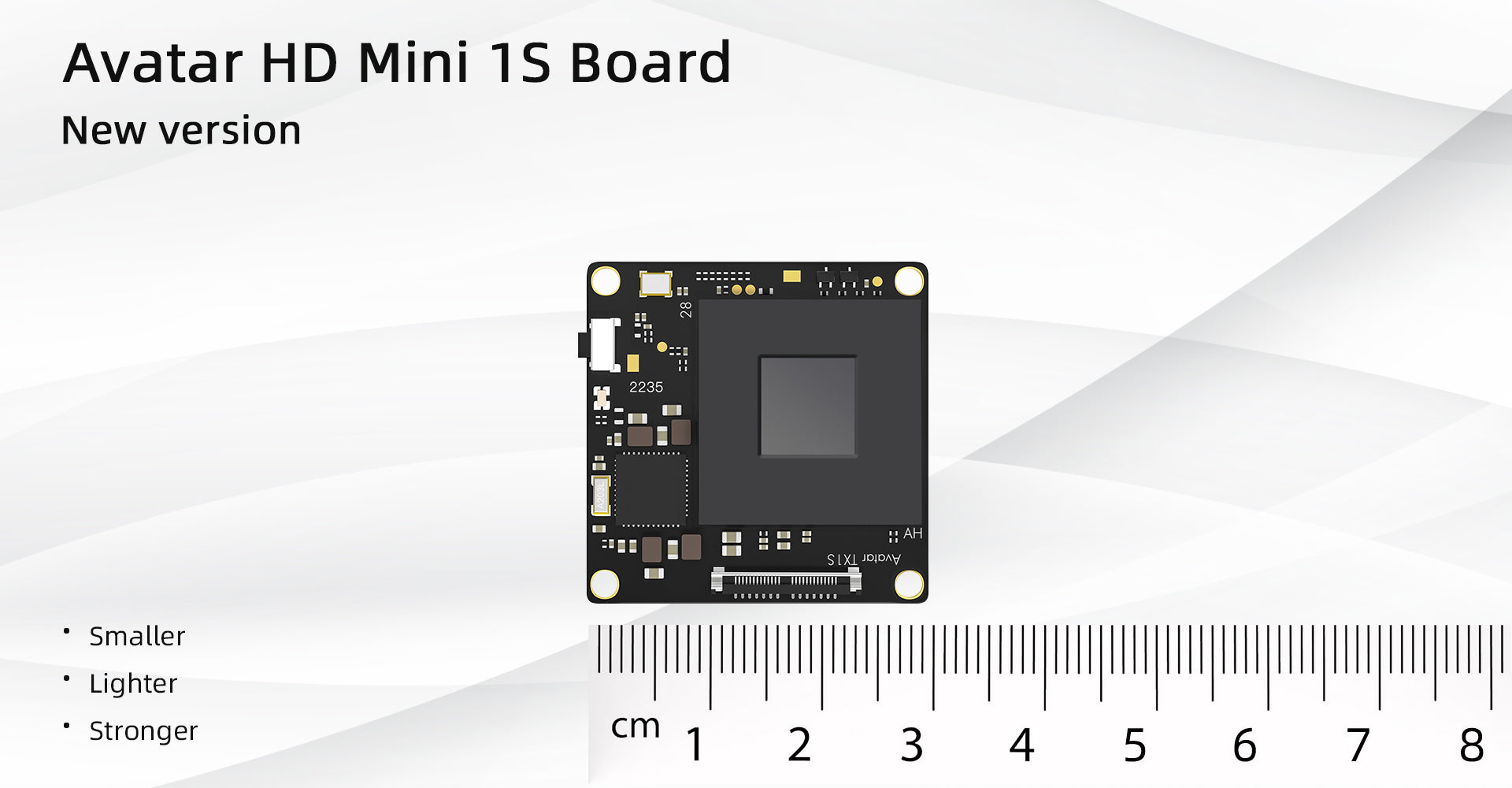

  •   Product features: 1080P/60fps、22ms low latency、7.8g light weight、Canvas mode、Built-in 8g storage、HDMI out、31.-5V、350mw、Small antenna     New version of VTX Avatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.    Brand new camera Avatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.    High quality, low latency Weighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.

    8G Built-in Storage The Avatar vtx comes with 8g built-in storage, it can record 1080p or 720p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.    Canvas Mode Supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.        3.1-5V input, max 350ms output The avatar mini 1S lite kit is special designed for 65mm/75mm tiny drones, with 3.1-5V voltage input and 350mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.

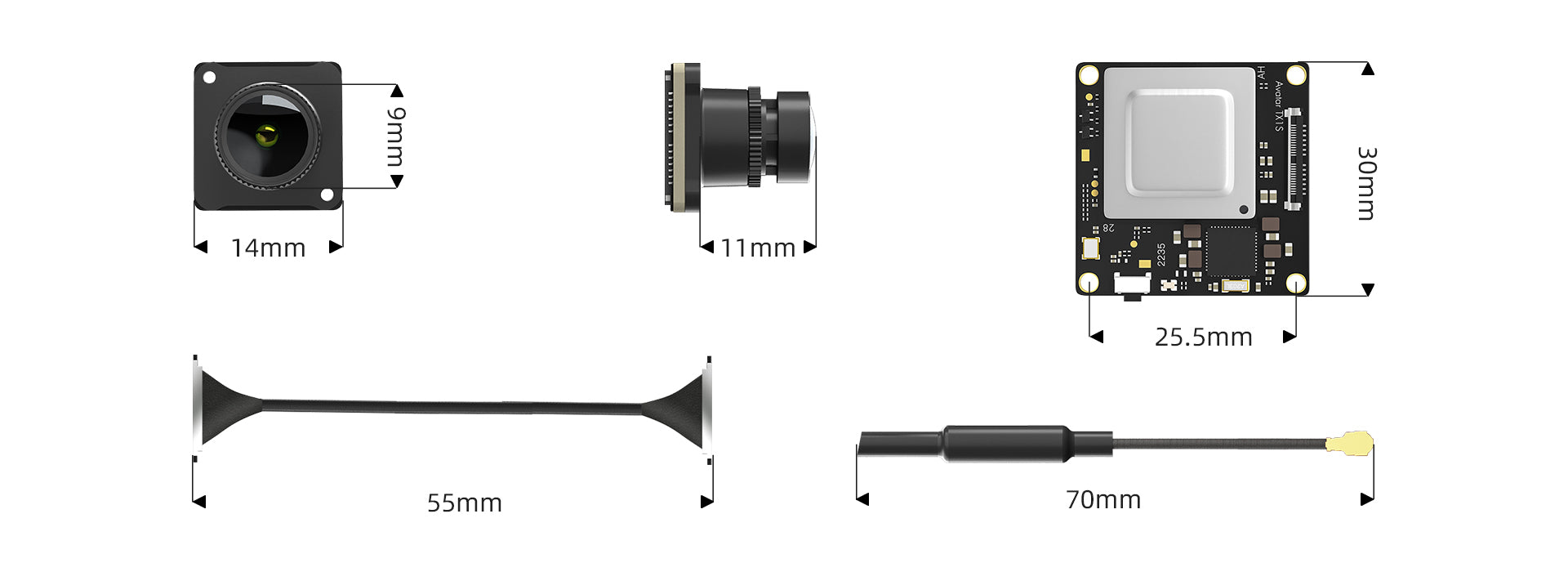

    Product Size:

    Specification


    Camera
    Model    Avatar lite camera
    Image Sensor  1/2.7”1nch
    Resolution   1080P/60fps,720P/120fps,720P/60fps
    Ratio       16/9  4/3
    Lens  2.1mm
    FOV     170°
    Aperture     F2.0
    Shutter Rolling  Rolling shutter
    Min.Illumination   0.001Lux
    Weight  1.8g
    Dimensions  14*14*16mm

    VTX
    Model Avatar mini 1s module
    Communication Frequency 5.725-5.850GHz
    Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
    MIC:<25dBm

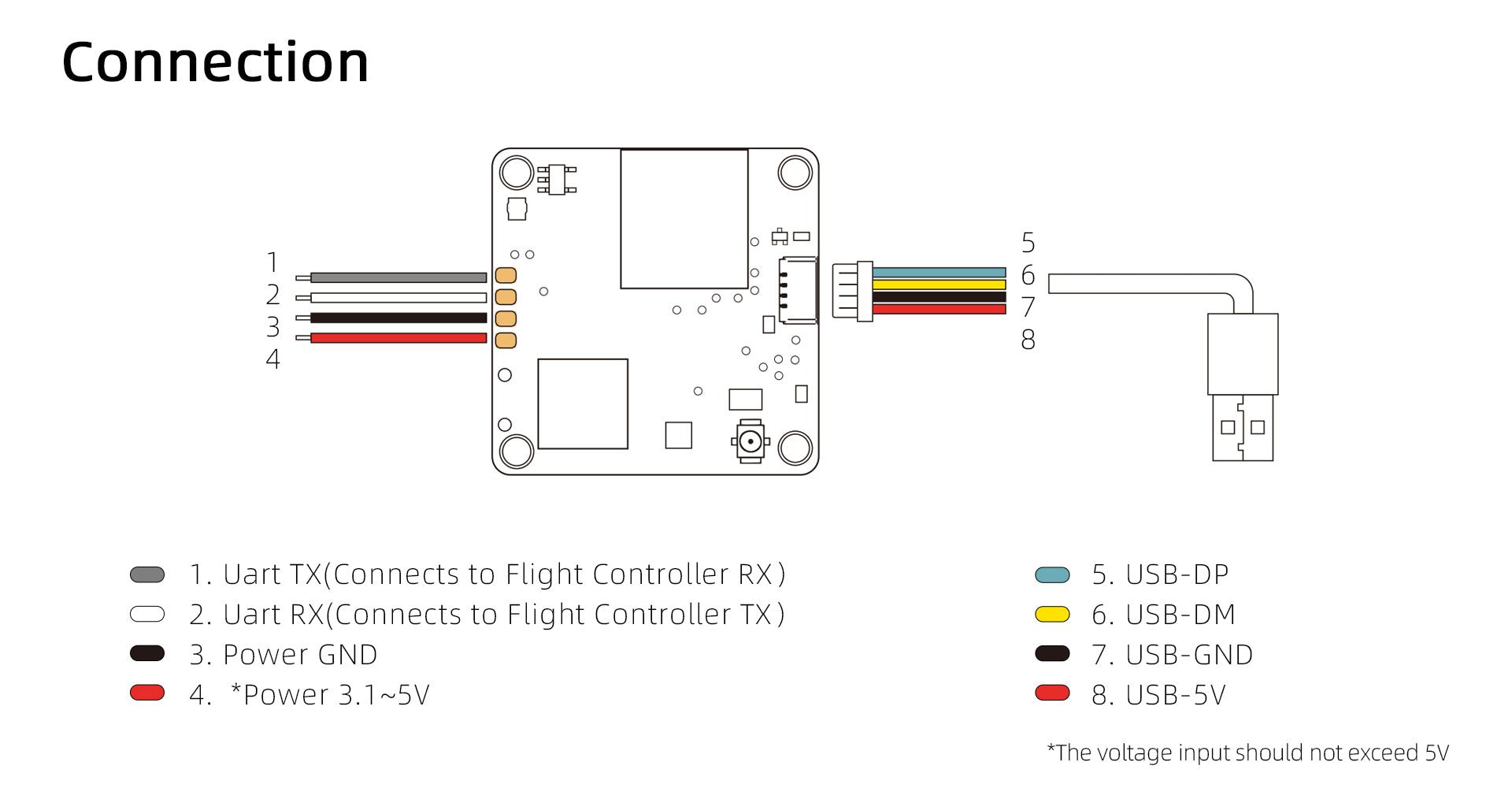

    I/O Interface JST1.0*6(Power in)JST1.0*4(USB)
    Mounting Holes 25.5*25.5mm
    Dimensions 30*30*6.5mm
    Storage 8G
    Recording 1080p/720p
    Weight 5.1g
    Operating Temperature -20-40℃
    Channels 8
    Wide Power Input 3.1V-5V
    Supported FC System Betaflight
    OSD Canvas mode
    Bitrate 25mbps 50mbps
    Latency Average delay 22ms
    Antenna IPEX

    1s lite antenna
    Polarization  Linear
    Frequency range 5600-5900MHz
    Gain 1.6 dbi
    VSWR ≤1.5
    Input Impedance 50Ω
    Interface IPEX-1
    Size R 5mm,L 70mm
    Weight 0.5g

    Packing List
    Avatar Mini 1S lite KIT  X1
    4 Pin USB Cable X1
    4 Pin Power Cable X1
    1.4×8mm Screws  X4
    1.4×10mm Screws   X2
    M2 Anti-vibration Rubber Dampers *6mm X4
