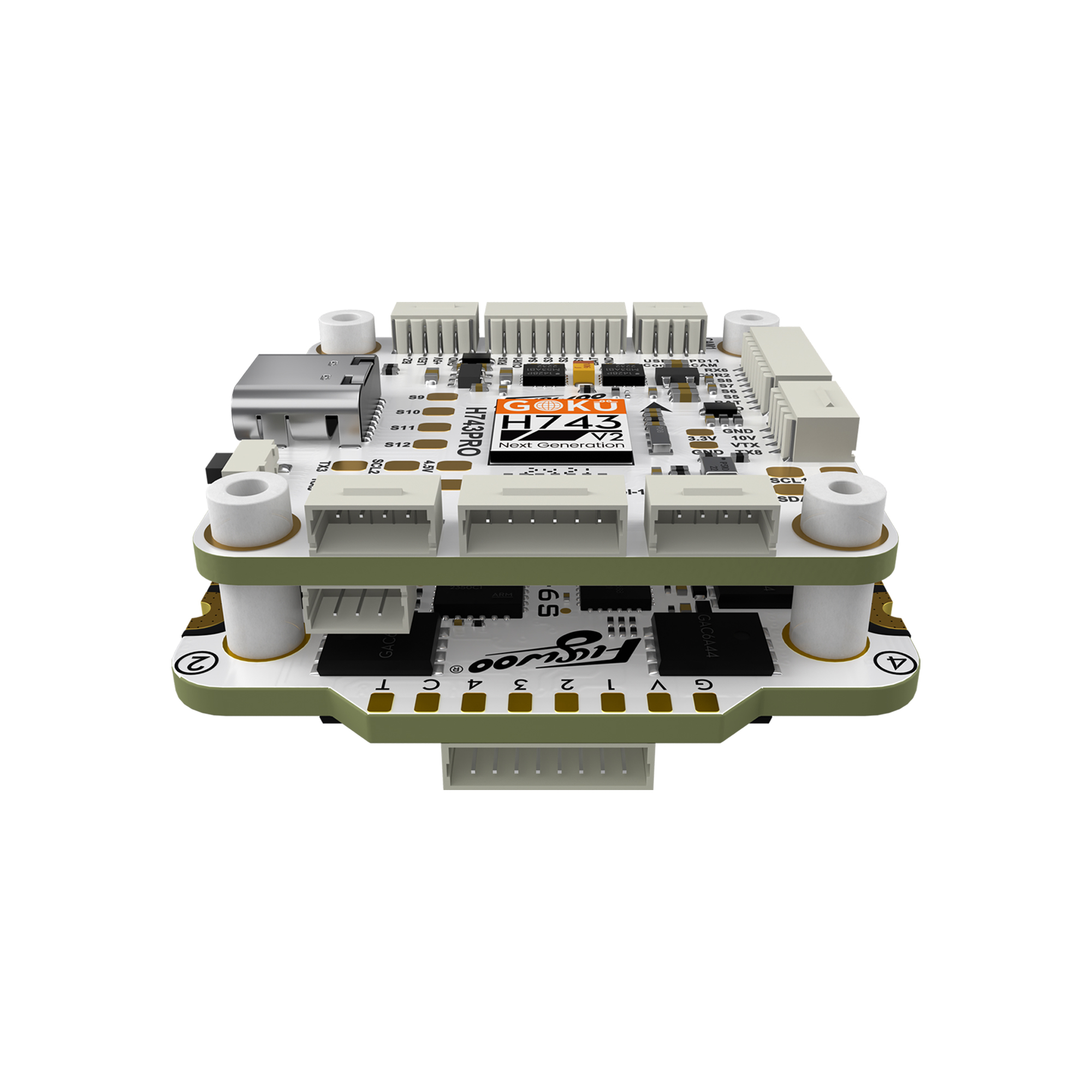

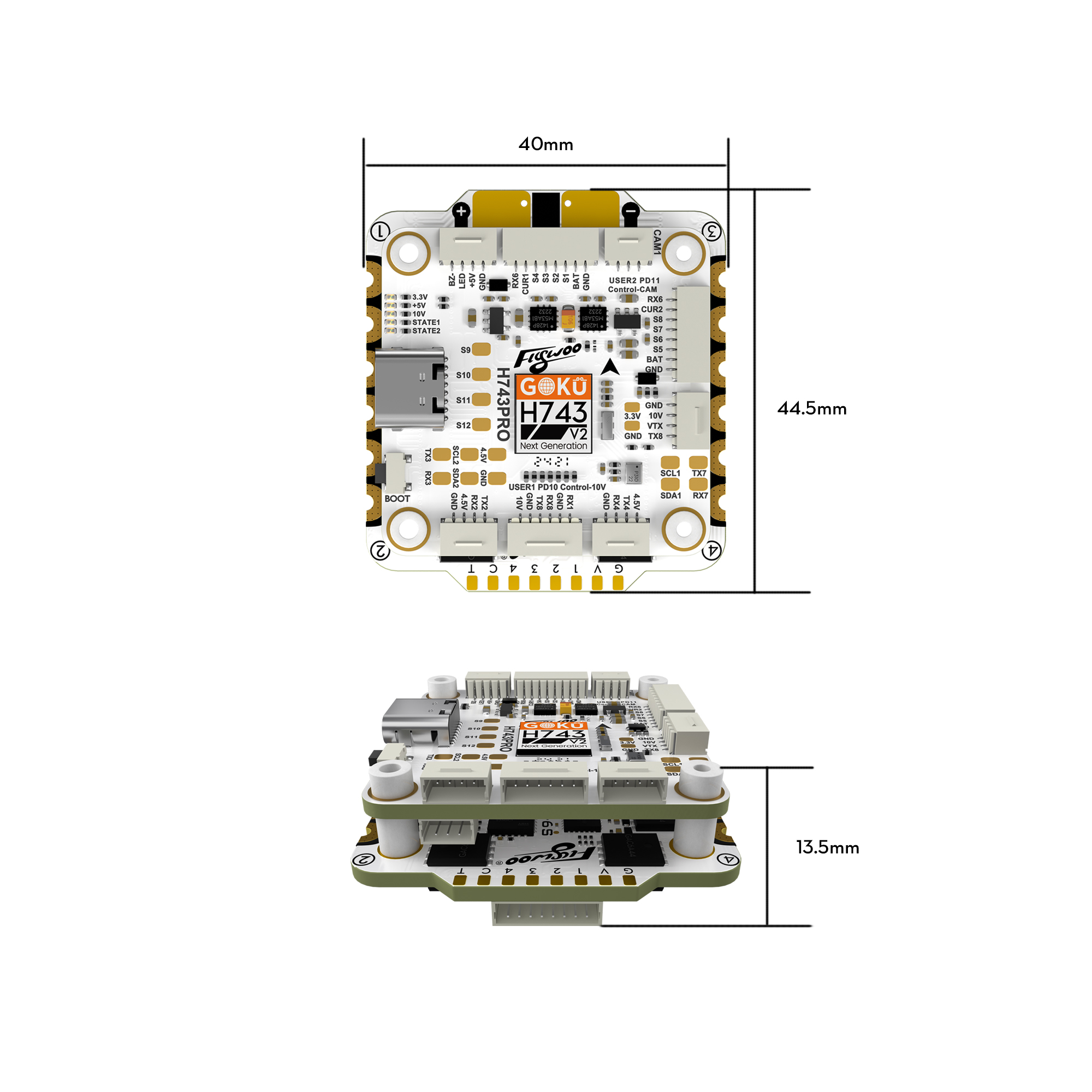

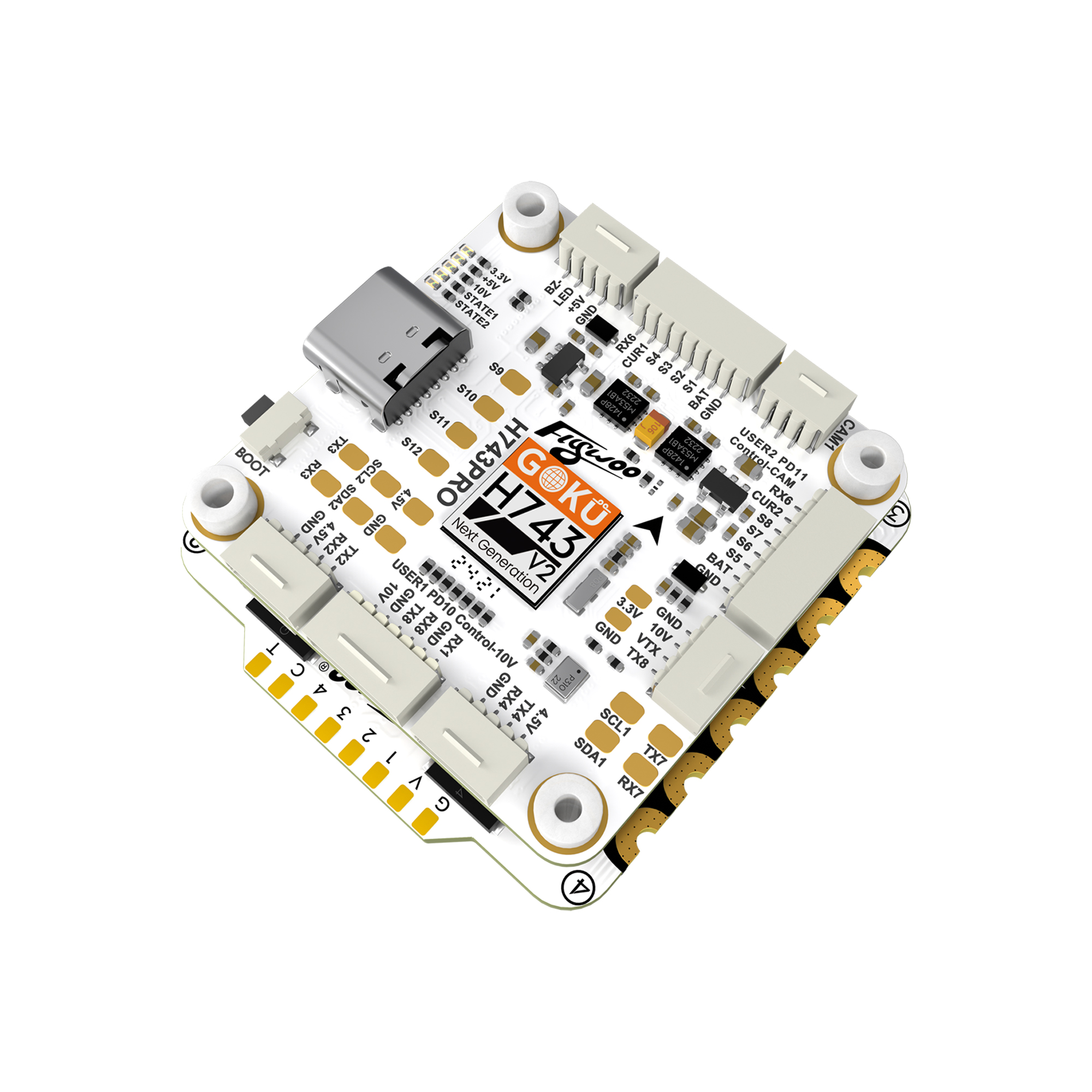

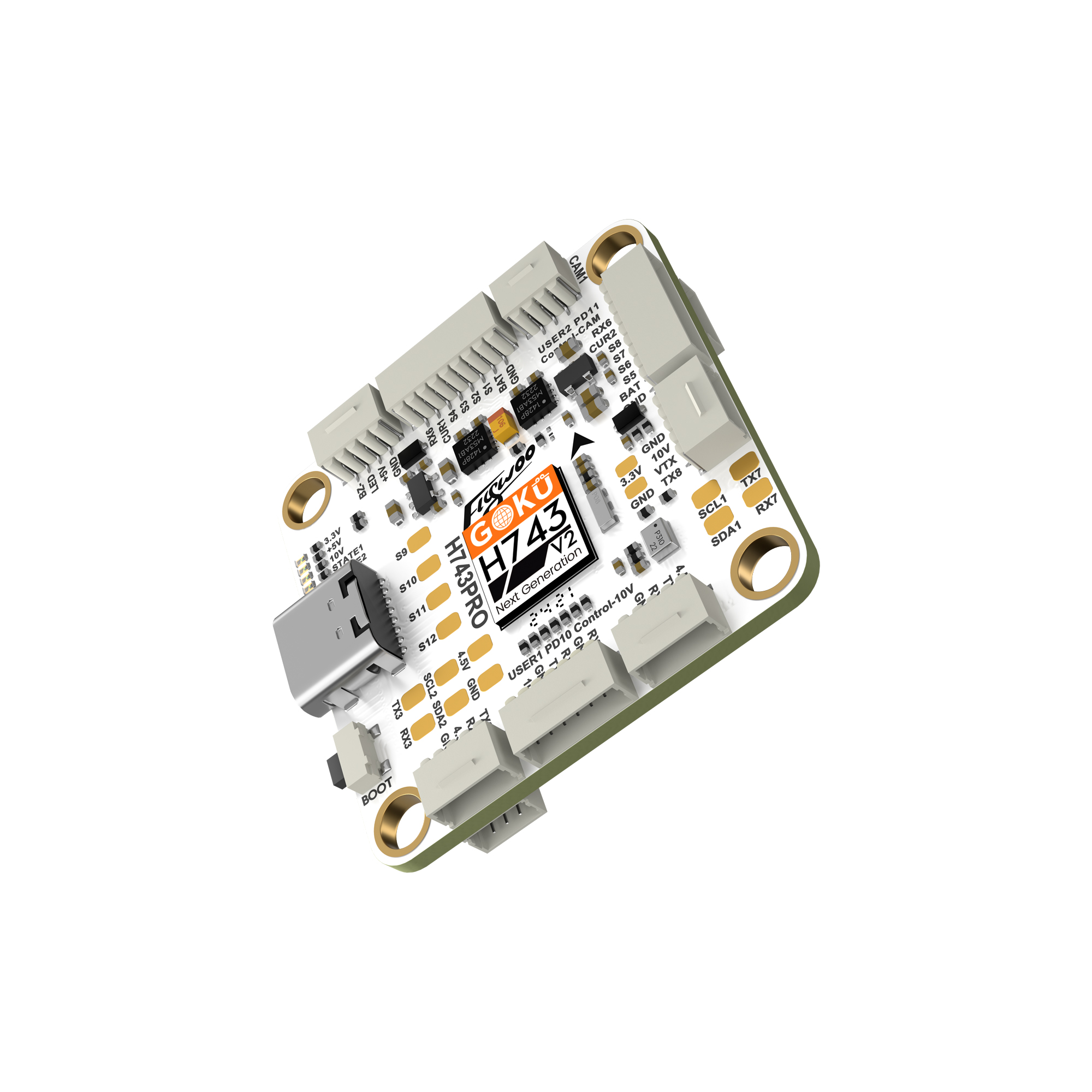

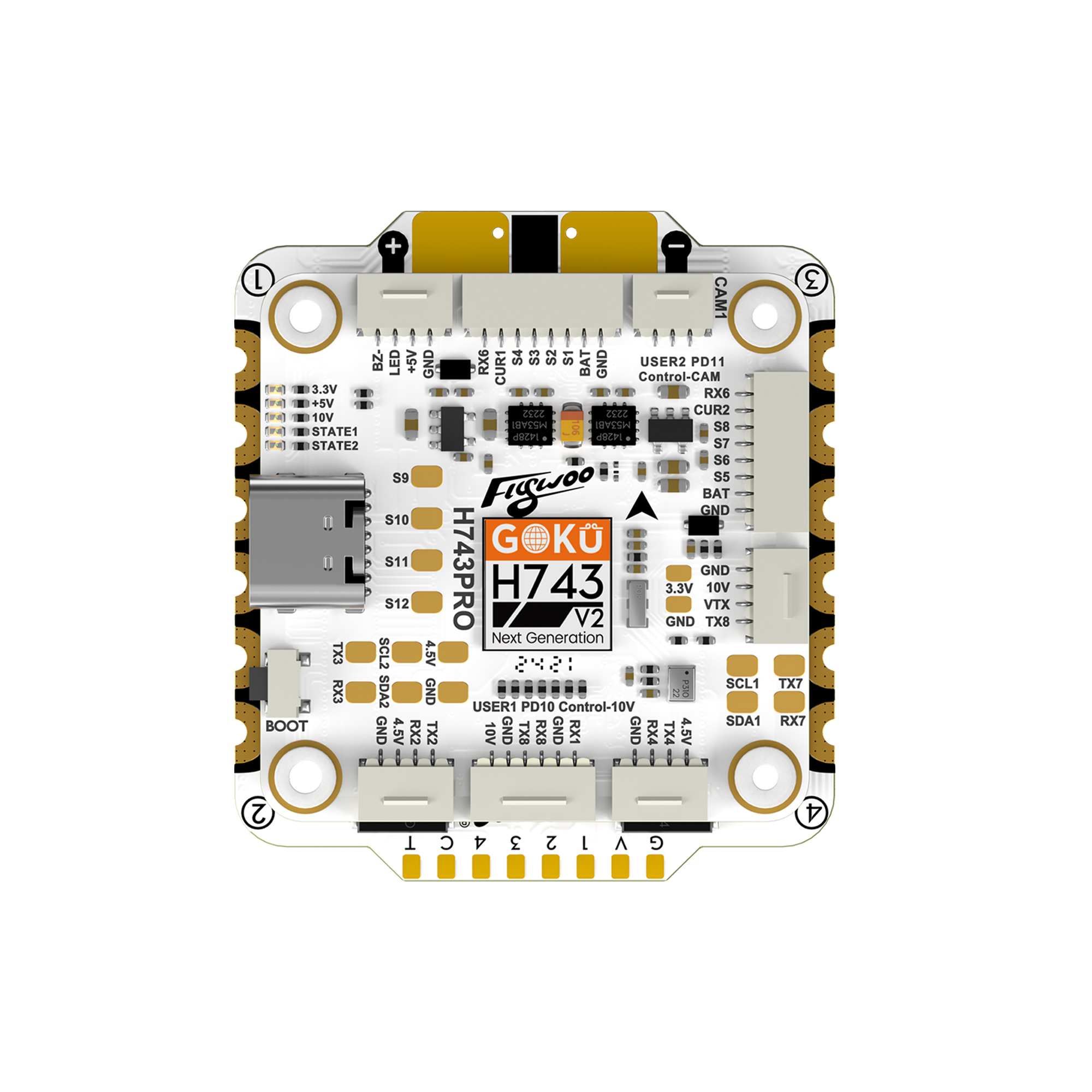

GOKU H743 Pro 32bit 55A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros.
It offers 512MB blackbox , 10V3A/5V3A dual BECs, and 8 motor outputs for X8 multi-rotor.
It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors.

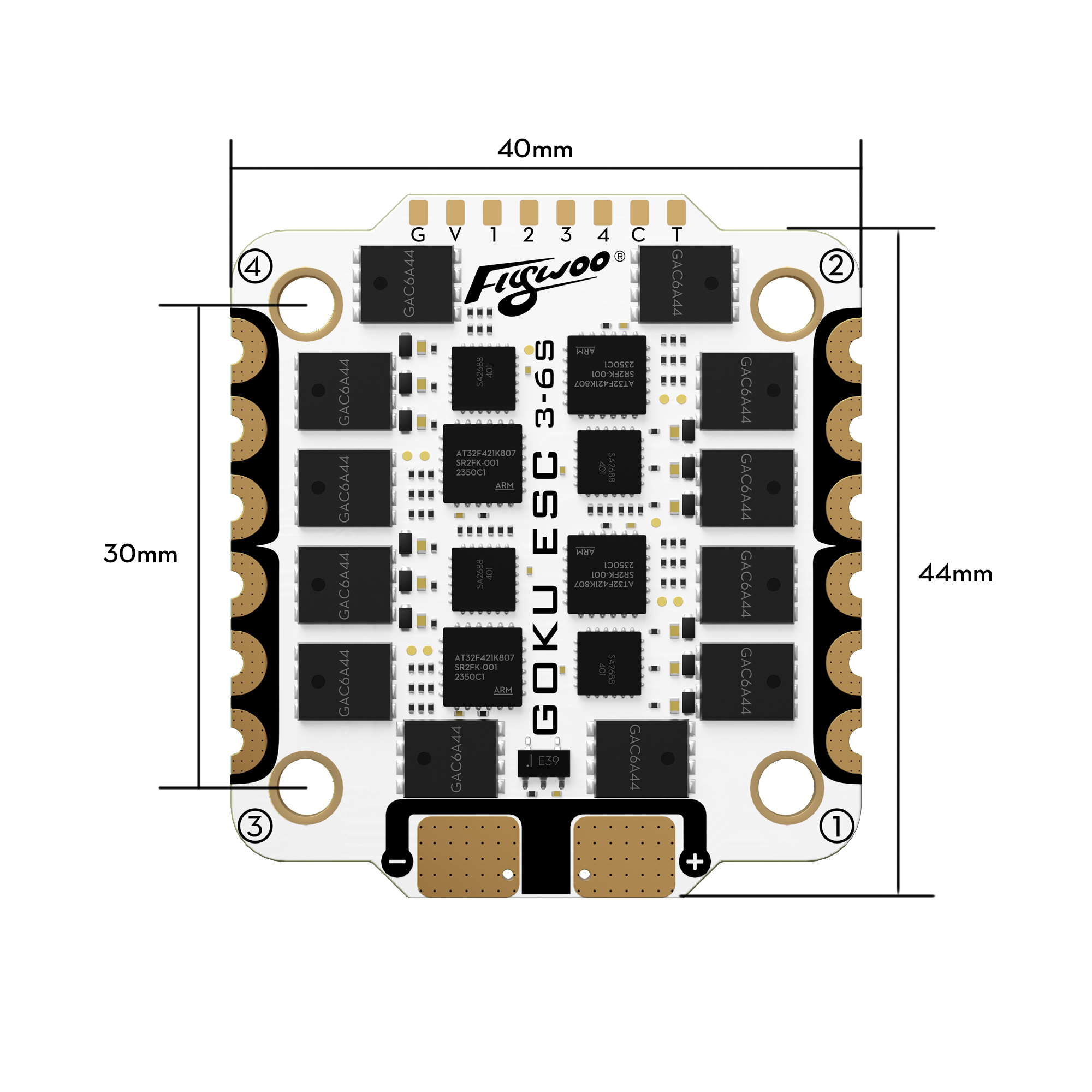

Paired with the GOKU G55M 55A ESC, it delivers fast, precise handling for racing and freestyle.
Highlights：
1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
3. Efficient Power: Dual 10V/5V 3A BEC provides stable power for peripherals.
4. Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications：
GOKU H743 PRO Flight Controller
In the Box
