The GOKU G55M is a high-performance ESC with a 55A continuous current rating and 32-bit processing speed. It features BL32 \ AM32 firmware, supporting bidirectional DSHOT and telemetry, with a maximum refresh rate of 128K. Key features include imported MOSFETs, high-quality ceramic capacitors, and a 6-layer PCB design, reducing heat and improving efficiency. Compatible with DShot1200, PWM, and Oneshot signals, the GOKU G55M ensures an exceptional flying experience.
Highlights：
- Quality Components: Imported MOSFETs and high-quality ceramic capacitors for improved efficiency and performance.
- Powerful Functions: Supports bi-directional DSHOT and data telemetry for easy flight control.
- Compatibility: Supports various setting and upgrading methods, compatible with multiple throttle signals.
Specifications：
- Name: GOKU G55M BL32\ AM32 4in1 ESC
- Support BL32 \ AM32
- Support Dshot300, Dshot600,Dshot1200
- PWM frequency: 24k-128k
- Input Voltage: 3-6S Lipo
- Continuous Current: 55A
- Firmware:

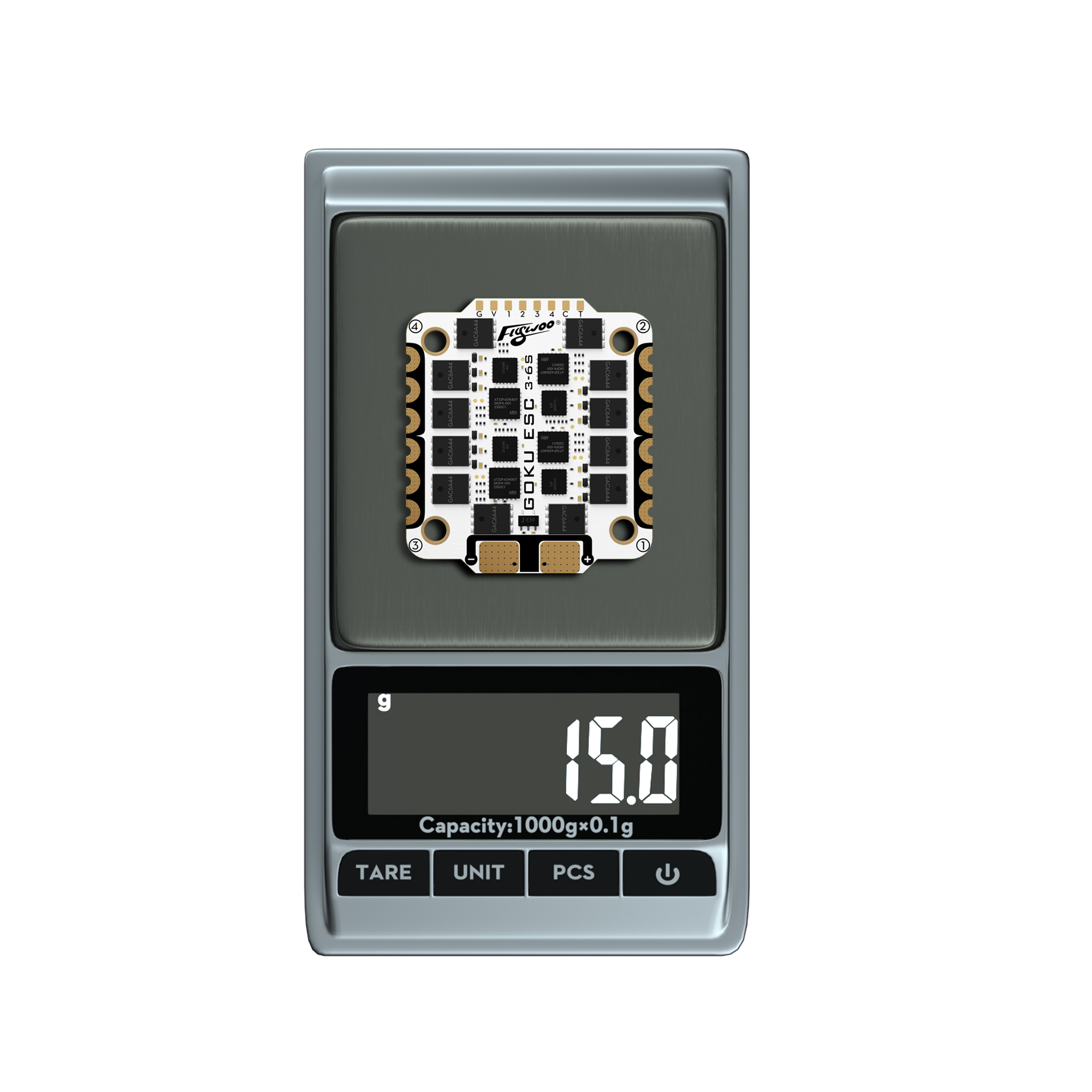

BL32 ： GOKU_F4A32_PROAM32：AT32DEVF421 - Weight: 15g
|
Parameter
|
Value
|
|
Continuous / Peak Current
|
55A x4 / 60A x4 (10s)
|
|
Battery Cells
|
3-6S LIPO
|
|
Power Connector
|
XT30/60
|
|
Output Wires
|
None, reserved solder pads
|
|

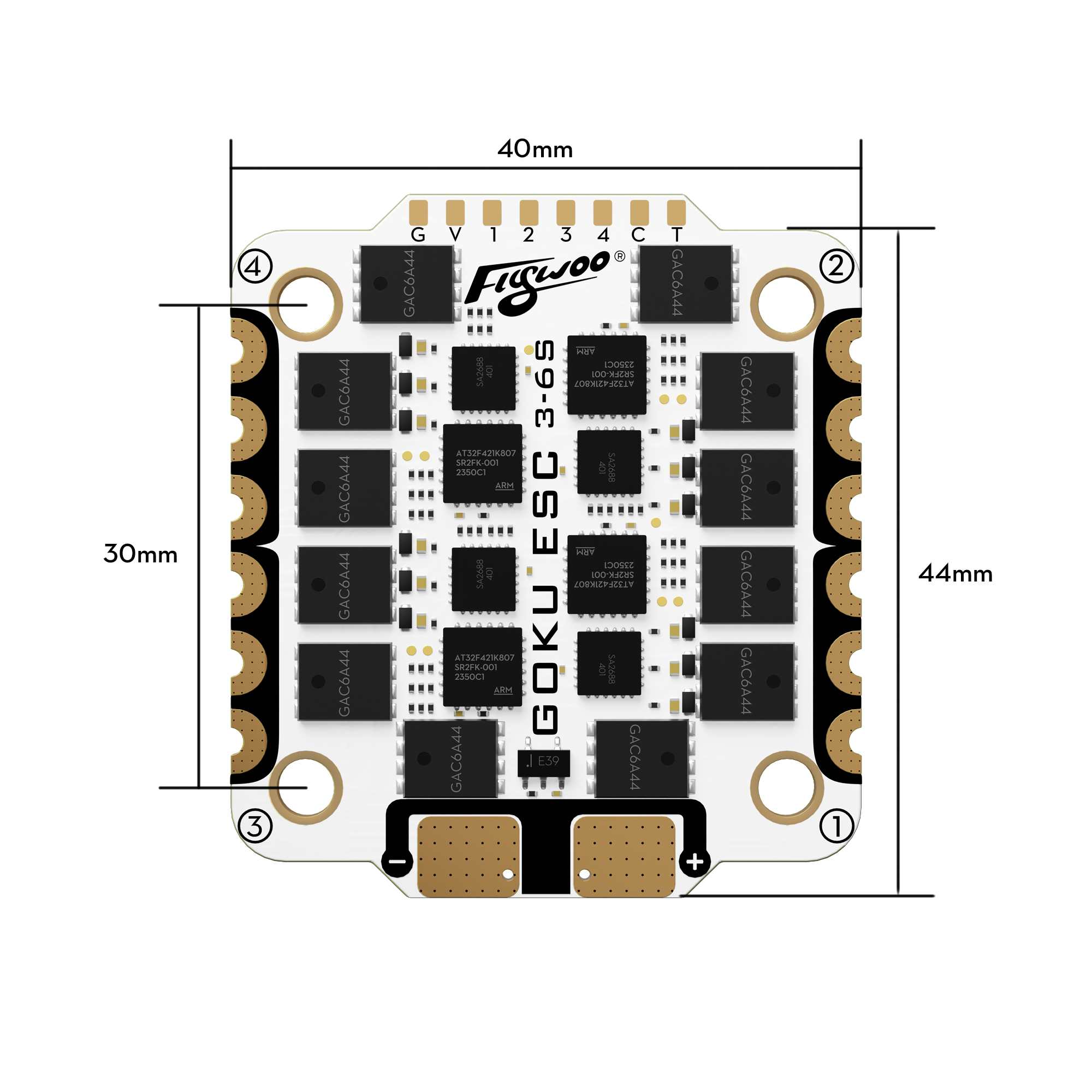

Dimensions
|
44mmx40mm
|
|
Firmware
|
L32:GOKU_F4A32_PRO AM32 AT32DEVF421
|
|
Programming and Tuning
|
Supported
|
|
Programming Method
|
BL32 / AM32
|
|
DEO
|
Supported
|
|
Throttle Range Calibration
|
Supported
|
|
Oneshot123 Throttle Mode
|
Supported
|
|
Oneshot42 Throttle Mode
|
Supported
|
|
MultiShot Throttle Mode
|
Supported
|
|
DSHOT150/300/600/1200
|
Supported
|
|
PWM Refresh Rate
|
24K-128K
|
|
Timing Adjustment
|
Supported
|
|
Motor Direction Setting
|
Supported
|

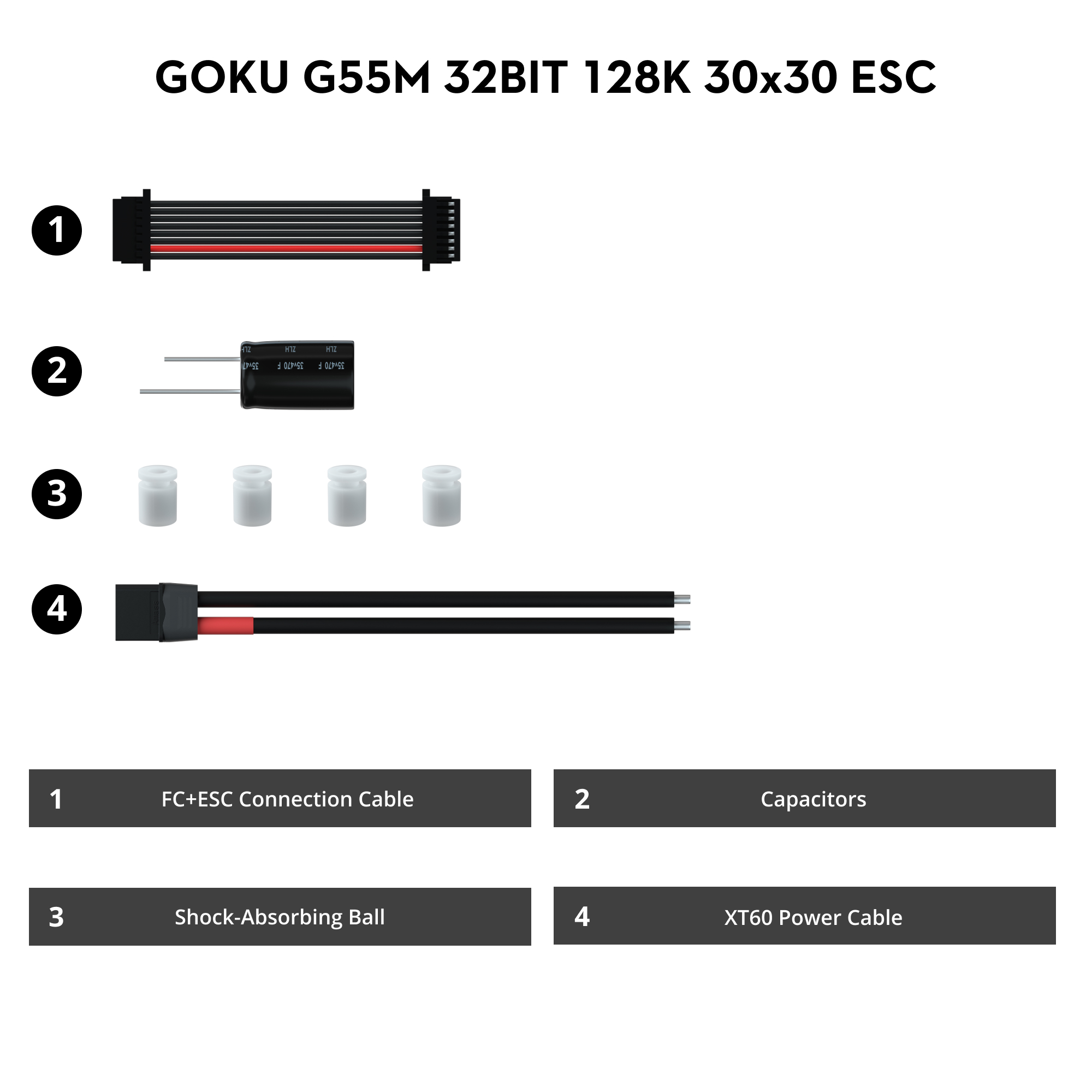

In the Box
- 1x FC to ESC connection Cable
- 1x Capacitor
- 4x M3 Shock-Absorbing Ball
- 1x XT60 Cable
