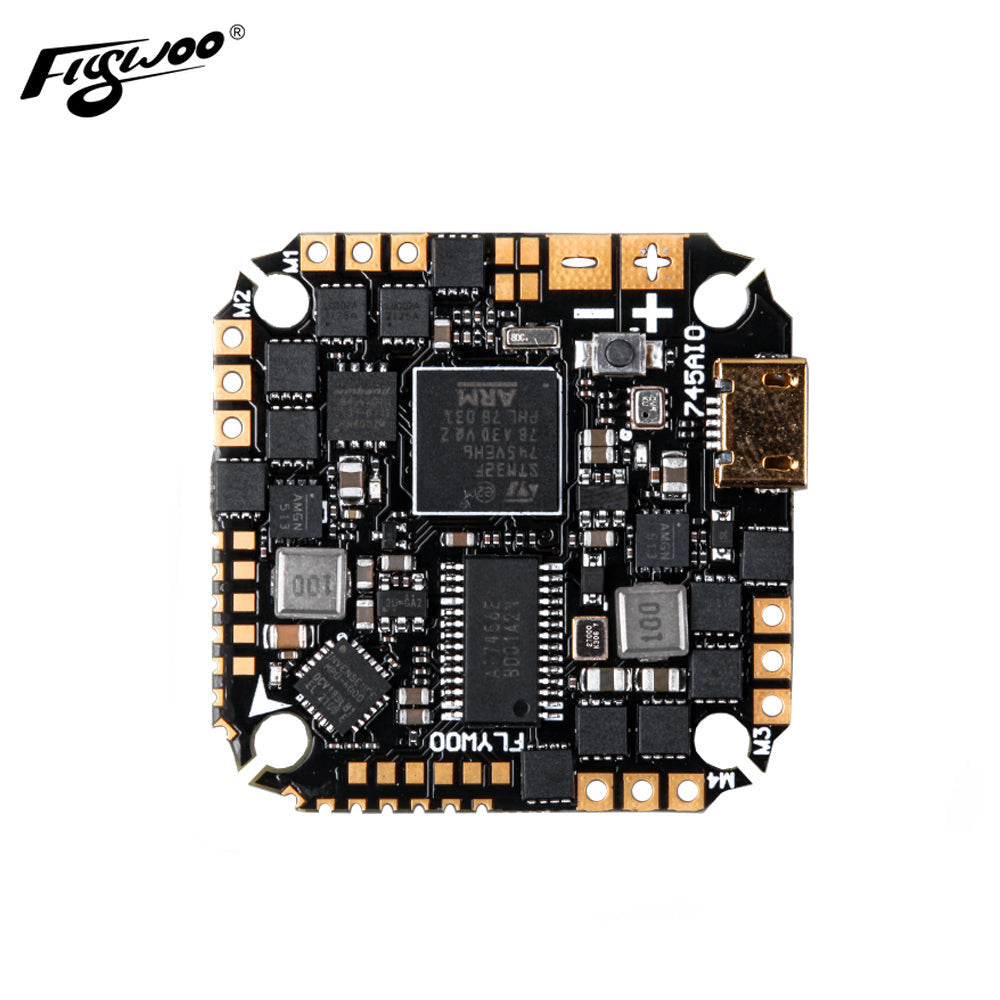

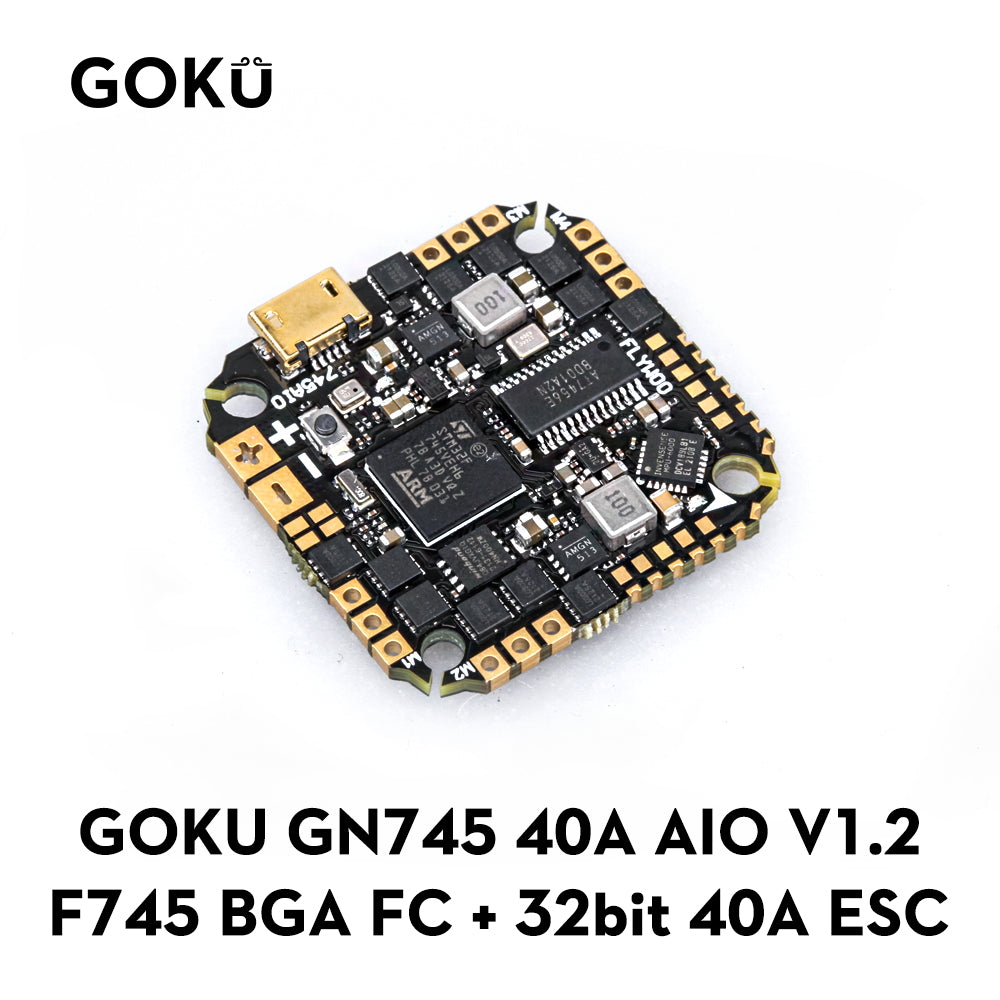

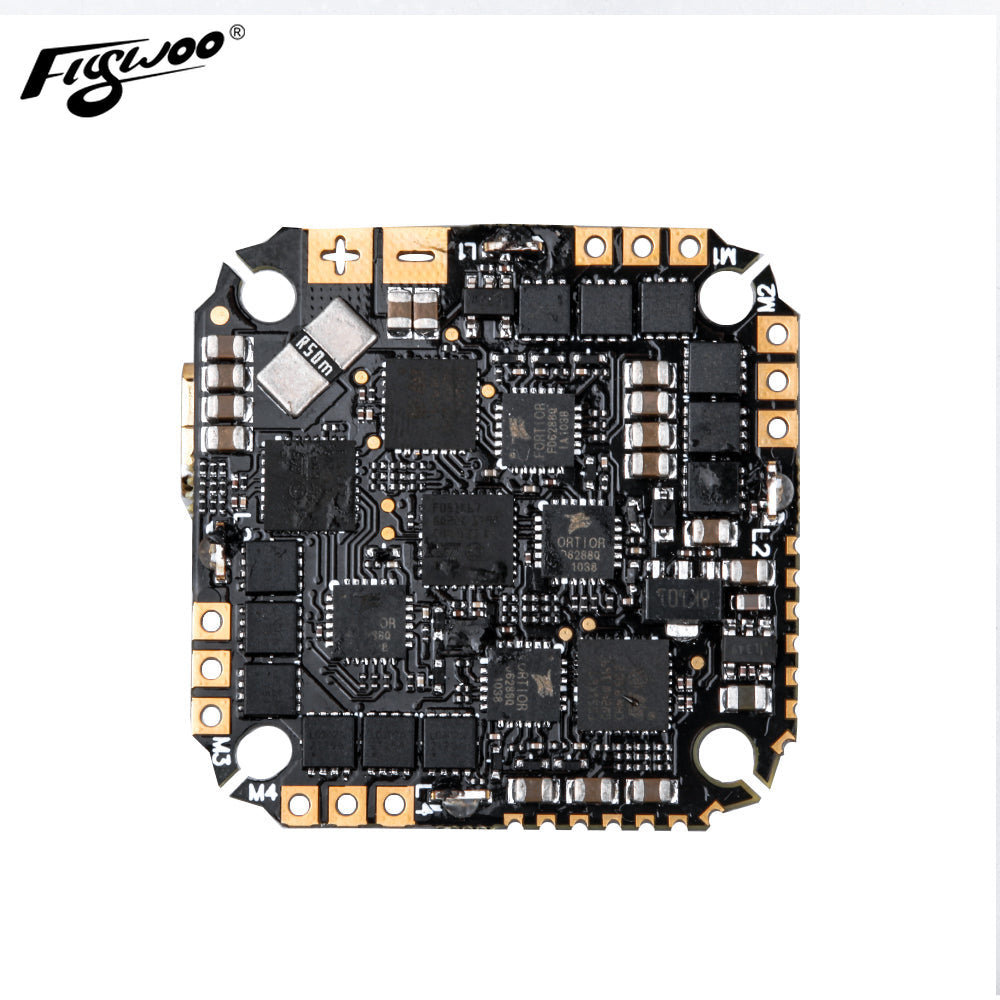

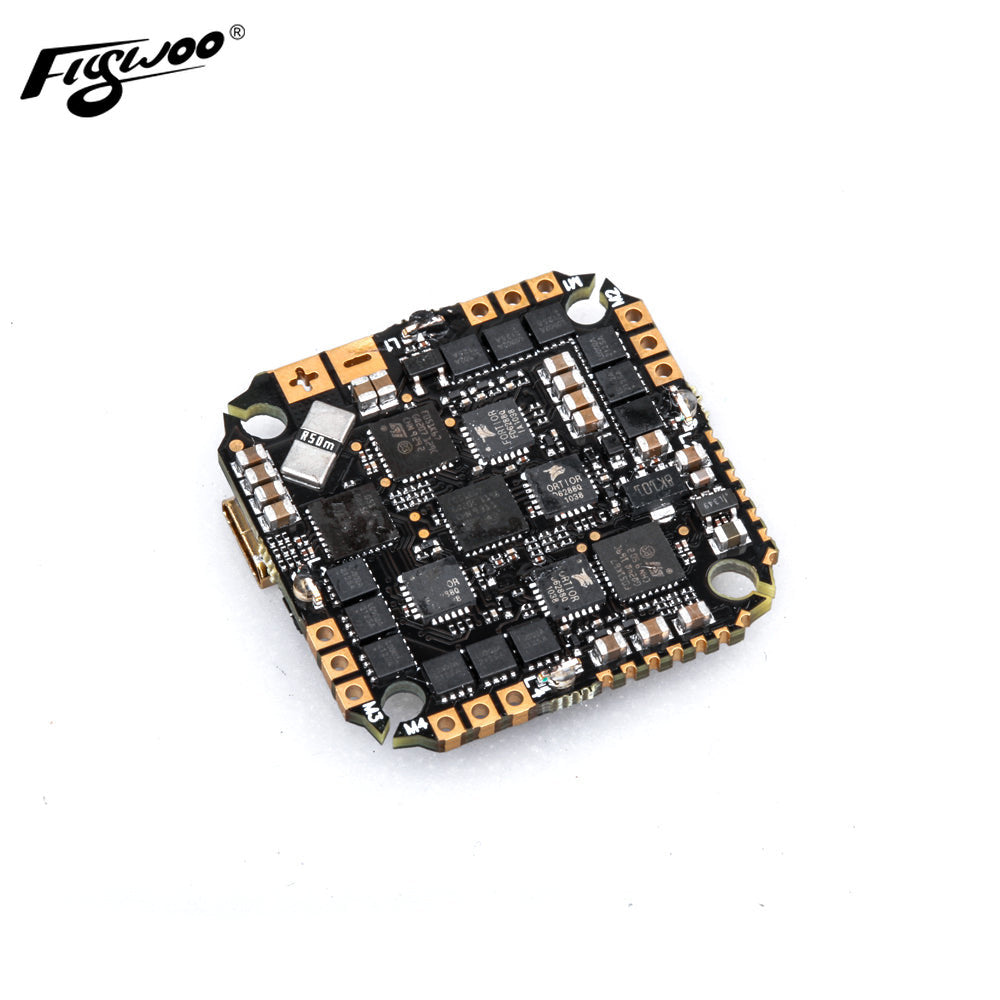

【No.C401】(1MB ) GOKU GN 745 40A AIO BL_32 V1.2 (MPU6000 ) 25.5 X 25.5 5V/9V

FLYWOO new top GOKU series AIO are finally here! GOKU GNF745 40A FC is currently the highest level of all-in-one FC, which can meet all your FPV needs.

Use powerful F745 BGA chip and BLHELI_32 ESC firmware, integrate 5V/9V dual BEC, barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C and other functions are all open.
This is currently the most integrated and powerful FC AIO board on the market. It brings pilots a more stable and smoother flight.! Perfect for ultralight quad! It will be the most powerful FC AIO board in 2021.

Main Changelog from V1 to V1.2 :

• Improve the land layout. Increase the pad spacing, easier to sol
• Upgrade to 1MB flash

Features

• F745 MCU
• Barometer
• Dual BEC 5V/9V
• Black Box
• 40A 32Bit ESC
• 7 UARTS

GN745 AIO Flight Controller

• MCU: STM32F745 32-bit processor,216MHz, 512Kbytes Flash
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• Onboard LED：WS2812*4
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 7 hardware UARTS (UART1,2,3,4,5,6,7)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 8Mbytes for Blackbox logging
• 9V Power Out: 1.5A max
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 33.5x33.5mm
• Mounting Holes: Standard 25.5/26.5mm square to center of holes
• Weight: 8.5g

Built-in 40A BL_32 4in1 ESC

• Support BLheli / BLHELI_32
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
• Input Voltage: 2-6S Lipo
• Continuous Current: 40A
• Firmware: BLHELI_32

Q&A :
1、 Betaflight Firmware target: FLYWOOF745
2、INAV Firmware target: FLYWOOF745
3、GOKU GN 745 40A AIO BL_32 Wiring Diagram  : ( LINK )
