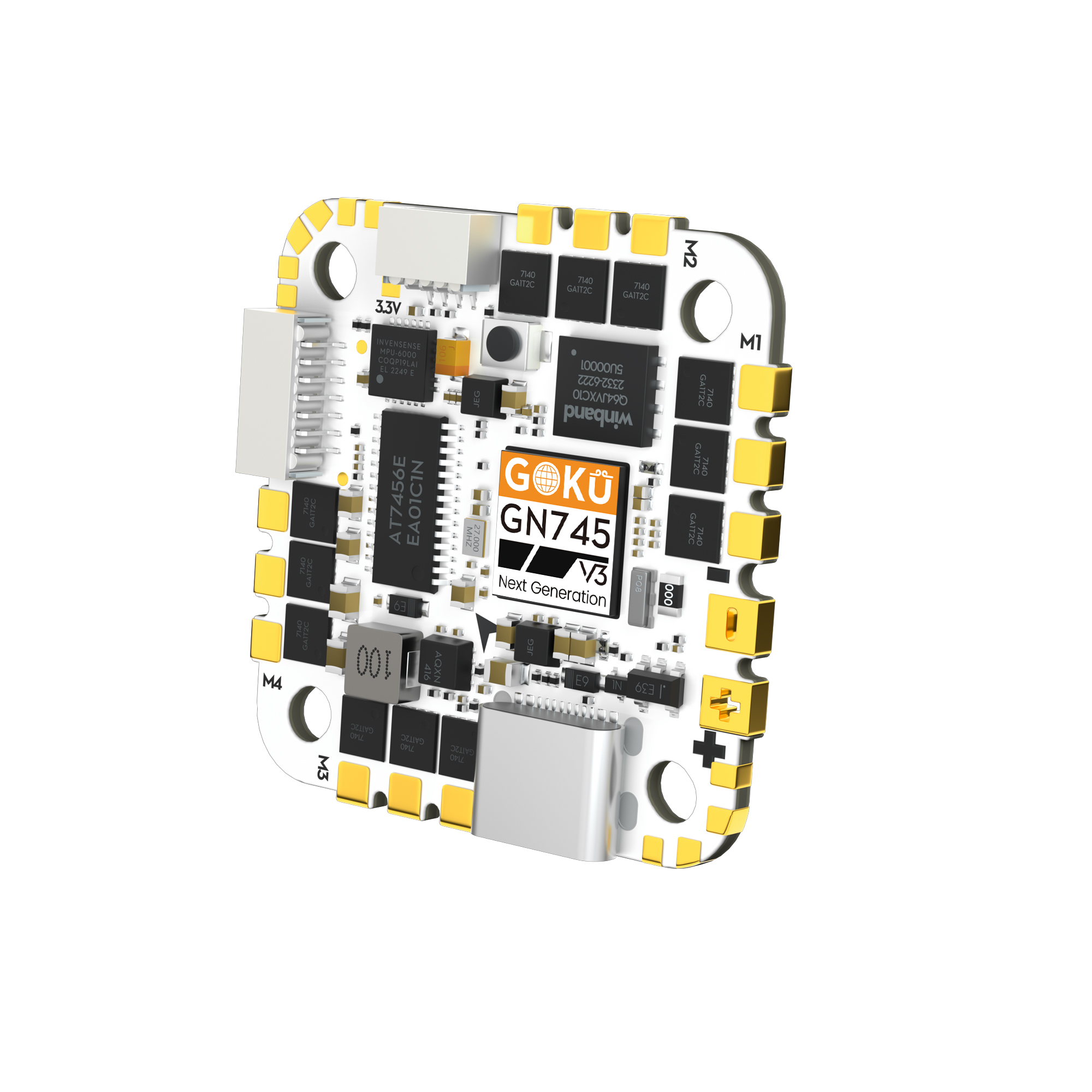

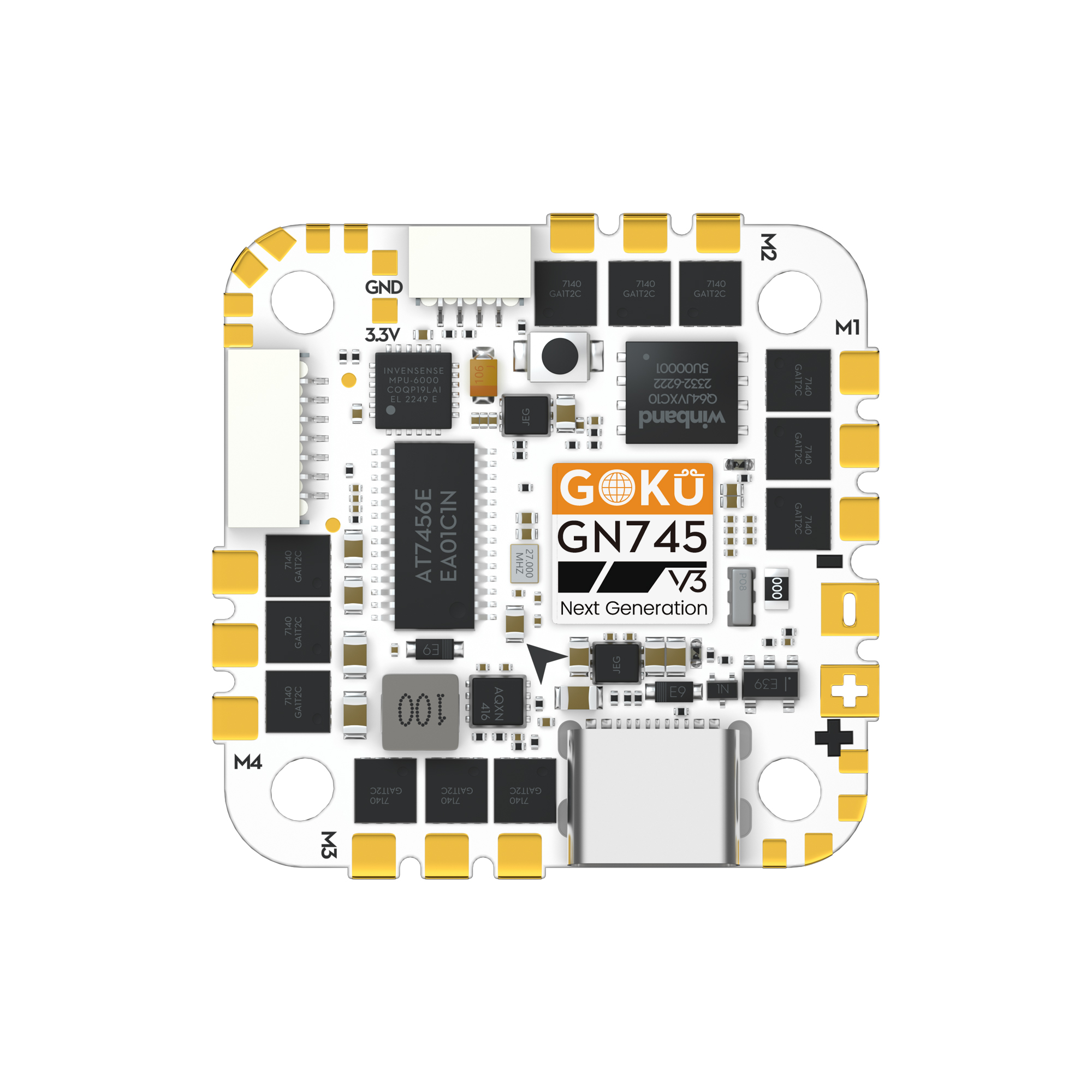

GOKU GN 745 45A AIO 32bit (MPU6000 ) V3

$89.99 USD
$0.00 USD
(tax included)
Quantity
Only 969 left
Volume Pricing
Quantity
Price
1+
$89.99 USD each
Get 1% Flywoo Credit of the total purchase value.
Enjoy a 7-day return policy with no reason required.
Leave a review and get a 2% discount code for your next order.
Product Description

Since its launch, the GOKU GN745 AIO has stood as Flywoo's top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we're excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.

Highlights:

  1. Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.

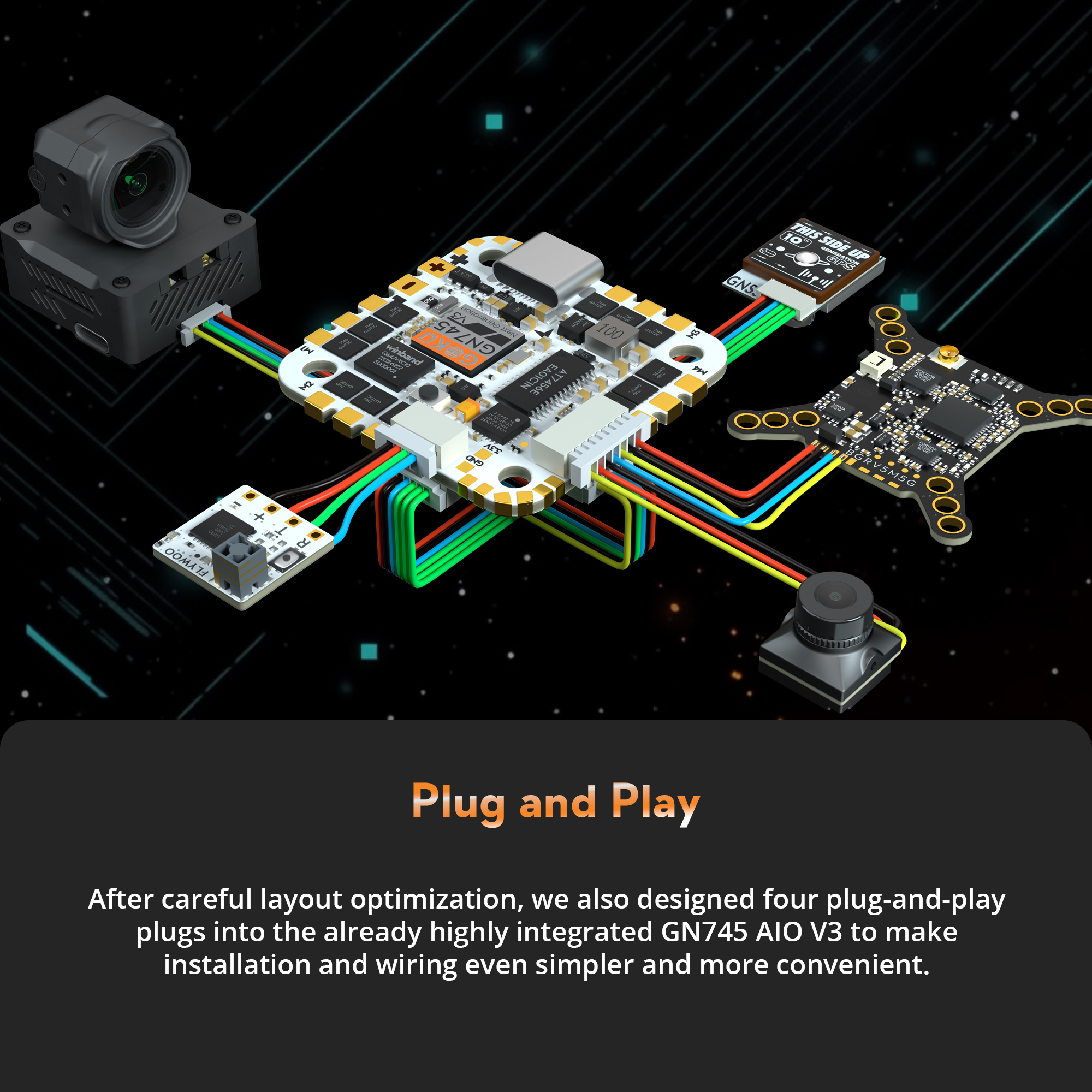

  2. Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.

  3. Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.

  4. Compatibility: Supports BF, INAV, and Ardupilot platforms.

  5. New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.

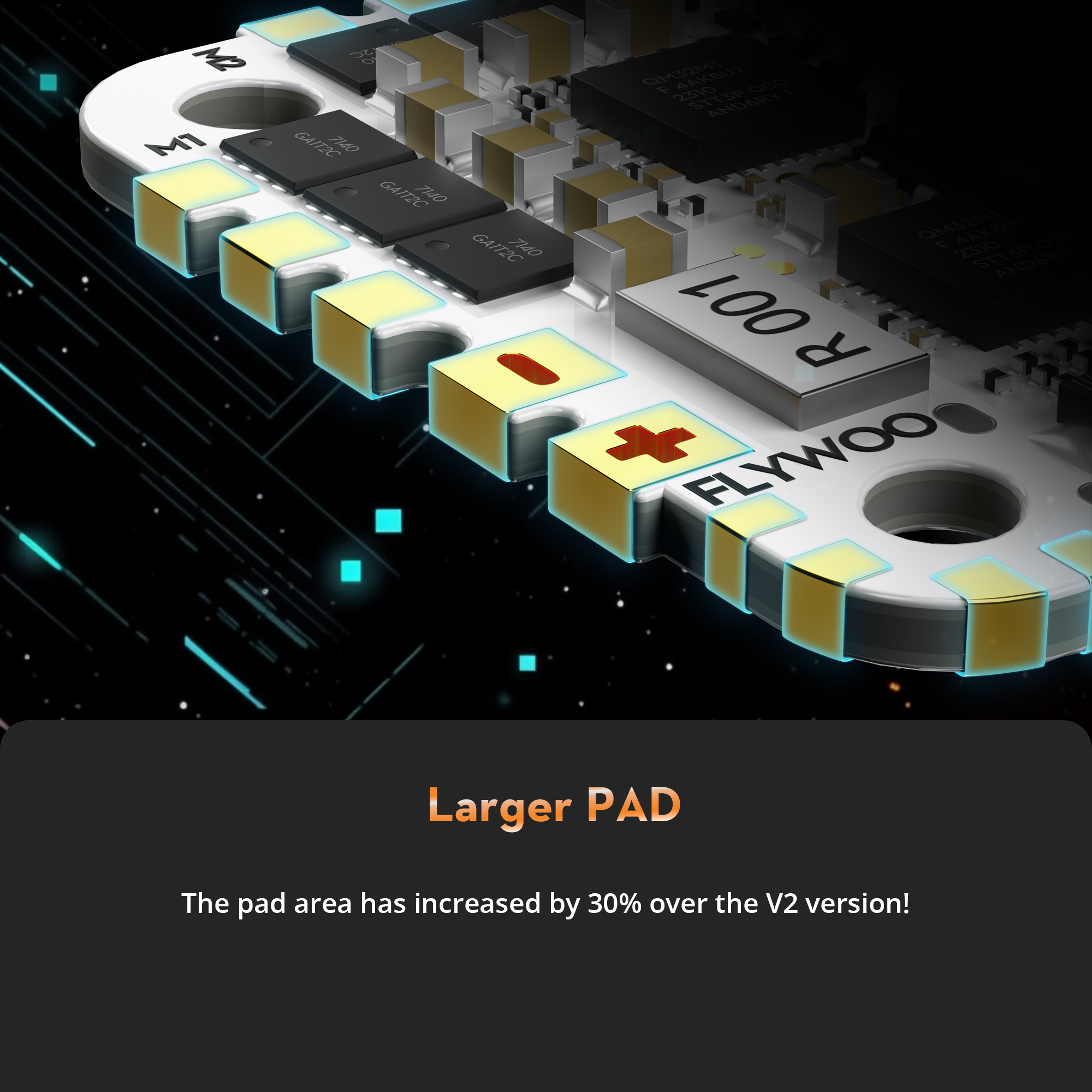

  6. Better Protection: Larger motor pad area with improved overcurrent protection.


GOKU GN745 45A AIO 32bit (MPU6000 ) V3
GOKU GN745 45A AIO 32bit (MPU6000 ) V1.2
Firmware:
STM32F745 BGA
STM32F745 BGA
Continuous Current:
45A-50A MAX
40A-45A MAX
BEC:
5V 2A
5V 2A/9V 2A
ESC
32bit
32bit
Flash:
1MB
1MB
Black Box
16mb
16mb
Barometer:
DPS310/SPL06
DPS310/SPL06
Gyro:
MPU6000
MPU6000
Motor:
M1-M4 OUTPUT I2C: SCL/SDA
M1-M4 OUTPUT I2C: SCL/SDA
Uarts:
1,2,3,4,5,6,7
1,2,3,4,5,6
Plug Uart ports
YES
\
connector:
Type-C
Micro
OSD:
AT7456E
AT7456E
Hole:
25.5*25.5-3mm
25.5*25.5-3mm
Size:
33.5x33.5mm
33.5x33.5mm
Weight:
9.4g
8.5g

Specifications:

  • BF Flight Controller Firmware: FLYWOOF745AIO
  • INAV Firmware: FLYWOOF745
  • Ardupilot Firmware: FLYWOOF745

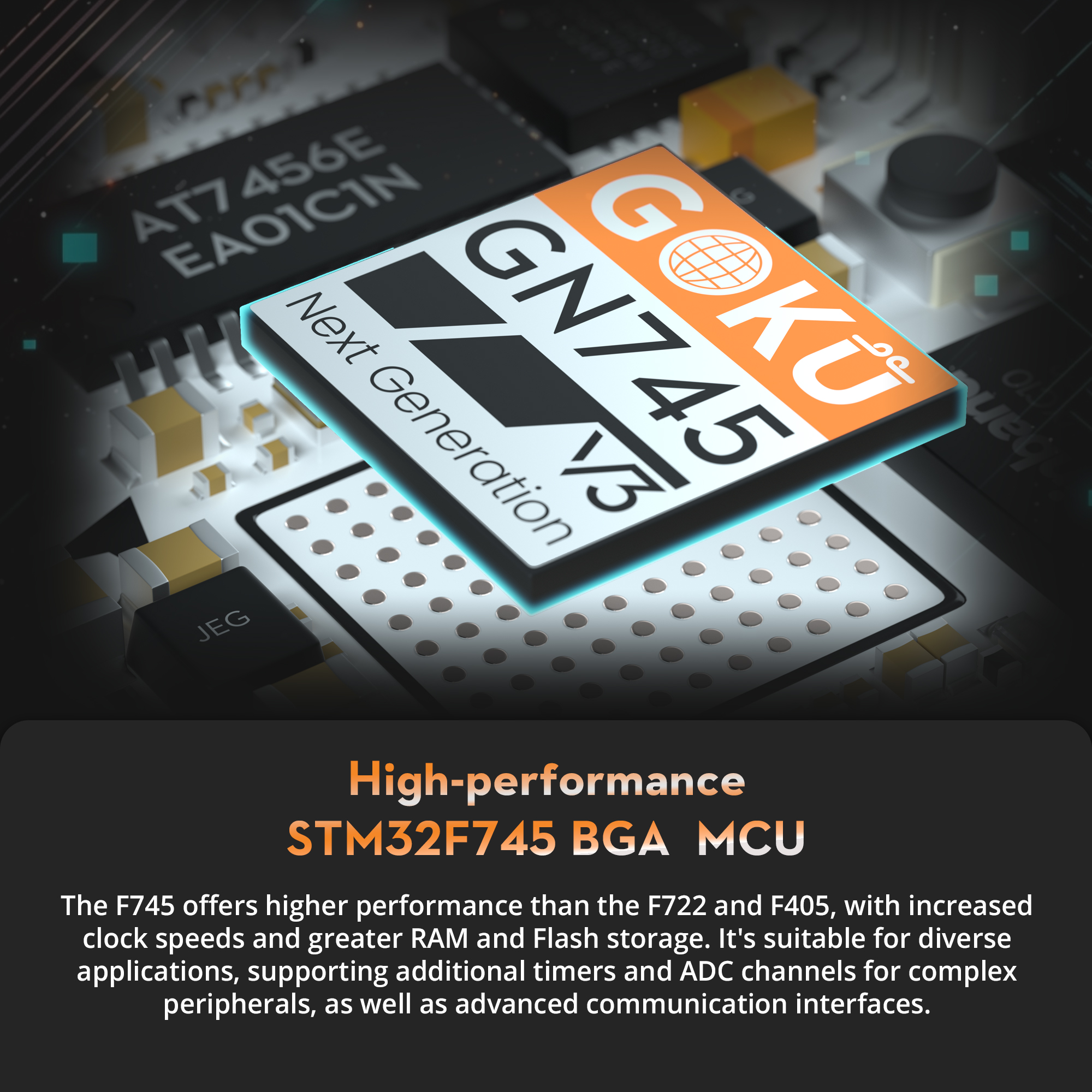

  • MCU: STM32F745 32-bit processor,216MHz, 1MB Flash
  • IMU: MPU6000 (SPI)
  • Barometer: SPL06
  • USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
  • 7 hardware UARTS (UART1,2,3,4,5,6,7)
  • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
  • PPM and PWM receivers are not supported.
  • Onbord 16Mbytes for Blackbox logging
  • 5V Power Out: 2.0A max
  • 3.3V Power Out: 0.5A max

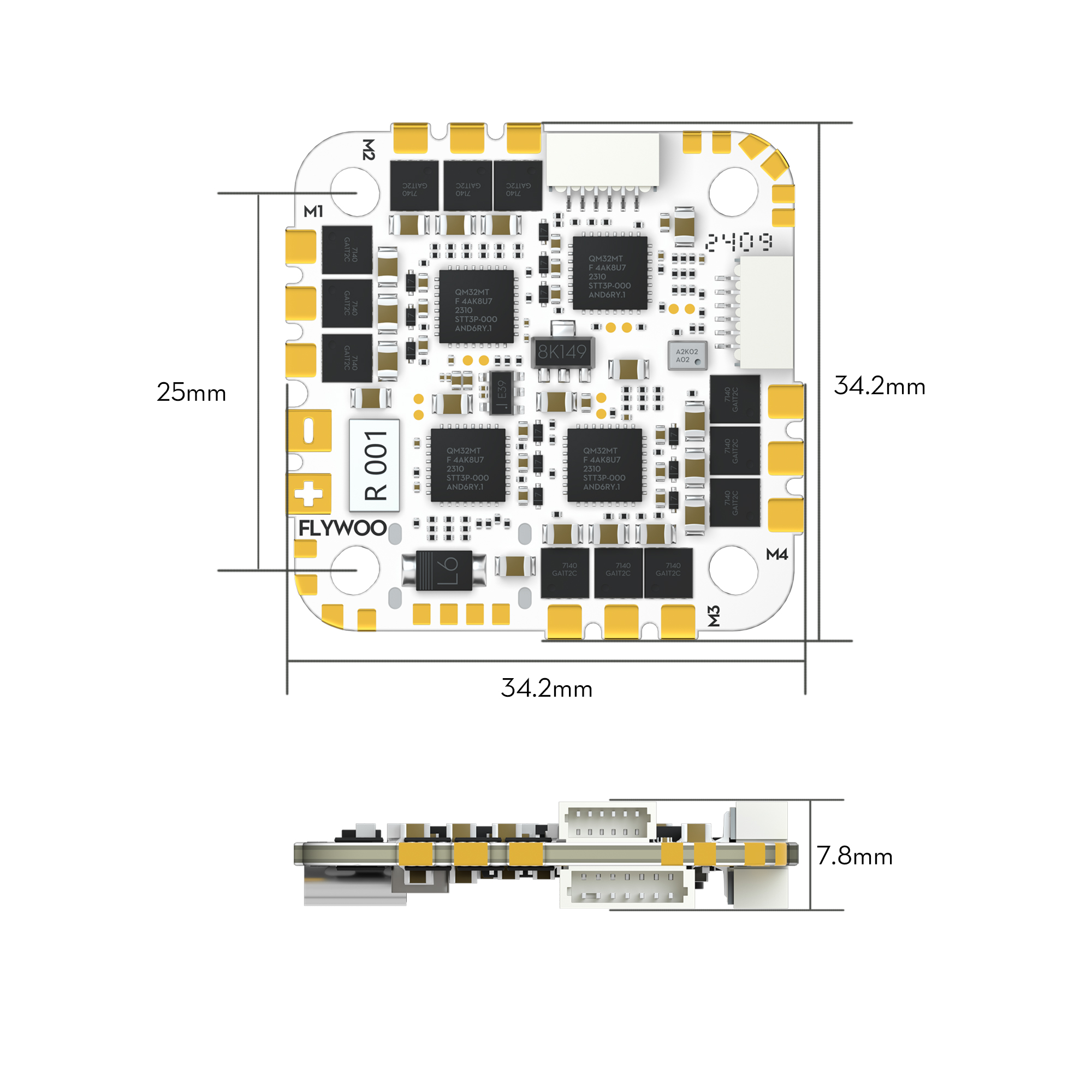

  • Dimensions: 33.5x33.5mm
  • Mounting Holes: Standard 25.5/26.5mm square to center of holes

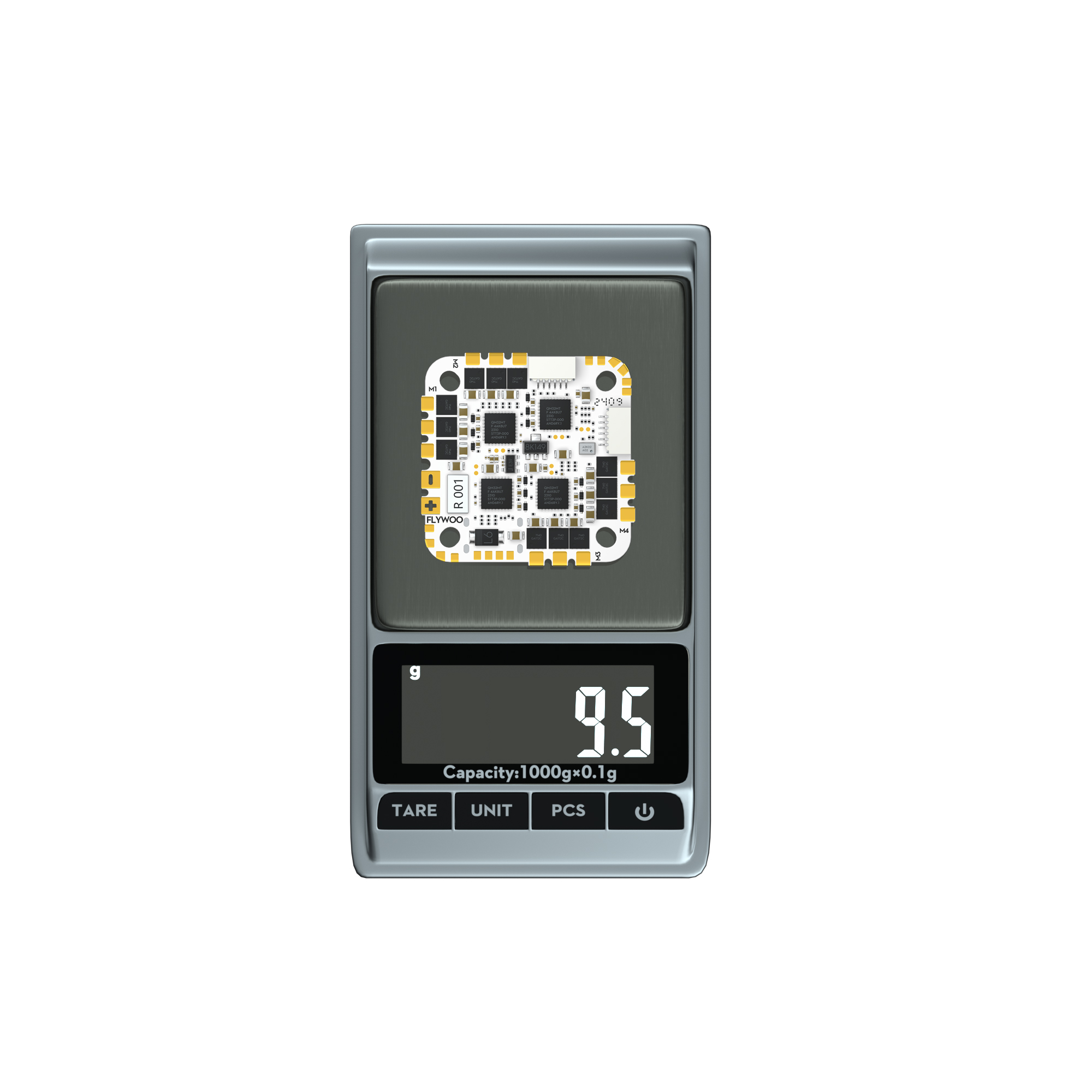

  • Weight: 9.4g

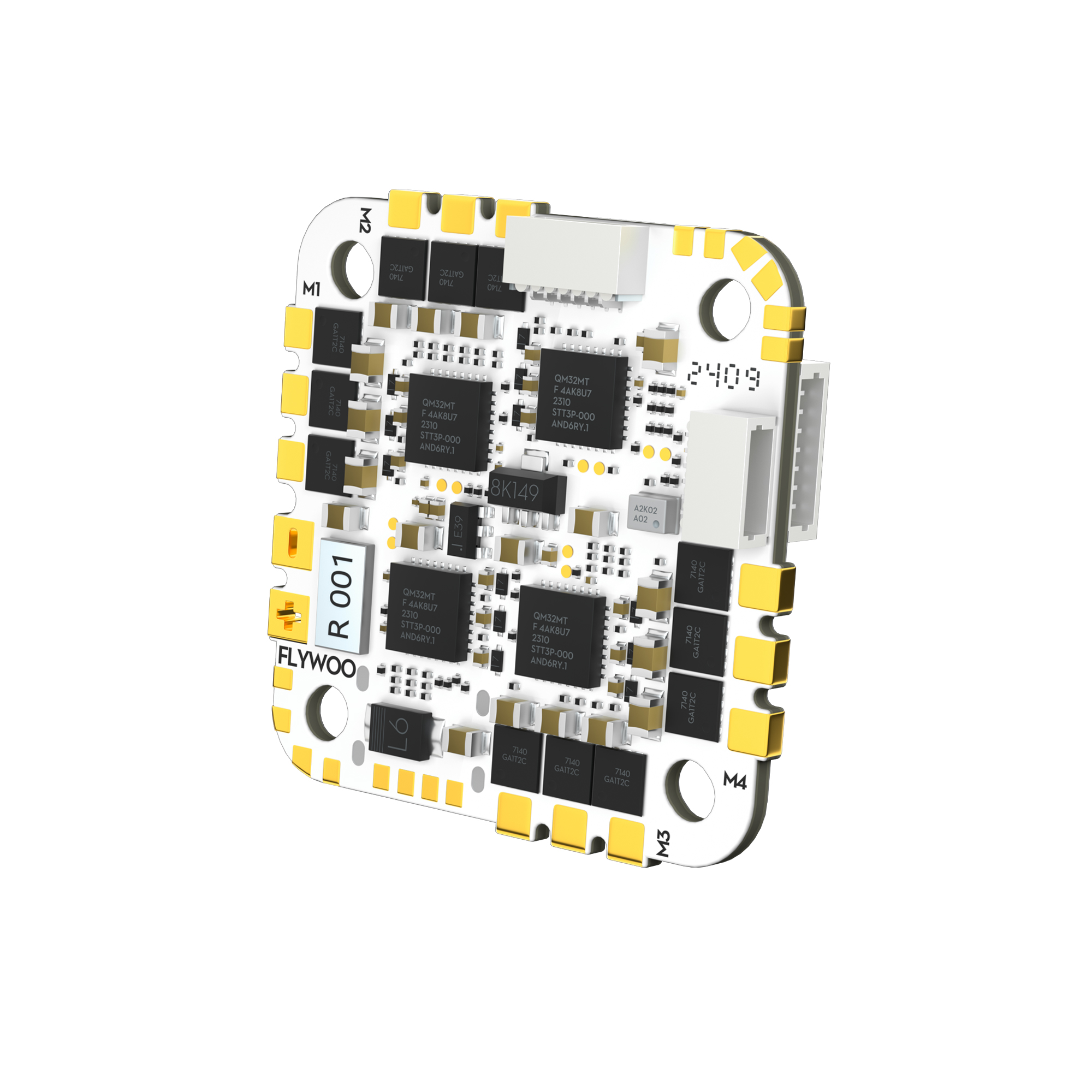

Onboard 4in1 ESC

  • Support AM32
  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
  • Input Voltage: 2-6S Lipo
  • Continuous Current: 45A
  • Firmware: GOKU_F4A32_PRO

In the Box

  • 1x UNICON UPL Capacitor 25V 470UF
  • 4x M2x6.6 Shock-Absoring Ball
  • 4x M2 Rubber Ring
  • 1x XT30 Power Cable
  • 1x DJI O3 Connection Cable
  • 1x VTX & Camera Connection Cable
  • 1x Receiver Connection Cable
  • 1x GPS Compass Connection Cable
