GOKU GM10 V3 GPS series is here!
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Description
Brand: FLYWOO
Model: GM10 NANO V3 GPS

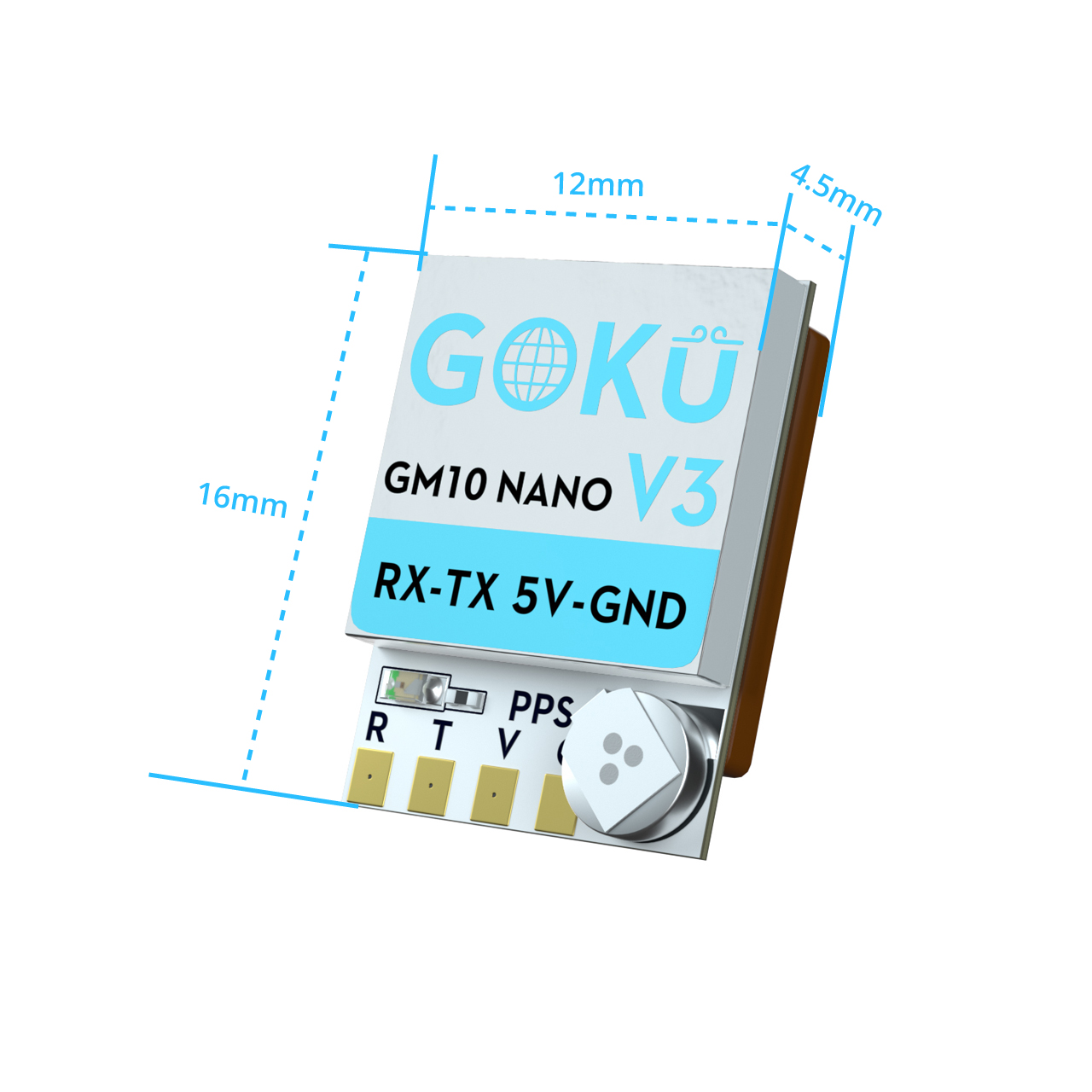

Dimension :12mm*16mm*4.5mm

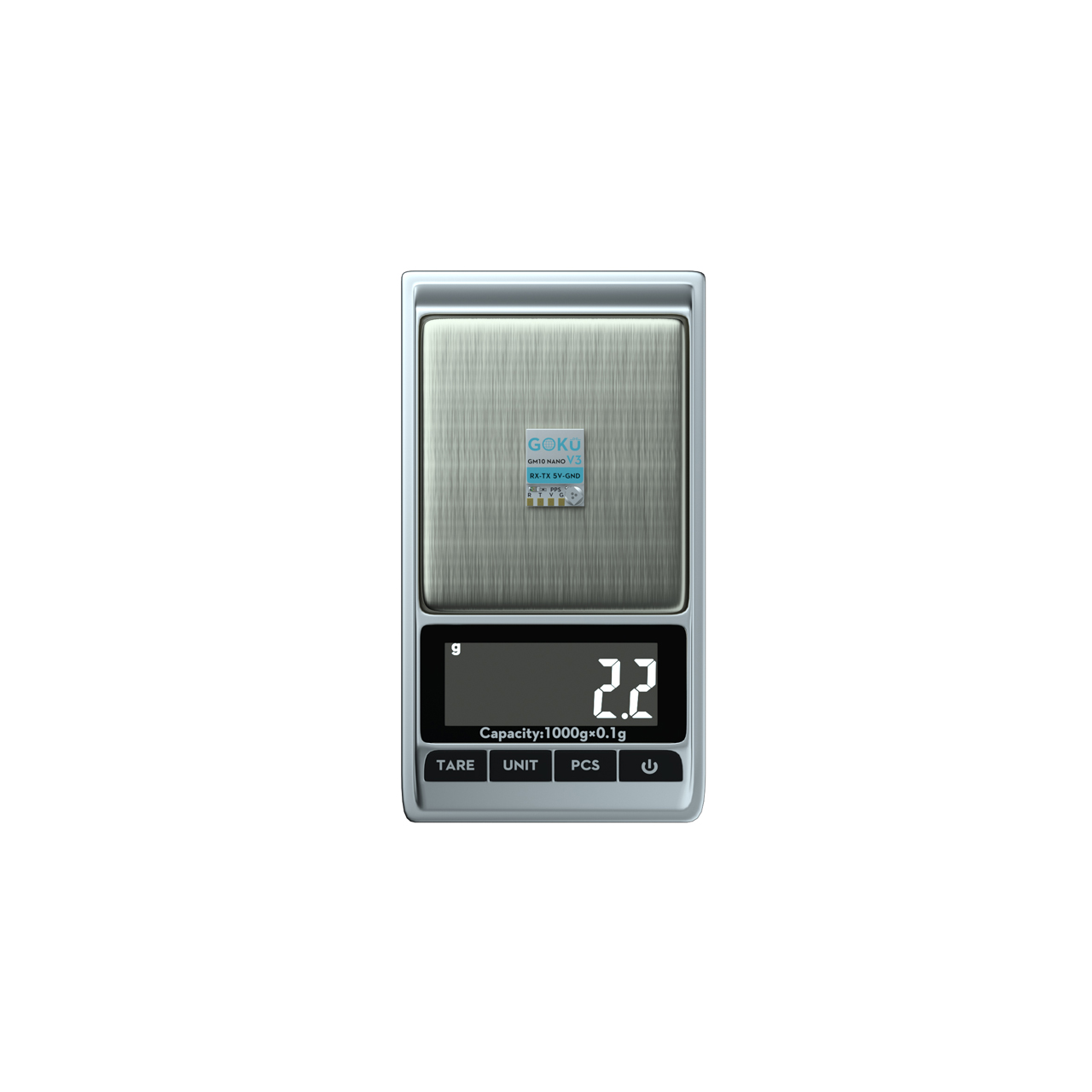

Weight : 2.2g
Connector : 4pins Pad

Features:
GPS Module,Three Module
4pins Pad,ultra light weight

Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz,Default 10Hz

Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage :3.3-5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

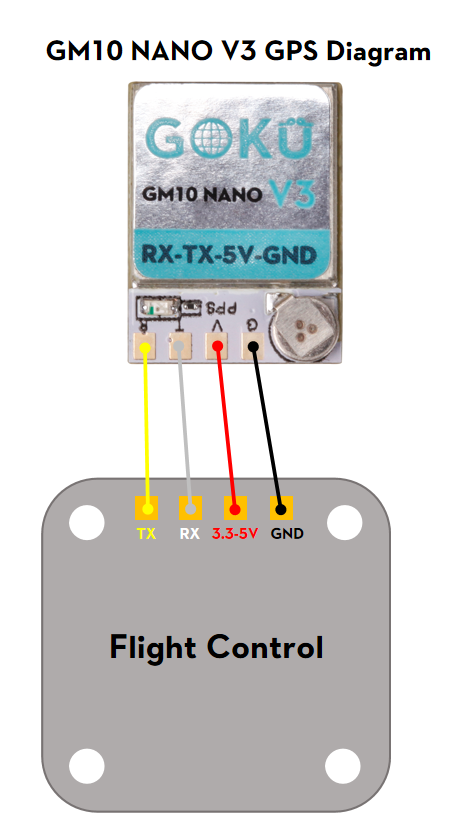

The Module’s Pins: RX TX 3.3-5V GND

Includes
1x GM10 NANO V3 GPS
1x 100mm Cable
1x Copper Foil



Recommended by Influencers

Comparison

GM10 Mini V3 GPS w/compass
Shop Now
GOKU GM10 Mini V3 GPS
Shop Now
GM10 Pro V3 GPS w/compass
Shop Now
GOKU GM10 Nano V3 GPS
Shop Now
GM10 Nano V3 GPS w/compass
Shop Now
Data Protocol
BF4.3.X(UBLOX)/BF4.2.X(NMEA)
BF4.3.X(UBLOX)/BF4.2.X(NMEA)
BF4.3.X(UBLOX)/BF4.2.X(NMEA)
BF4.3.X(UBLOX)/BF4.2.X(NMEA)
BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Chipset
M10050
M10050
M10050
M10050
M10050
Dimension
18mm*18mm*4.8mm
18mm*18mm*4.8mm
25mm*25mm*6mm
12mm*16mm*4.5mm
12mm*17mm*5mm
Weight
4.1g
4.5g
7.2g
2.2g
2.6g
Connector
sh1.0 4pins seat
sh1.0 4pins seat
sh1.0 6pins seat
4pins Pad (Need to solder)
4pins Pad
DC Voltage
5V
5V
5V
3.3-5V
3.3-5V
Receiving Format
GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol
GPS,Galileo,BeiDou
GPS,Galileo,BeiDou
GPS,Galileo,BeiDou
GPS,Galileo,BeiDou
GPS,Galileo,BeiDou
Channels
72 Channel
72 Channel
72 Channel
72 Channel
72 Channel
Output frequency
1Hz-10Hz, Default 10Hz
1Hz-10Hz, Default 10Hz
1Hz-10Hz, Default 10Hz
1Hz-10Hz, Default 10Hz
1Hz-10Hz, Default 10Hz
