Wide Receiving Frequency Range: The FLYWOO1.2/1.3GHz Dual VRX Video Receiver has a receiving frequency range of 9CH, covering a wide range from 1080MHz to 1360MHz.

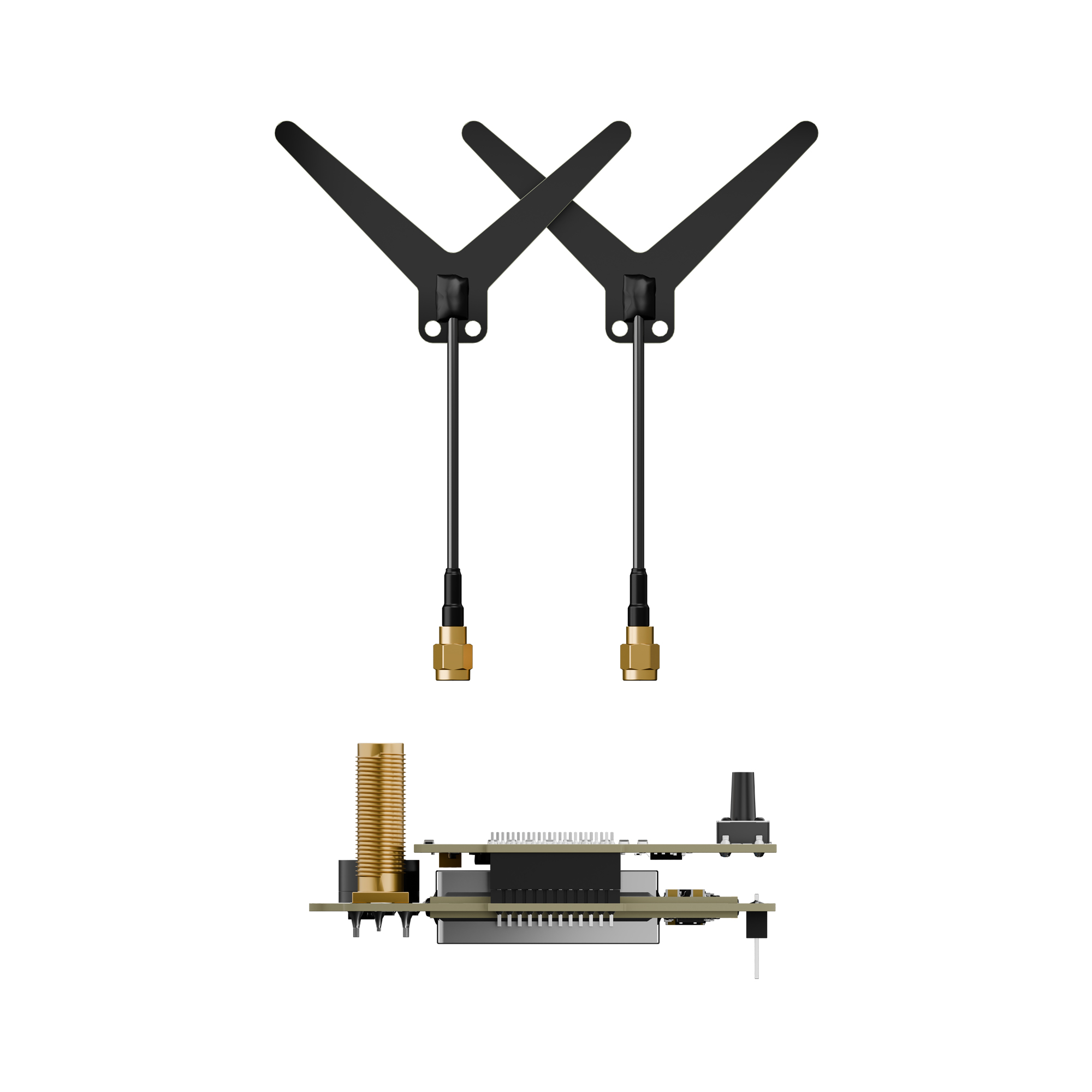

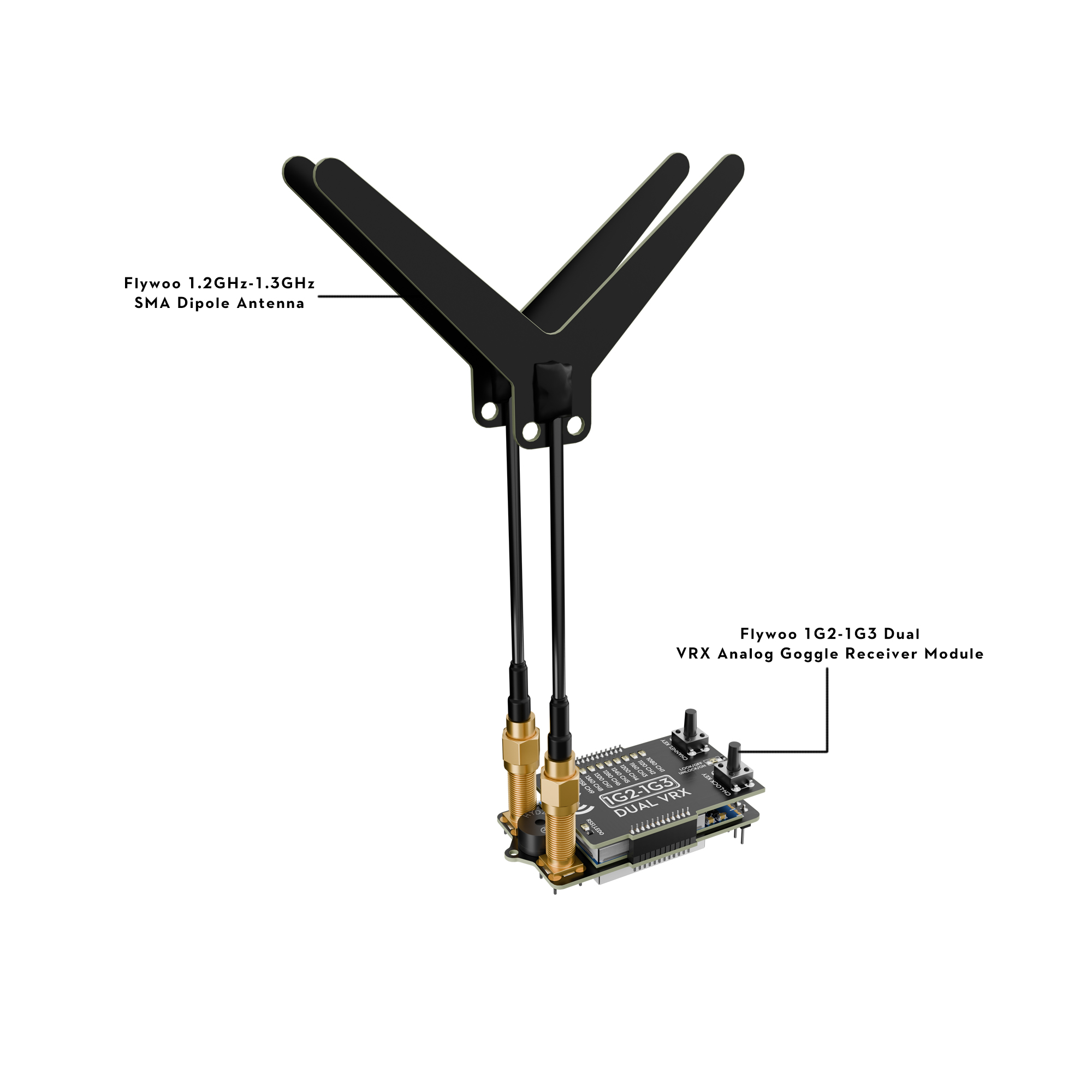

Dual Antenna Design: With two Y-shaped 1.2G antennas, the Flywoo receiver module ensures stable and reliable signal reception for an uninterrupted FPV experience.
Notch Filter Included: The FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz) included in the box helps eliminate interference from other devices operating at similar frequencies, ensuring a clear video feed.
Specifications
-
Receiving Frequency: 9CH (1080MHz to 1360MHz)
-
RX Sensitivity: -95dBm
-
Dual Input : 5V/2.54 9 PIN socket, compatible with FATSHARK/SKYZONE FPV Goggles
-

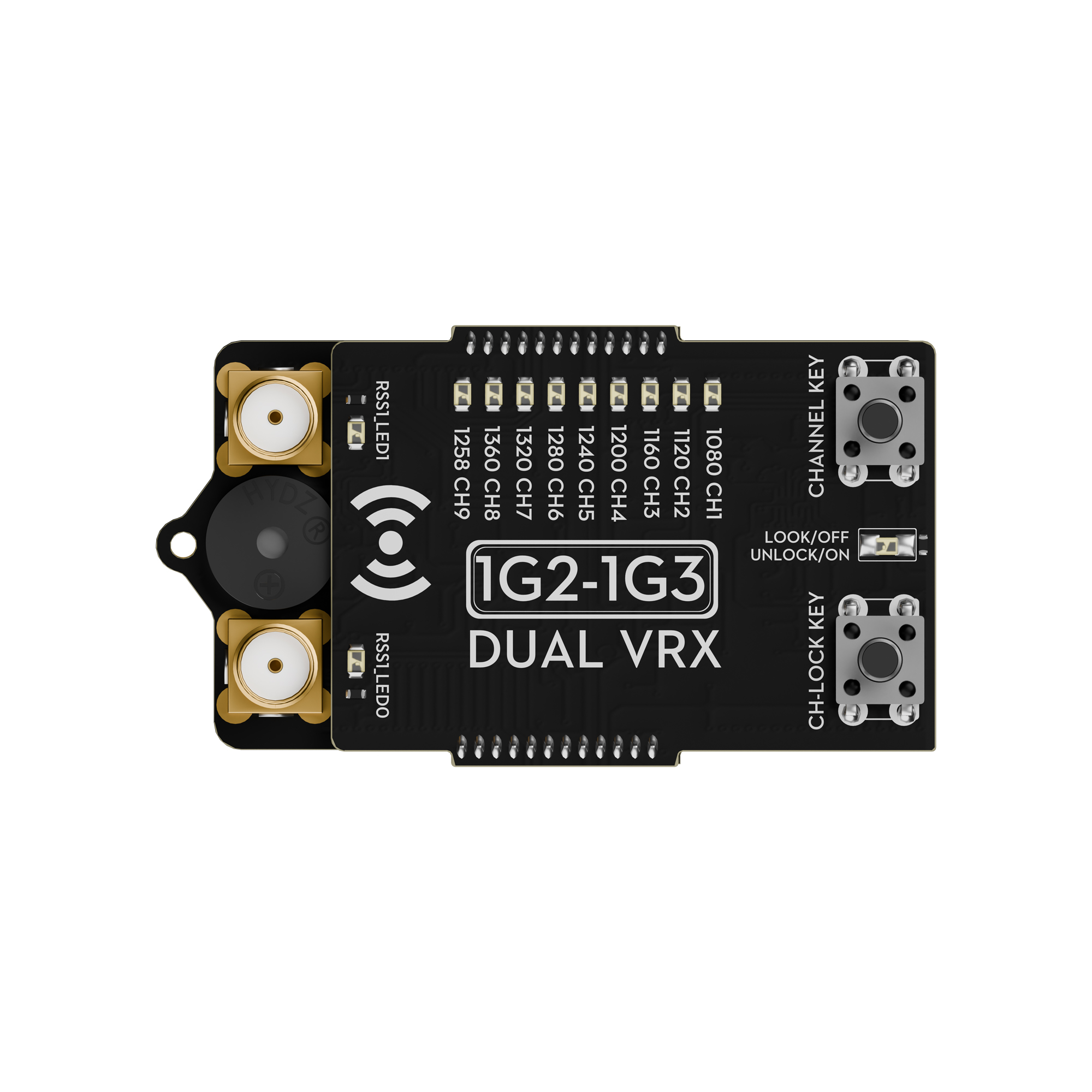

Button Control : Lock and Select Frequency
-
Channel LED: 9CH LED
-
RSSI LEDs: RSSI0/RSSI1
-
Current Consumption: 0.4A @5V
-
Video Format: NTSC or PAL
-
Video Output Impedance: 75Ω, Typ.
-
Audio Subcarrier Frequency: 6.5MHz & 6.0MHz
-
ANT. Input Impedance: 50Ω, Typ.
-
RF Connector: SMA
-

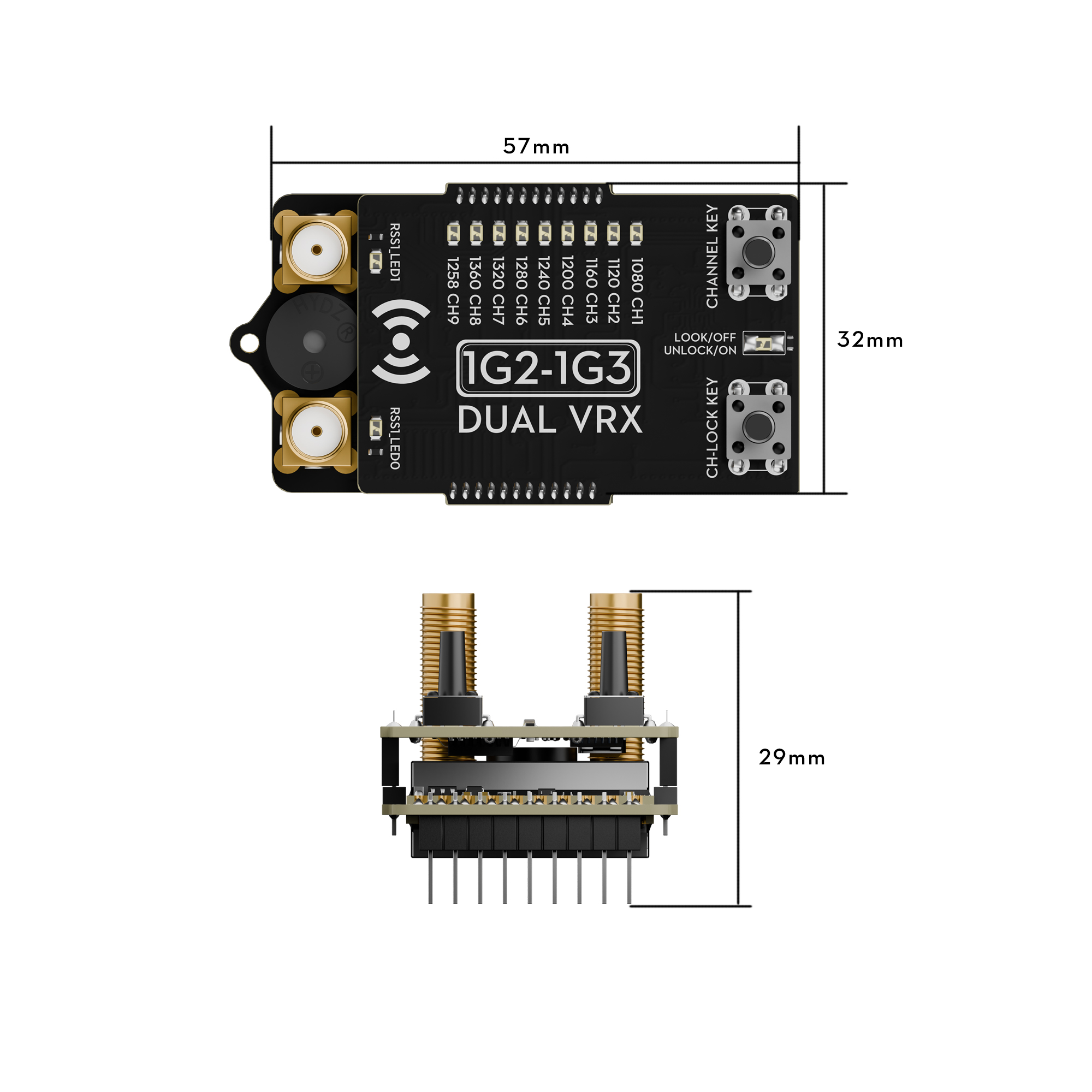

Size: Board
Product User Guide
- Press and hold the LOCK button for 3 seconds to unlock the channel. The UNLOCK LED will light up and the buzzer will sound once.
- Press the CHANNEL button to select the frequency. The LED will light up and the buzzer will sound once.
- The RSSI0/RSSI1 LEDs respectively display the signal strength of the two receiver modules.
- The new frequency will be saved if no button action is taken within 3 seconds.
In the Box
-

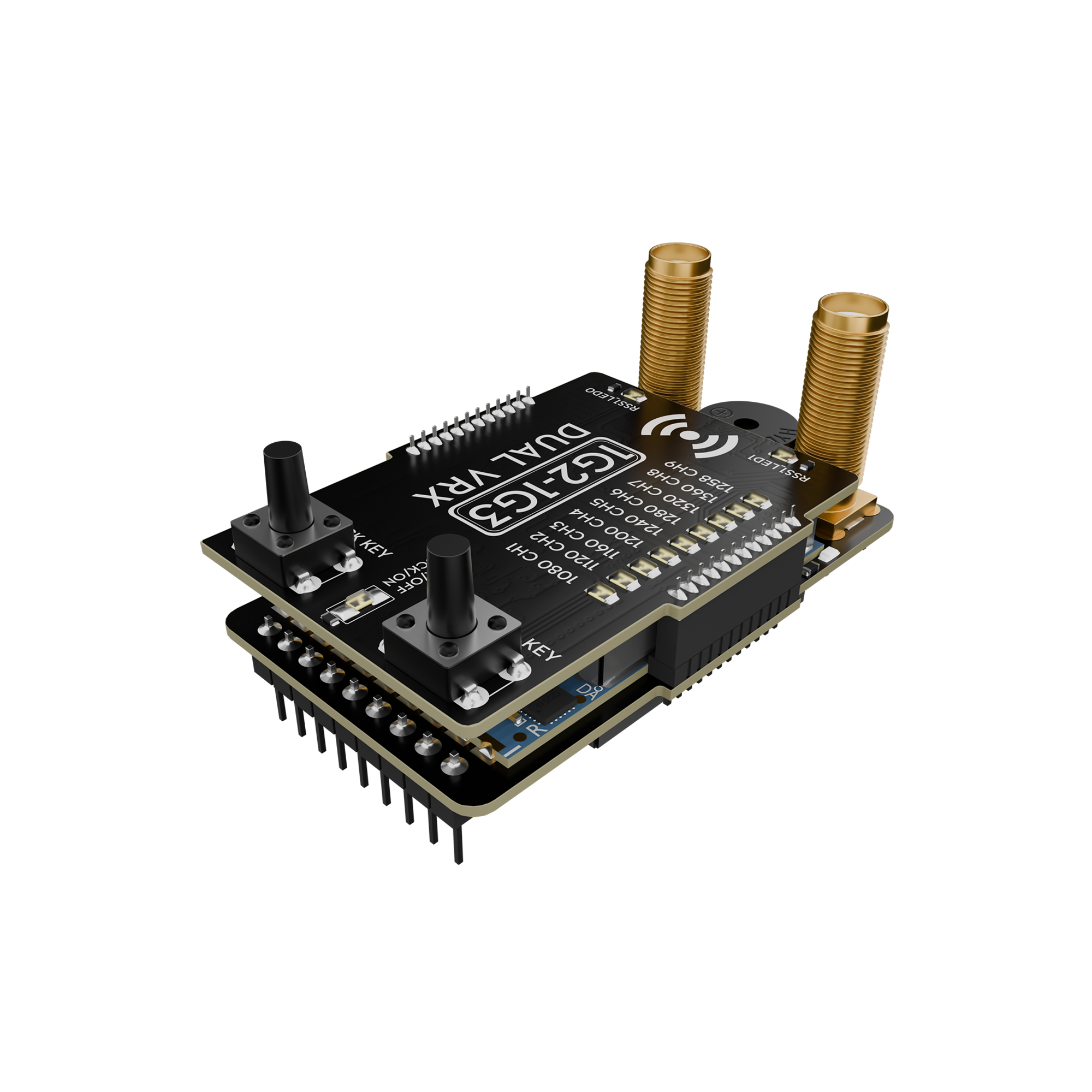

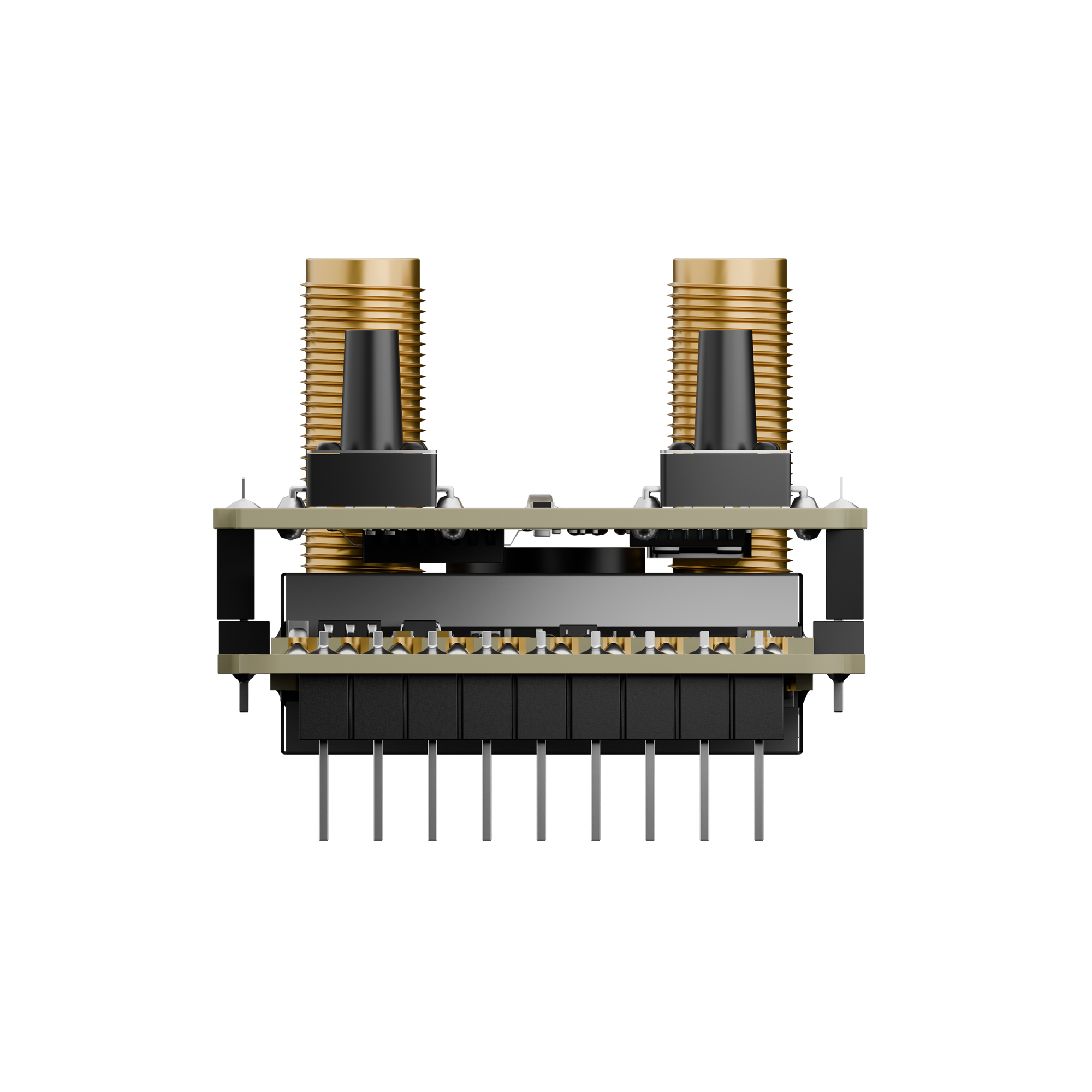

1 x Flywoo 1G2-1G3 Dual VRX Analog Goggle Receiver Module
-
2 x Flywoo 1.2GHz-1.3GHz SMA Dipole Antenna (2pc) - Linear
-
2 x FLYWOO 1.2GHz VRX Notch Filter (868/915 MHz)
