Changelog:
2024,01.01 : V1.2 Bottom Plate
1：added support for 9mmx9mm motor mounting holes.
2024.03.07 : V1.3 Bottom Plate
1: Reinforce the camera mounting holes for the bottom plate
2: Optimize the width between the motor mounting holes and the periphery
3: Original Micro-USB port, compatible with Type-C
Description:

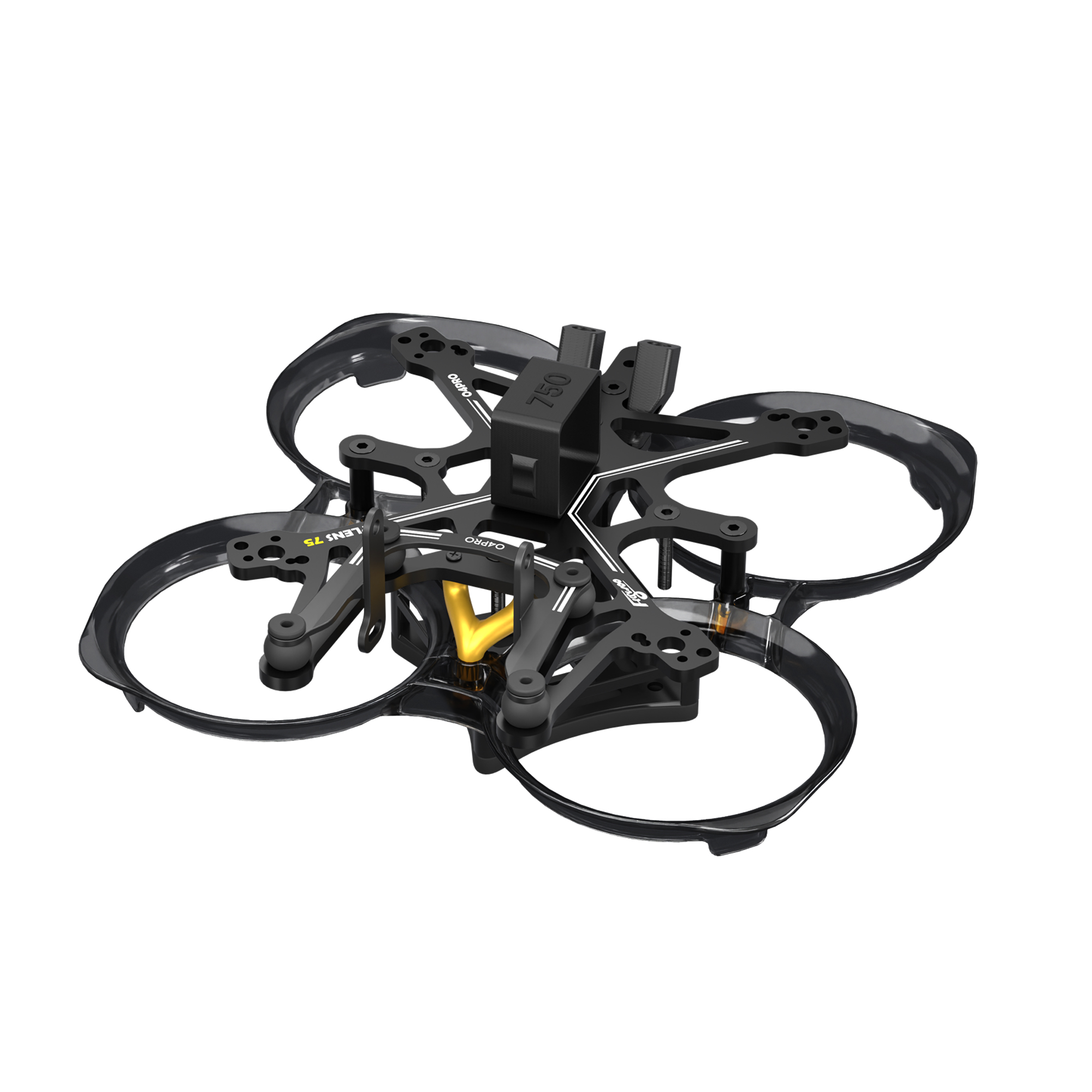

The Flylens 75 frame is a 1.6-inch whoop-type frame designed for indoor and narrow space flight. It is compatible with various mainstream digital and analog image transmission systems. The frame is equipped with an injection-molded protective ring and a carbon black treatment process.
The Flylens series opens up the field of micro-crossing machine film and television creation, providing the latest and most reliable solutions for exploring and capturing new perspectives.
Design Features：
- Latest three-point CNC damping platform design to perfectly eliminate high-frequency vibration and jelly effects

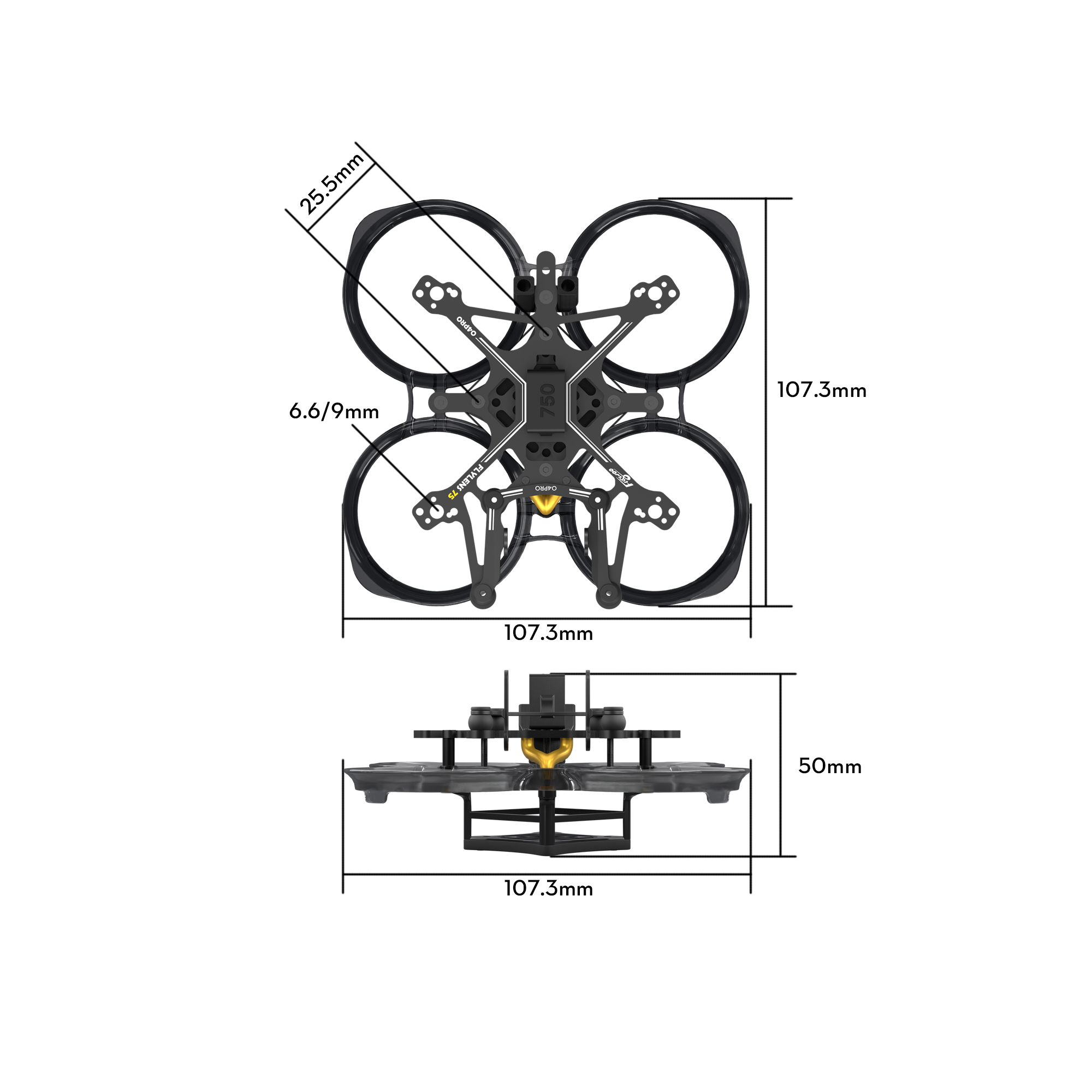

- Flight control hole position is 25.5x25.5mm, the image transmission compartment hole position is 20x20/25.5x25.5mm, and the motor hole position is 6.6mm \ 9mm
- Compatible with various mainstream devices on the market
Highlights:

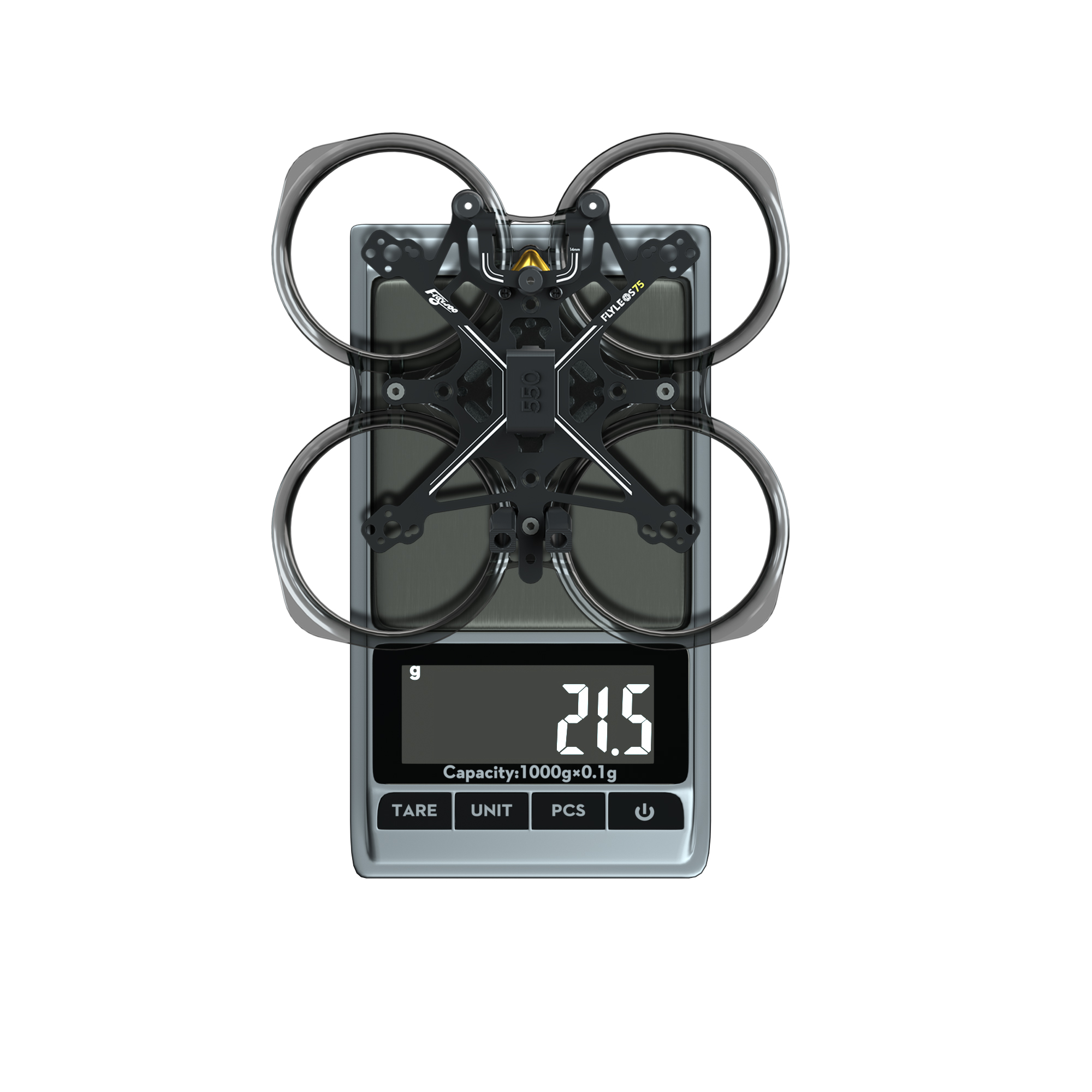

- 1/ Compact and lightweight design for a 1.6 inch drone.
- 2/ Supports O3 digital image transmission for long-range, 4K high-definition, low-latency transmission.
- 3/ High-strength PC injection-molded protective ring for enhanced durability and safety.
- 4/ Unique CNC damping platform for stable video recording.
- 5/ Bottom-mounted image transmission PC compartment for protection and improved heat dissipation.
- 6/ Quick-release frame design for easy component separation.
- 7/ Reverse thrust propeller configuration for stable flight and extended endurance.
Specifications:
| Brand | FLYWOO |
| Model | Flylens 75 |
| Main Board Thickness | 2mm |
| CNC Gimbal Thickness | 1mm |
| Protective Ring Material | PC+ |
| Flight Control Hole Position | 25.5x25.5mm |
| Image Transmission Hole Position | 20/25.5mm Motor Hole |
| Position | 6.6mm/ 9mm |
|
Propeller Size
|
1.6 inch
|
| Camera Hole Position | 14mm\18mm\20mm |
Recommmend Configuration :
| Model | FlyLens 75 HD O3 \ O3 Lite 2S Brushless Whoop FPV Drone |
| Frame | FlyLens 75 O3 \ O3 Lite Frame kit |
| Electronic | GOKU Versatile F405 1-2S 12A AIO (MPU6000) |
| Transmission | DJI O3 Air Unit or Flywoo Naked O3 Lite Air unit |
| Camera | DJI O3 Air Unit Camera Module |
| Propeller | 1609 - 4 Blade 40mm 1.5mm Shaft |
| Motor | ROBO 1003 14800KV |
| Antenna | Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL |
Product Size:

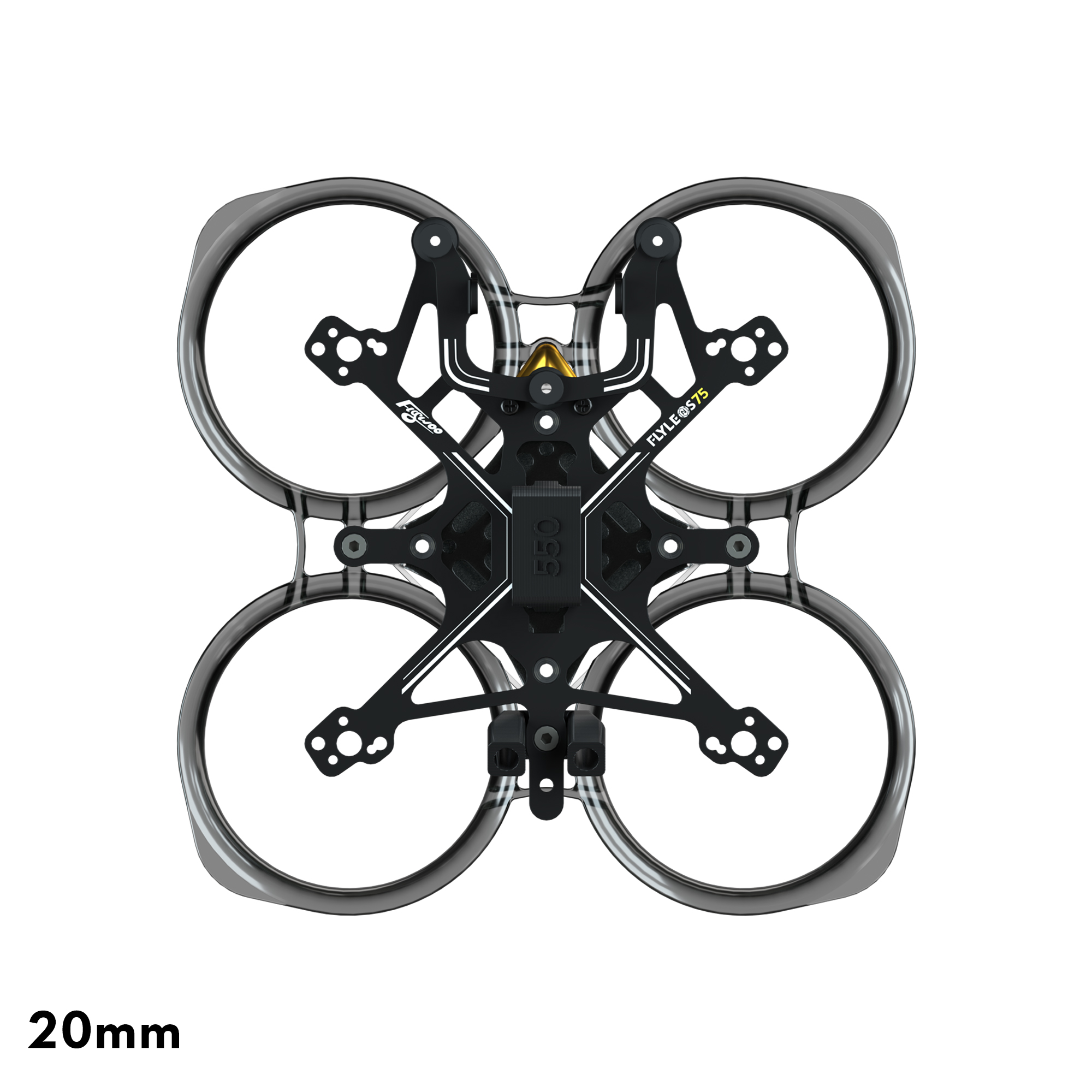

- O3 Frame kit (20mm Cam Size): Suitable for all 20mm-sized cameras, such as Nebula Pro, Wasp, Walksnail Micro Cam, and HDZero Micro Cam.
- O3 Lite Frame kit (18mm Cam Size): Comes with a default 18mm CNC camera bracket. But You can also purchase an additional 14mm CNC camera bracket for installing such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop.

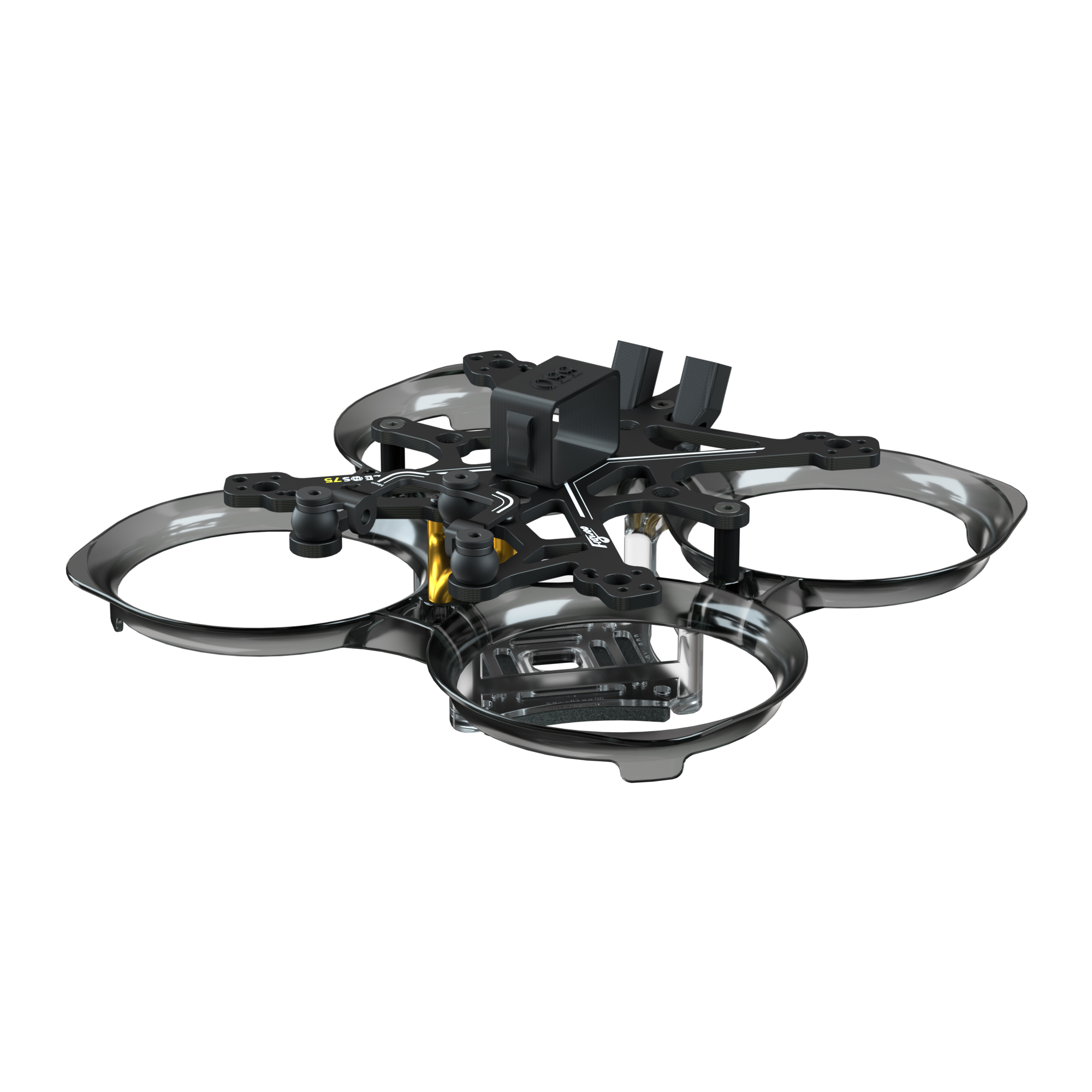

- Flylens 75 Frame kit (14mm Cam Size): Suitable for all 14mm-sized cameras, such as Nebula Pro Nano, Wasp Nano, Walksnail 1S Lite, and HDZero 1S Whoop， Flywoo Nano Cam V3
