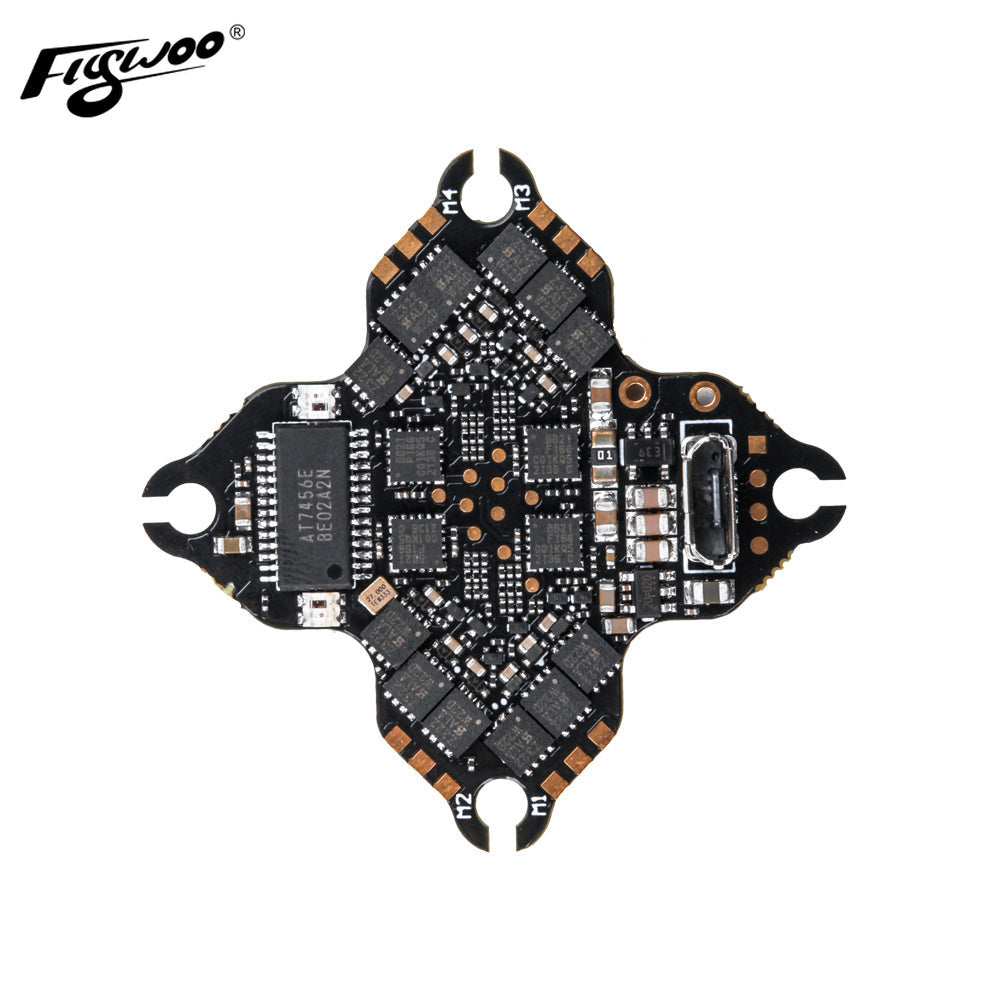

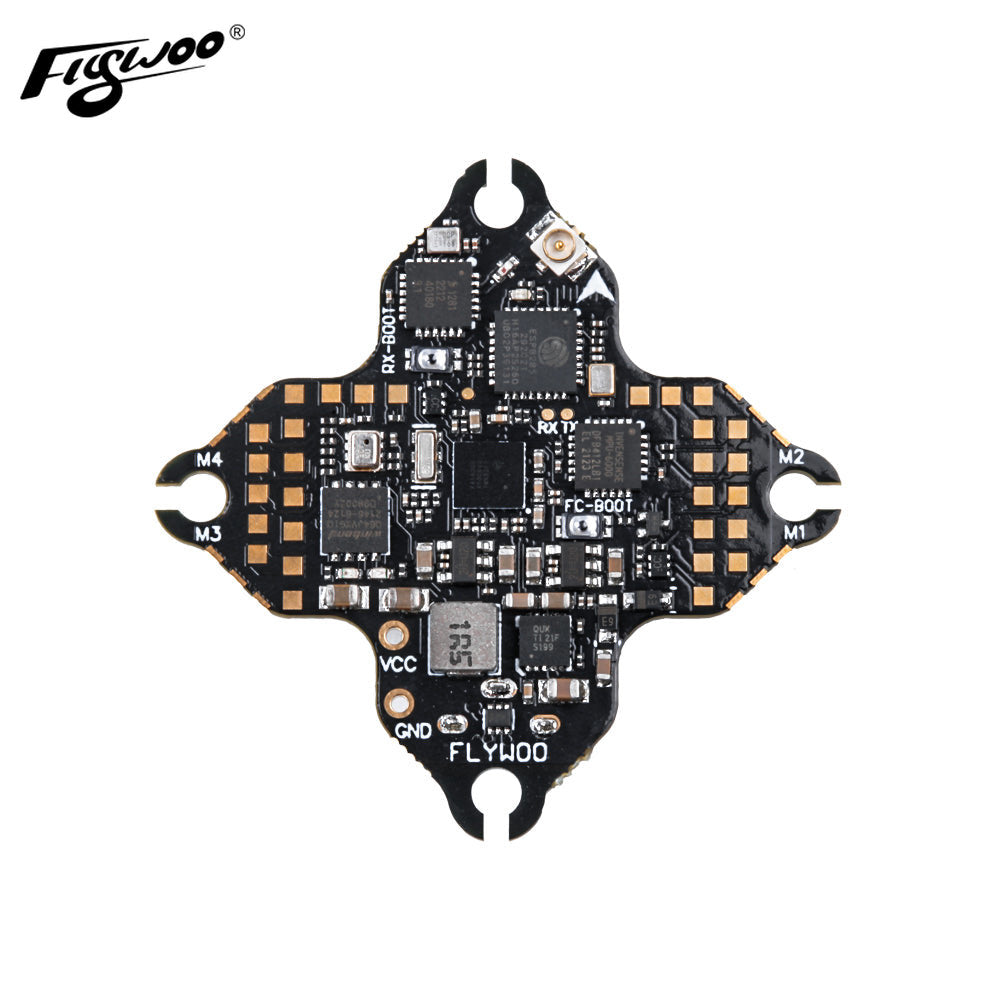

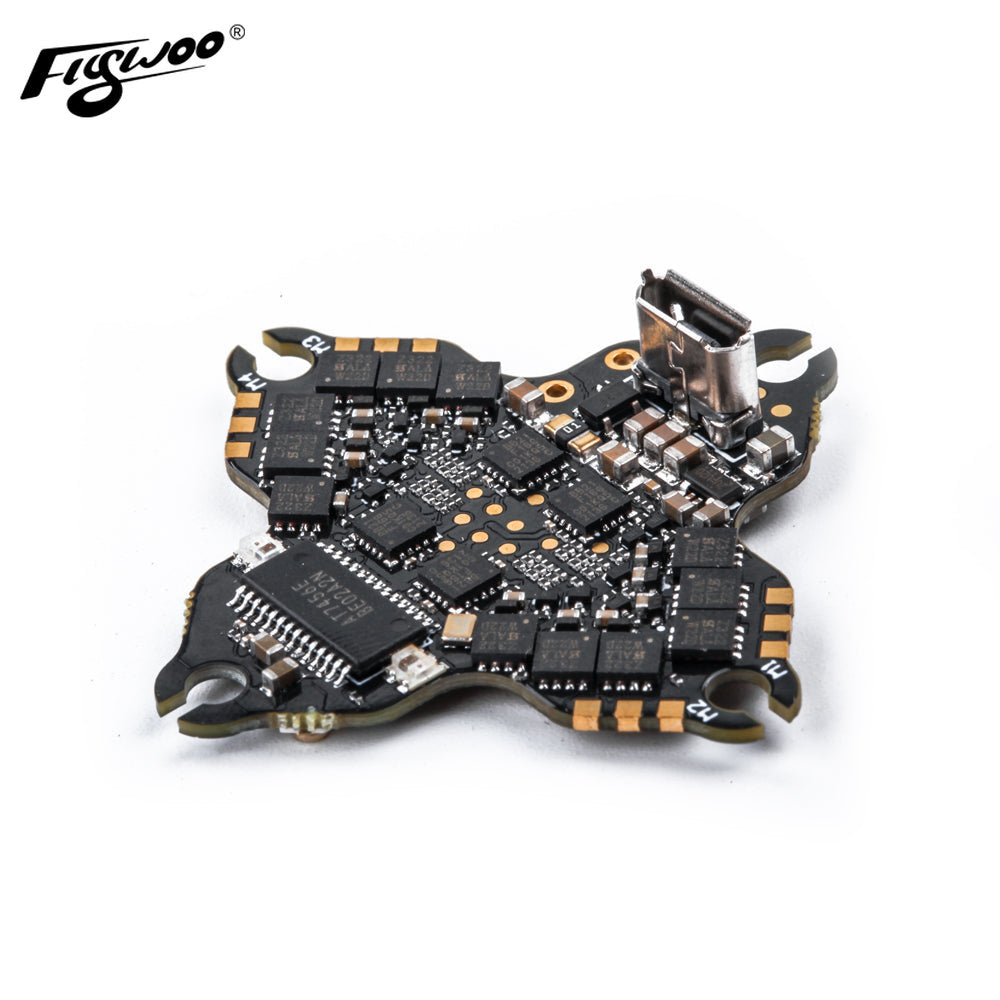

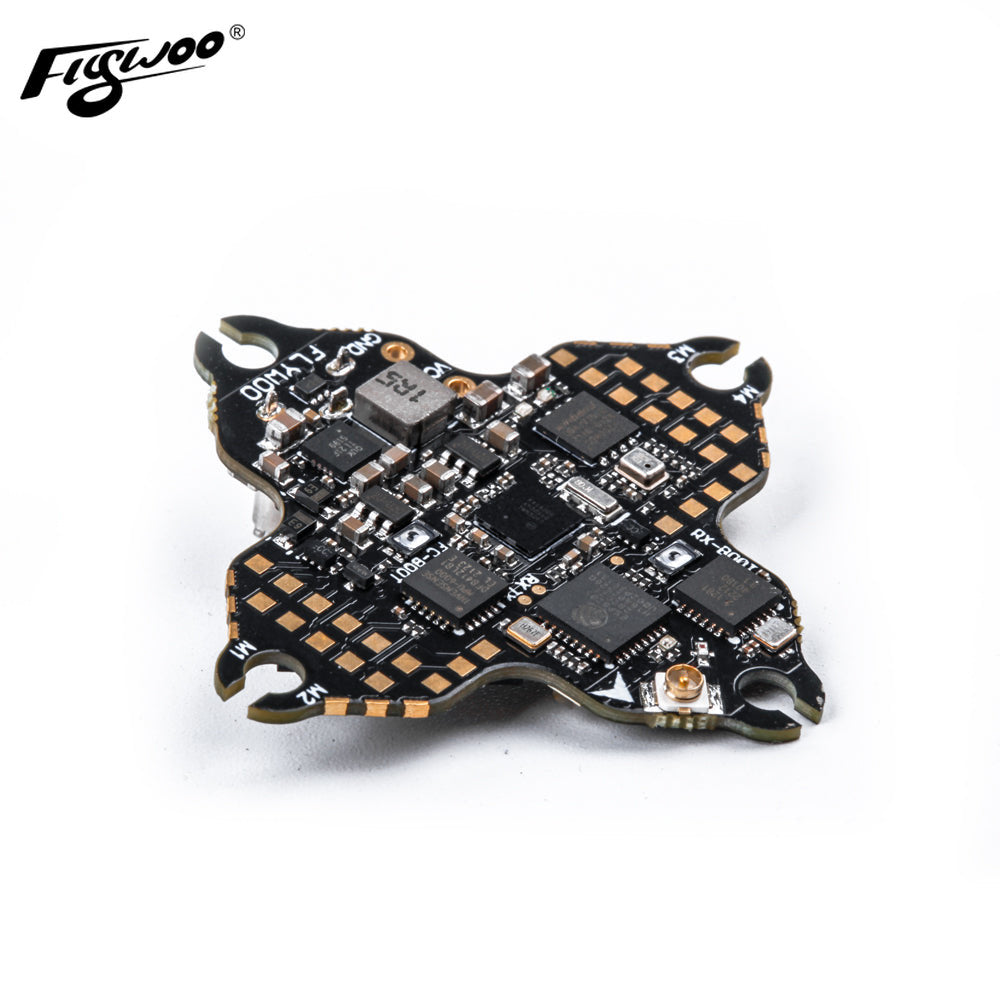

GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
GOKU Versatile F405 1-2S 12A AIO W / build-in ELRS 2.4g RX (ICM42688 \ MPU6000)
F405AIOES

GOKU F405 1-2S 12A AIO W / build-in ELRS 2.4g RX For Flylens 75 \ 85

Save 10%
$89.99 USD
$99.99 USD
(tax included)
Options
Build-in ELRS 2.4g RX (ICM42688)
No RX (ICM42688)
Build-in ELRS 2.4g RX(MPU6000)
Quantity
Only -12 left
Volume Pricing
Quantity
Price
1+
$89.99 USD each
Get 1% Flywoo Credit of the total purchase value.
Enjoy a 7-day return policy with no reason required.
Leave a review and get a 2% discount code for your next order.
Product Description

New Version  :  GOKU F405 HD 1-2S ELRS AIO V2


The GOKU Versatile F405 2S 12A AIO is another versatile and highly integrated circuit board in the GOKU Versatile series!
Built-in build-in ELRS 2.4g RX ,2S  12A ESC, OSD  , 6 serial ports, I2C functionality  and 2XWS2812 LEDs .   Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller , everything else all packed into a compact whoop board.

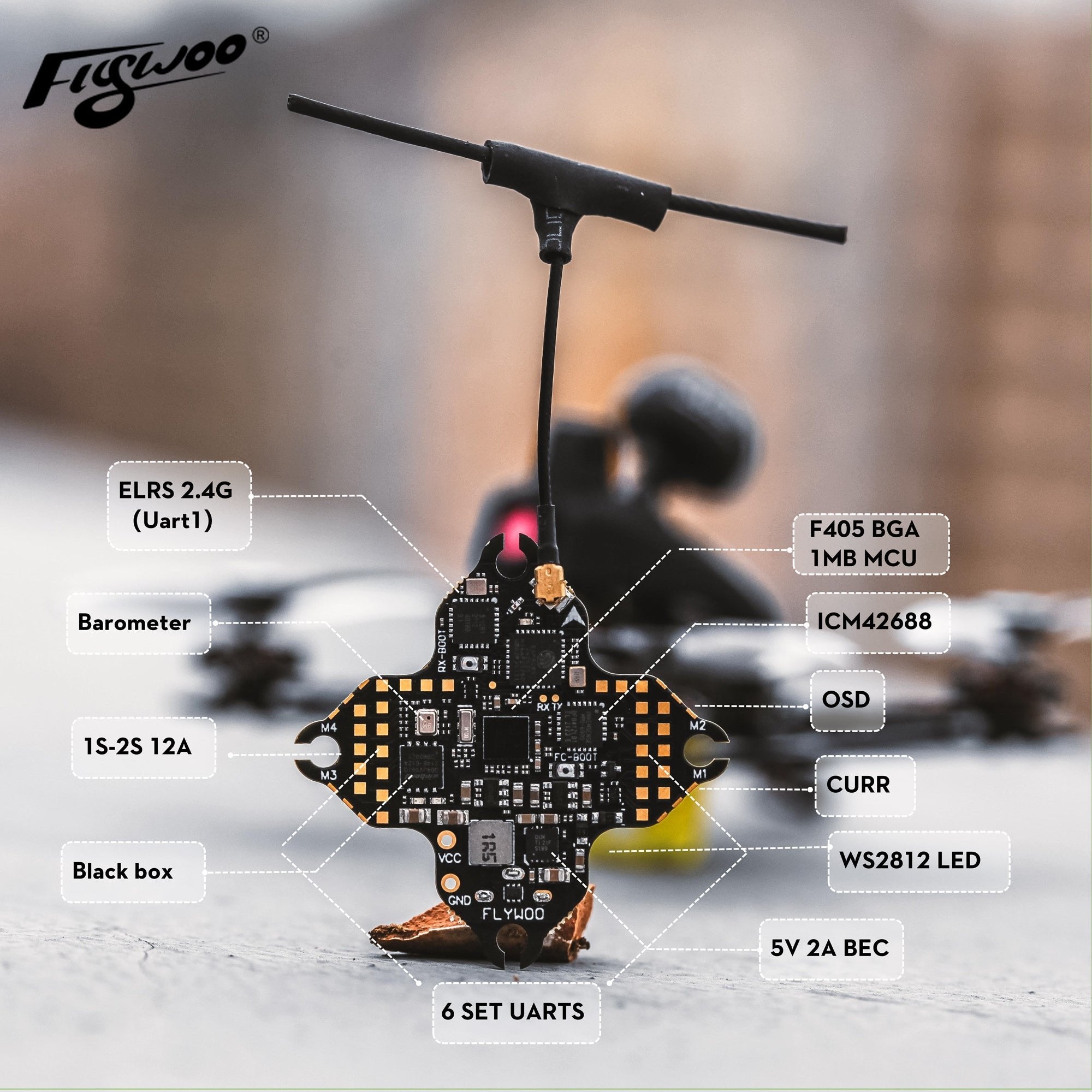

Highlights :

  1. build-in ELRS 2.4g RX (Full UART1) , 2S 12A ESC, OSD
  2. Opened 6 serial ports and 12C functionality
  3. Black box \ Barometer \ CURR
  4. Configured with the powerful F405 BGA MCU
  5. Built-in 2XWS2812 LEDs
  6.  Reasonable layout , easy to build
  7. Can work with different RX at the same time
  8. MPU6000\ICM42688 Gyroscope

Specifications
Flight Controller

  • SIZE: 30*30mm
  • Weight: 4.1g
  • Hole: 25.5*25.5-3mm
  • MCU: STM32F405
  • UARTS: 1,2,3,4,5,6
  • MOTOR: M1-M4 OUTPUT I2C: SCL/SDA
  • GYRO: ICM42688 \ MPU6000
  • Barometer: BMP280
  • LED:2*WS2812
  • Flash: 8M
  • BEC: 5V 2A
  • Firmware: FLYWOOF405S_AIO

Onboard 4in1 ESC

  • Built-in 1S/2S 12A BL_S 4in1 ESC
  • Support Oneshot125, Oneshot42, Multishot,
  • Dshot150, Dshot300, Dshot600
  • Input Voltage: 1-2S Lipo
  • Firmware: BLHELI_S
  • Firmware: Z_H_30_REV16.7

ELRS2.4G RX: (optional)

  • ESP8285 MCU
  • SX1280IMLTRT RF Module
  • Frequency Range: 2400 MHz to 2500 MHz
  • Maximum receive refresh rate: 500Hz
  • Minimum receiver refresh rate: 25Hz Seiral:
  • UART 1
  • Firmware: Flywoo EL24P 2400 RX
  • Version: 3.X.X
