About this product

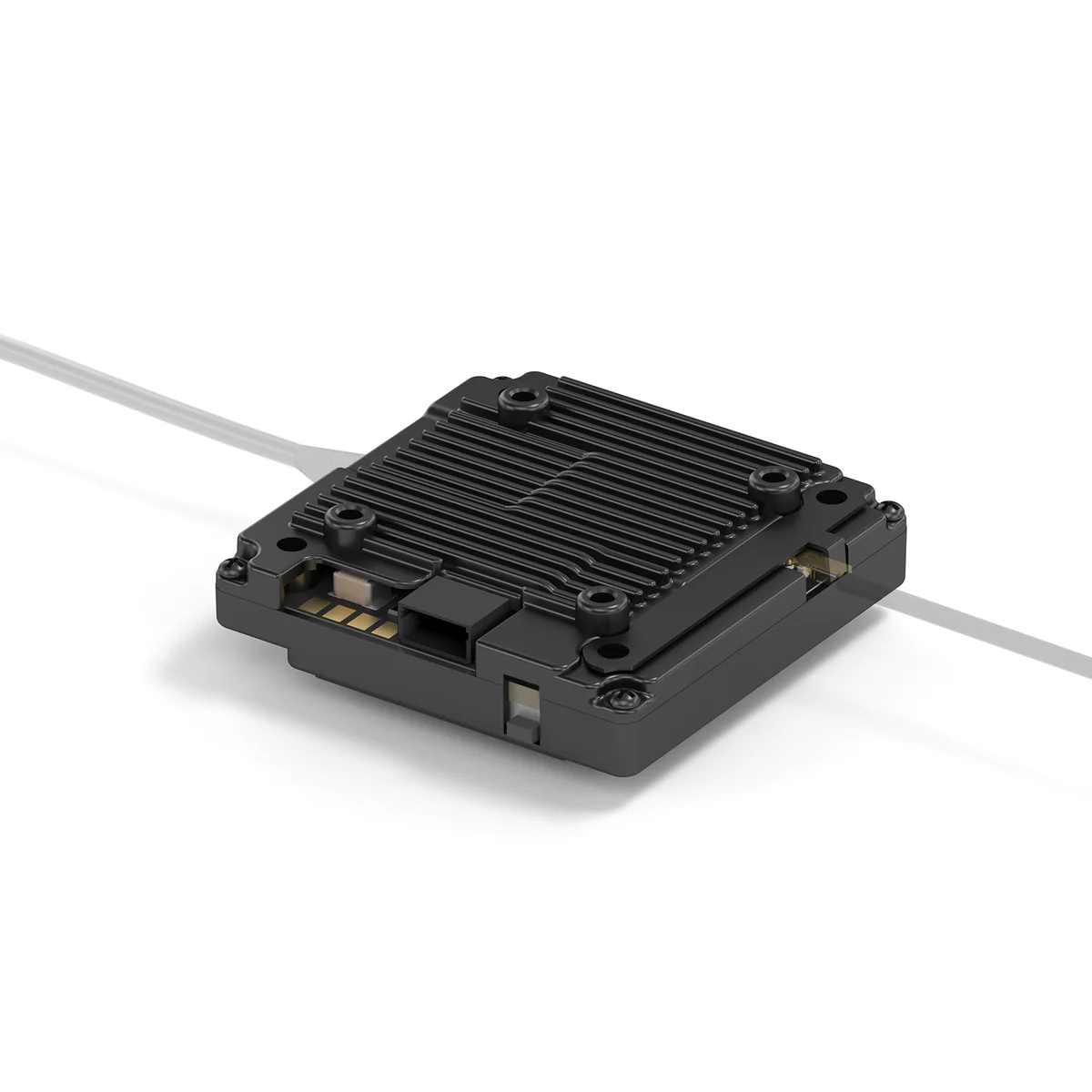

The Walksnail Avatar VTX is a lightweight HD system that works with HD Goggles such as the Walksnail Avatar and Fat Shark HD Dominator. This HD VTX has lower latency than the competitor at an average of 22ms, with 8Gb internal storage, 4km range, and 1080P resolution.
Features
- Lower latency than the competitor at an average of 22ms
- Built-in 8Gb Internal Storage
- 1080p Screen Resolution
- 4km Range
- 6V-25.2V
Specifications
- Transition Power: FCC<30dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
- Operational Frequency: 5.725-5.850GHz
- Operating Temperature: -20° to 40°
- Supported FC Firmware: Betaflight
- USB Connection: JST x 4 to USB-A
- Video Resolution: 1080p / 720p
- FC Connection Port: JST1.0 x 6
- Dimensions: 33x33x9.5mm
- Antenna Connector: U.fl
- Latency: 22ms Average
- Input Voltage: 6-25.2V
- Internal Storage: 8GB
- Mounting: 25x25mm
- Weight: 16g
- Channels: 8
Includes
- 1x Walksnail Avatar HD VTX Module
- 1x 6-Pin Power Cable
