FW19001829

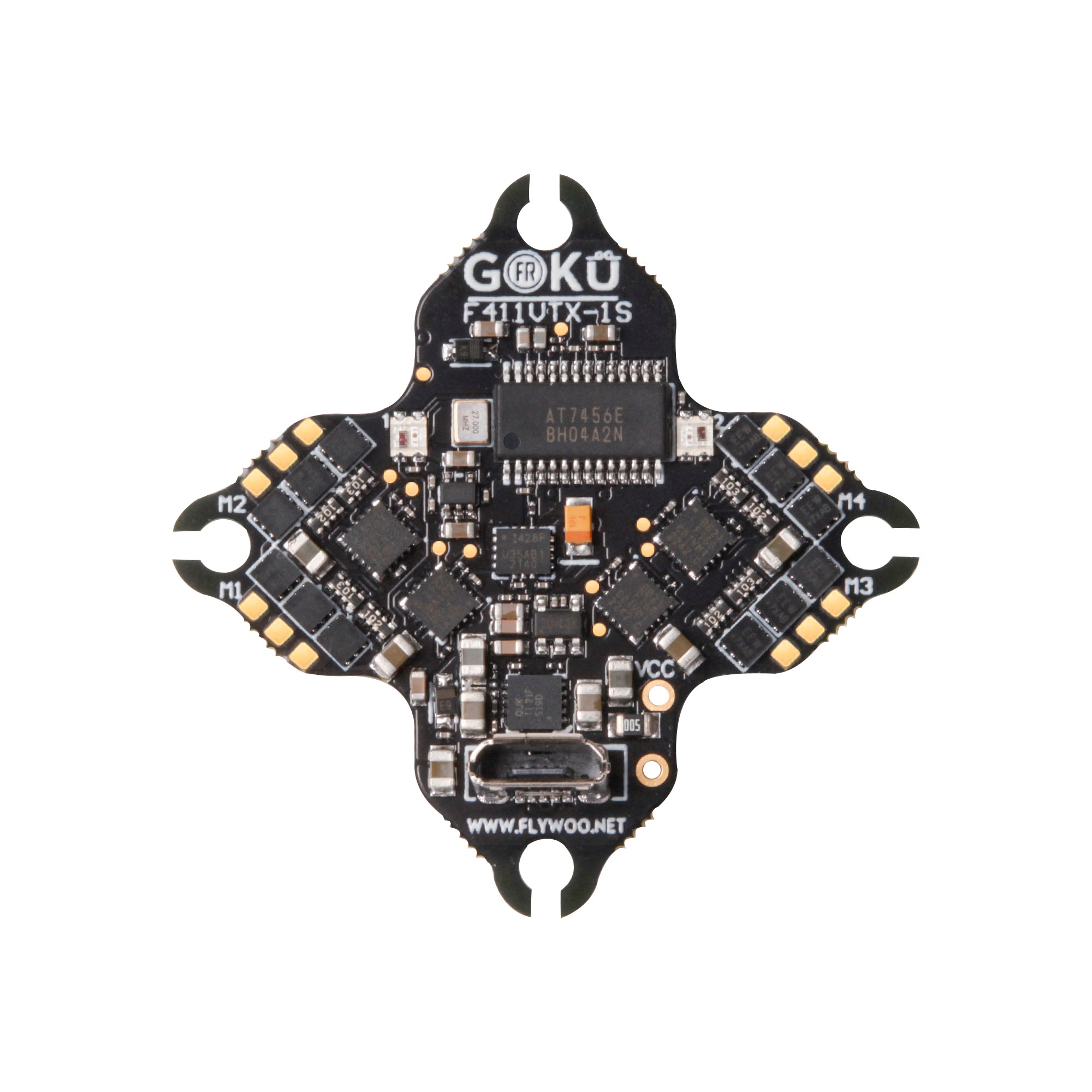

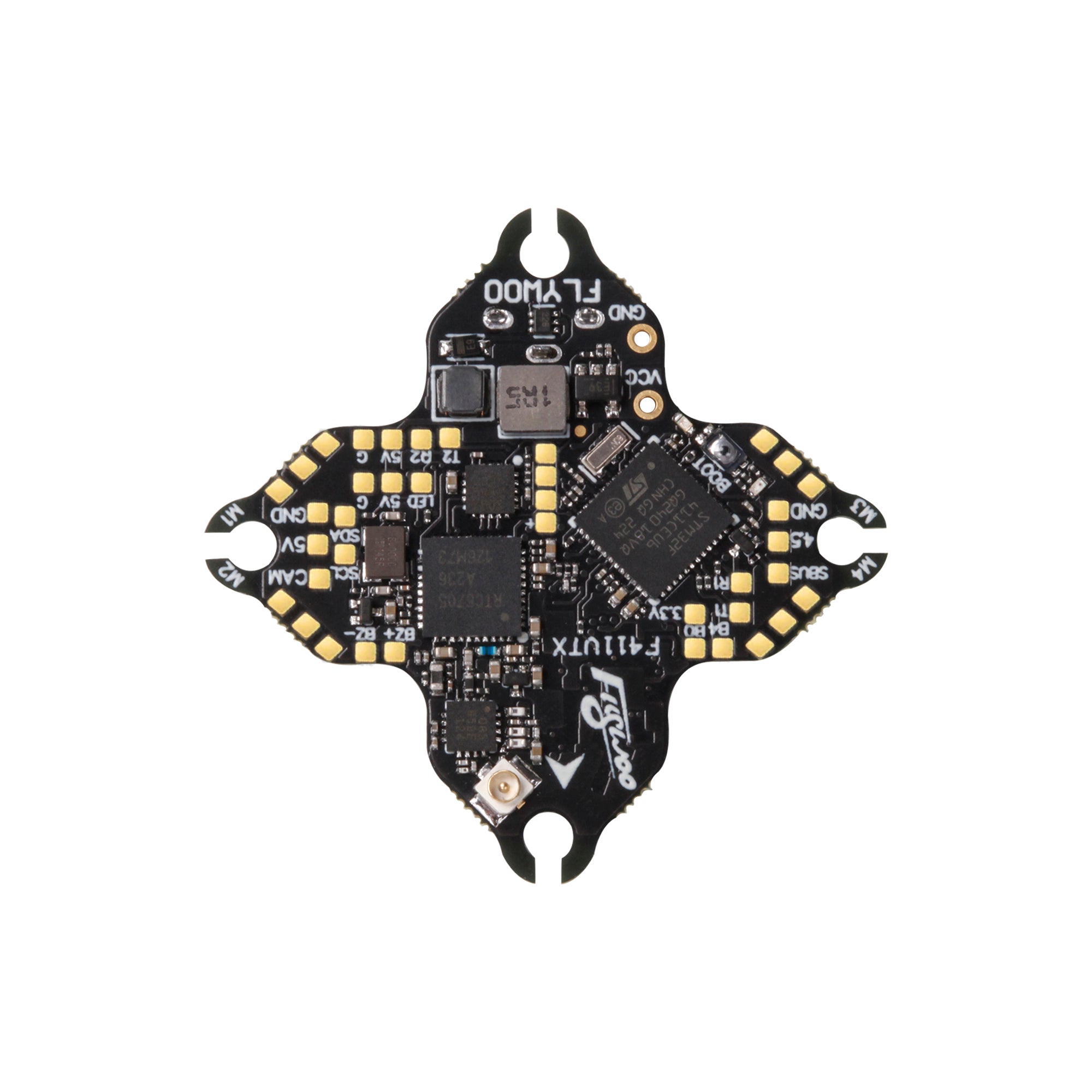

GOKU Versatile F411 VTX 1S 5A AIO V2.0 w/ 250mw vtx , 25.5X25.5

⭕Built-in 250mw vtx, 1S 5A ESC, OSD .  ⭕Opened 3 serial ports and 12C functionality   ⭕Mounting Pattern: 25x25mm, M2 ⭕Ultra light weight 4g ⭕Built-in 2XWS2812 LEDs   ⭕Reasonable layout , easy to build
$69.99 USD (tax included) $0.00 USD
Quantity
Only 54 left

Checkout Securely with

To learn more about our payment policies, please refer to "Policies"-"Payment".

Get 2% Flywoo Credit of the total purchase value
Earn 25 Flywoo Credits after leaving a review
Product Description

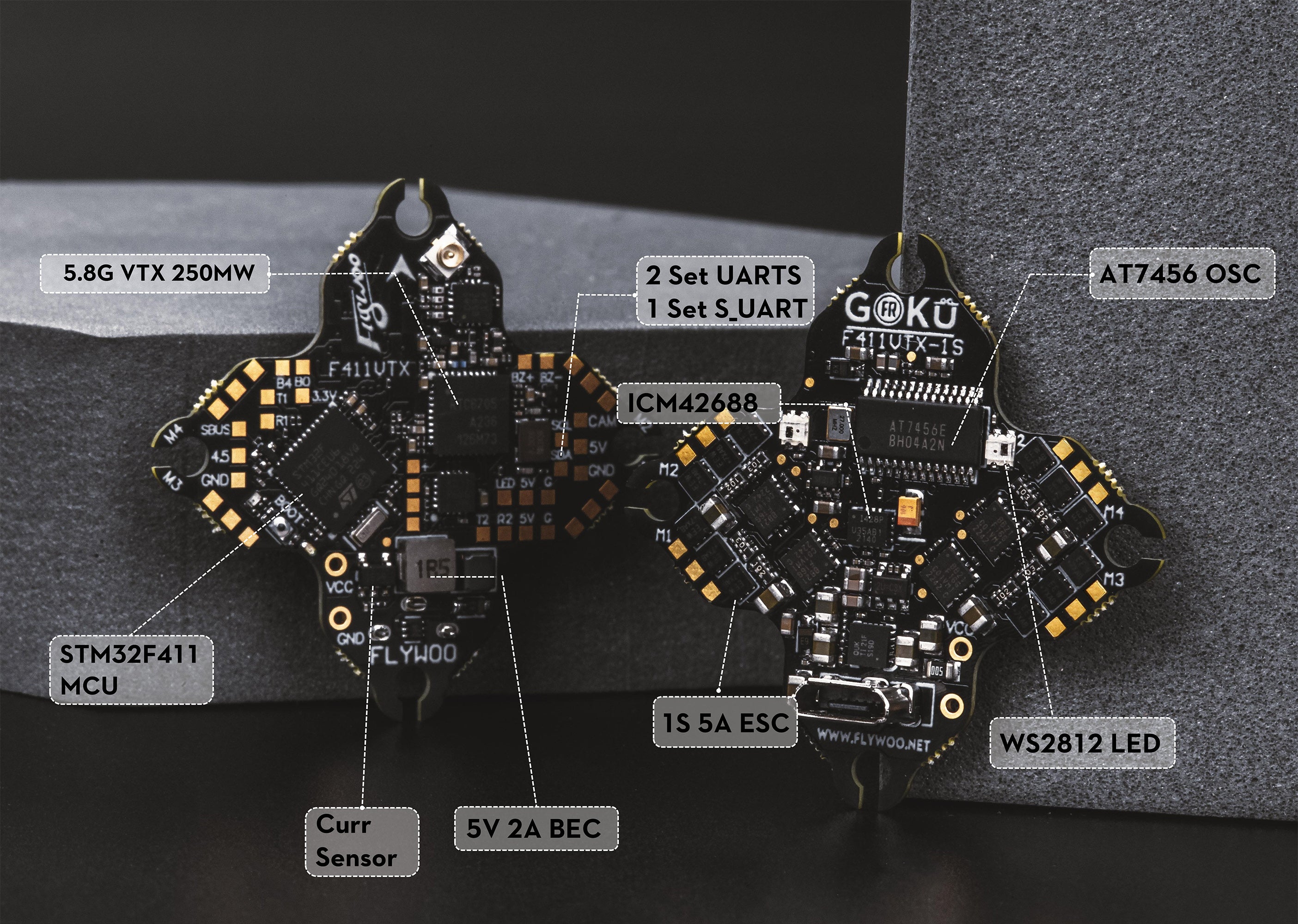

GOKU Versatile F411 1S 5A AIO V2.0 is another versatile and highly integrated circuit board in the GOKU Versatile series!  Built-in 250mw VTX ,1S 5A ESC, OSD, 3 serial ports, I2C functionality  and 2XWS2812 LEDs .   Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller , everything else all packed into a compact whoop board.

Highlights :

  1. Built-in 250mw vtx, 1S 5A ESC, OSD .
  2. Opened 3 serial ports and 12C functionality
  3. Mounting Pattern: 25x25mm, M2

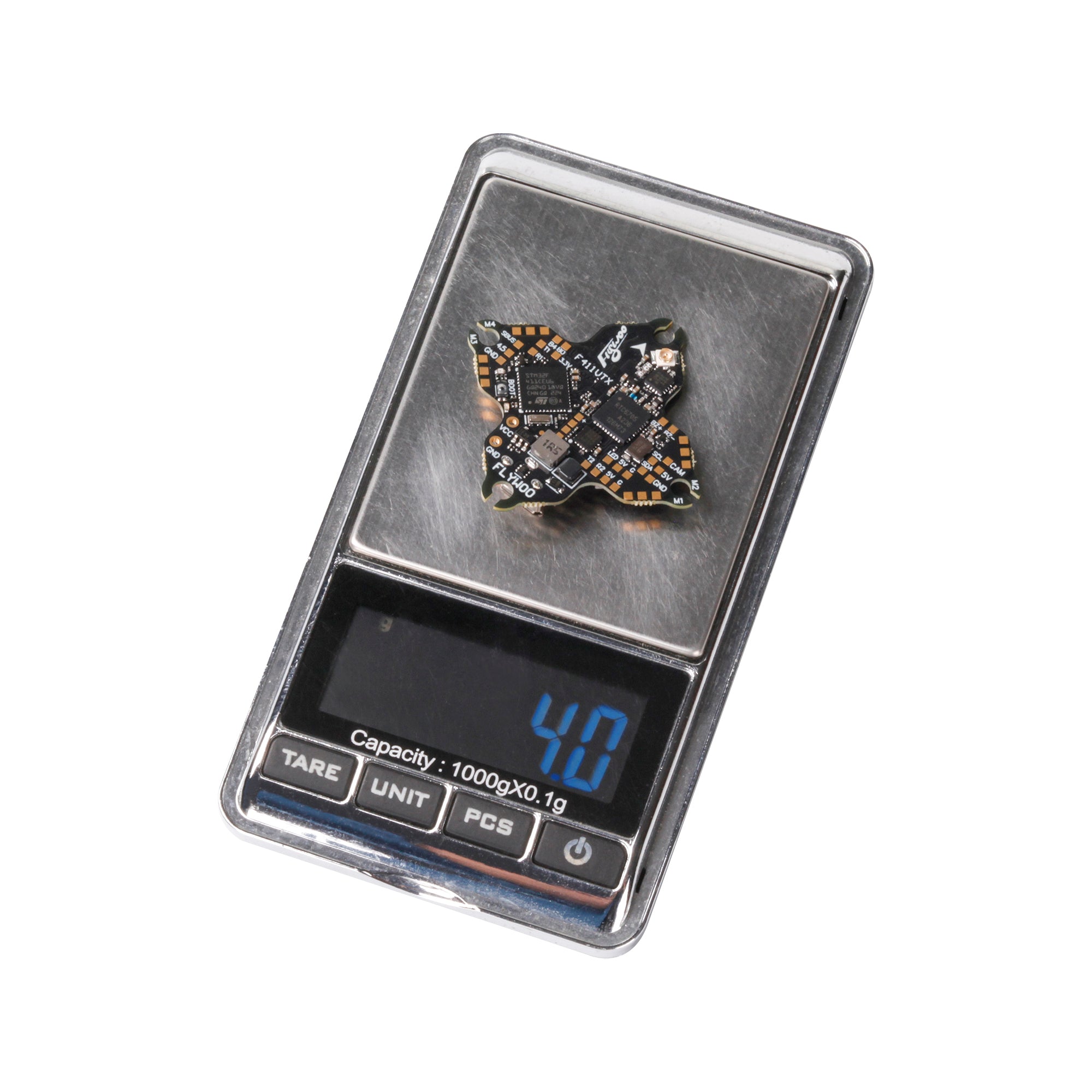

  4. Ultra light weight 4g
  5. Built-in 2XWS2812 LEDs
  6.  Reasonable layout , easy to build

Specifications
Flight Controller

  • MCU: STM32F411CEU6
  • GYRO: ICM42688
  • UARTS: 1/2
  • Soft serial port:1
  • I2C: SCL/SDA
  • BEC: 5V
  • Input Voltage: 1S ( <4.35v)
  • Firmware: FLYWOOF411_5IN1_AIO
  • Mounting:  25x25mm, M2

Onboard 4in1 ESC

  • MCU: EFM8BB21
  • Power supply: 1S LiPo/LiPo HVCurrent: 5A
  • Firmware: BLHeli_S
  • Factory firmware: O_H_5_REV16_8.HEX
  • Default protocol: DSHOT 150/300/600

Onboard 5.8g VTX

  • Output power: 25mw~250mw switchable
  • Frequency: 40CH
  • Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready

Q&A

**Please do not try to update the ESC firmware. If AIO is damaged, Flywoo does not support after-sales.
**Default ESC firmware: O_H_5_REV16_8-48K

1、 GOKU Versatile F4 5-IN-1 AIO Wiring Diagram  :


2、Onboard 5.8g VTX TABLE : (LINK)
3、Betaflight Firmware (LINK ) FLYWOOF411_5IN1_AIO
