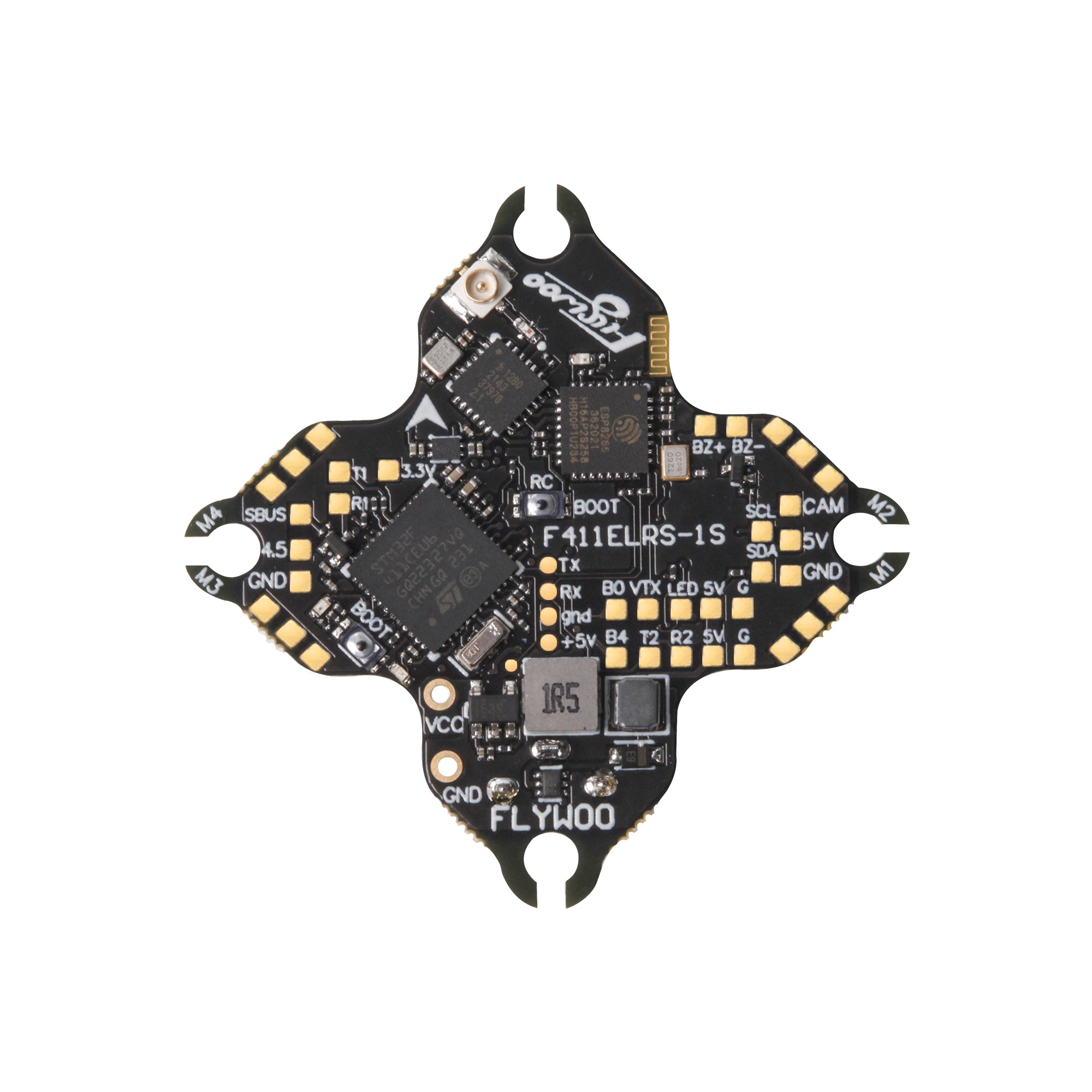

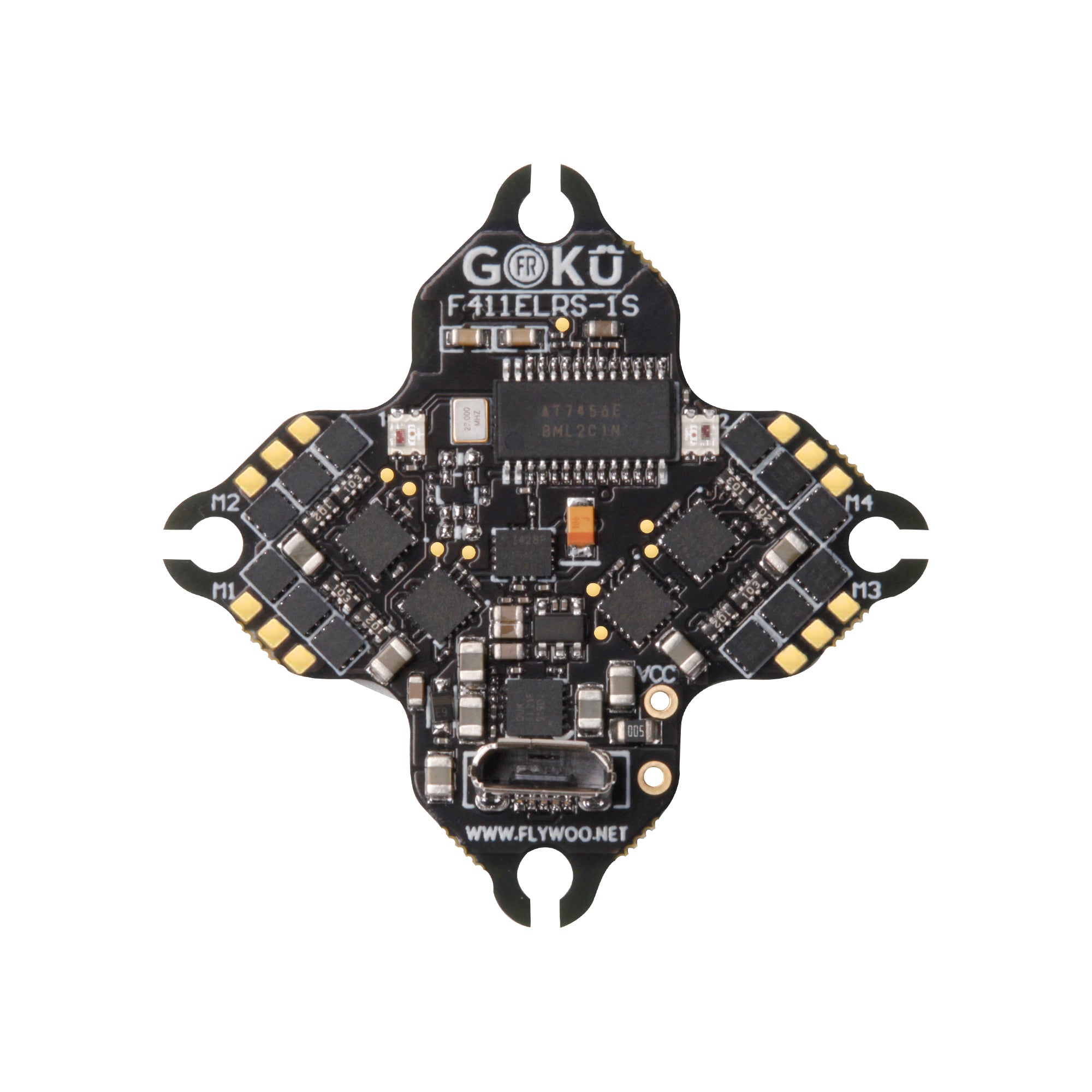

GOKU Versatile F411 ELRS 1S 5A AIO V2.0 w/ ELRS 2.4g , 25.5X25.5

Save 10%

Price:
$44.99 $49.99
Stock:
In stock
  • Description
  • Q&A
  • Reviews
  • Description
  •

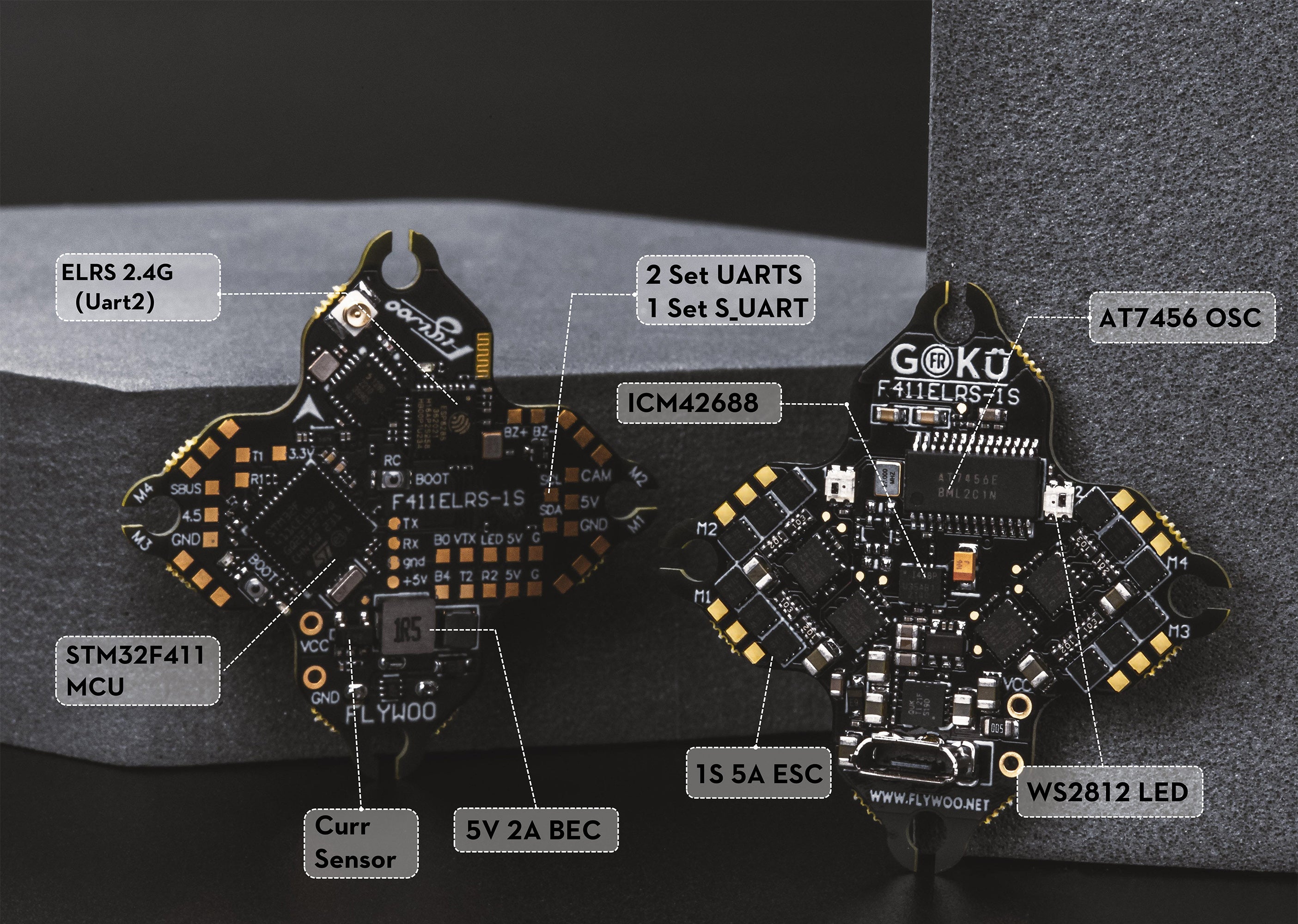

    GOKU Versatile F411 1S 5A AIO V2.0 is another versatile and highly integrated circuit board in the GOKU Versatile series!  Built-in ELRS 2.4g RX ,1S 5A ESC, OSD, 3 serial ports, I2C functionality  and 2XWS2812 LEDs .   Reasonable layout makes it easier for you to build . You only need to choose the motor, frame, camera, propeller , everything else all packed into a compact whoop board.

    Highlights :

    1. build-in ELRS 2.4g RX (UART2) , 1S , 5A ESC, OSD
    2. Opened 3 serial ports and 12C functionality
    3. Mounting Pattern: 25x25mm, M2

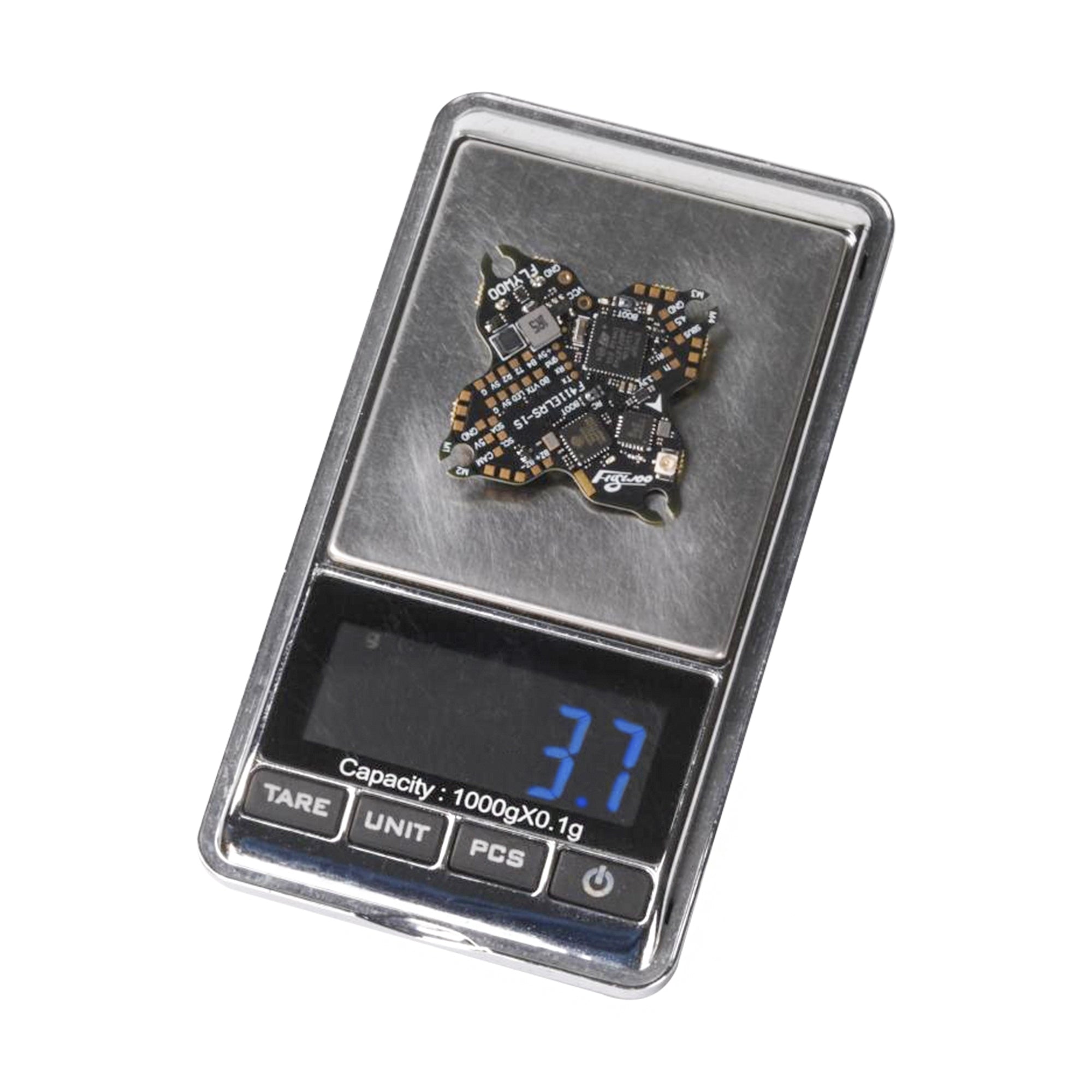

    4. Ultra light weight 3.7g
    5. Built-in 2XWS2812 LEDs
    6.  Reasonable layout , easy to build
    7. Can work with different RX at the same time

    Flight Controller

    • MCU: STM32F411CEU6
    • GYRO: ICM42688
    • UARTS: 1/2
    • Soft serial port:1
    • I2C: SCL/SDA
    • BEC: 5V
    • Input Voltage: 1S ( <4.35v)
    • Firmware: FLYWOOF411_5IN1_AIO
    • Mounting:  25x25mm, M2

    Onboard 4in1 ESC

    • MCU: EFM8BB21
    • Power supply: 1S LiPo/LiPo HVCurrent: 5A
    • Firmware: BLHeli_S
    • Factory firmware: O_H_5_REV16_8.HEX
    • Default protocol: DSHOT 150/300/600
    • ELRS 2.4G RX (UART2)
  • Q&A
  • **Please do not try to update the ESC firmware. If AIO is damaged, Flywoo does not support after-sales.
    **Default ESC firmware: O_H_5_REV16_8-48K

    1、 GOKU Versatile F411 1S 5A AIO V2.0 w/ ELRS 2.4g AIO Wiring Diagram  :

    2、Betaflight Firmware (LINK ) FLYWOOF411_5IN1_AIO
