new version : GOKU F722 MINI V2 40A BLS 20X20 Stack
Description

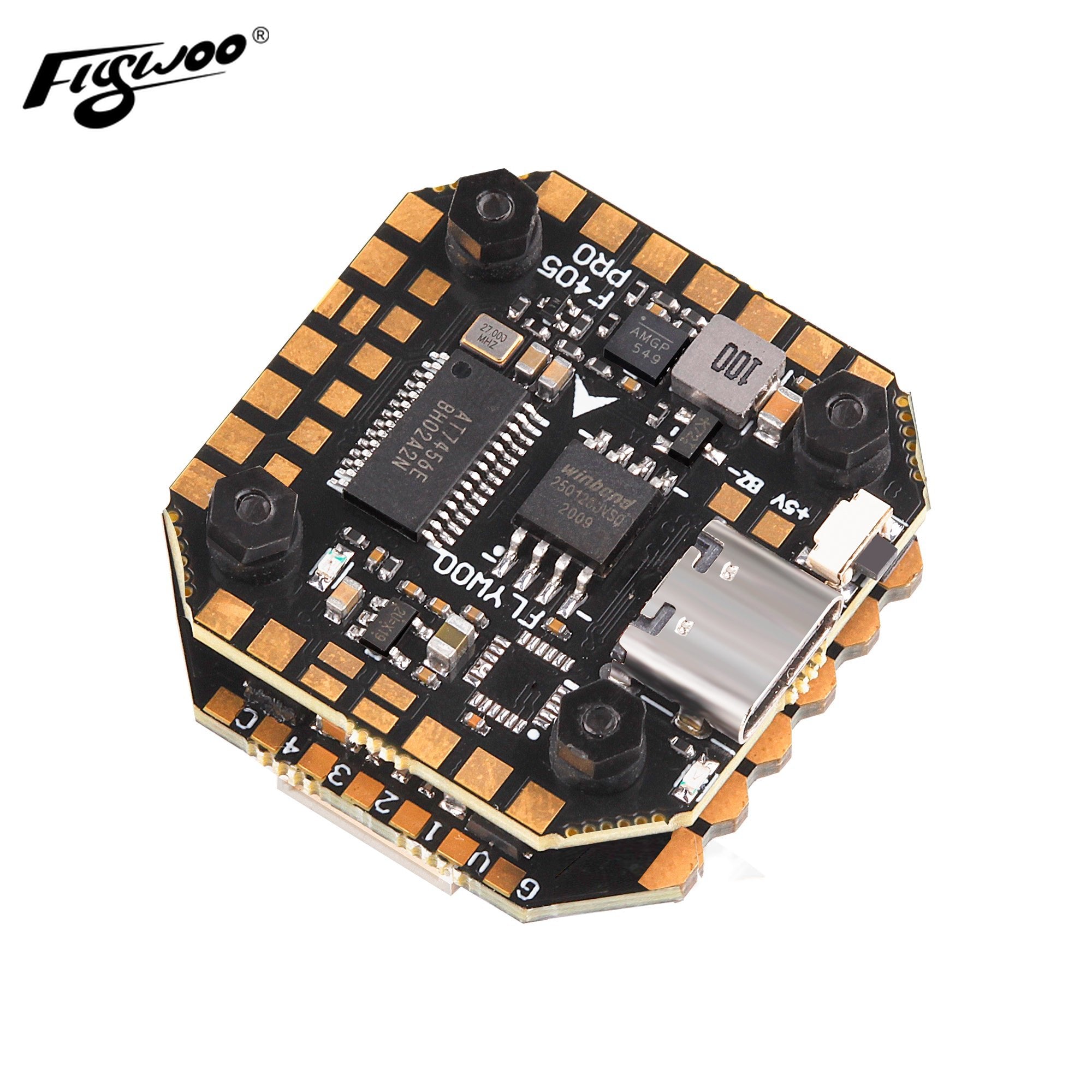

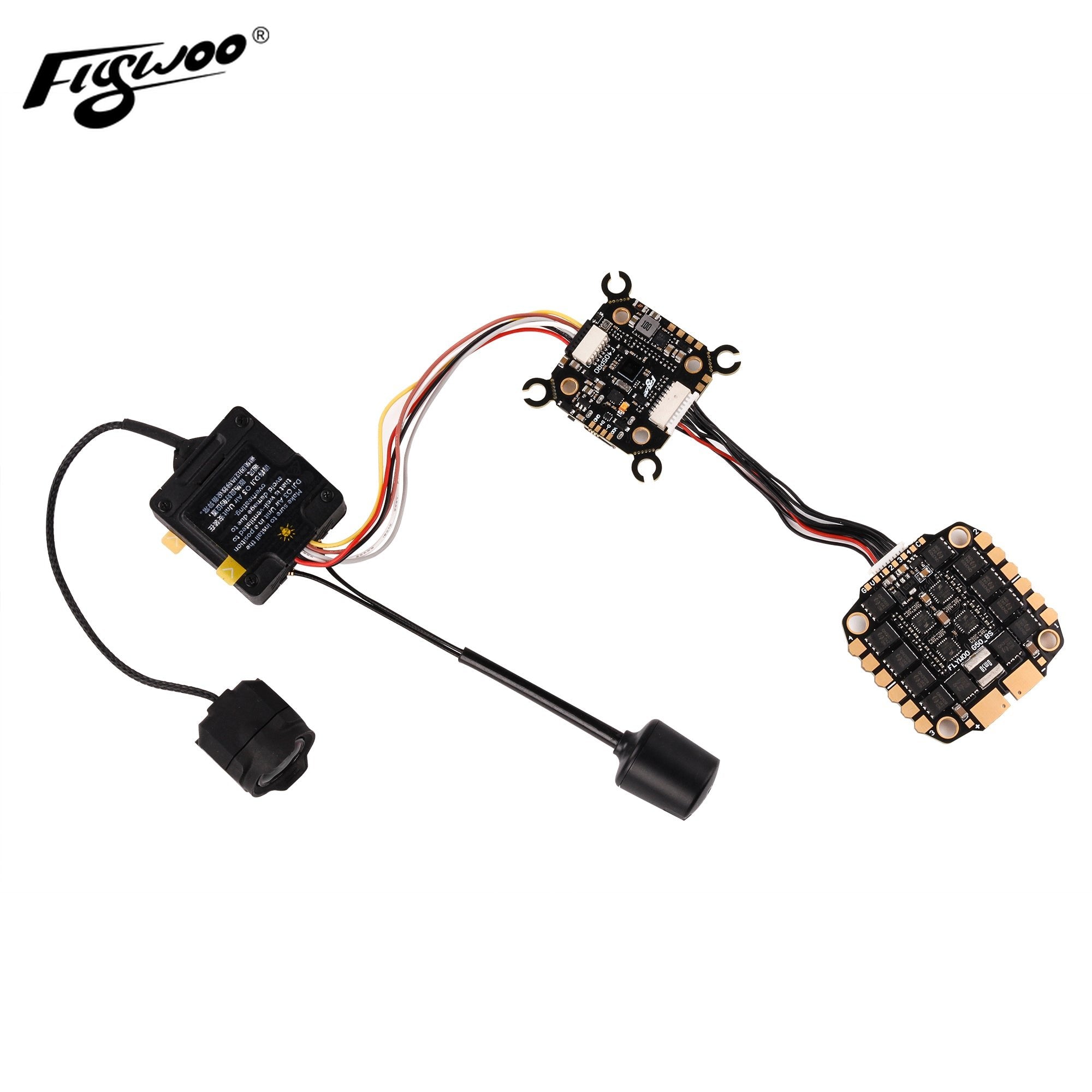

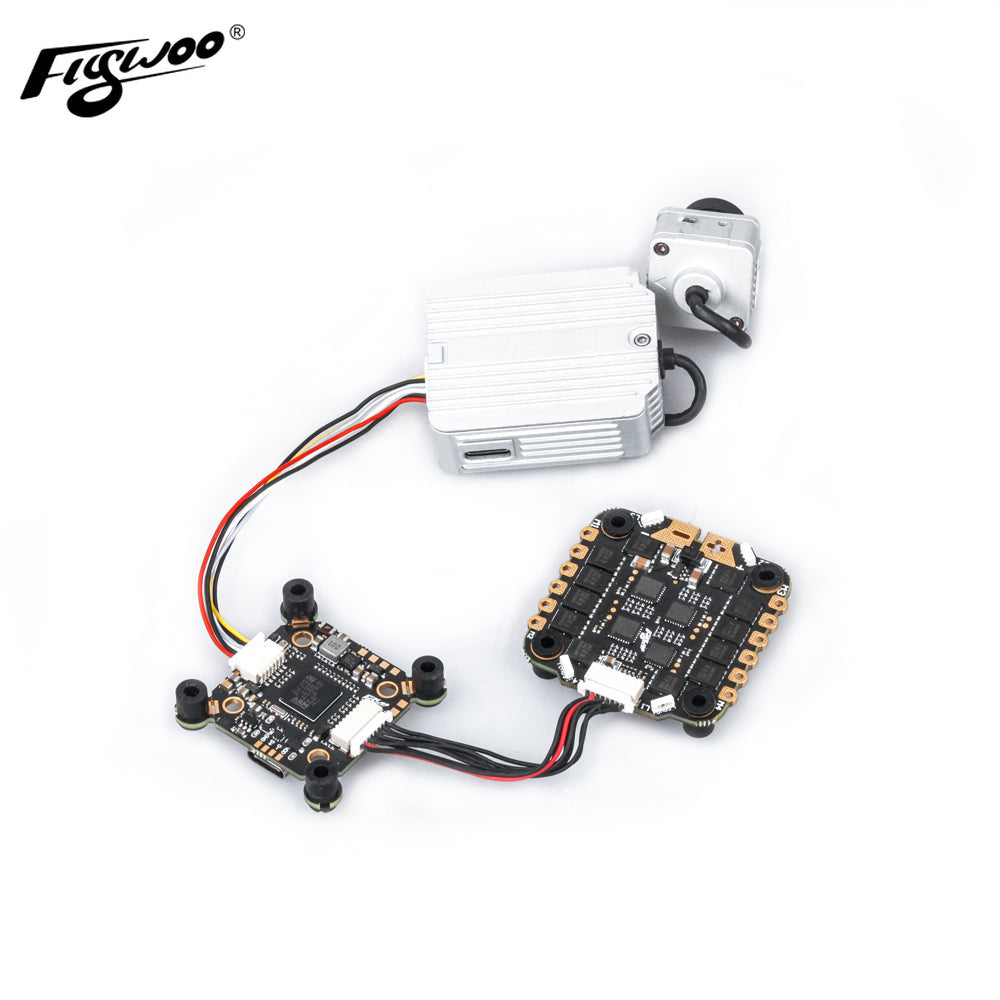

GOKU Versatile F405 PRO FC is a versatile and powerful flight control equipped with the smallest but most powerful f405 BGA Chipsets instead of ordinary QFP (Big Size) MCUs. Perfect for any 20x20 30.5 x30.5 build . DJI Plug&Play plug and so many UARTs most people wouldn't even use em' all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more.
Highlights :
- 8 layers double-sided PCB board ESC
- The FC has a super bid pad, very easy to solder everything
- IIncluding a barometer, blackbox, 6 complete hardware serial ports, I2C functionality,Dual BEC 5V 2A / 10V 2A
- Universal USB Type C connector instead of micro USB
- Support Betaflight \ INAV \ Autopilot
Specifications
GOKU Versatile F405 PRO FC
- MCU: STM32F405BGA
- GYRO: ICM42688P
- UARTS: 1/2/3/4/5/6
- I2C: SCL/SDA
- Barometer: BMP280
- BEC: 5V 2A / 10V 2A
- Blackbox: 16M
- Input Voltage: 2-6S
- Firmware: FLYWOOF405PRO

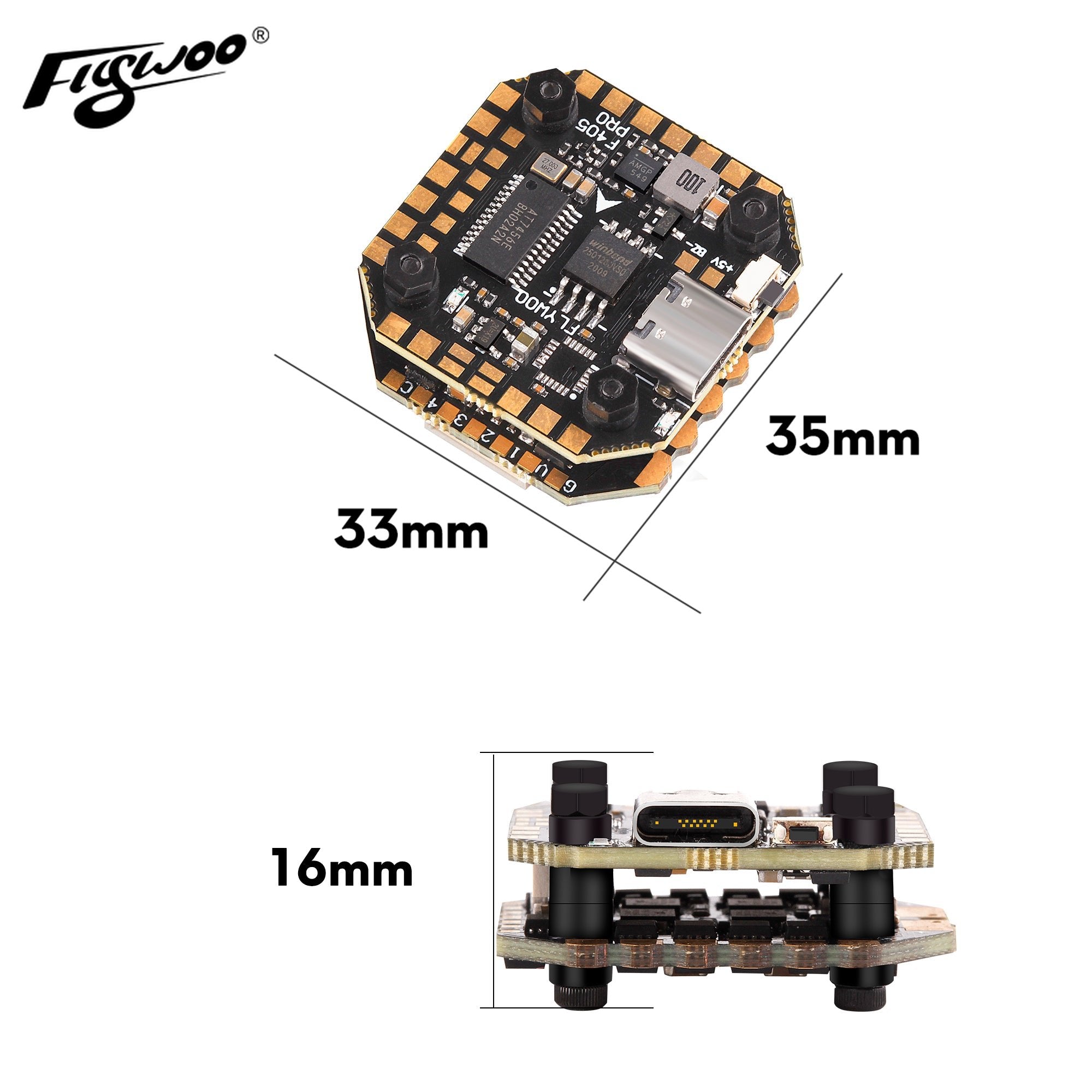

- Mounting: 20x20mm M3 / 30x30mm M4
- ESC Soft: Dshot300/600
- ESC Telemetry: Yes
- LED Controller: BF LED
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 2~6S Lipo (8.4~25.2V)
- TVS Protection: Yes
GOKU 406S 8bit 40A ESC
- Con. Current: 40A
- Burst Current: 45A
- Input Voltage: 2-6S
- Support DShot300/600
- Current Sensor: YES
- BEC Output: NO
- Size: 42×42×4mm
- Mounting Hole: 20x20mm ( M3)
Q&A :
1、 Betaflight Firmware target: FLYWOOF405PRO
2、INAV Firmware target: FLYWOOF405NANO
