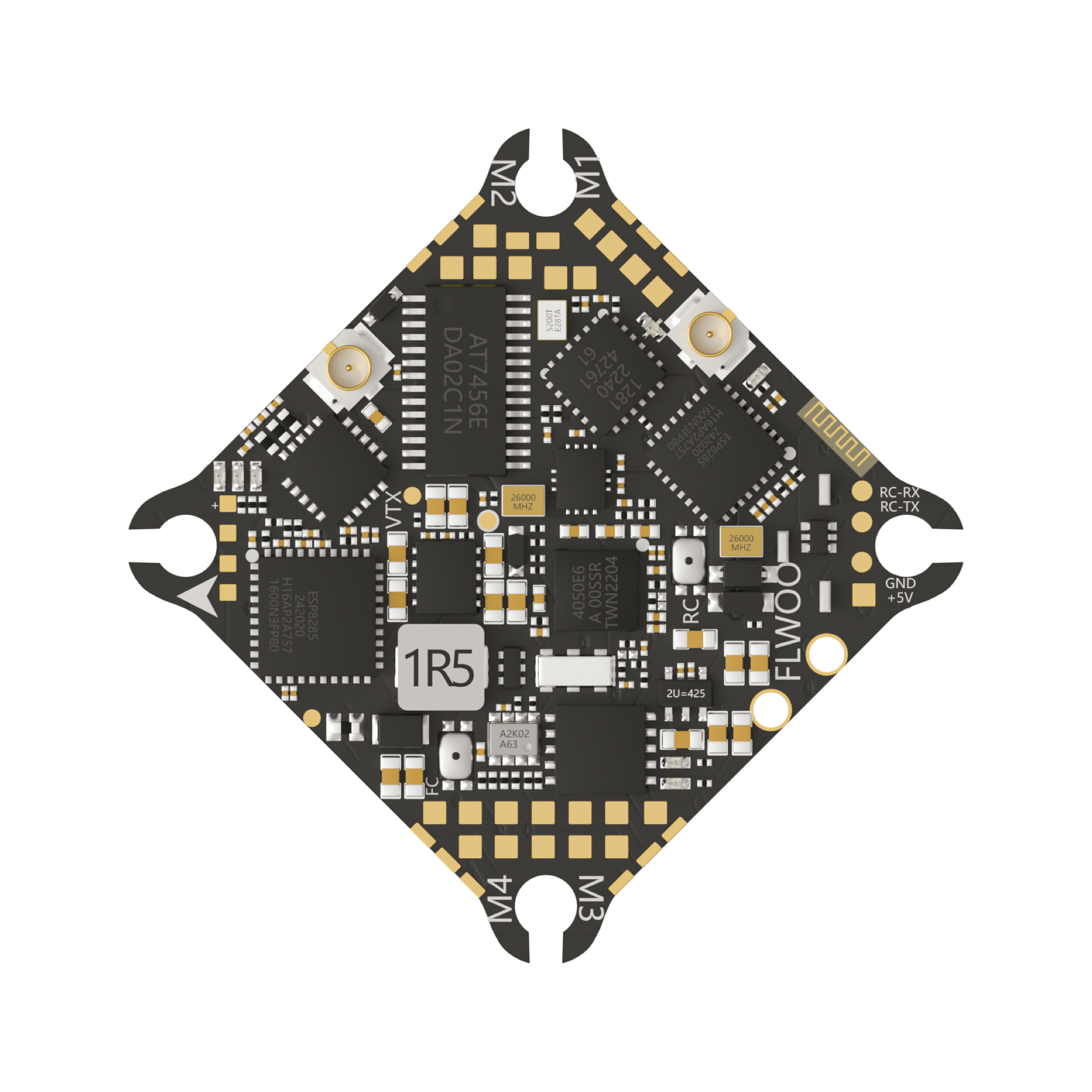

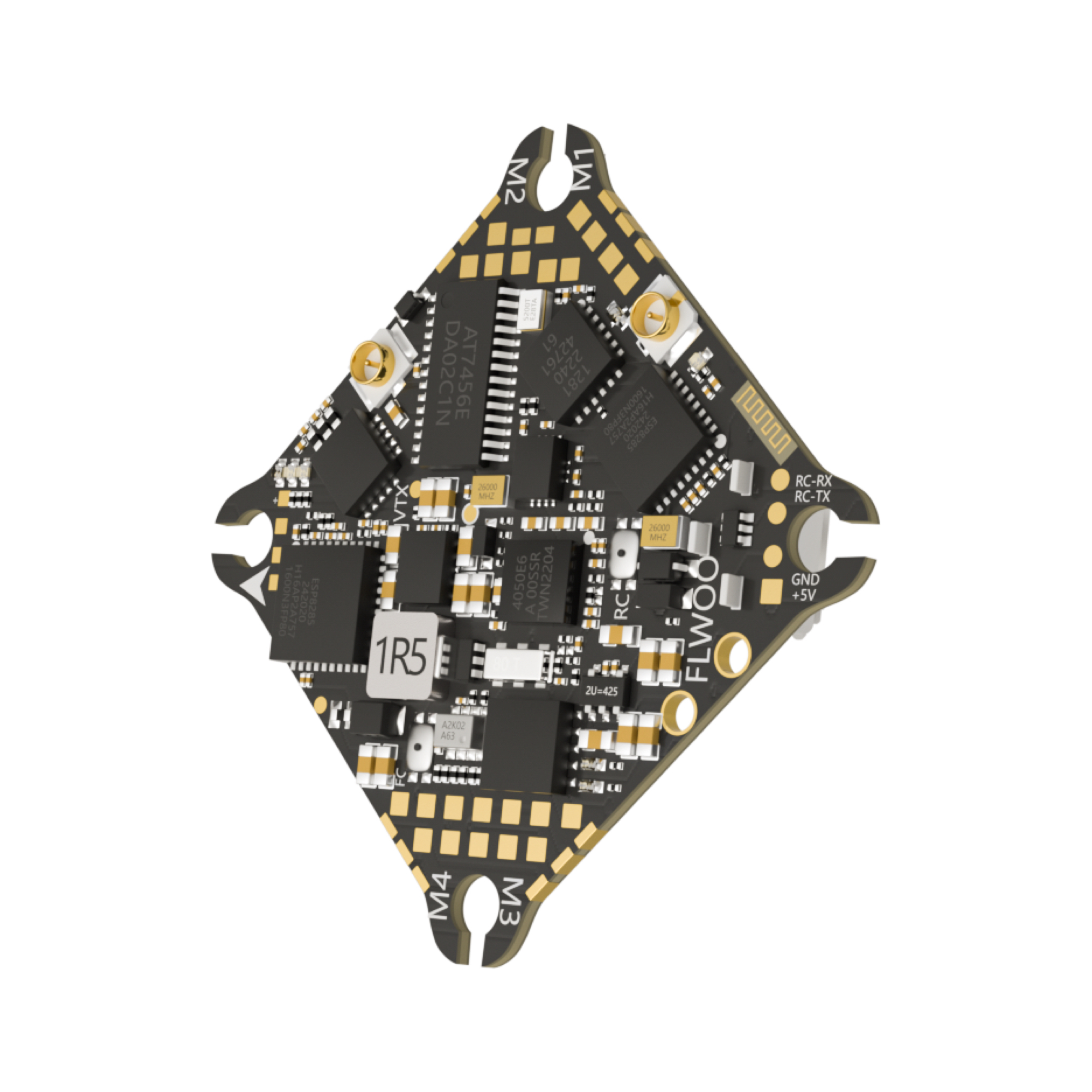

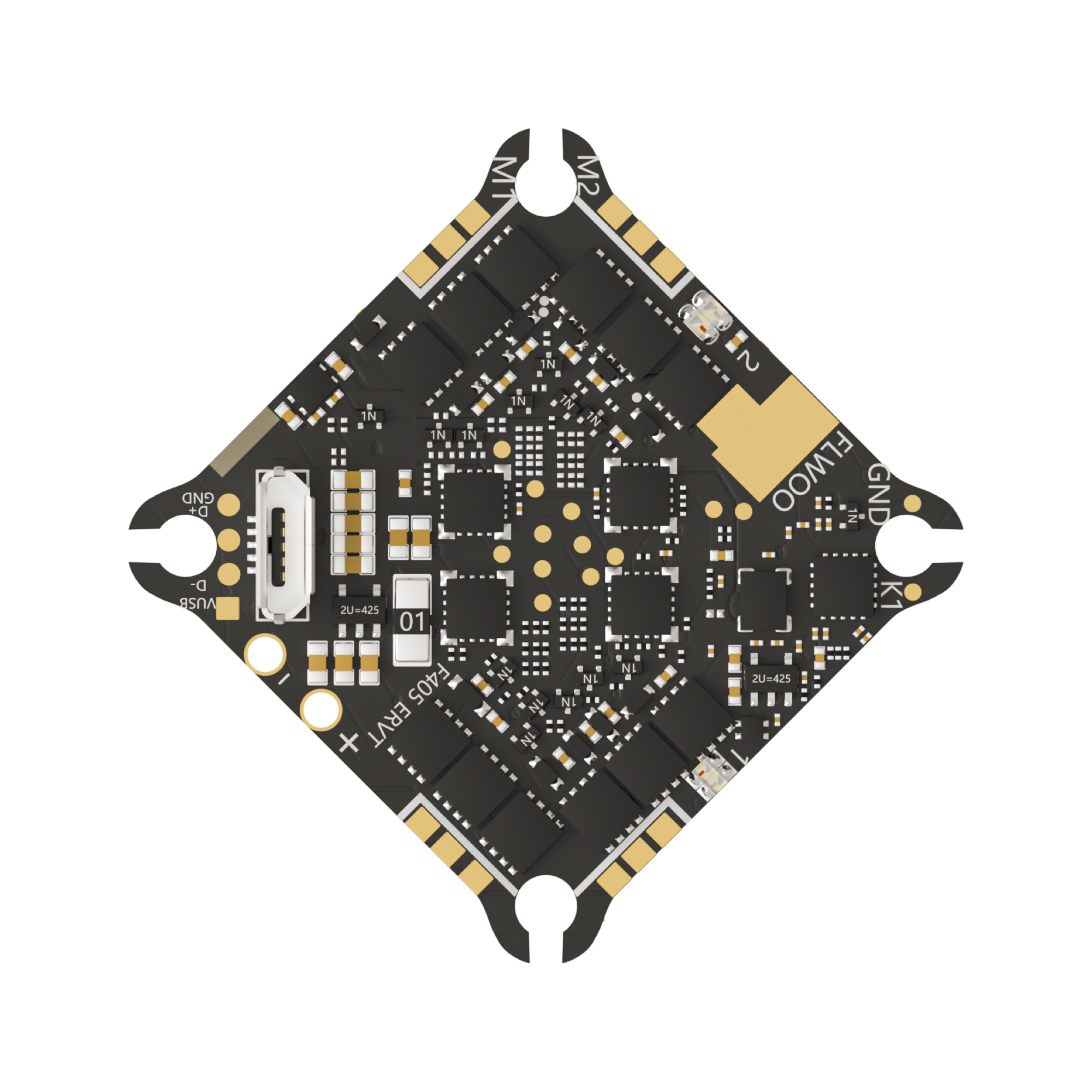

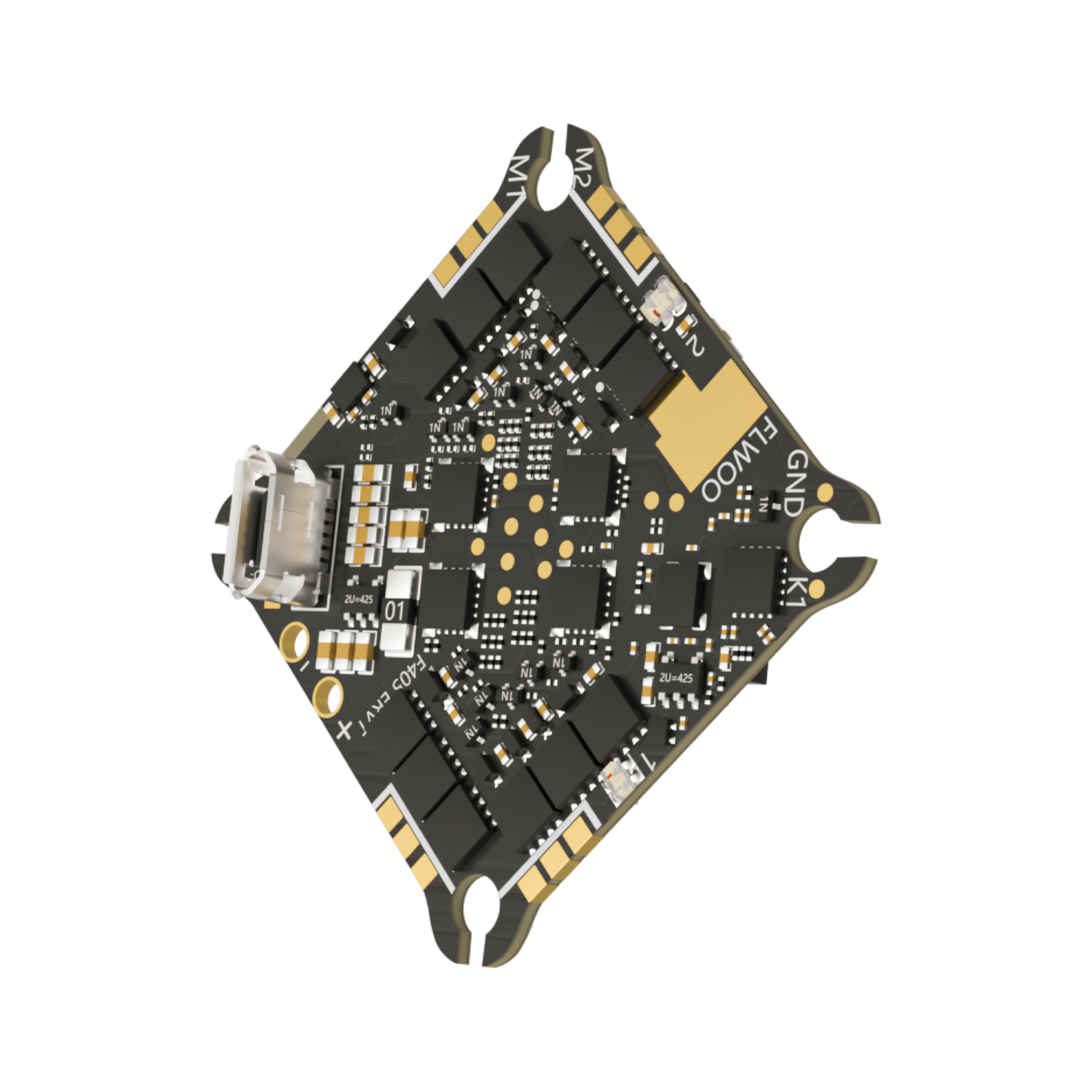

GOKU F405 ERVT 1-2S 12A 5-in-1 400mw AIO w/Bulit-in ELRS 2.4G

⭕F405 BGA chip ⭕Onboard 12A 4-in-1 ESC ⭕5 UART serial ports ⭕Built-in 400mw 5.8G video transmitter
$99.00 USD
$0.00 USD
(tax included)
Quantity
Only -114 left
Volume Pricing
Quantity
Price
1+
$99.00 USD each
Get 1% Flywoo Credit of the total purchase value
Enjoy a 7-day return policy with no reason required.
Leave a review and get a 2% discount code for your next order.

Product Information

Description

Description:

  • Flywoo has released another highly integrated AlO product, the GOKU Versatile F405 1-2S 12A5-in-1 400mw AlO with Built-in ELRS 2.4G.
  • This remarkable AlO stands out as the world's firstto utilize the STM32F405 BGA chip while offering unrivaled integration capabilities. With 5UART serial ports, it facilitates seamless connectivity to a wide range of devices and modules,catering to diverse expansion requirements.
  • Moreover, it boasts 12C compass input, enablingmore precise navigation and positioning functionalities. Featuring a 12A 4-in-1 ESC, fullyintegrated serial ports-controlled 2.4GHz ELRS receiver, and a built-in 400mw videotransmitter, this AlO is ideal for 1-2S Tiny Whoop races or Toothpick Freestyle flyingAdditionally, it can be employed on 1S ultra-lightweight Nano Long Range platforms.

Highlights
  • F405 BGA chipUtilizes the powerfulfor enhanced computational processing power and asmaller form factor
  • Features an onboard 12A 4-in-1 ESC
  • Equipped with 5 UART serial ports for effortless connectivity with various devices andmodules.
  • Supports 12C compass input, providing accurate navigation and positioning capabilitiesExpressLRS 2.4G·Built-inreceiver(UART) with a lightweight design, convenient for WiFiupgrades.
  • Built-in400mw 5.8Gvideo transmitter for an extended signal transmission range·Built-in 8MB black boxstorage for easy access to flight status data.

Specification

  • Product Name:  Versatile F405 5IN1 AIO
  • MCU: STM32F405 BGA
  • Gyro : ICM42688
  • Barometer : SPL06
  • Black Box : 8M
  • LED : Supported
  • OSD : Supported
  • Buzzer : Supported
  • UART: 1, 2, 3, 4, 6
  • Built-in Receiver : ExpressLRS 2.4G
  • Built-in VTX : 25/50/100/200/400mw
  • VTX Protocol : IRC Tramp
  • ESC Protocol : Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • Continuous Current: 12A*4
  • Input Voltage : 15-25 (3V-8.7V)
  • BF Firmware : FLYWOO F405S AIO
  • Target ELRS Firmware : Flywoo EL24E 2400 RX 3.0.0
  • ESC Firmware : Z.H_30_REV16.7(BLHELI.S)

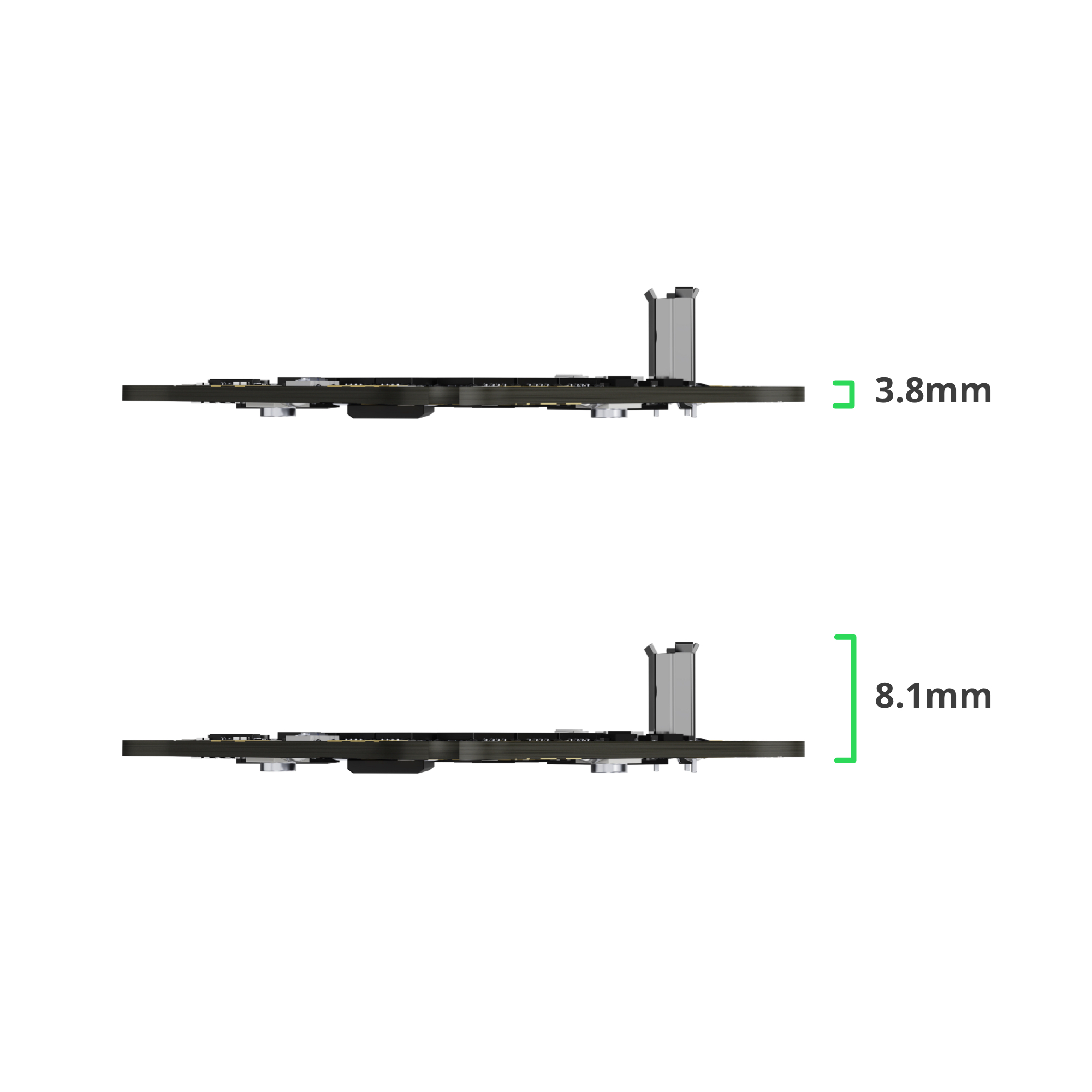

  • Size : 30.3*30.3mm
  • Mounting : 25.5*25.5-3mm

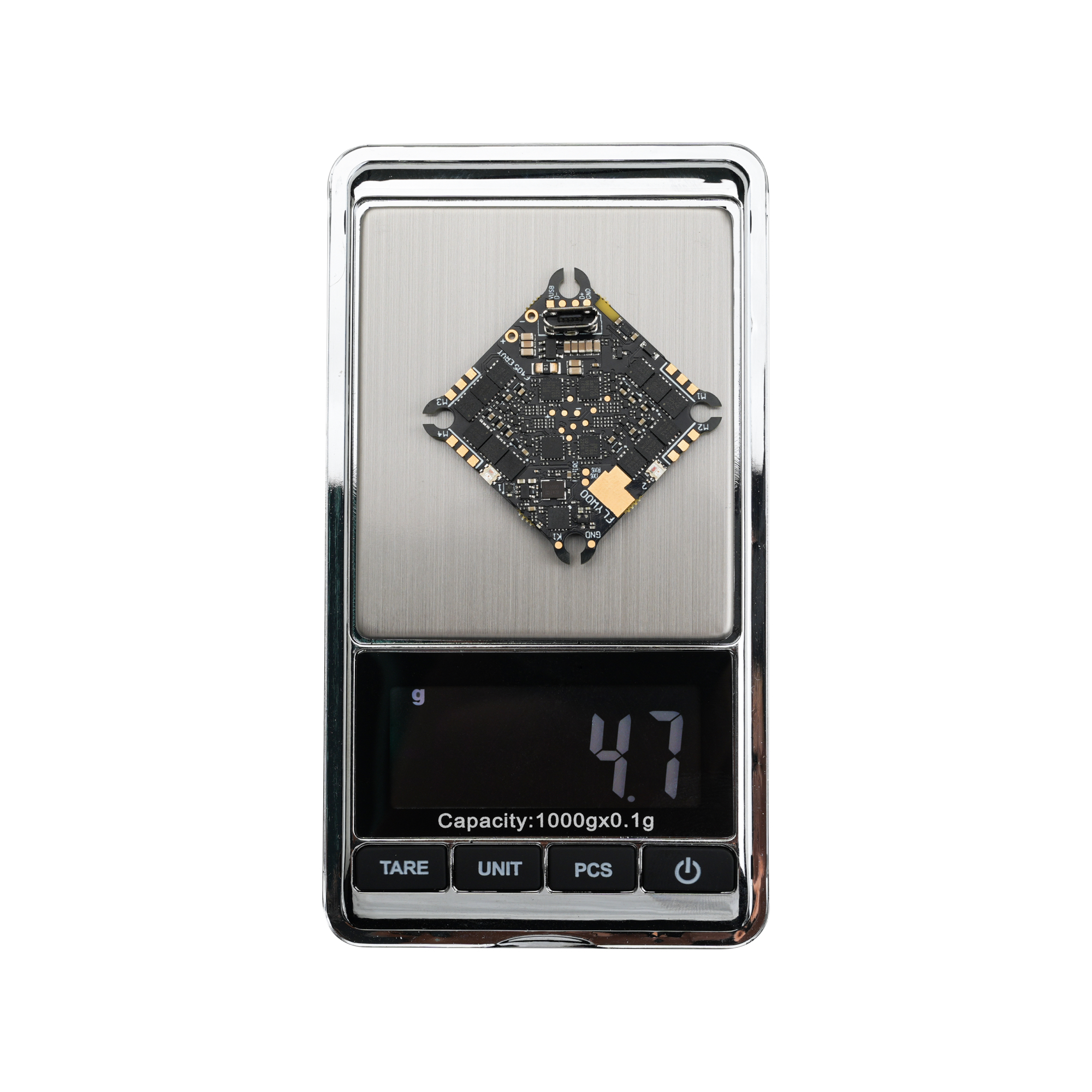

  • Weight  : 4.6g (Without Antenna), 5.7g (With Antenna)

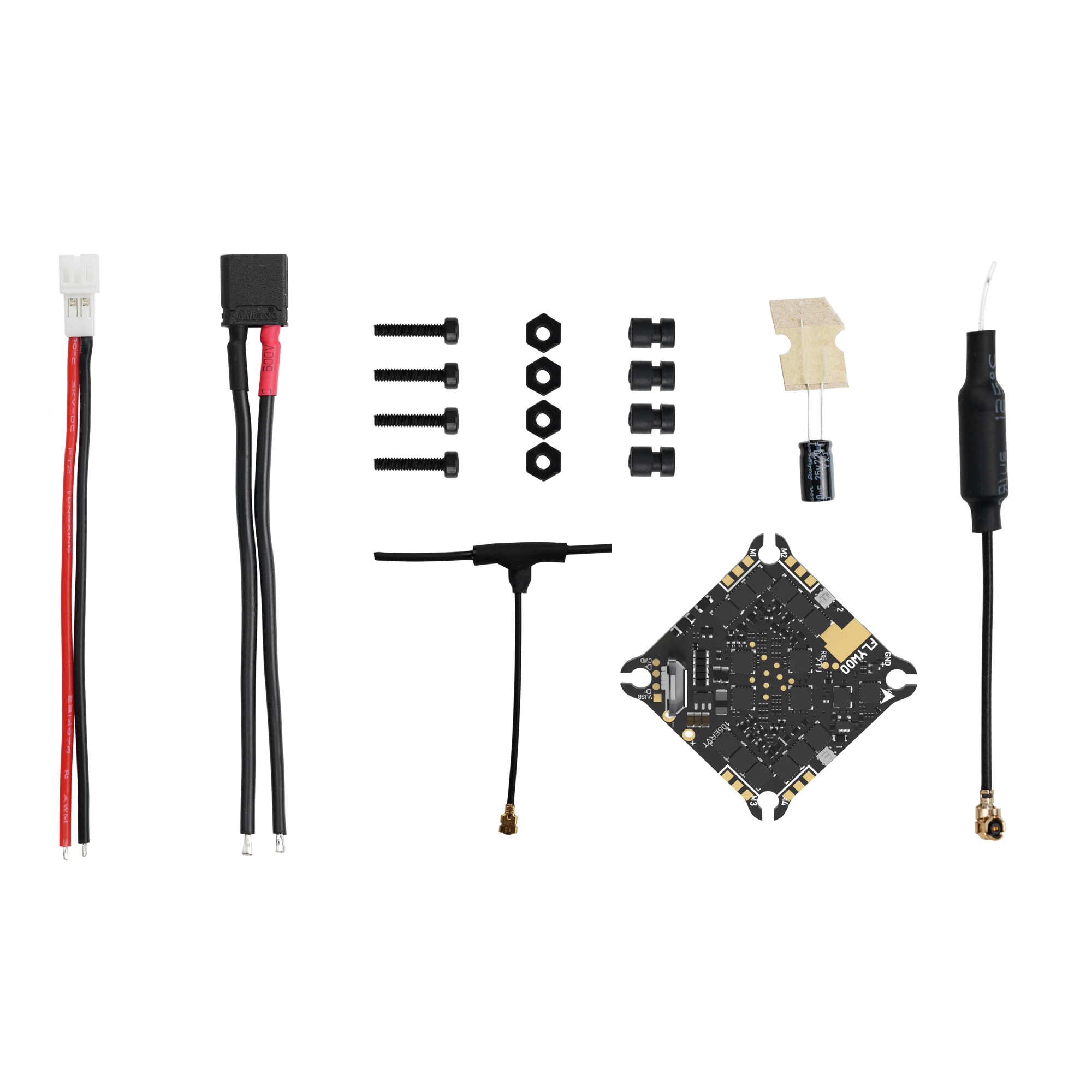

In The Box:

  • 1x GOKU Versatile F405 5IN1 AIO
  • 1x 25V 220UF Capacitor

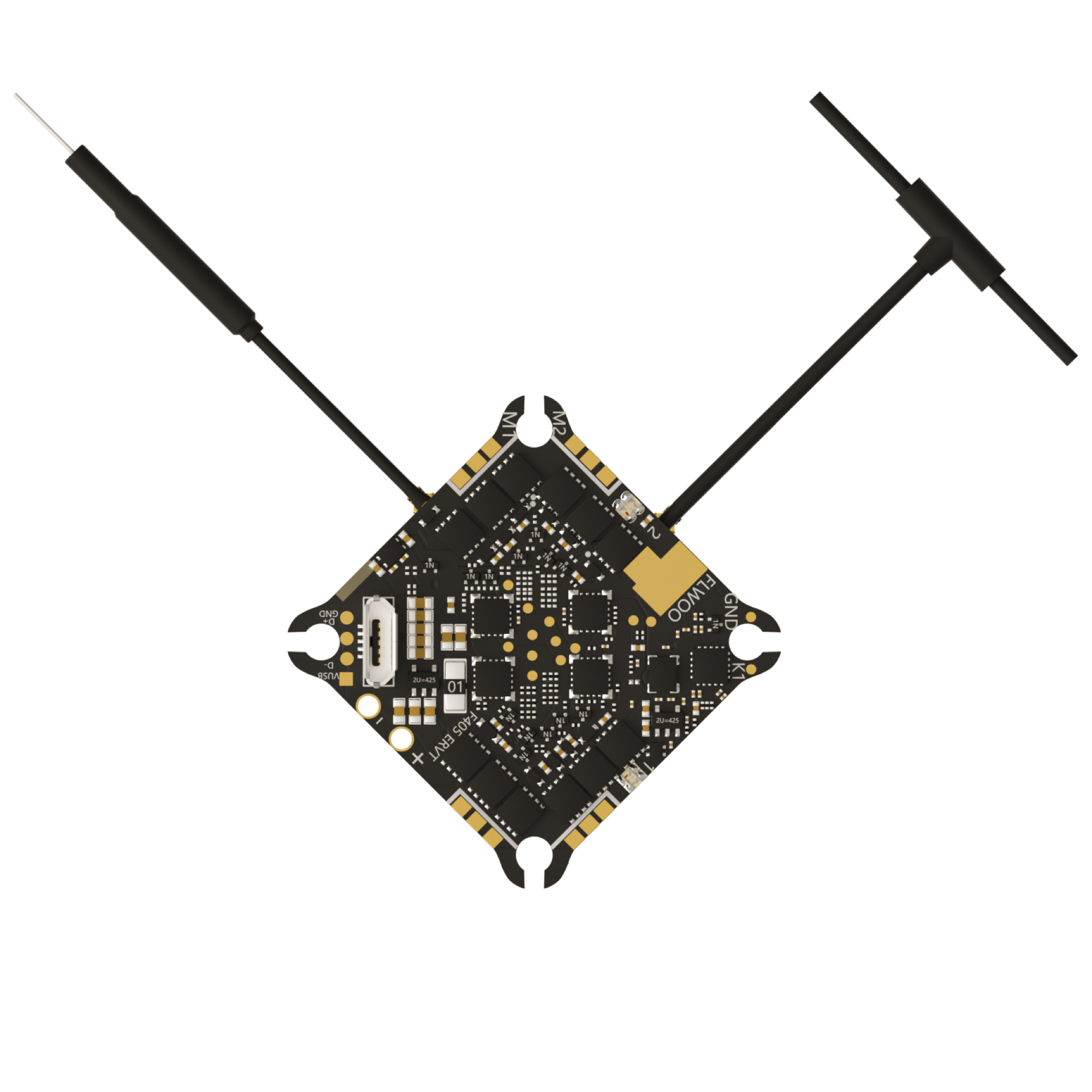

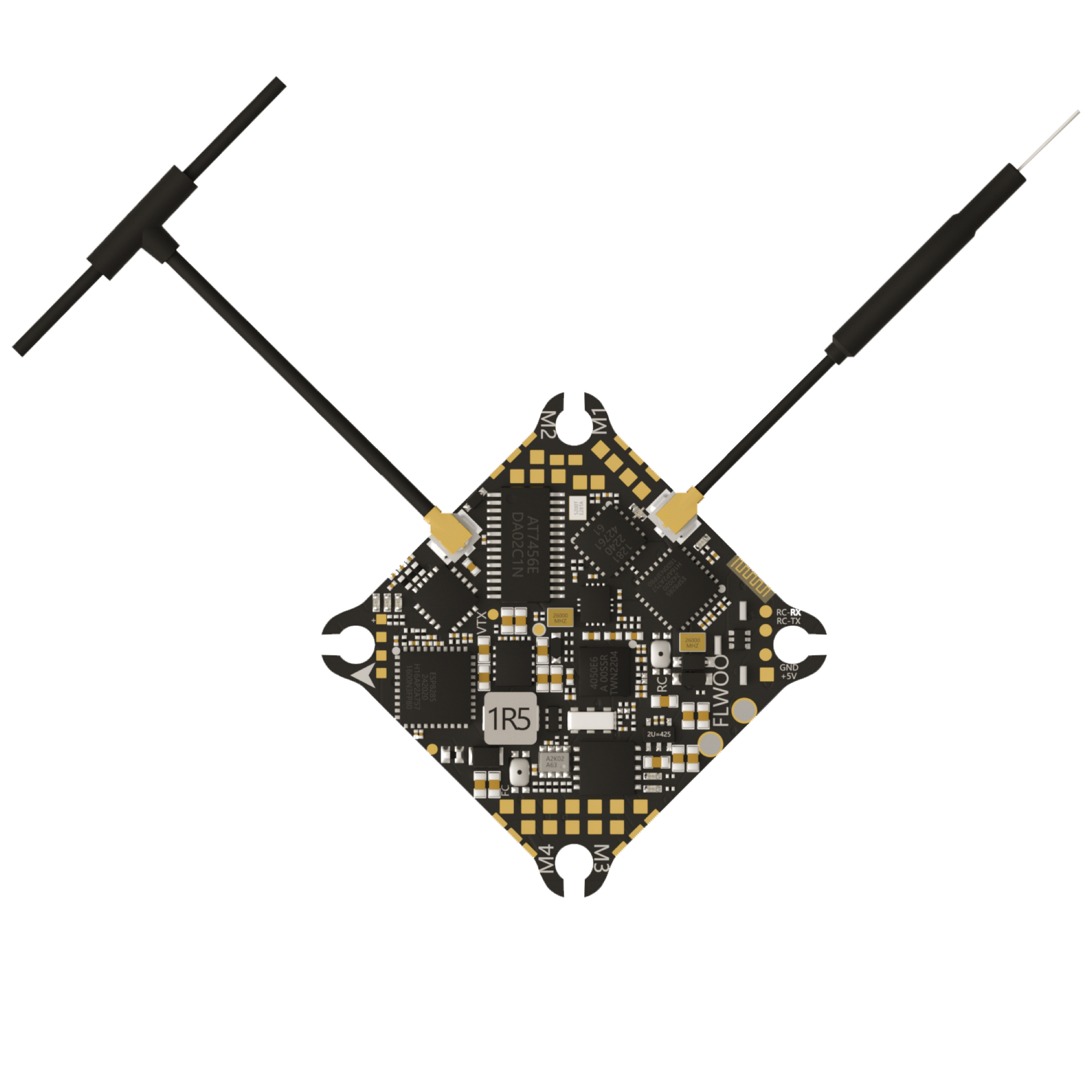

  • 1x 5.8G Antenna
  • 1x PH20 Connector
  • 1x Amass XT30 Connector
  • 1x Hardware Set
  • 1x ELRS 24g T Antenna
