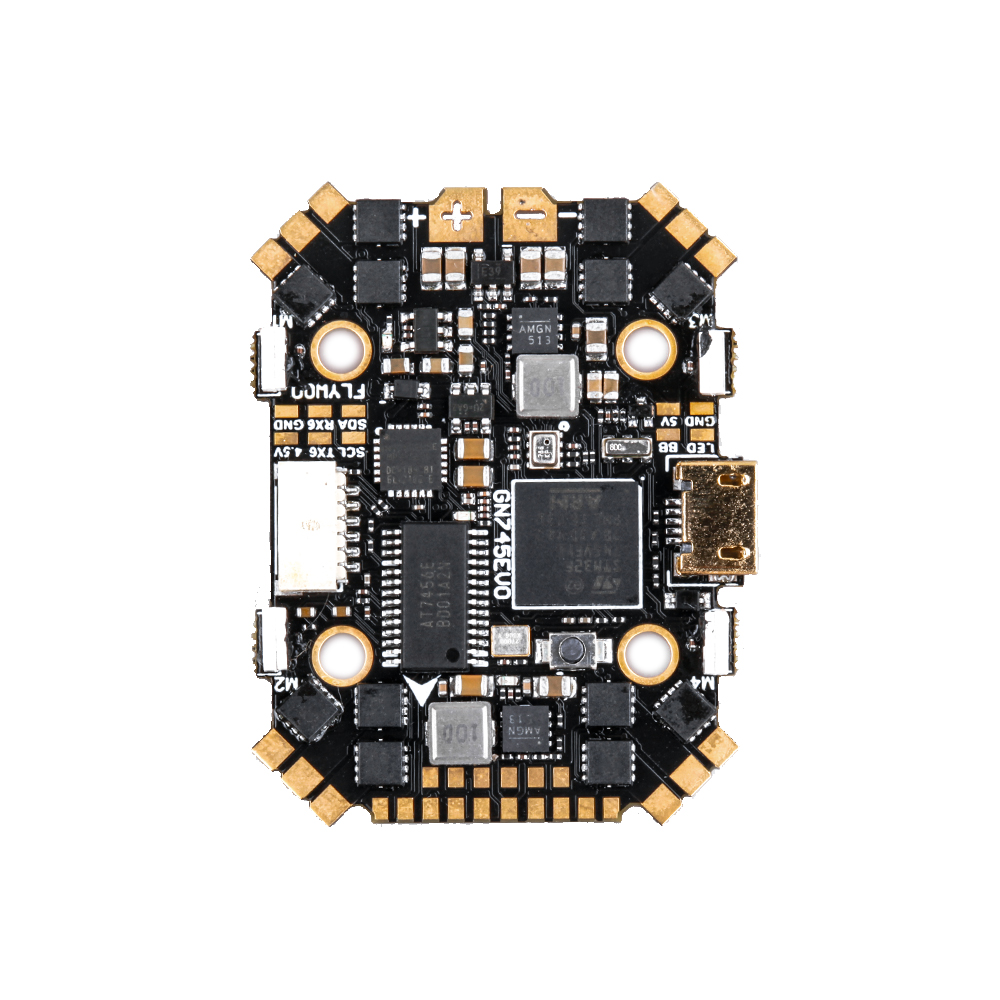

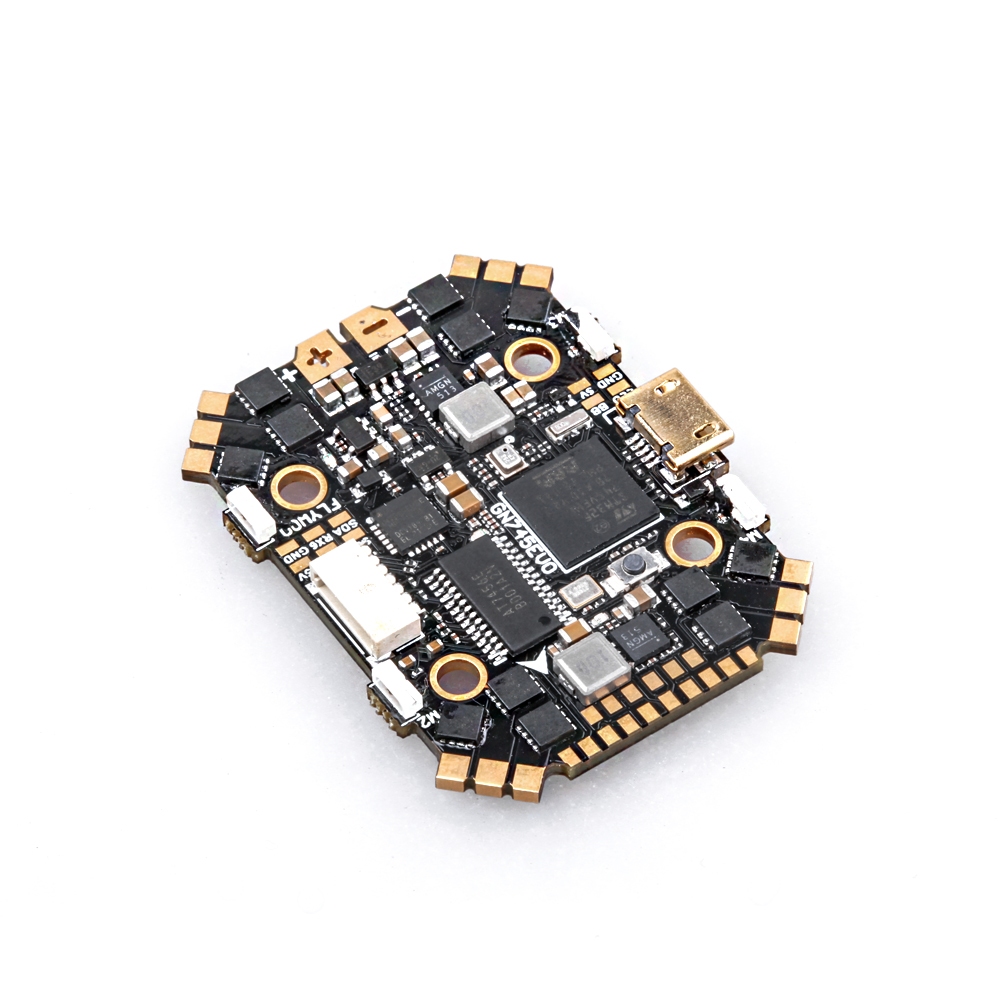

【No.C409】GOKU HD 745 EVO 40A AIO BL_32 DJI PLUS & PLAY MPU6000(20mm X 20mm )

Sold out
  • Description
  • Reviews
  • Description
  • FLYWOO new top GOKU series AIO are finally here! GOKU HDF745 40A FC is currently the highest level of all-in-one FC, which can meet all your FPV needs.

    Use powerful F745 BGA chip and BLHELI_32 ESC firmware, integrate 5V/9V dual BEC, barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C and other functions are all open.
    This is currently the most integrated and powerful FC AIO board on the market. It brings pilots a more stable and smoother flight.! Perfect for ultralight quad! It will be the most powerful FC AIO board in 2021.

    HD745EVO BLHELI32 40A
    MCU: STM32F745 32-bit processor,216MHz, 512Kbytes Flash
    IMU: MPU6000 (SPI)
    Barometer: BMP280
    Onboard LED:WS2812*4
    USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
    7 hardware UARTS (UART1,2,3,4,5,6,7)
    Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
    PPM and PWM receivers are not supported.
    Onbord 8Mbytes for Blackbox logging
    9V Power Out: 1.5A max
    5V Power Out: 2.0A max
    3.3V Power Out: 0.5A max
    Dimensions: 41x32mm
    Mounting Holes: Standard 20mm square to center of holes
    Weight: 8.5g

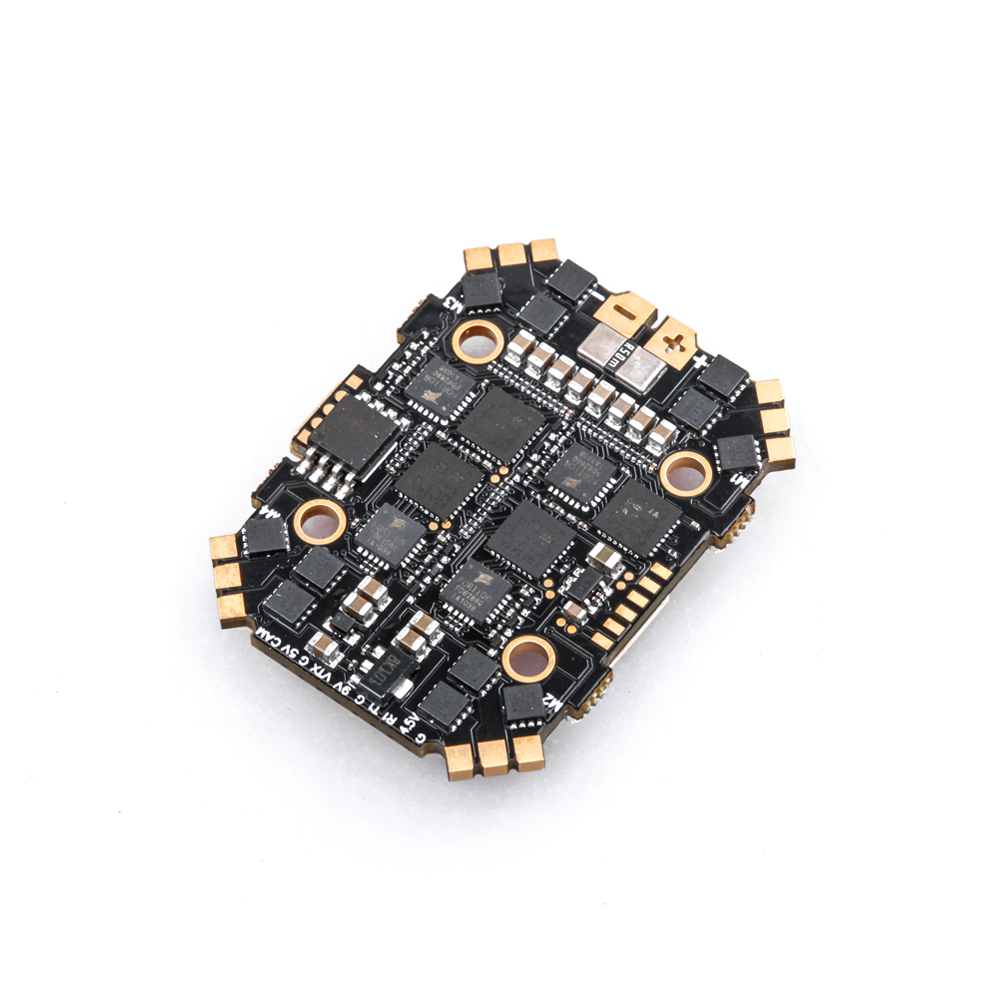

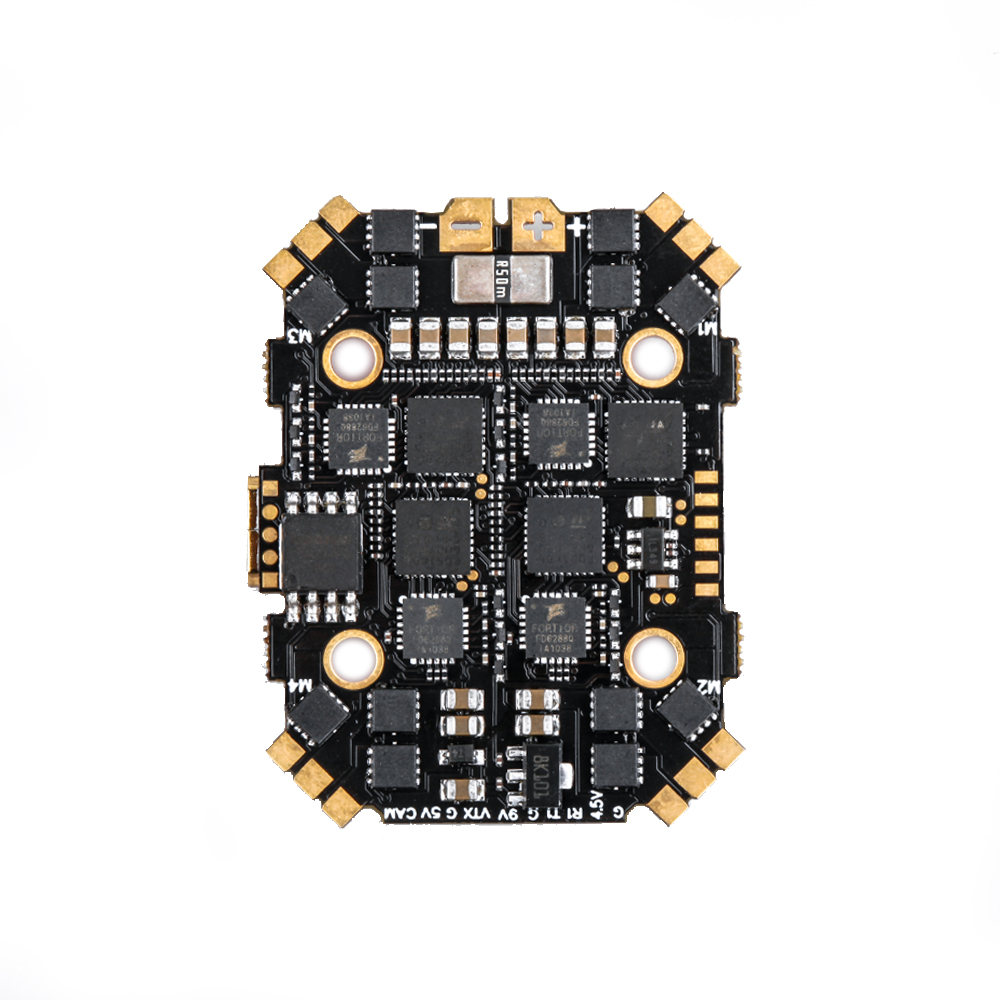

    Built-in 40A BL_32 4in1 ESC
    Support BLheli / BLHELI_32
    Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600,Dshot1200
    Input Voltage: 2-6S Lipo
    Continuous Current: 40A
    Firmware: BLHELI_32


  • Reviews
  • Customer Reviews

    Based on 11 reviews
    This AIO is all that and a bag of chips!

    This FC/ESC AIO has it all!!! 6S capable, 7 Uarts, DJI plug, BLheli_32, etc., and all in a 20x20 mounting! Absolutely love this product!!! Currently on 2 of my 6S 4" race quads and I haven't had any issues other than never wanting to put them away.

    Robert Vickers
    nice but

    nice features But make sure you have a good soldering iron the led and buzzer pads are a bitch to do, as there is a led one side and the usb the other, and they are mega tiny.. also watch your heat on the tiny pads or they can lift

    alb ds
    It could be the only one

    If it had at least 1MB it could be the solution for small quad sub 250 gr with the advanced flight functions of ardupilot! Possibly with esc capable of working under 6V for 2s Liion

    Andy Piper
    It's a great board but lack of 1Mb flash is a disaster for ArduPilot

    I did the ArduPilot port of a couple of the flywoo boards:
    The original boards had 1Mb flash and were just perfect for ArduPilot. Unfortunately the more recent boards only have 512k flash which means that ArduPilot won't run. Please, please consider re-releasing the 1Mb boards as a specific ardupilot version as these are great boards. I am sure people would be prepared to pay more.

    Dmitrii Zagarskikh

    great aio, there is everything you need👍
