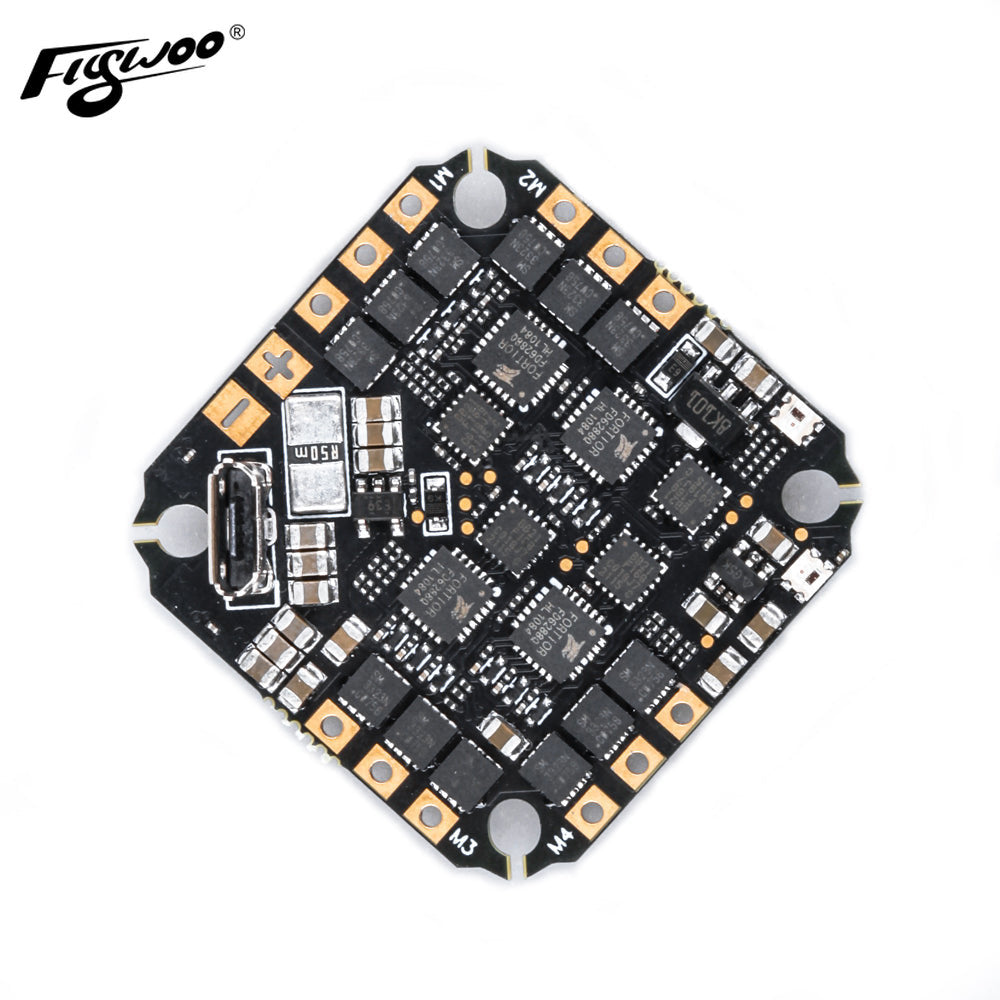

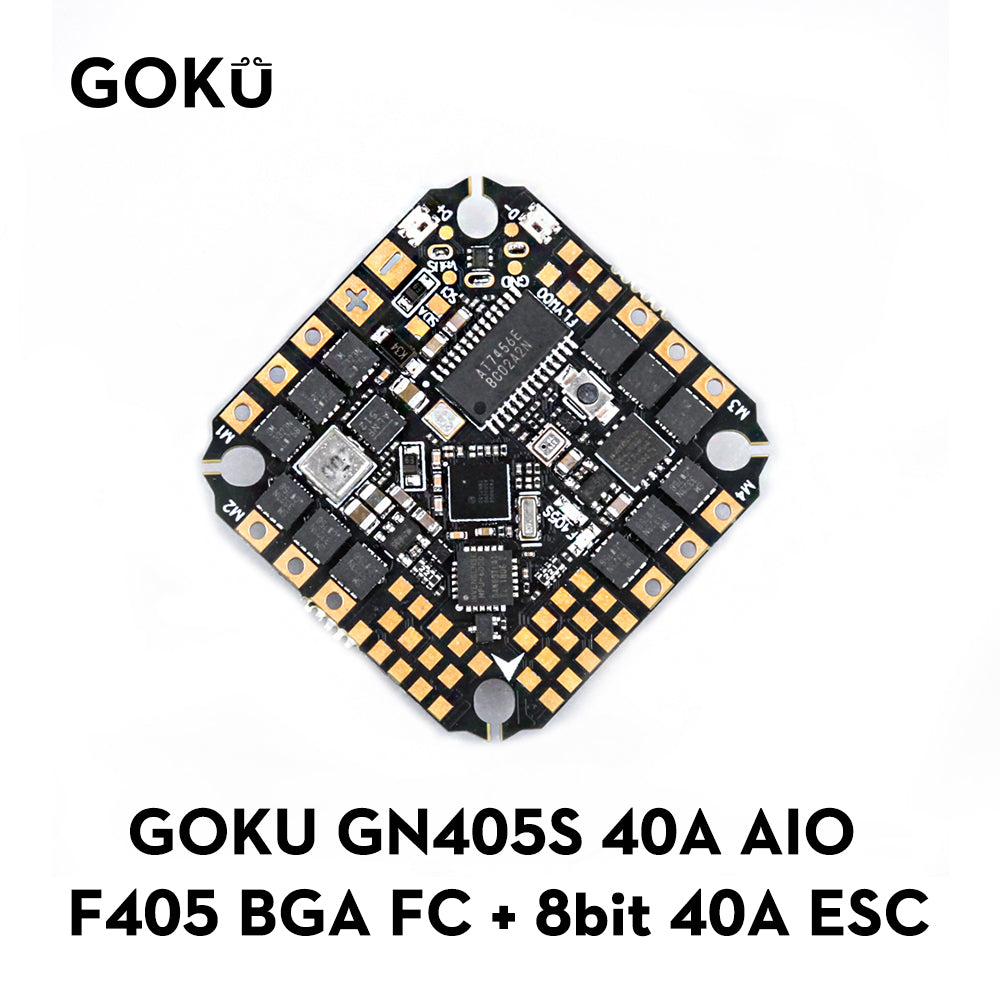

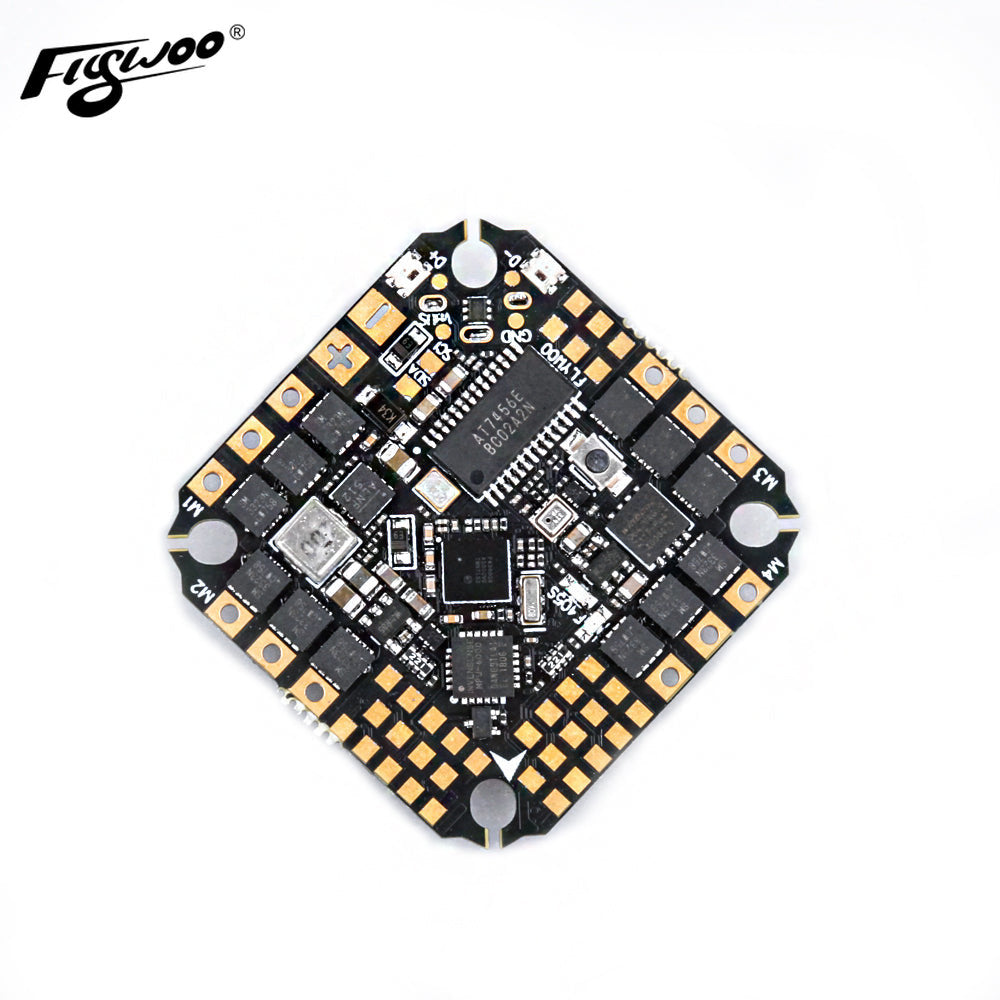

FLYWOO new top GOKU series AIO are finally here! GOKU GN405 40A FC is an economical and durable all-in-one AIO , which can meet most your FPV needs.
Use powerful F405 chip , integrate 5V BEC, barometer, black box, WS2812LED, support 6 complete hardware serial ports, I2C and other functions are all open.
- F405 BGA MCU
- 5V BEC
- Black Box
- 40A 8Bit ESC
- 6 UARTS
- current sensor
- MCU: STM32F405 BGA 8bit processor
- IMU: MPU6000 (SPI)
- Barometer: BMP280
- Onboard LED：WS2812*4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 8Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 33.5x33.5mm
Mounting Holes: Standard 25.5/26.5mm square to center of holes
- Support BLHELI_S
Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
- Input Voltage: 2-6S Lipo
- Continuous Current: 40A
- Firmware: BLHELI_S
1、 Betaflight Firmware target: FLYWOOF405S_AIO
2、INAV Firmware target: FLYWOOF405S_AIO
3、GOKU GN405S 40A AIO Wiring Diagram : ( LINK )
