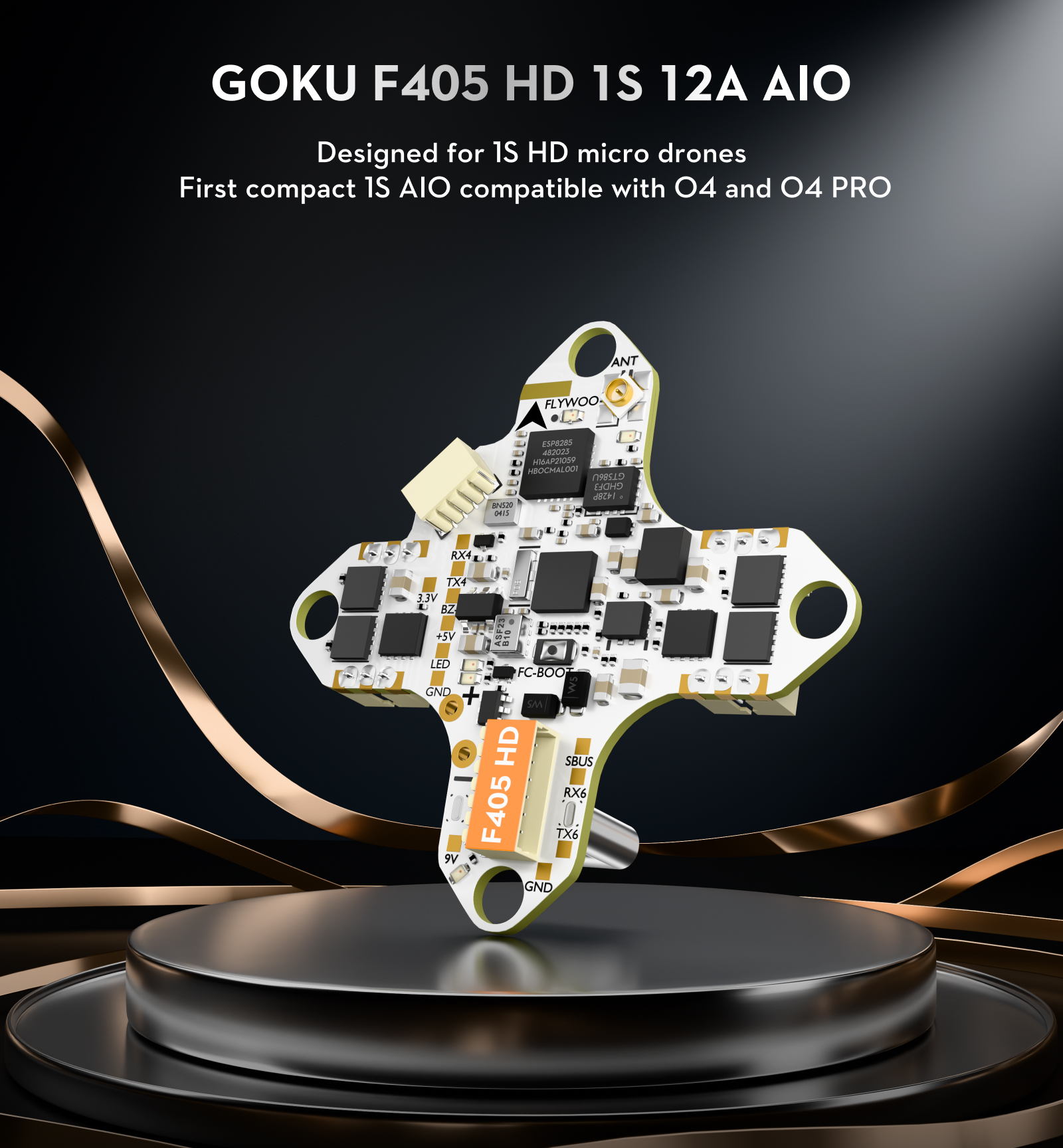

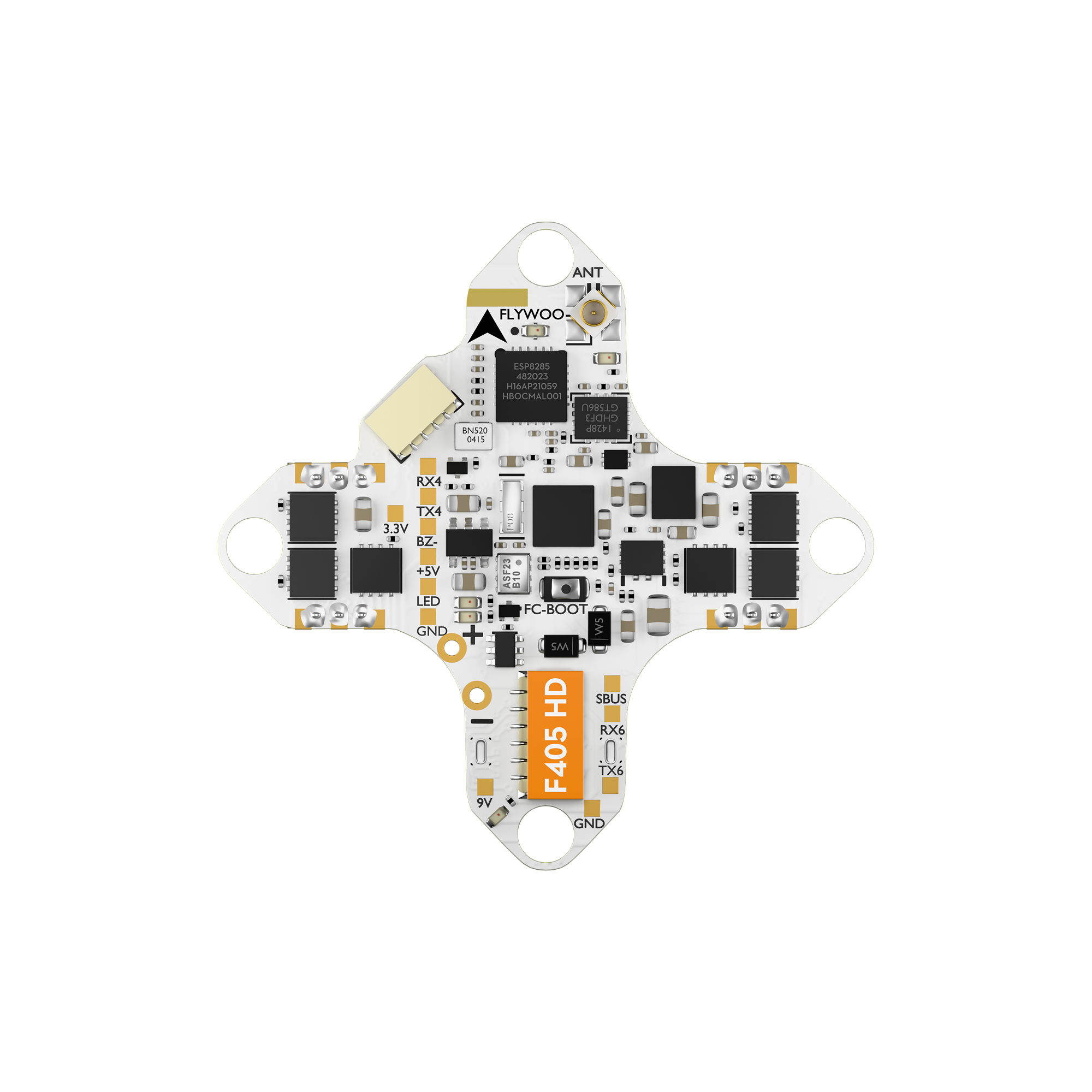

The GOKU F405 HD 1S 12A AIO is a compact AIO for 1S HD micro drones. It's the first 1S AIO compatible with both O4 and O4 PRO.
It supports 40mm to 3inch prop frames and motors from 0802 to 1303. Built around a high-performance 405BGA MCU, it integrates a 12A ESC, dual BEC （9V\5V）, onboard TCXO ELRS receiver, USB-C, and direct O4/O4PRO VTX support.
It greatly simplifies the building process, and provides stable and smooth flight control experience whether for indoor practice or outdoor light racing scenarios.
It supports 40mm to 3inch prop frames and motors from 0802 to 1303. Built around a high-performance 405BGA MCU, it integrates a 12A ESC, dual BEC （9V\5V）, onboard TCXO ELRS receiver, USB-C, and direct O4/O4PRO VTX support.
It greatly simplifies the building process, and provides stable and smooth flight control experience whether for indoor practice or outdoor light racing scenarios.
Highlights:
-
Wide Compatibility: Works with 40mm-3inch propeller frames and 0802-1303 micro motors
-
Dual BEC : Built-in 9V/5V dual BEC, providing independent and stable voltage
-
Powerful ESCs: 12A high-spec ESCs optimized for 1S systems, delivering smooth power and fast response
-
Serial ELRS: Integrated serial ELRS 2.4GHz receiver (built-in TCXO crystal oscillator)
-
Solder-Free Assembly: Solder-free motor socket design simplifies the assembly process
-
Convenient Interface: Equipped with USB-C port
-
Powerful MCU : STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
-

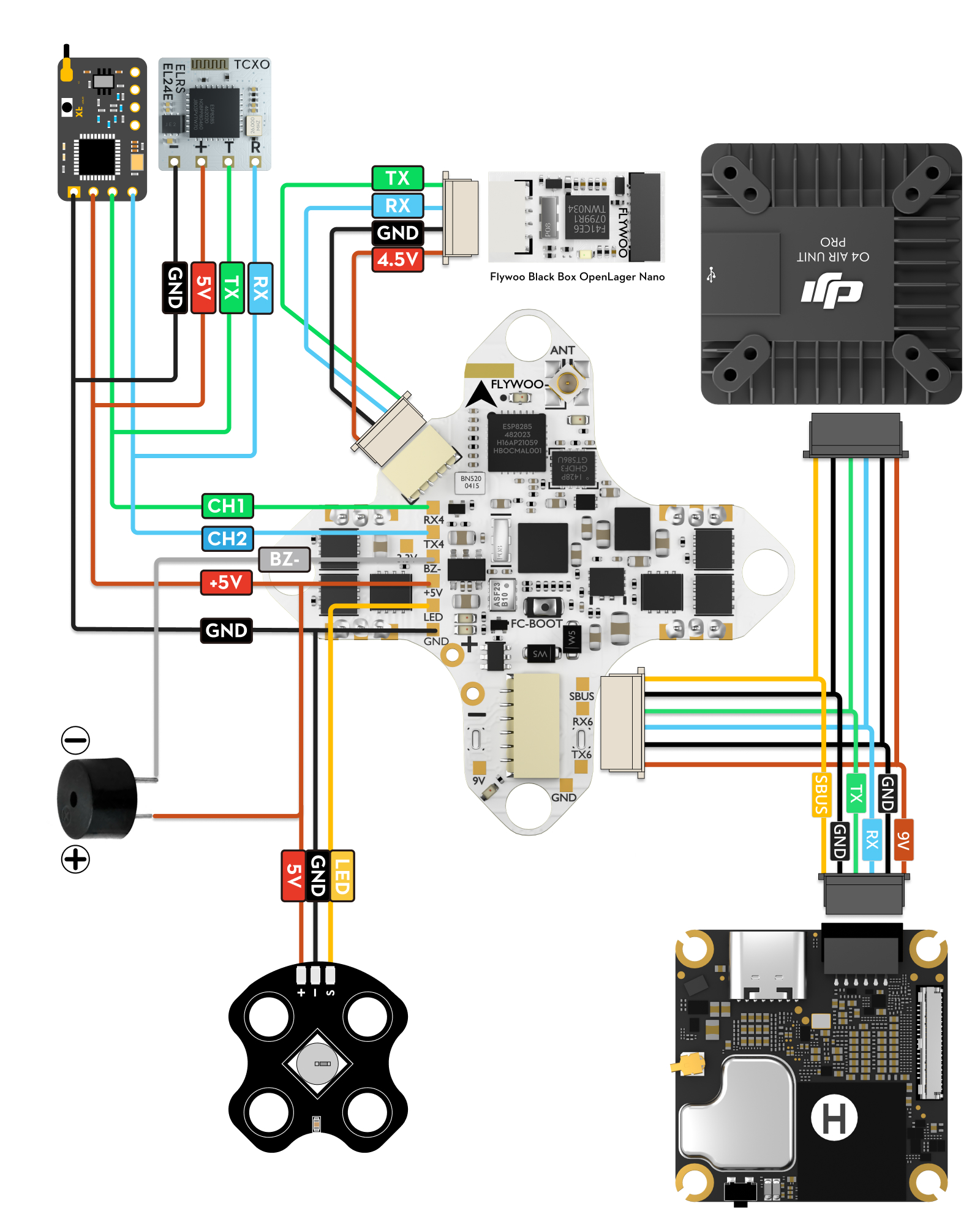

Plug and Pay : Supports direct plug-in of O4/O4PRO , no soldering required, stable signal
-

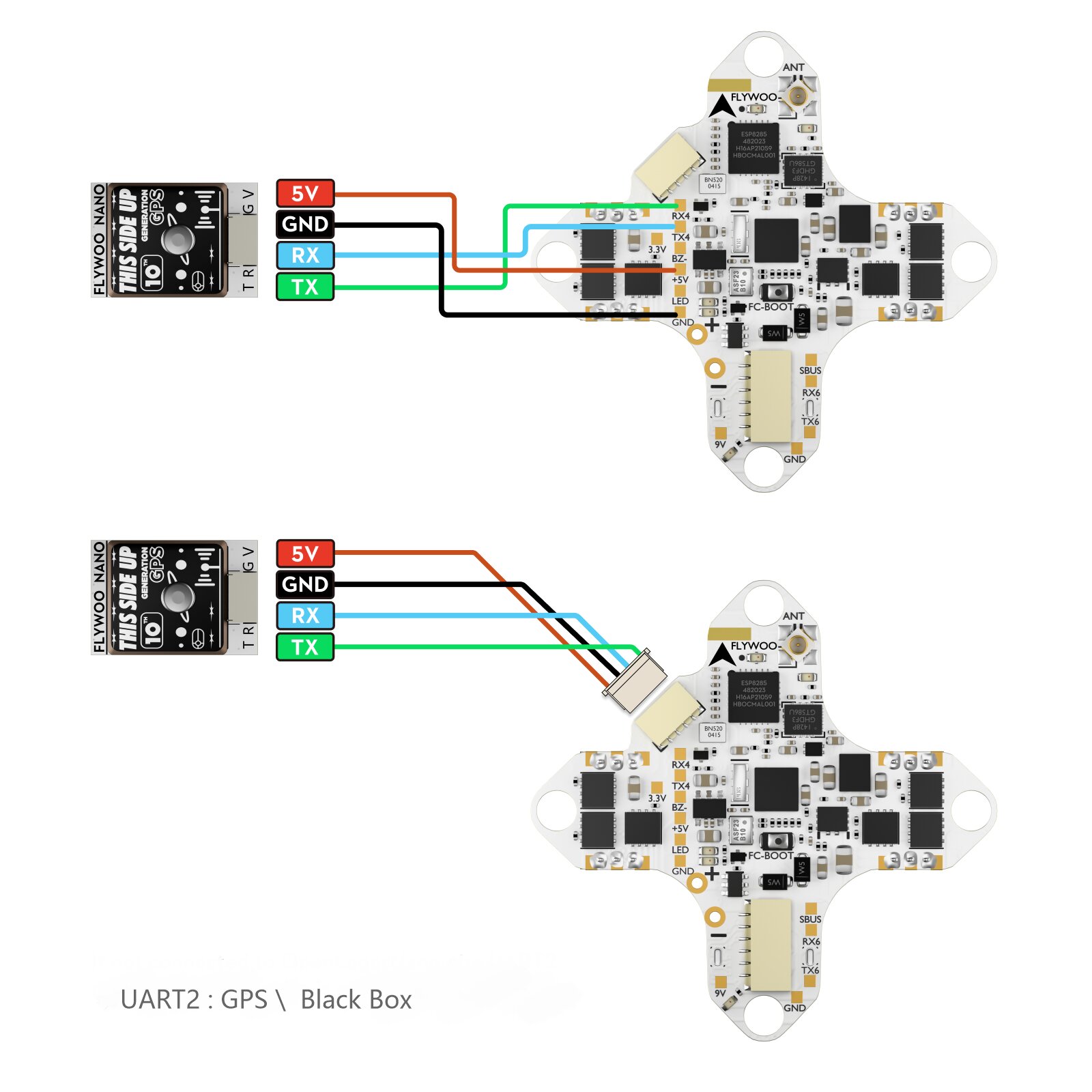

External Black Box or GPS: Supports direact plug in of GOKU GM10 Nano V3 GPS or Flywoo 0.4g OpenLager Nano module with 512MB capacity
Specifications：
|
Product Name
|
GOKU F405 HD 1S 12A AIO
|
| MCU |
STM32F405BGA
|
| IMU |
ICM42688P
|
| Barometer |
SPL06
|
| Black Box |
No （Supports External Black Box ）
|
| OSD Support |
No
|
| UART |

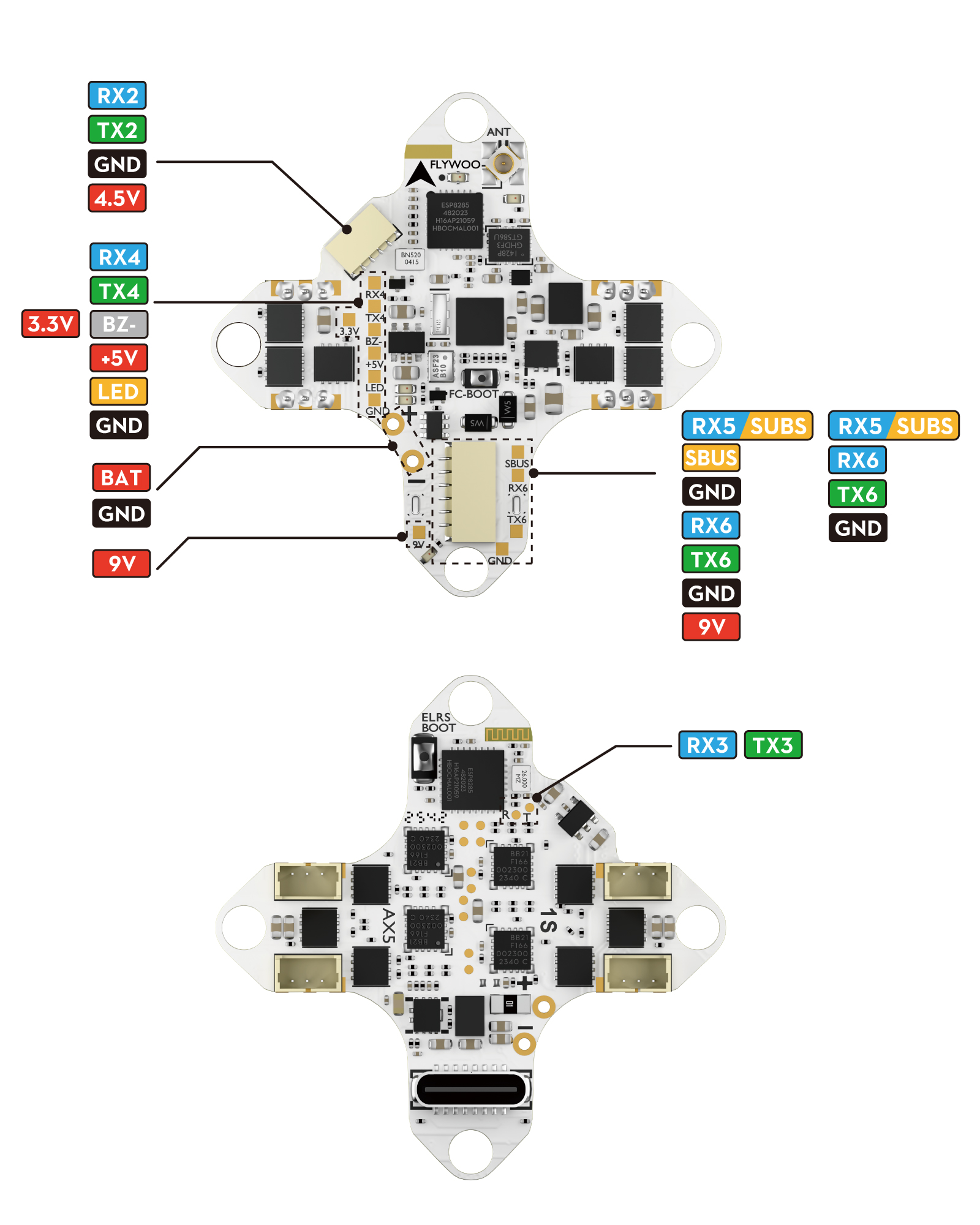

UART2,UART3（For ELRS),UART4,UART5(SBUS),UART6
|
| Protocols |
CRSF, SBUS, iBus, Spektrum
|
| BEC |
5V3A \ 9V2A MAX
|
| RX |
Flywoo TCXO EL24E 2400 RX 3.x.x
|
| FC Firmware |
FLYWOOF405S_AIO
|

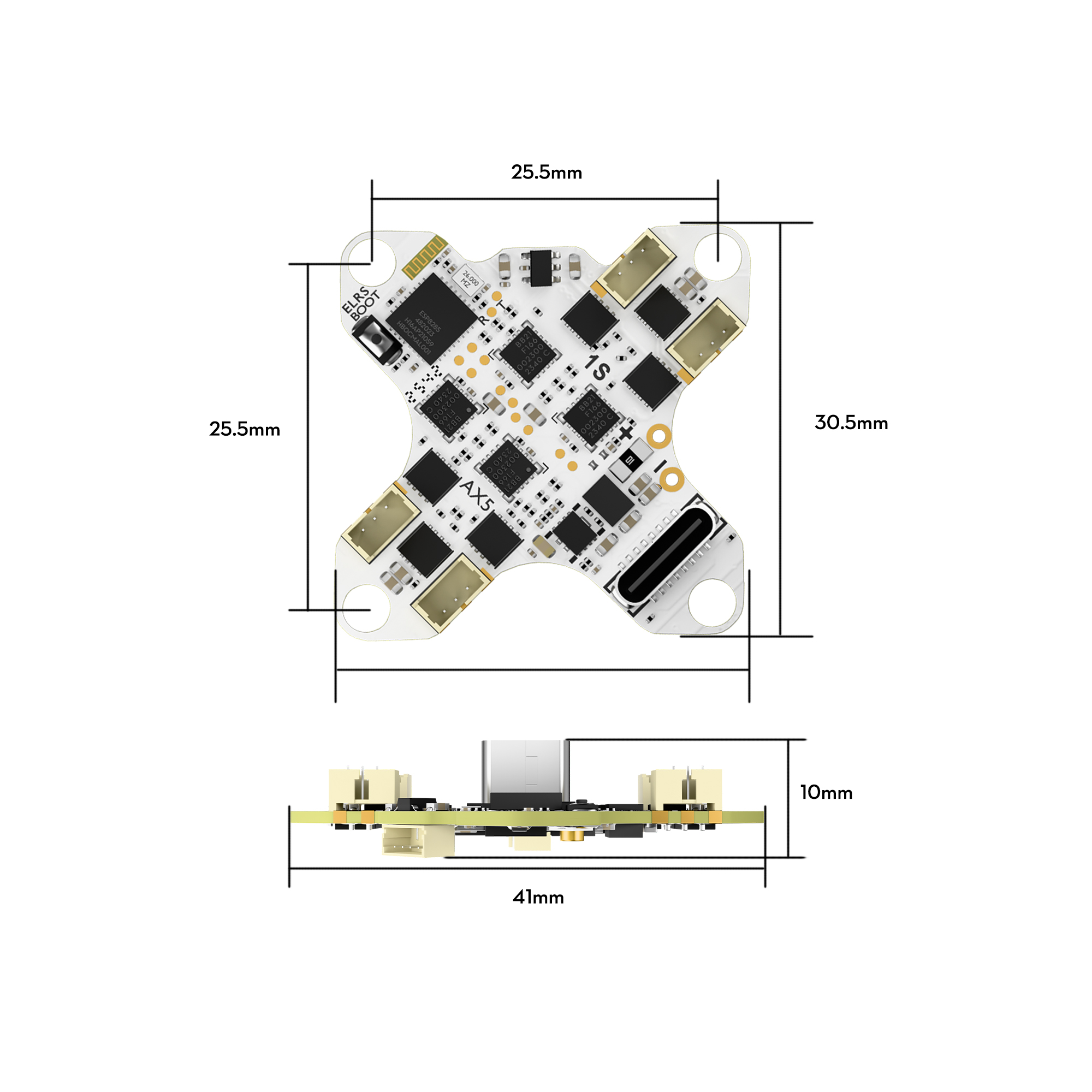

| Dimensions |
30.5*30.5mm*10mm
|
| Mounting Holes |
25.5*25.5mm
|
| Weight |
3.4g
|
|
Product Name
|
Onboard 4in1 ESC
|
| Power input |
1S Only
|
| Current |
12A continuous, 15A peak
|
| ESC firmware |
O_H_5_48KHz_V0.19.hex Bluejay firmware
|
| Digital signal protocol |
DShot300, DShot600
|
| Motor Connector |
JST1.25
|
| Battery connector |
A30
|

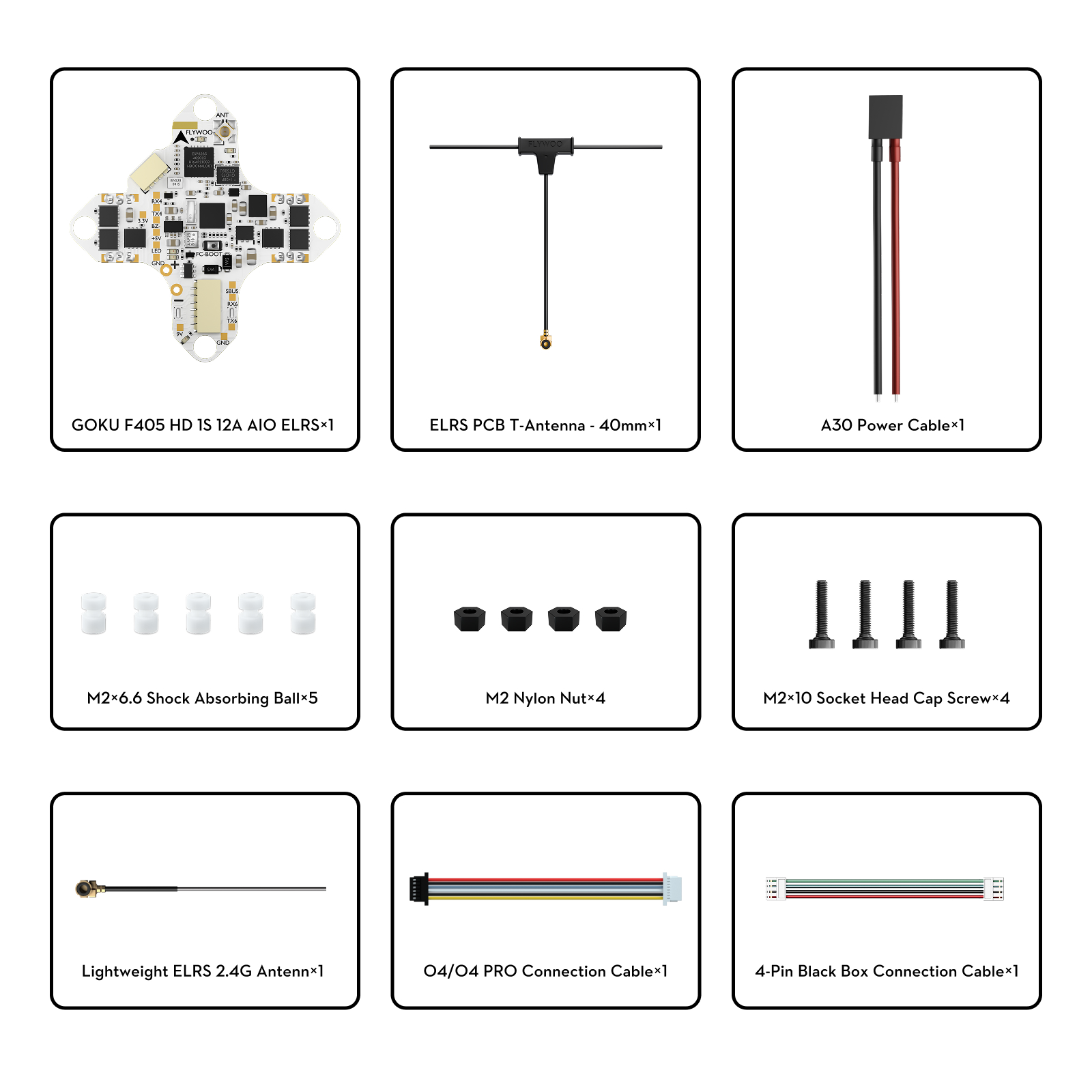

In the box :
- 1x GOKU F405 HD 1S 12A AIO
- 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL--40mm
- 5x M2*6.6 Shock-absorbing ball
- 1x connector cable for flywoo black box / GM10 GPS Nano
- 1x A30 Power cable
- 1 x connector cable for O4 \ O4 Pro
- Flywoo 0.4g Black Box OpenLager Nano module（Option
