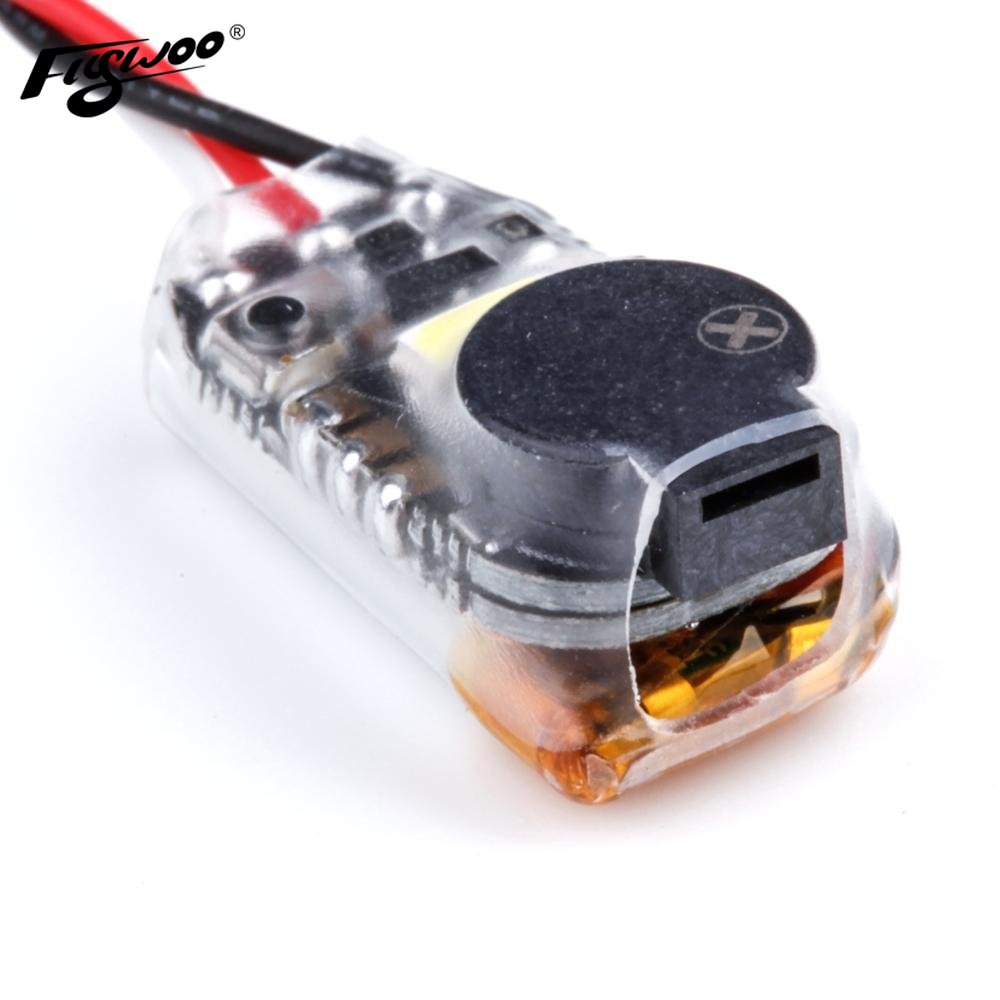

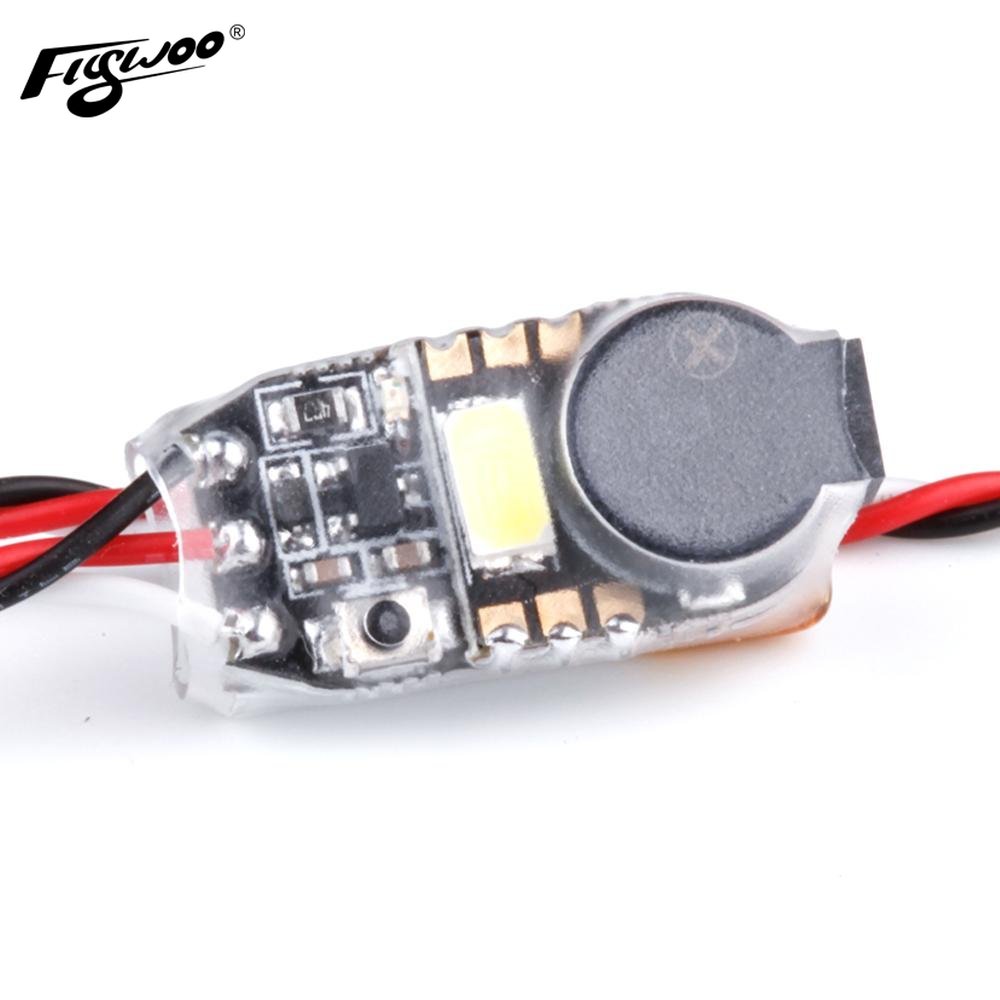

FLYWOO Finder V1.0 BB Ring 100dB Buzzer Alarm with LED Light Support BF CF Flight Control Parts for RC Micro Drone Quad
The buzzer has two modes of operation:
1. It is compatible with the functions of the traditional active buzzer and synchronized with the flight control.
2. When the flight control is normally connected, if the main battery in the flight is powered off, it can still automatically emit 100 dB of drip sound after 30 seconds of power failure, and the LED will emit white light.
To turn off the buzzer: Press and hold the release button for more than 2 seconds, the Finder V1.0 turns off the sound.
The Finder is compatible with all BF and CF flight controls. Just connect to the buzzer interface of the flight controller and it will work. When the flight control wiring is correct, the multi-rotor aircraft is powered on, and the flight control power supply will be automatically charged for the Finder (the red LED will light to indicate charging is in progress, the red light is off to indicate charging saturation; the red light flashing indicates flight control) Electricity, enter 30 seconds waiting time).
Weight: 2.7 grams
1 X Finder V1.0 (10cm cable)
Everything is OK. Thank you.
I encountered the exact same issue Gary VanAusdle reported on 6/20/21. Was the stock beeper on an Explorer LR V2, only a couple weeks old.
Came here to purchase a replacement and noticed others have same issues.
I love the drone; seems to be otherwise high quality. Disappointing beeper h/w.
I had just finished a flight, disconected the main battery, then held the button to disable then it started buzzing constantly, the led light came on steady. I had to remove it from the drone and cut the wire to the small battery to disable it. I see someone else had the same issue. I have the ev explorer with the buzzer as well. Hope it doesn't happen on it.
I had a video dropout (noisy area) about 1.6km from where I was, drove to where I thought I'd dropped out of the sky, and the buzzer was easily heard (about 20m from where I stopped). Going to buy more for all my quads, especially at this price.
excellent product, but having never used it, I would like to know where the signal wire (white) is connected, I connected it on the led pad of the FC, is it correct?
