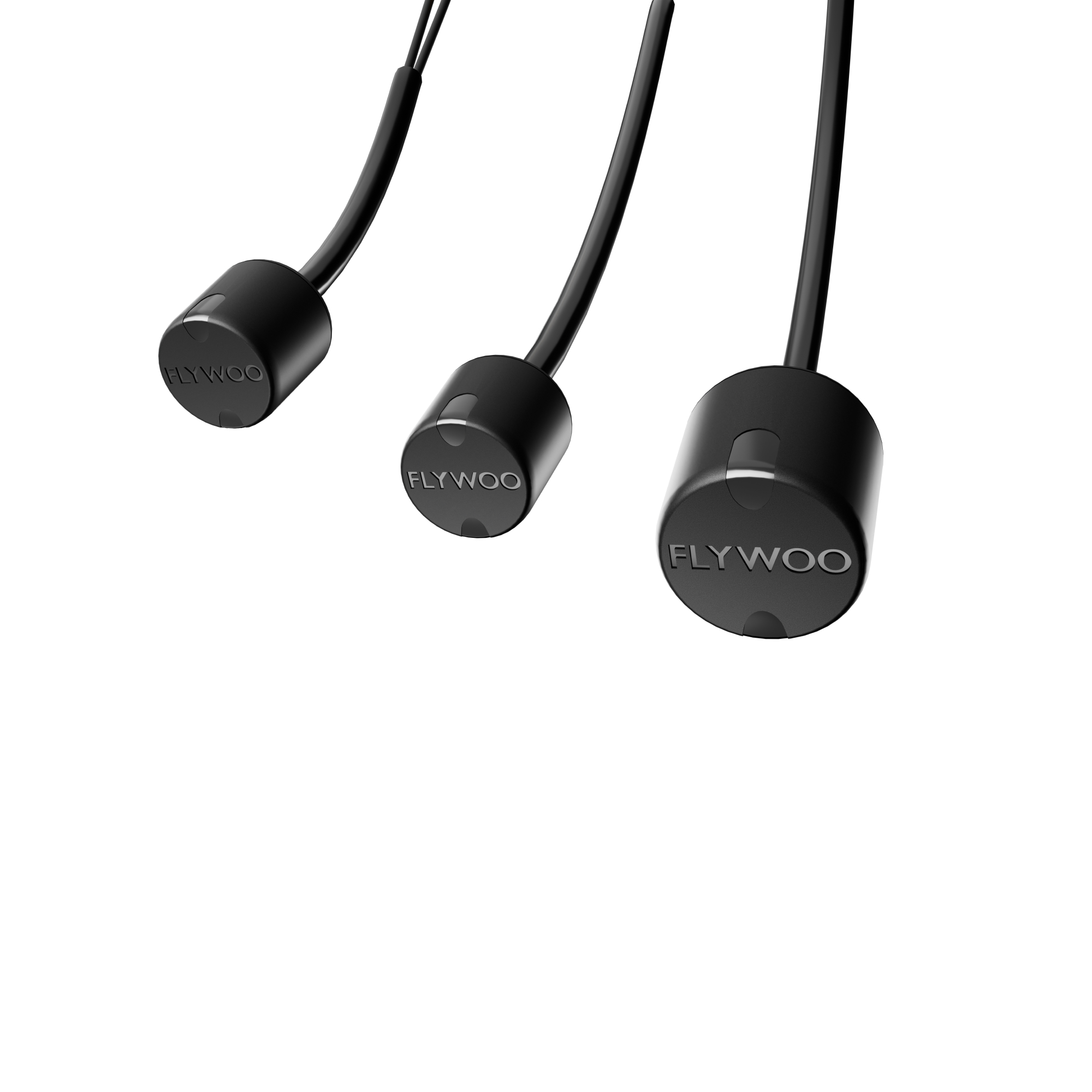

Flywoo Bipolar, its latest Dual-Band series antenna, is meticulously engineered for the O3 air unit. This series, featuring two types of antennas - Dual 5.8GHz/2.4GHz and Dual 5.8GHz, is designed to enhance transmission distance while boasting exceptional interference resistance capabilities.

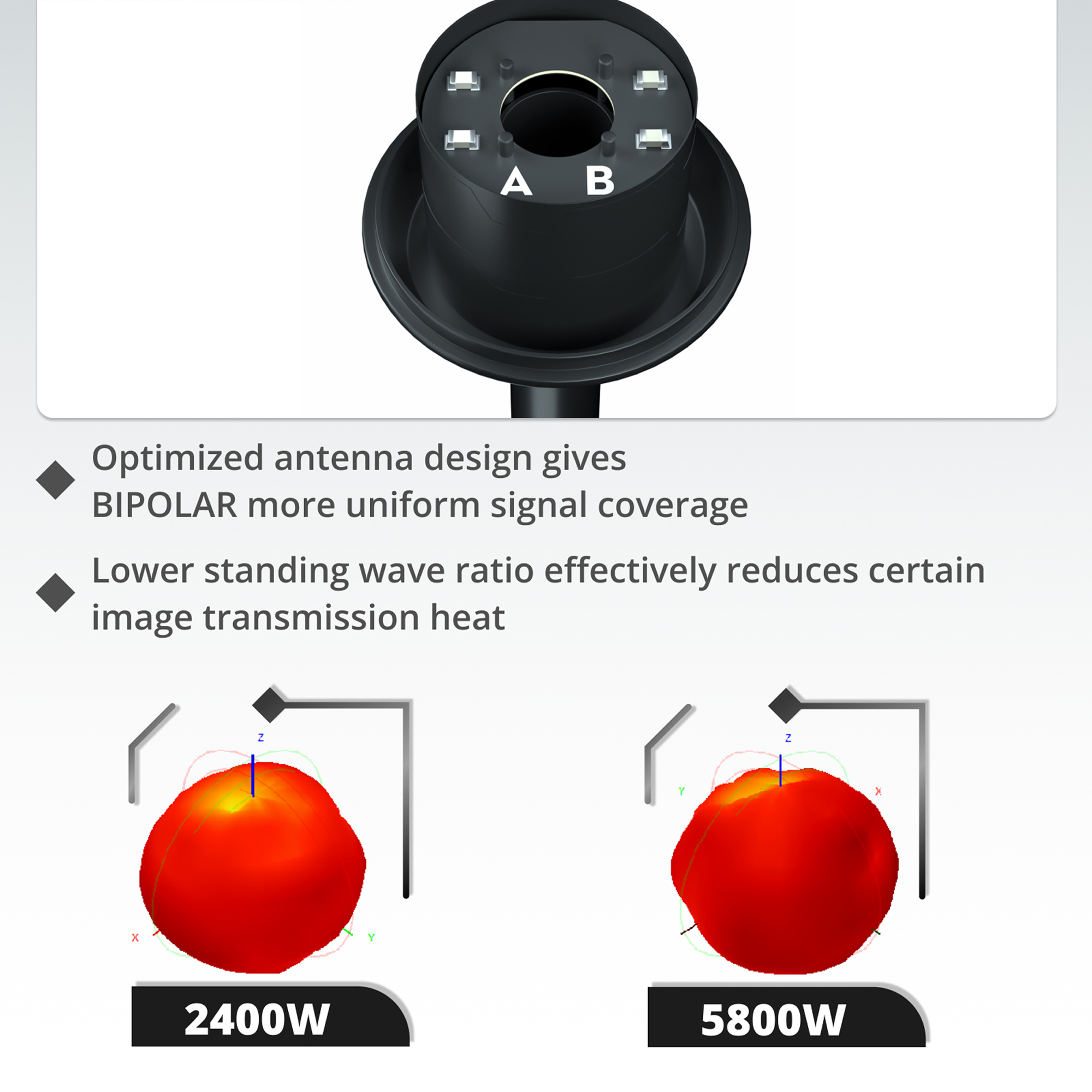

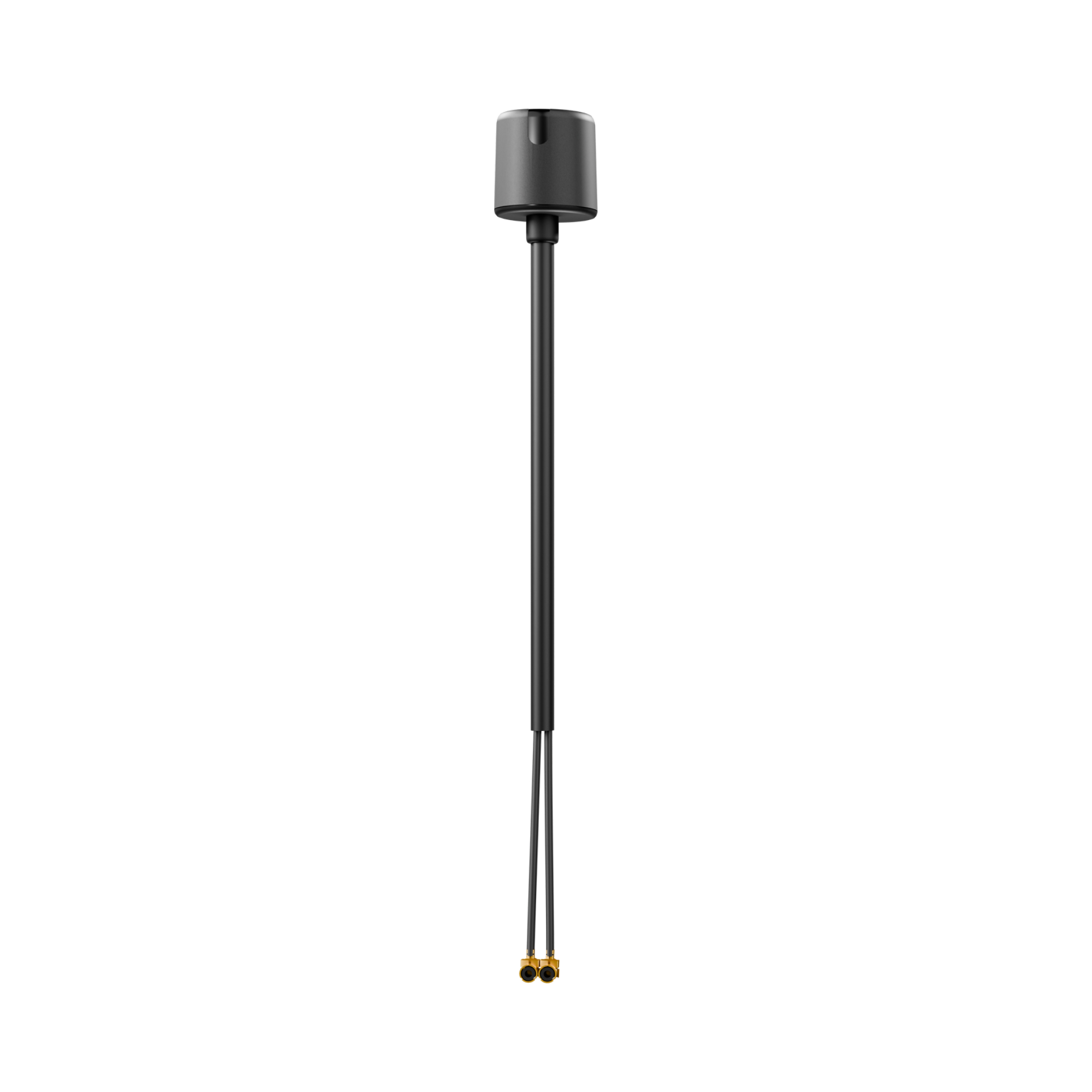

The Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna incorporates cutting-edge dual-band, dual-polarized technology to ensure performance and compatibility that is better than the DJI O3 air unit.

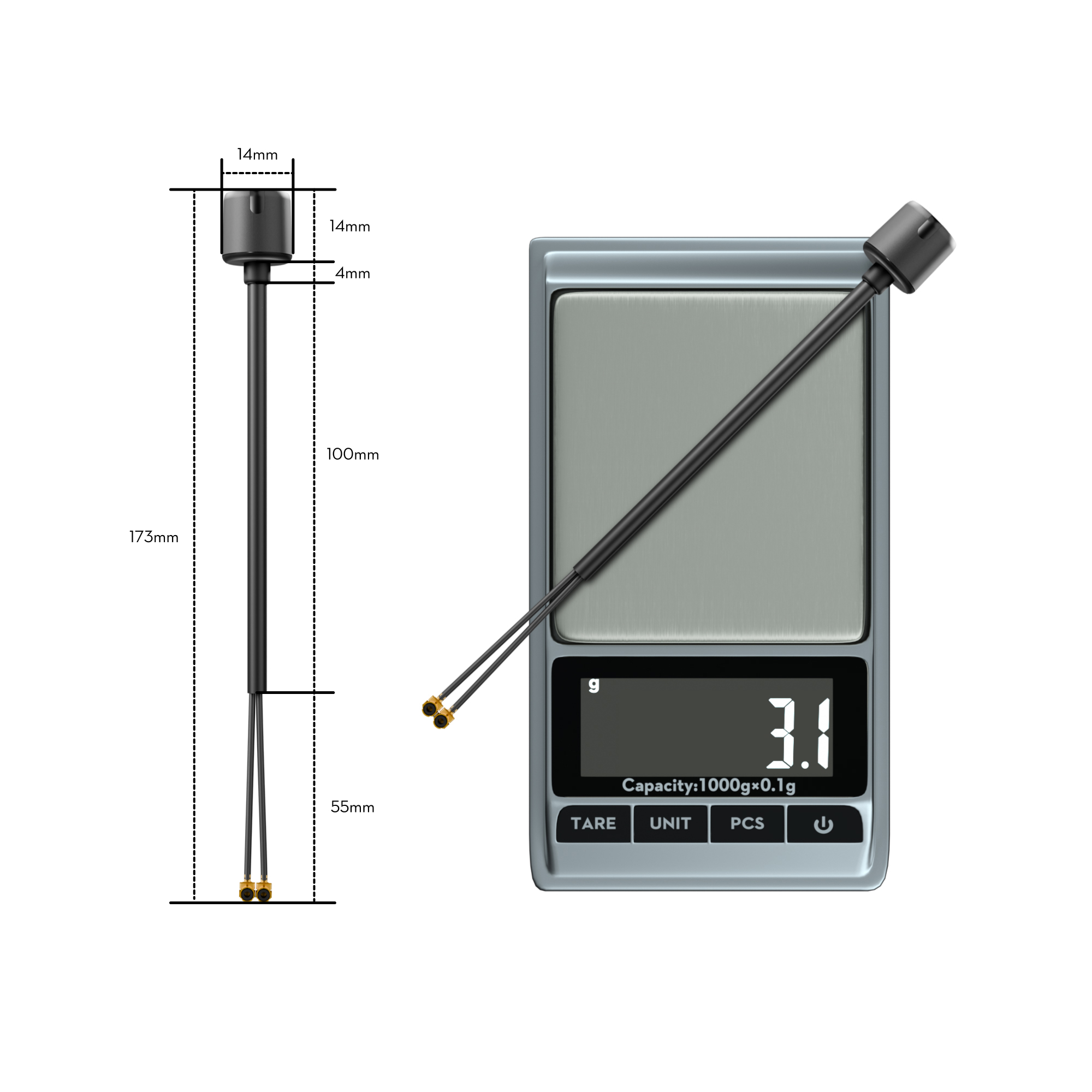

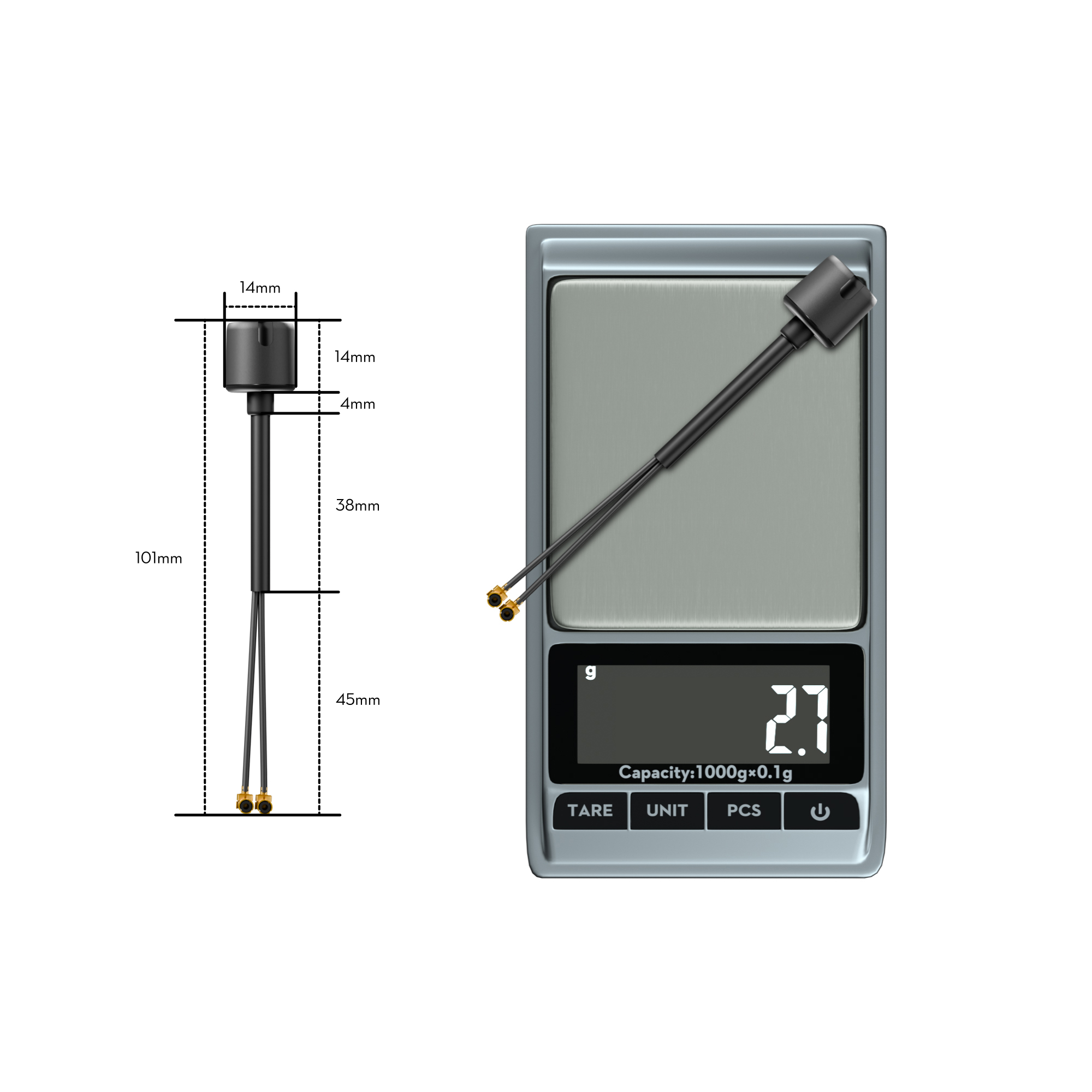

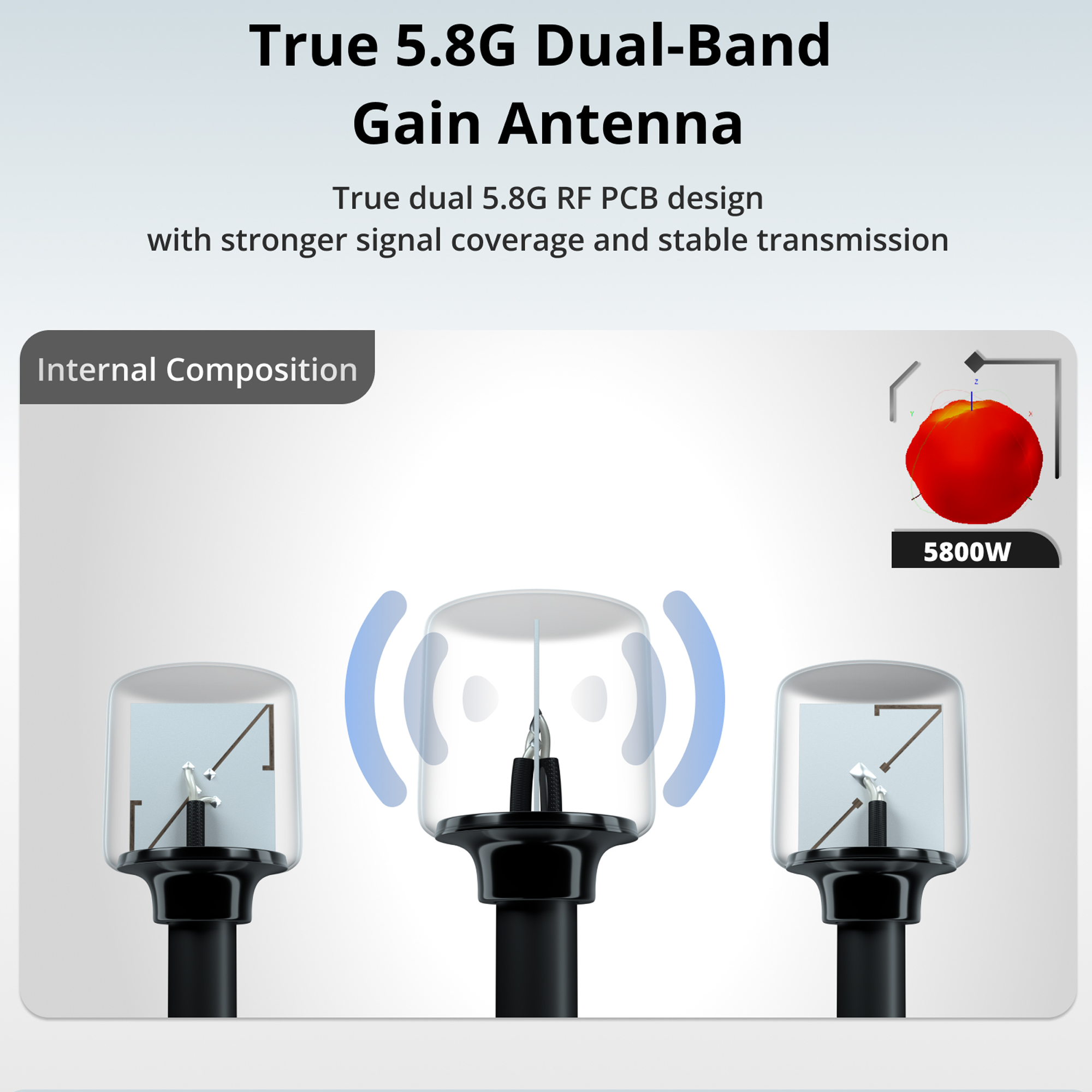

The Flywoo Bipolar Dual 5.8GHz UFL Antenna stands out as a true dual 5.8G antenna. It's celebrated for its lightweight design and durability, offering stronger signal coverage and stable transmission. The lightest 90mm version weighs in at just 2.9g!
Specifications:
Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna
- Frequency Range: 2400-2500MHz/5700-5900MHz
- Gain: 2.5dBi/3.8dBi - VSWR≤1.6
- Polarization: Linear
- Impedance: 50Ω
- Connector: 2x U.FL (2x IPEX1)
- Cable: RF1.13
- Weight: 5.3g

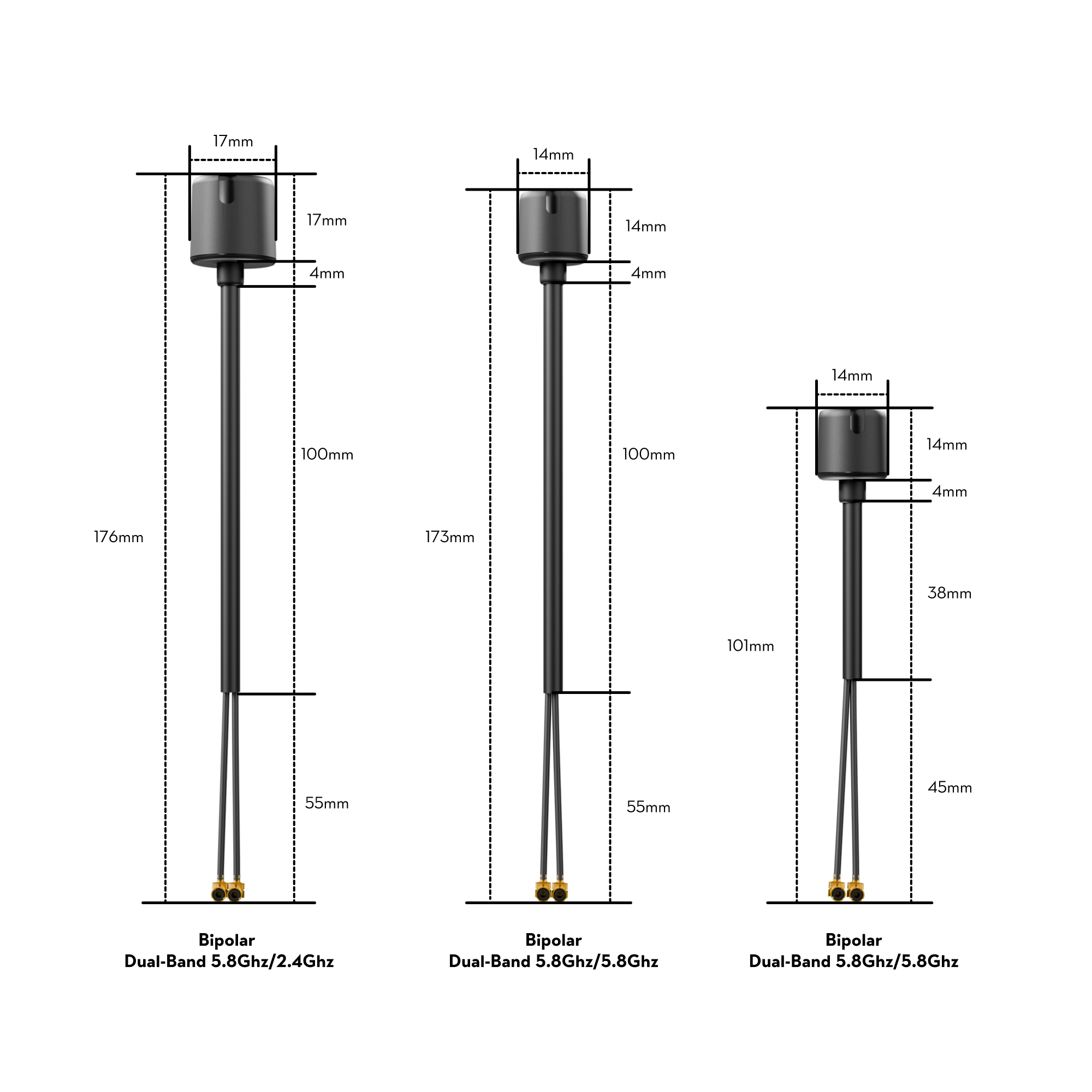

- Size: Φ16x17mm
Flywoo Bipolar Dual 5.8GHz UFL Antenna
-
Frequency Range: Dual 5700-5900MHz
-
Gain: Dual 2.8dBi
-
VSWR≤1.6
-
Polarization: Linear
-
Impedance: 50Ω
-
Connector: 2x U.FL (2x IPEX1)
-
Cable: RF1.13
-
Weight: 2.9g
-
Size: Φ14x14mm
