The Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL for VTX is a specialized product designed for ultra-light unmanned aerial vehicles.

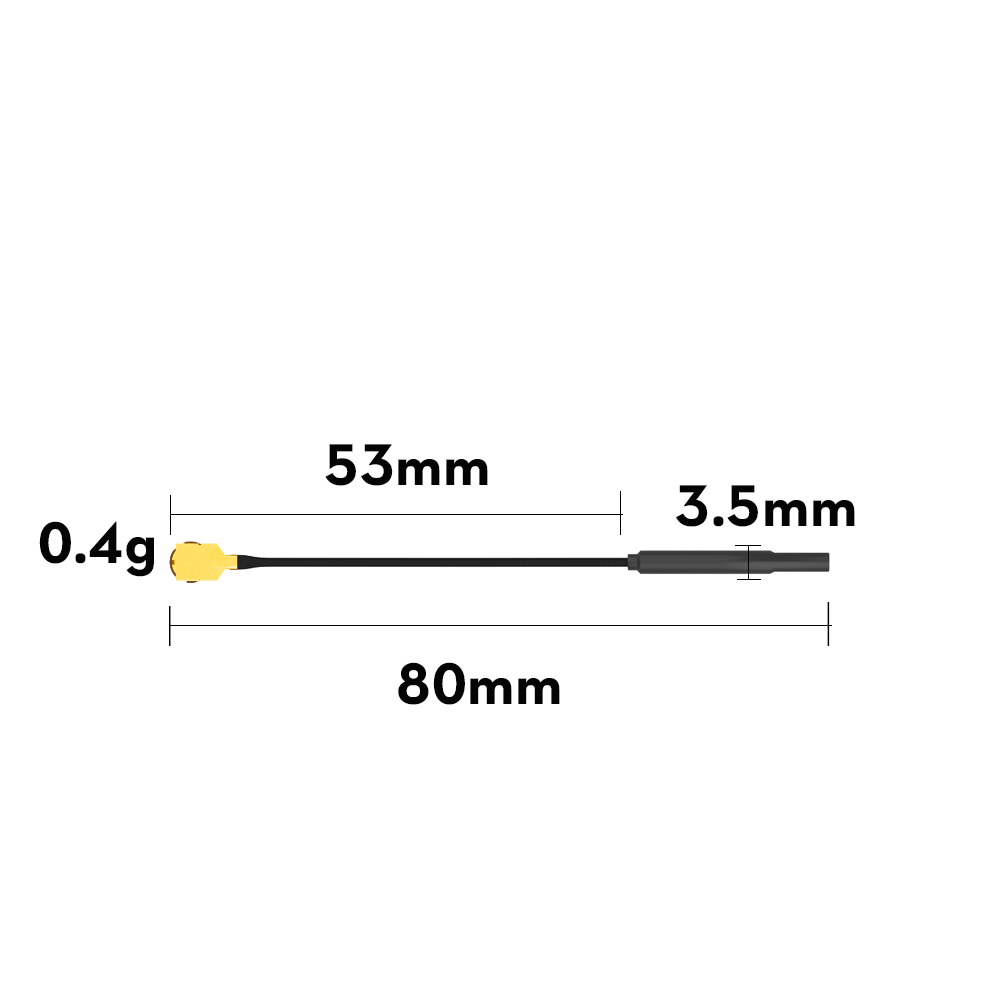

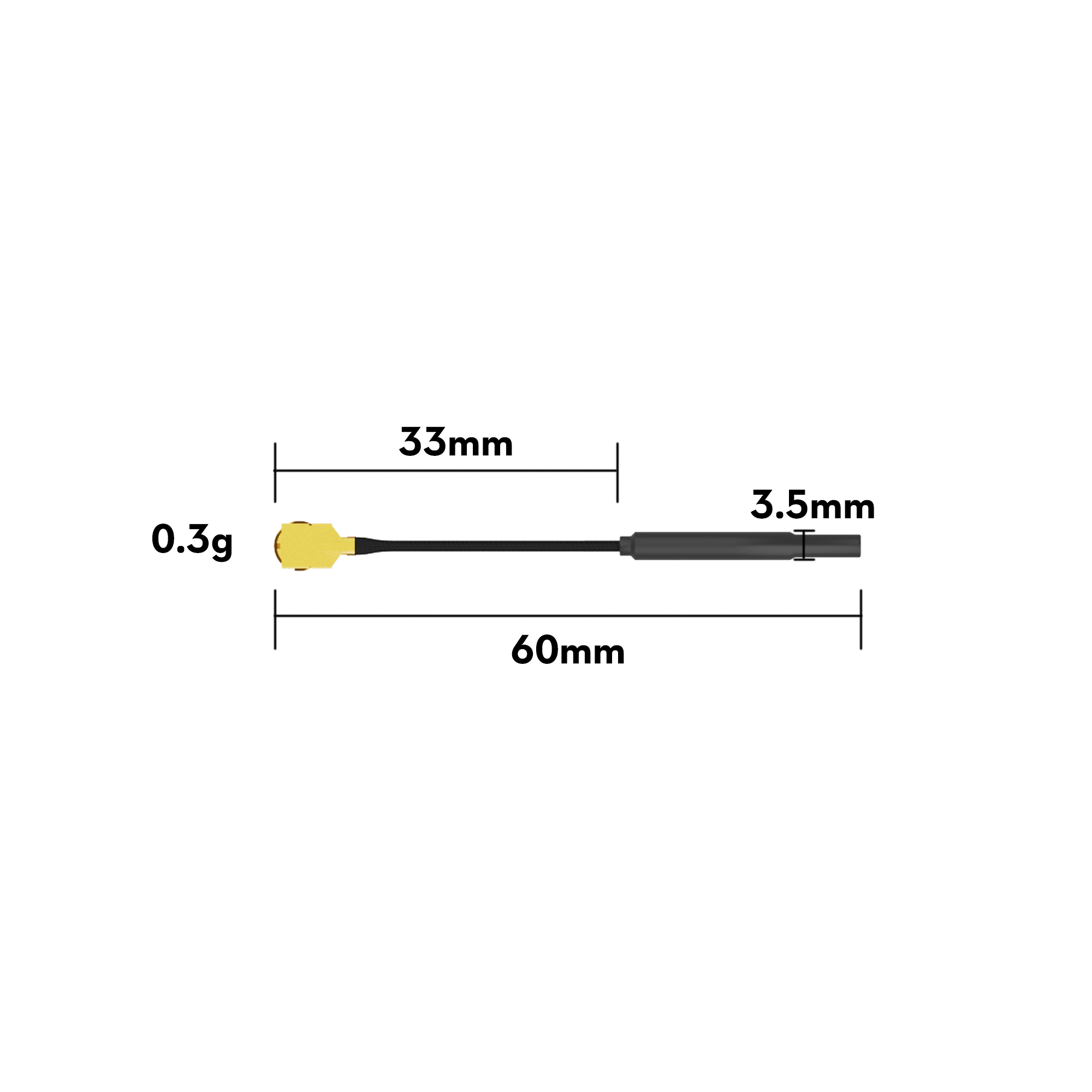

There are two versions available: the 60mm version is suitable for traditional unmanned aerial vehicles, while the 80mm version is specifically designed for the FlyLens 85.
Specification:
- S.W.R.: <2:1
- Gain: 3dbi
- Interface: IPEX
- Weight: 0.3g\0.4g
- Polarization: vertical
- Maximum power: 50W
- Input resistance: 50Ω
-
Minimum diameter: 1.13mm
-
Thunder protection: DC ground
-
Directionality: Omnidirectional
-
Frequency Range: 5725-5850Mhz
Features:

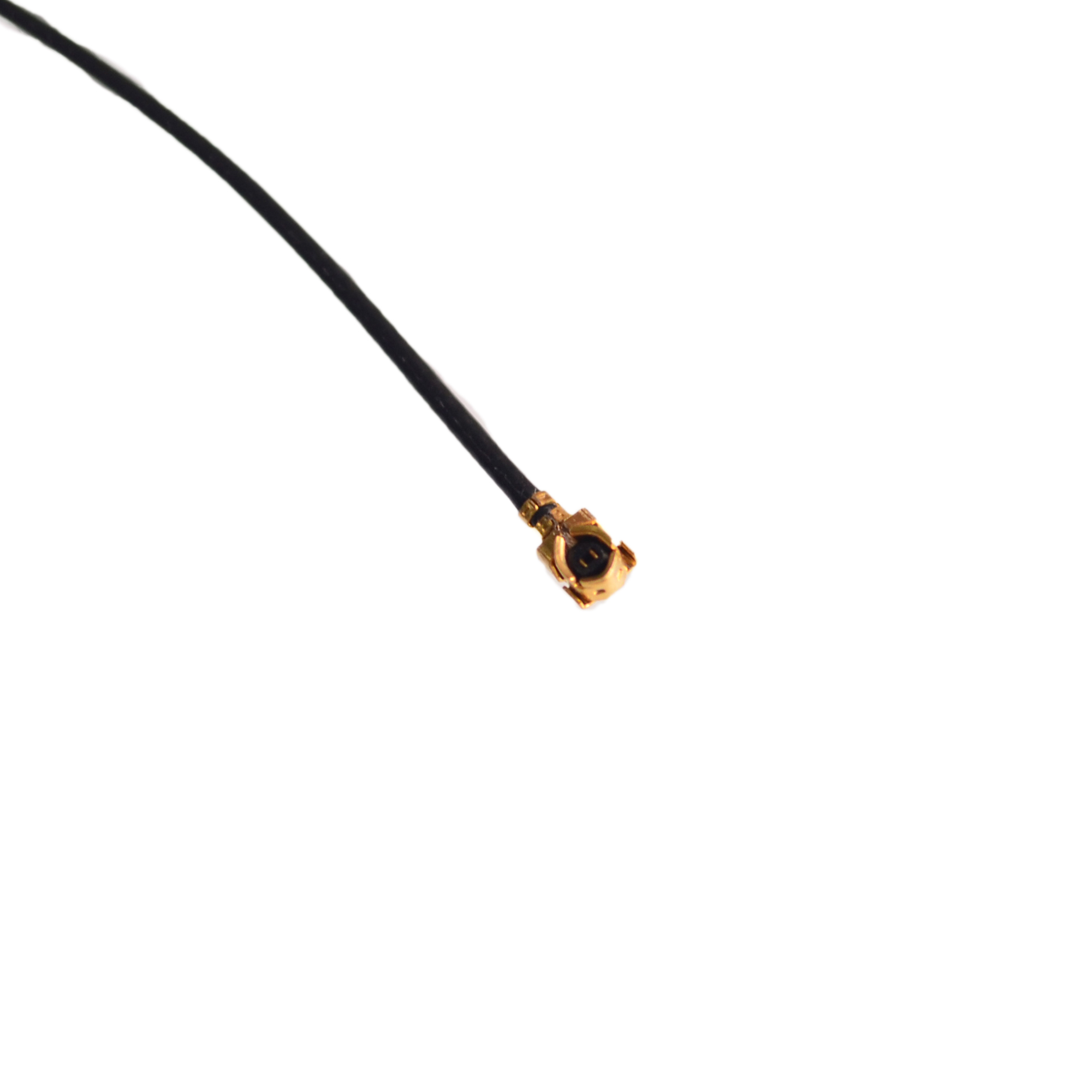

- Installation: It features an IPEX interface that makes installation simple and easy to replace.
- Lightweight: The ultra-lightweight and ultra-small size of the antenna reduces the flight burden, allowing for longer and farther flights. Signal
- Signal sensitivity: The antenna is vertically omnidirectional, which increases signal sensitivity and can be rotated 360°, receiving no dead ends.
- Durability: Additionally, the heat shrink technology and brass protection ensure wire flexibility and durability, allowing for bending without any damage to performance.
Package included:

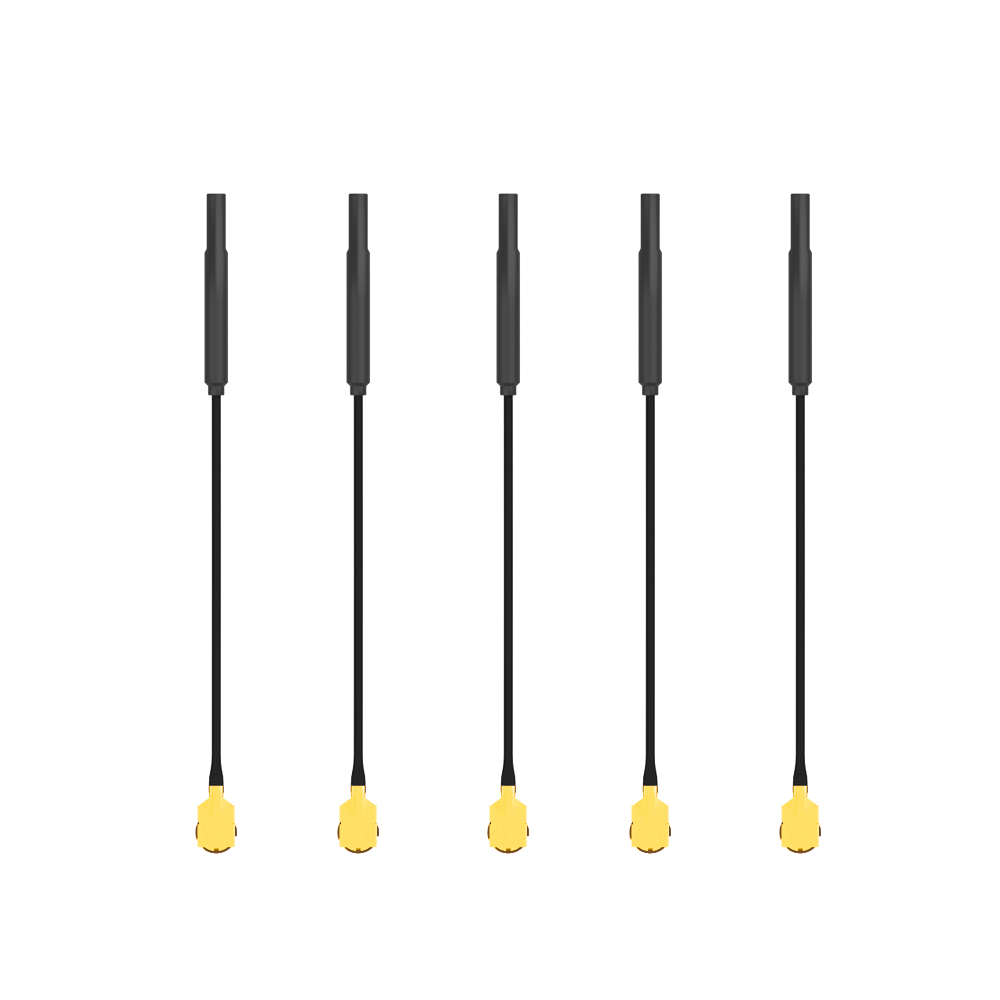

5 x Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL for VTX
