Features & Specifications
-
9CH (1080,1120,1160,1200,1240,1280,1320,1360,1258MHz)
-
RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 800mw(3)
-
Button control and LED indicators
-
Built-in AGC microphone
-
7-26V DC IN (2-6S LiPo)
-
Power Consumption: 40mA(0.1mw), 110mA(25mw), 150mA(200mw), 250mA(800mw) @12V IN
-
Video format: NTSC or PAL
-
Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz
-
RF Connector: MMCX
-
Weight: 12.2g
-
Size: board 35*35mm

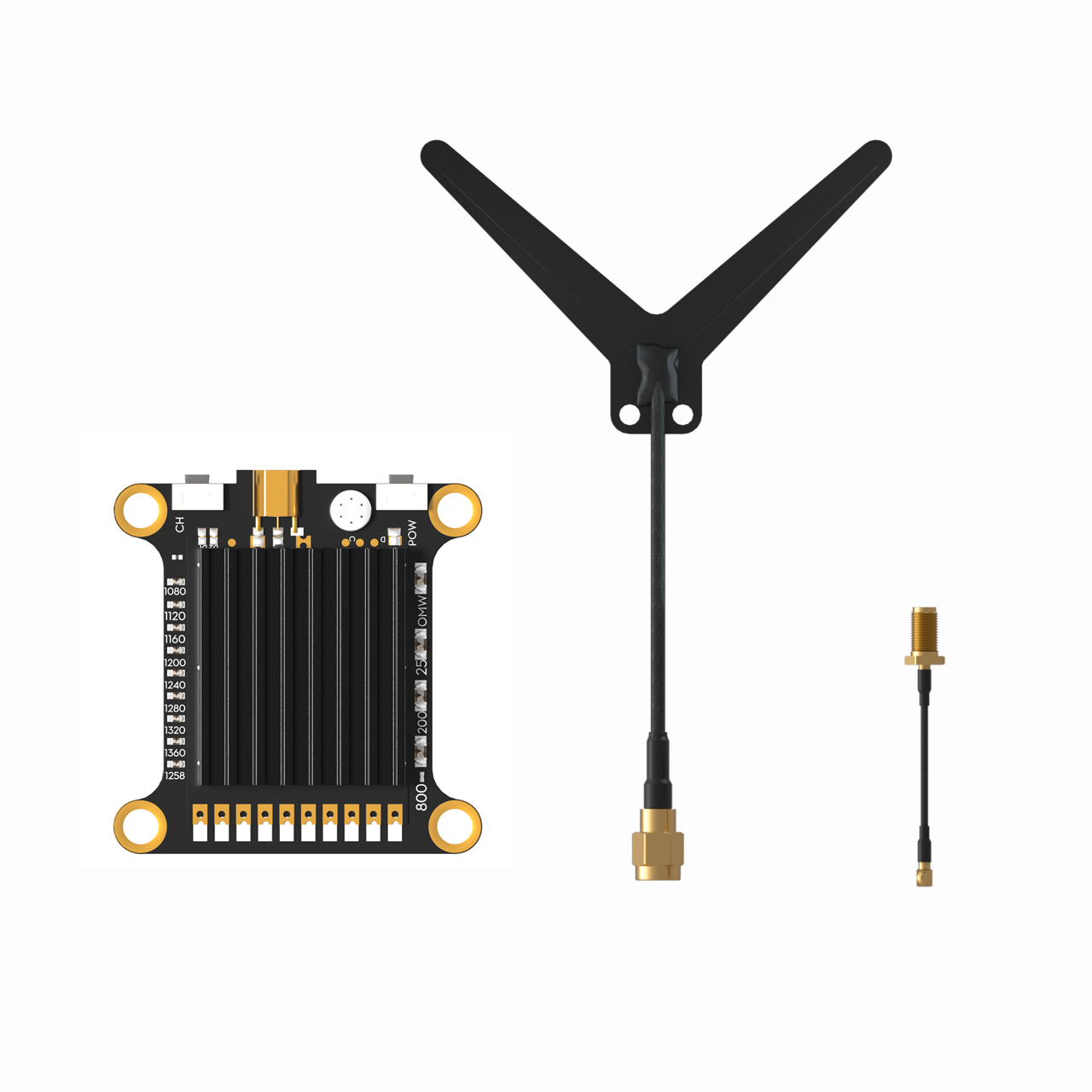

Packing
-
1x 1.2/1.3G Video transmitter VTX-1G3 9CH
-
1x Dipole antenna_SMA, center freq 1240MHz
-
1x MMCX to SMA cable

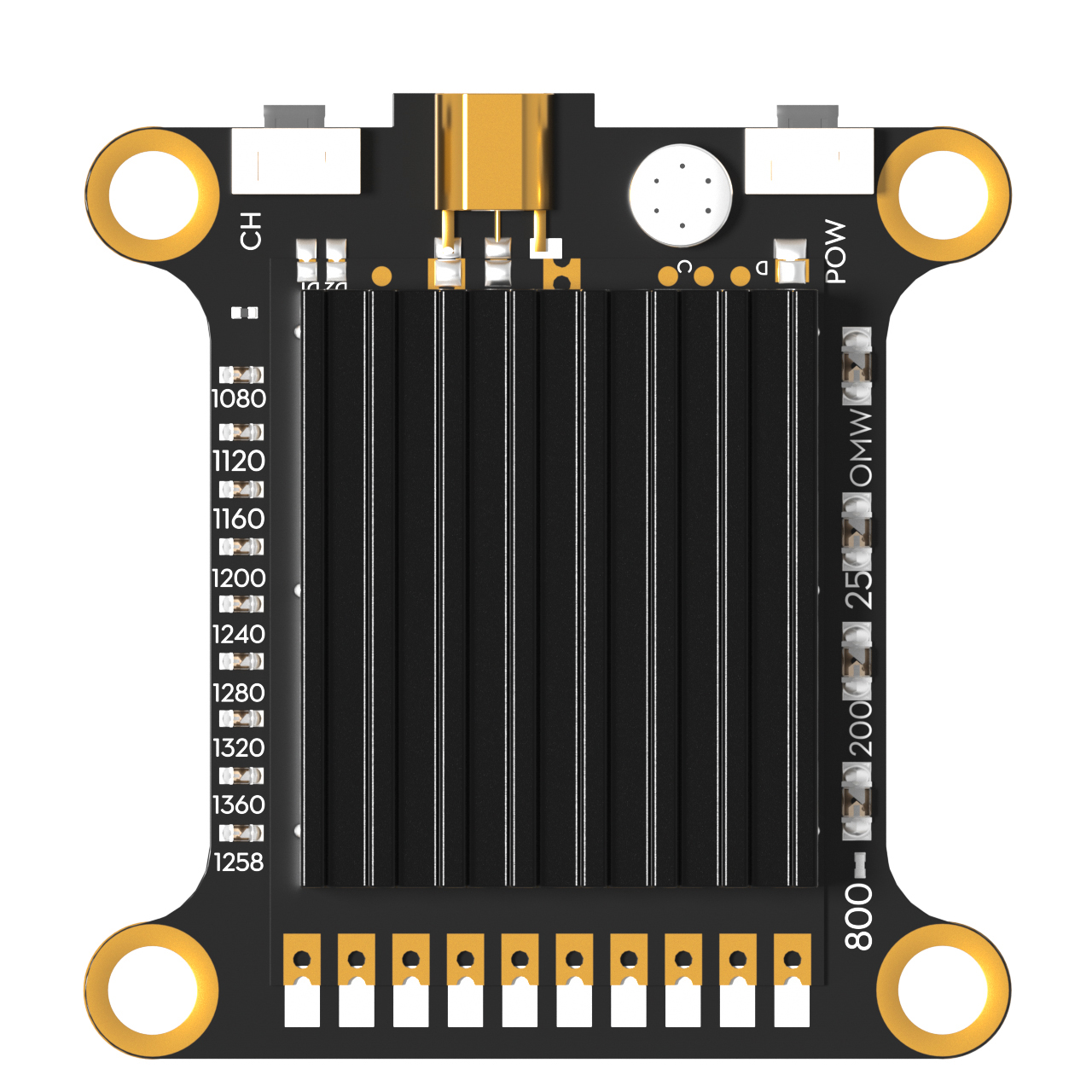

Settings
-
Press button-power(red led) to select RF output levels, 0 = 0.1mw pitmode, 1=25mw. 2=200mw, 3=800mw
-
Press button-CH(blue led) frequency setting 1-9CH
