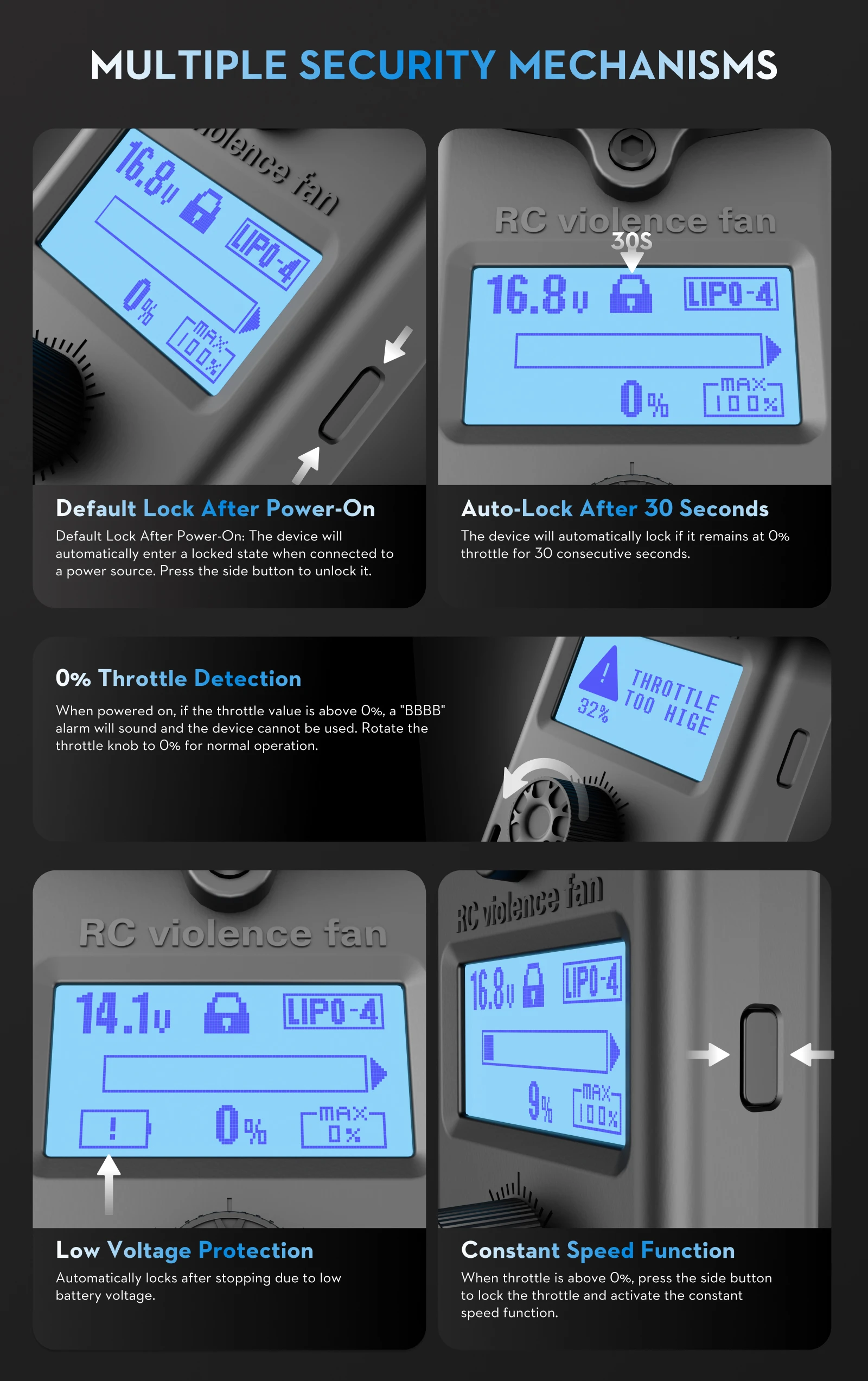

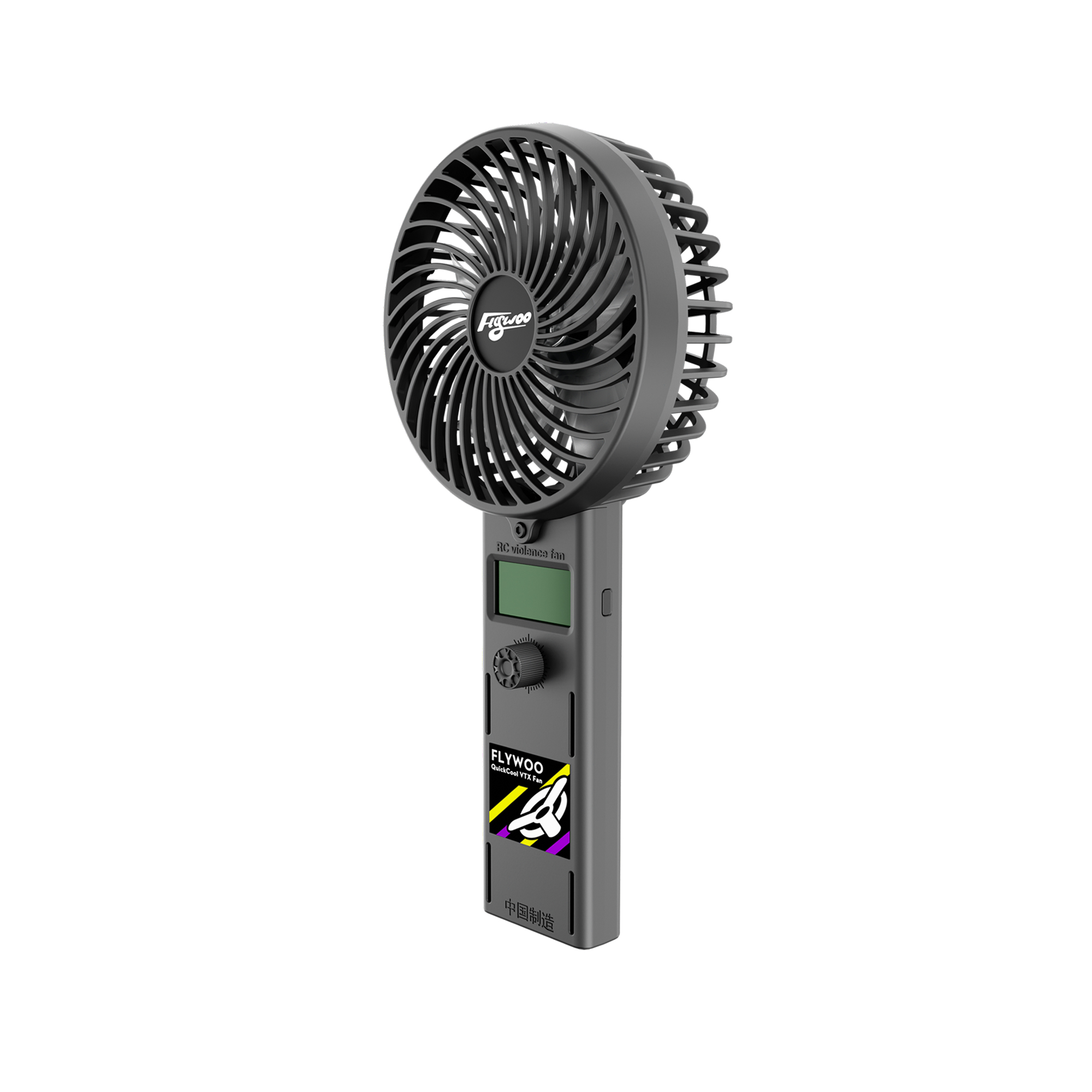

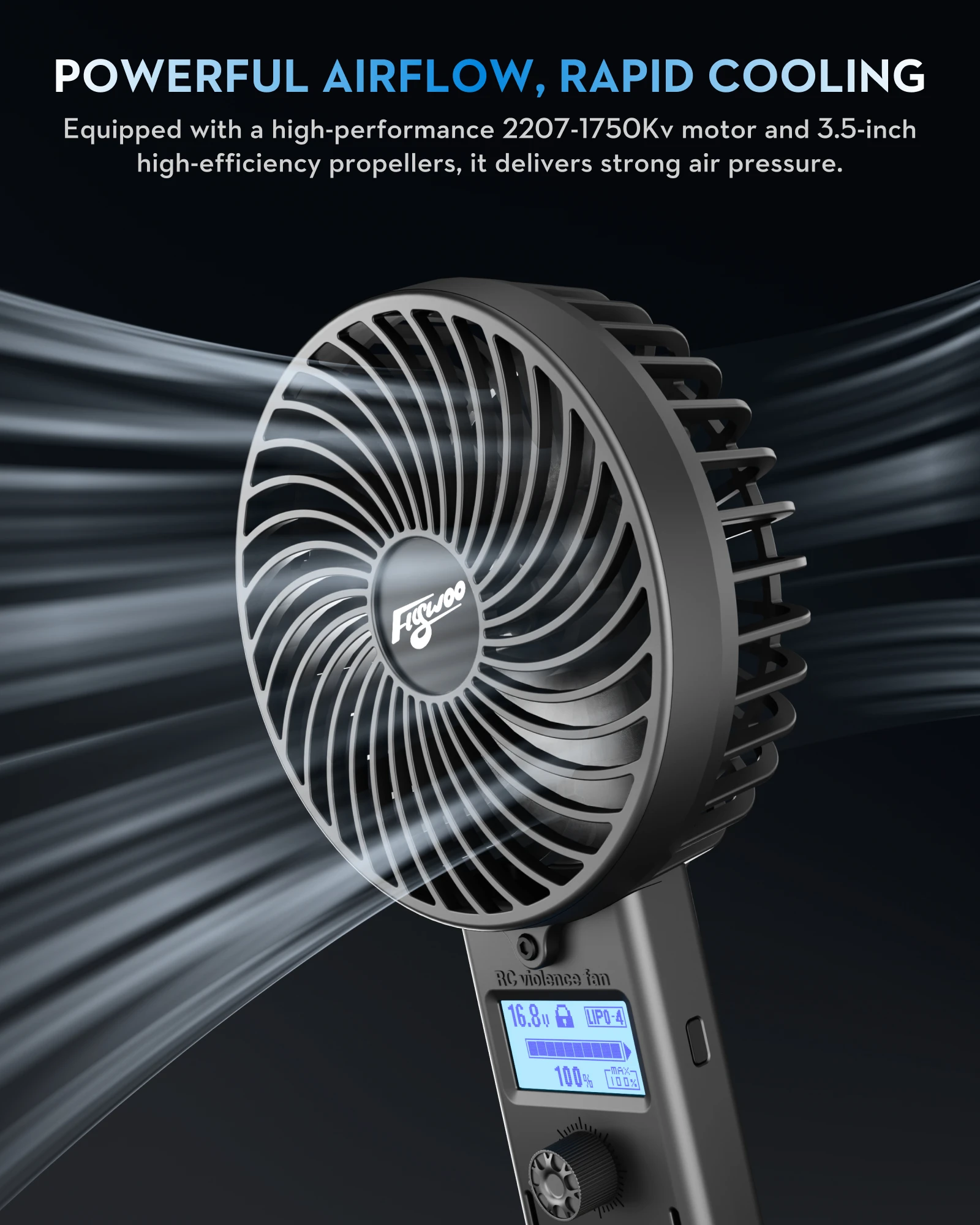

Flywoo QuickCool VTX Fan is equipped with a high-performance 2207-1750Kv motor and 3.5-inch propellers, delivering high-volume airflow to quickly cool the VTX module. 1. The screen displays real-time voltage and throttle data; featuring a lightweight design, it supports 2-6S batteries (XT60 connector). 2. Multiple safety mechanisms such as power-on lock and low-voltage protection effectively prevent accidental activation and loss of control risks.
Specifications:

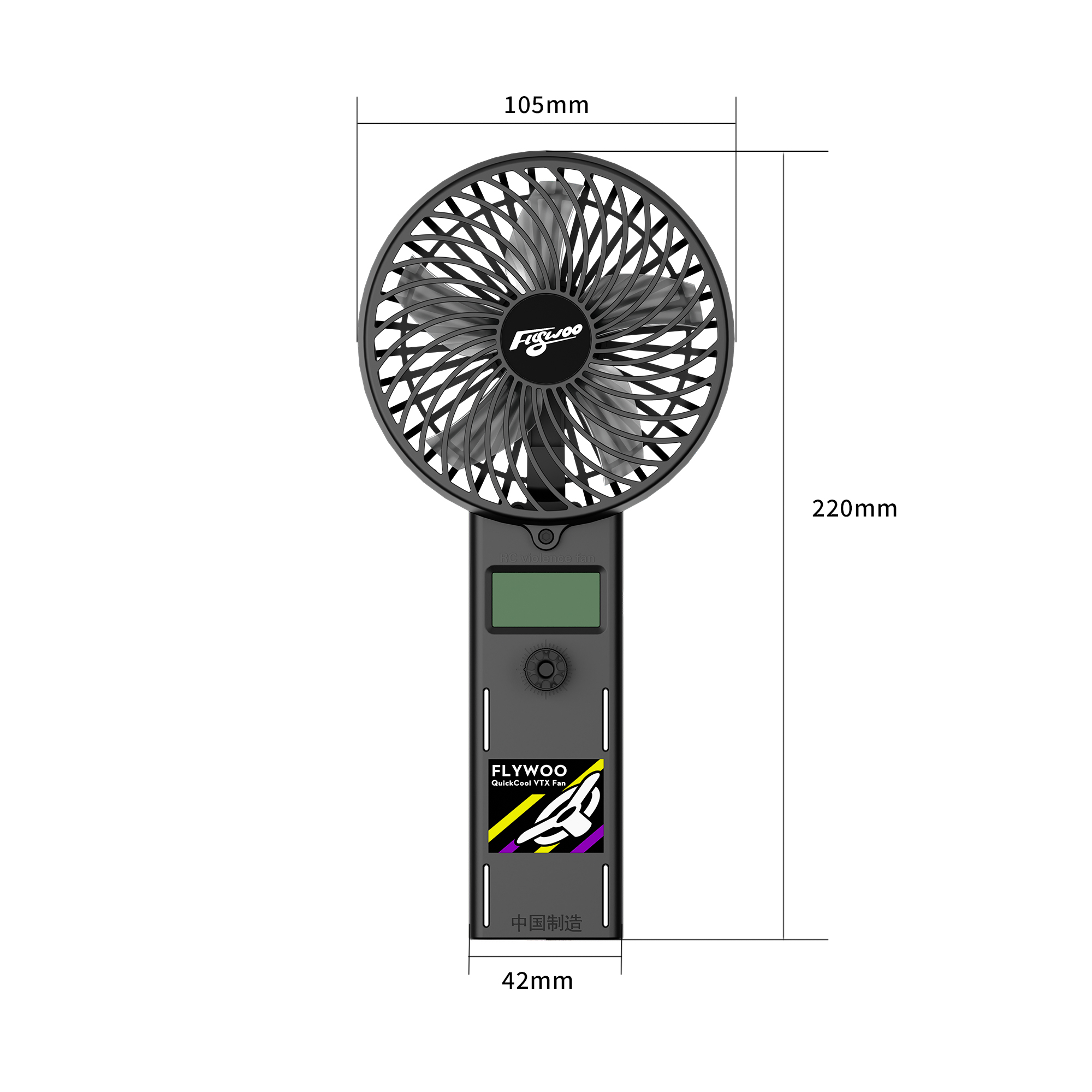

- Dimensions: 105 x 42 x 220mm
- Motor: 2207-1750KV
- ESC: 25A
- Propellers: 3.5-inch
- Input Voltage: 2-6S (Li-ion \ LiHv \ Lipo)

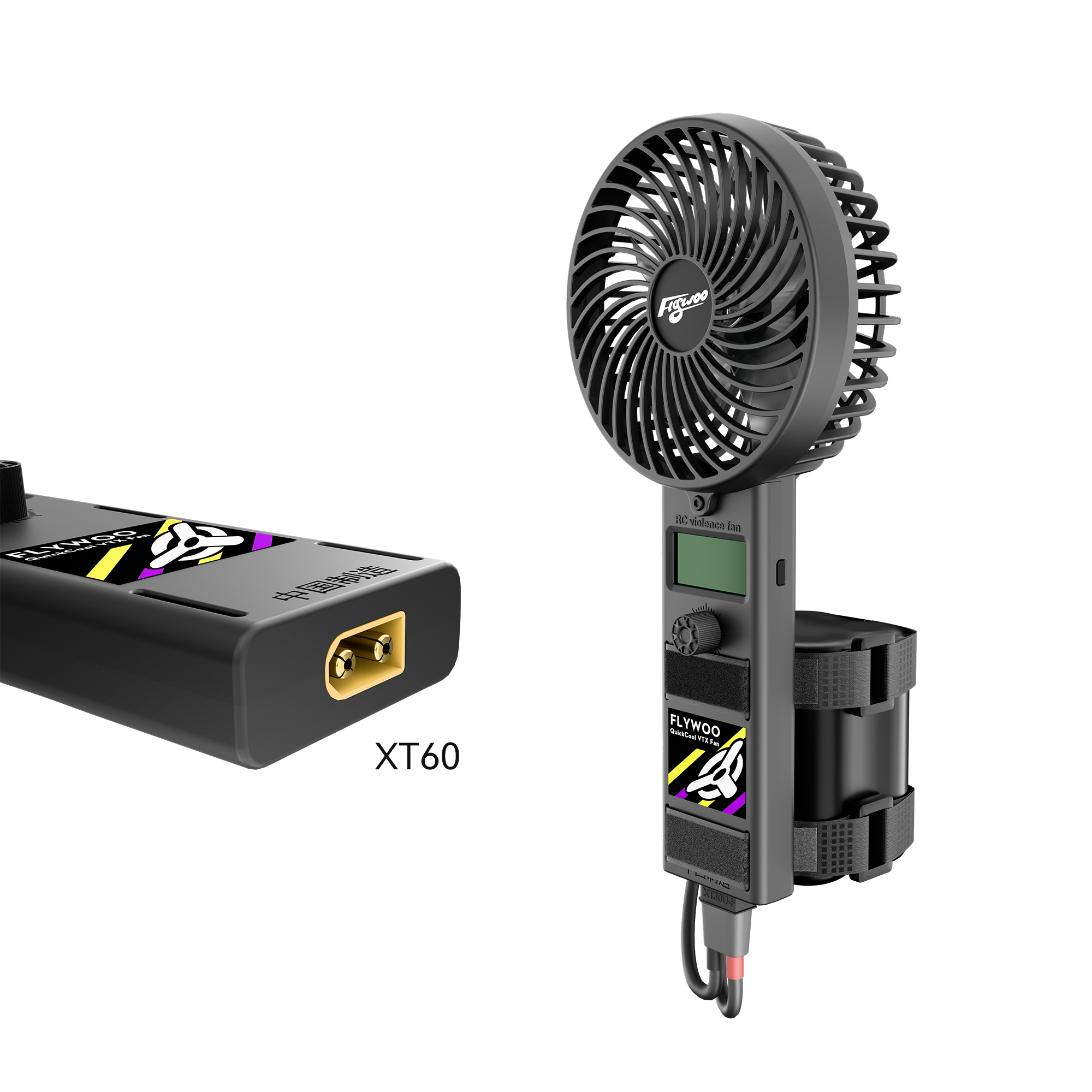

- Power Connector: XT60

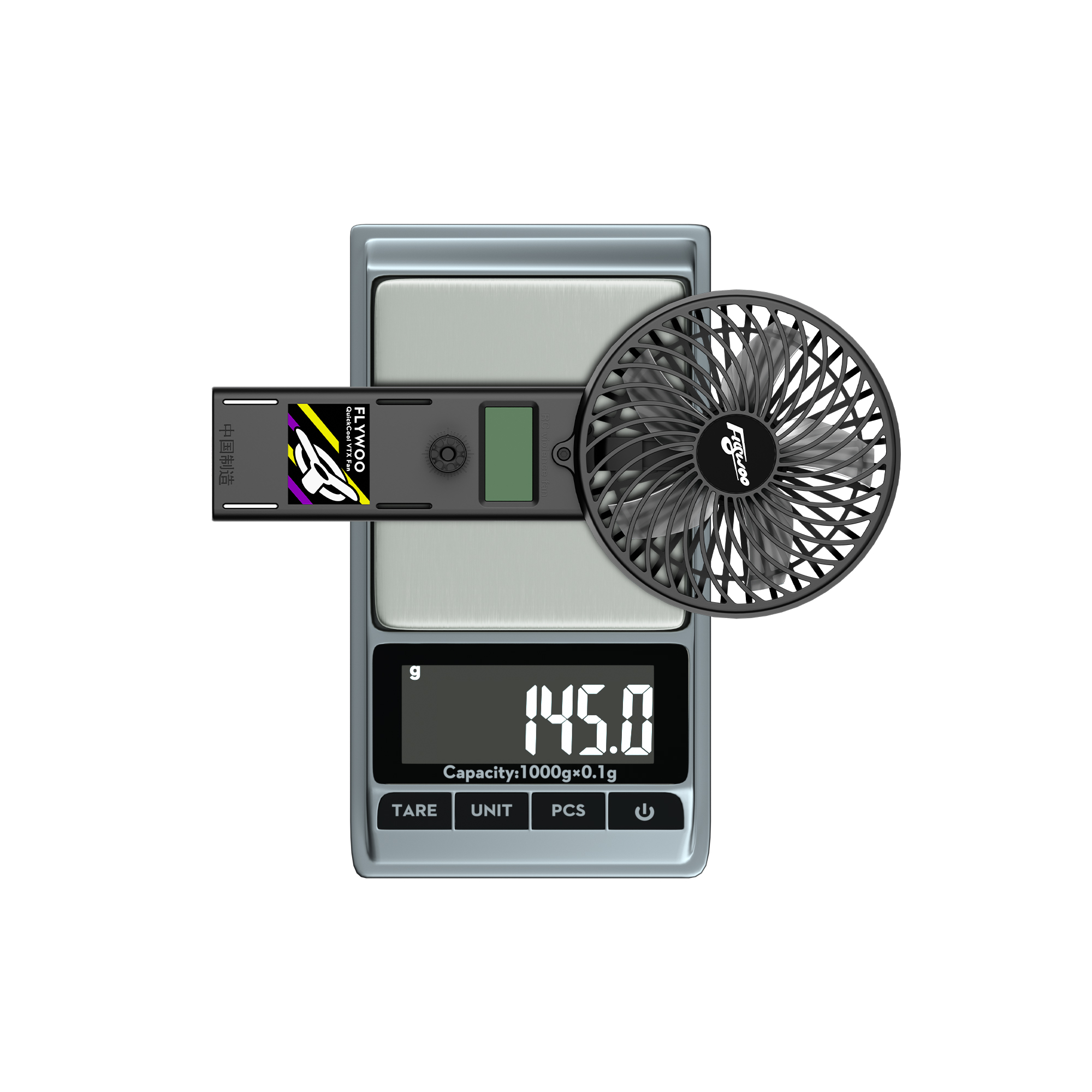

- Weight: 145g
⚠️Power supply ：
-
Powered by 2-3S, maximum throttle output of 100%.
-
Powered by 4S, maximum throttle output of 55%.
-
Powered by 5-6S, maximum throttle output of 30%.
-
Factory default setting LIPO AUTO（it is alarm that the voltage value reaching 3.4V of the single cells）, users canSet as alarm voltage (based on the actual number of battery cells,Setting alarm voltage).
In the box :
1* Flywoo QuickCool VTX Portable Fan
1* product manual
