Main Changelog V2.2
- Using the latest GOKU GN405 Nano FC
Explorer LR quad is the masterpiece of the collaboration between Flywoo and #micro long range original creator Dave_C . #Micro long range is a brand new field, and we will explore more fun in this field with Dave_C in the future.
Features
- Built-in Bluetooth module, You can use mobile devices to set the parameters of the flight
- The lightweight 4-inch quad below 250g even if you connect with the battery, meet the current requested of FAA rules. Easy to control and long flight time, we strongly recommend to FPV beginners and pilots who like to cruise!
- Built-in Smo 4k camera power cable
- Upgrade GPS to V2.0, use copper foil to effectively prevent the signal from being interfered by Vista
Specifications :

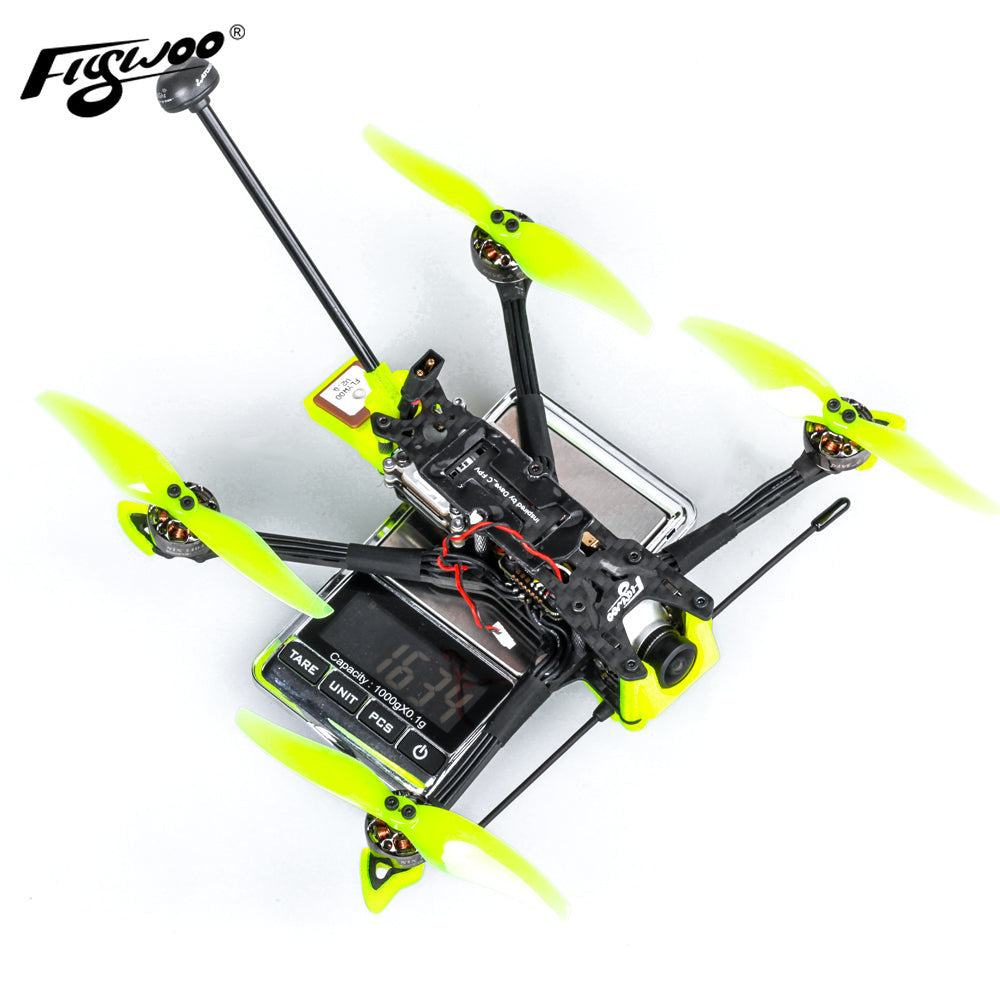

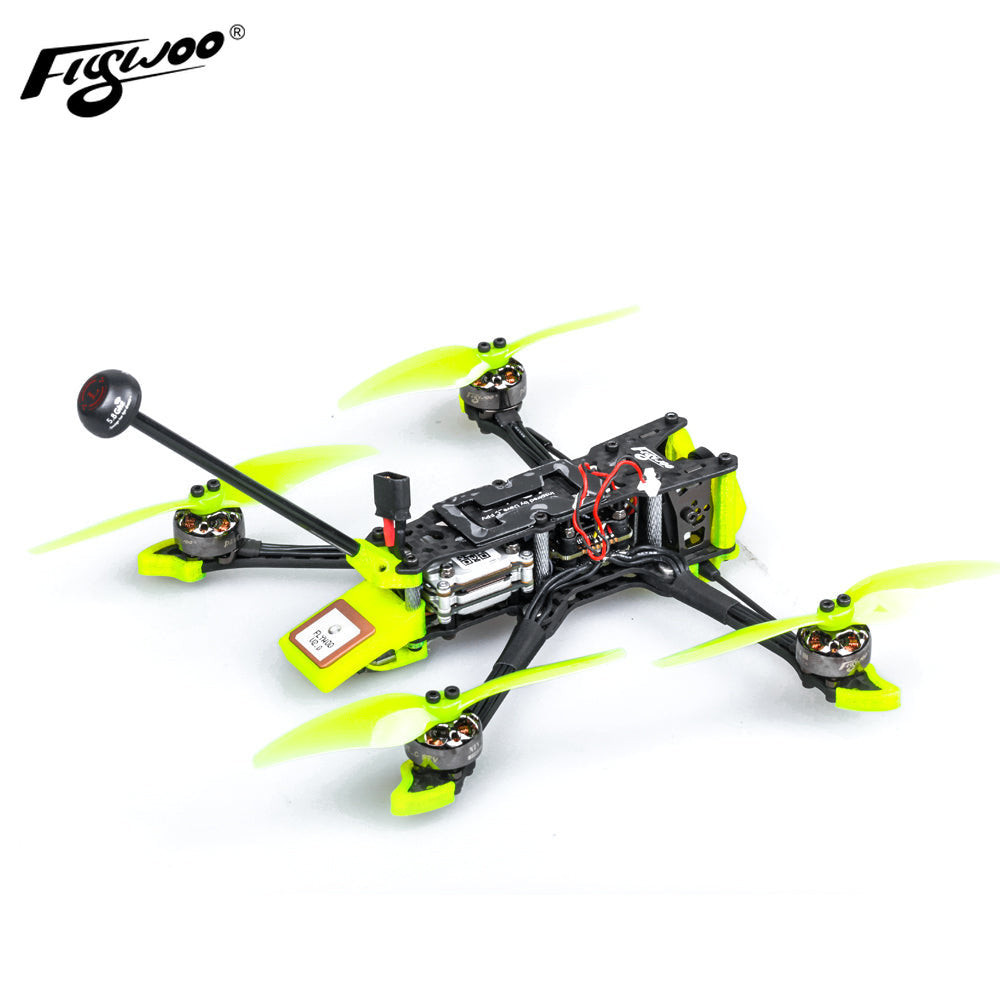

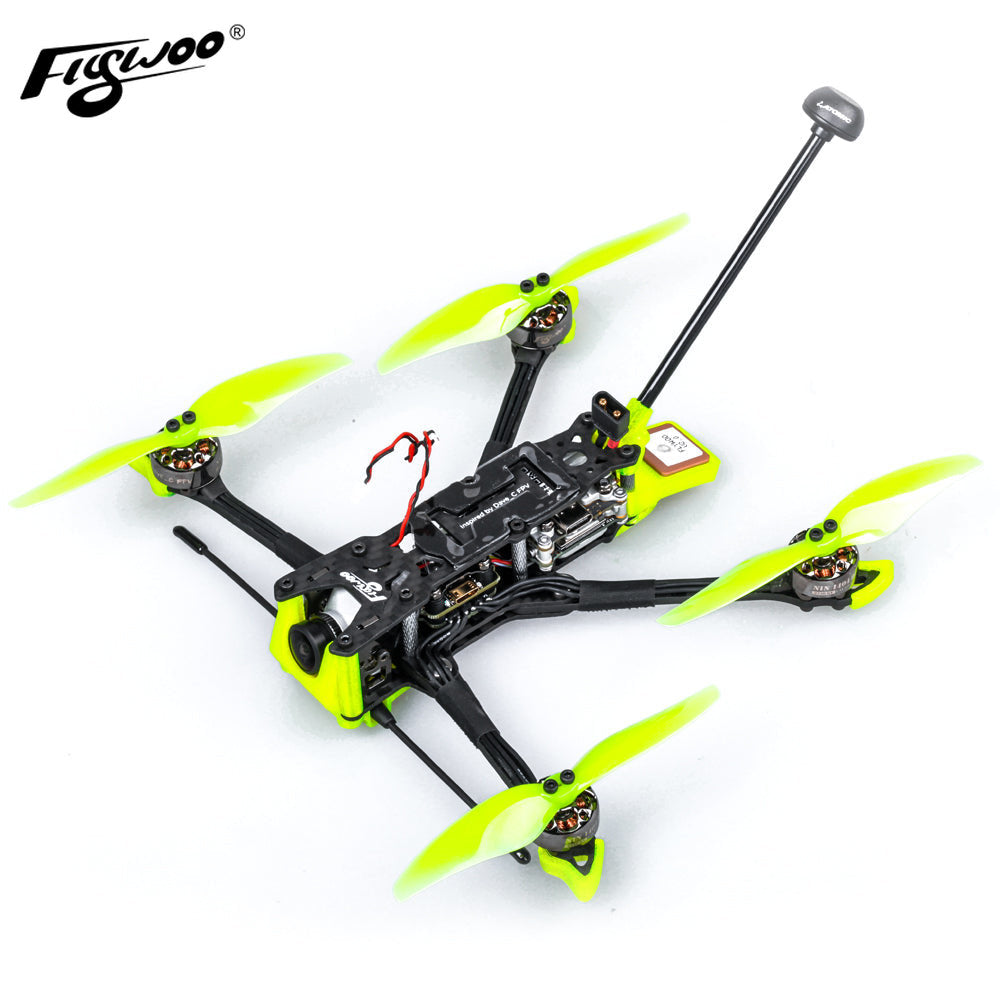

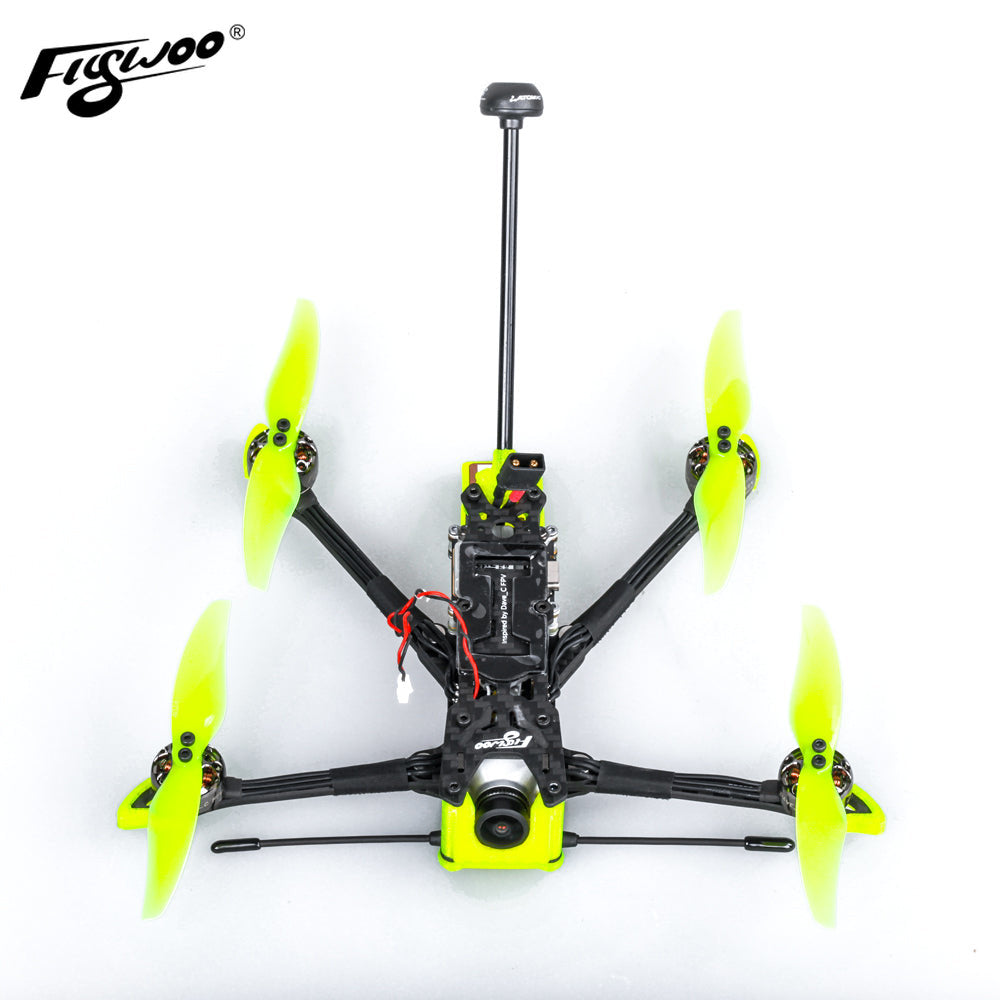

- Item: Explorer LR 4 HD quad
- Weight: 162.8g (without battery)
- Wheelbase: 168mm
- FC & ESC : GOKU GN405 Nano 13A STACK ( 16*16 )
- Frame: EXPLORER LR 4'' FRAME KIT V2 HD VERSION
- Motors: NIN 1404 V2 2750KV ULTRALIGHT FPV MOTOR
- Props: Gemfan 4024 2-blade
- DJI Digital Vista : RunCam Link Wasp Digital HD FPV Camera System (flywoo.net)
- Antenna: Atomic 5.8GHz Antenna Length 130mm ( UFL LHCP)
- Battery: 4S 650 95C XT30 \ 4S 750 95C XT30 \ 4S 850 95C XT30 \ 1050 4S XT30 (Tattu customized for Explorer LR) \ 4S 1300 120C XT30 \ Explorer 18650 3000mah
Super non-slip upgrade
High Quality sticky battery pad for your LiPo Batteries. This durable battery pads made from PU material can stick to a battery at 90° on its side and even rotate 180° without falling!
GOKU GN405 Nano
This is a Flywoo another smallest but most spowerfu l GOKU 405 Nano flight controller packed with features including a barometer, 16MB blackbox, 6 complete hardware serial ports, I2C functionality and WS2812 LEDs on each corner.
Includes :
- 1* Prebuilt and tested Explorer LR Drone
- 1* Side carbon plate 1 set
- 1* Spare srew
- 2*Gemfan 4024 4pcs
