PRODUCT DESCRIPTION
High definition, low latency, long-distance transmission, and long-distance transmission. Battery in the box supports 110 minutes of flight when fully charged.
Tips: Avoid exposing the inside of the goggles to direct sunlight.
Features:
*High definition
*low latency
*strong immersion
*long-distance transmission
*strong anti-interference
Specifications:

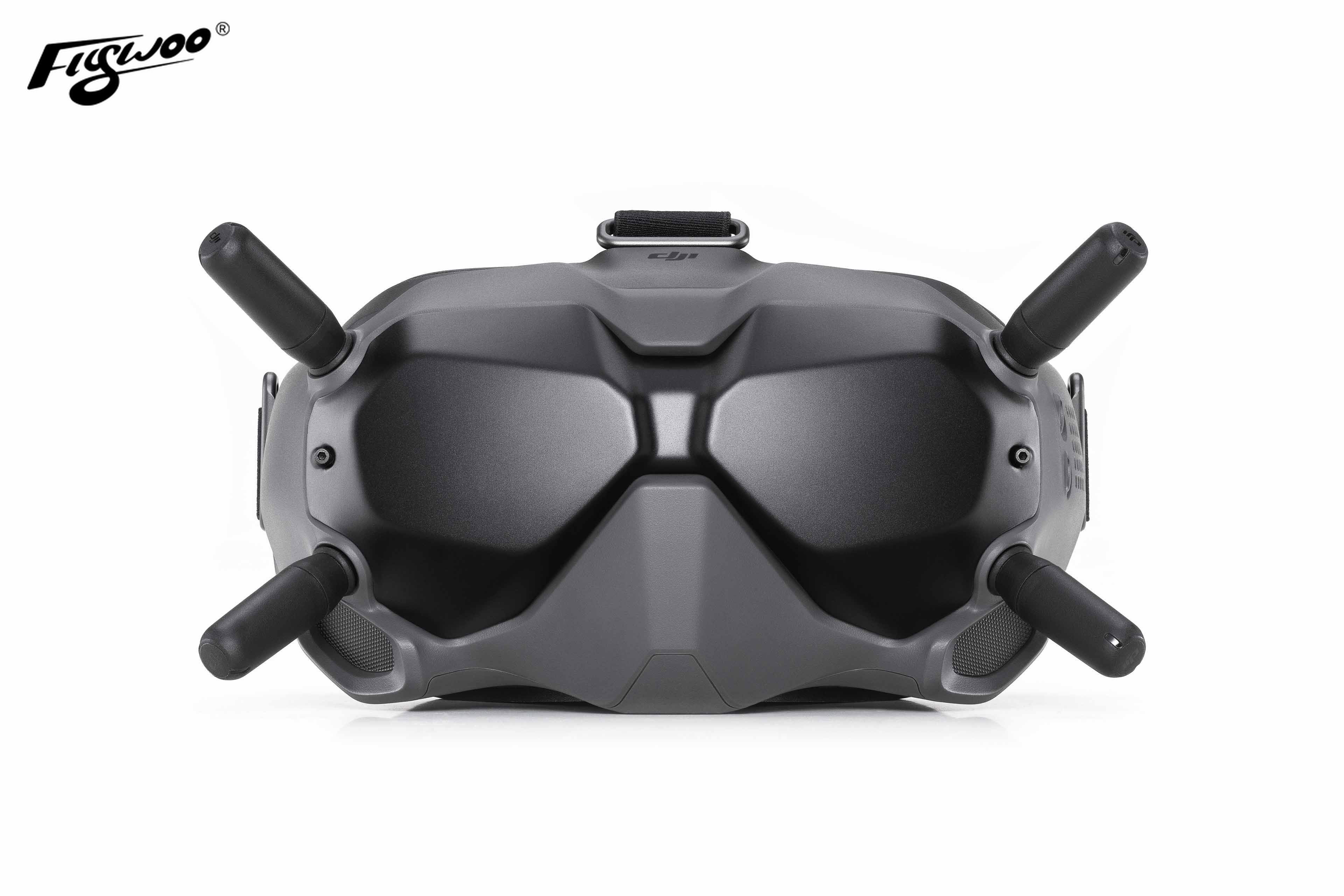

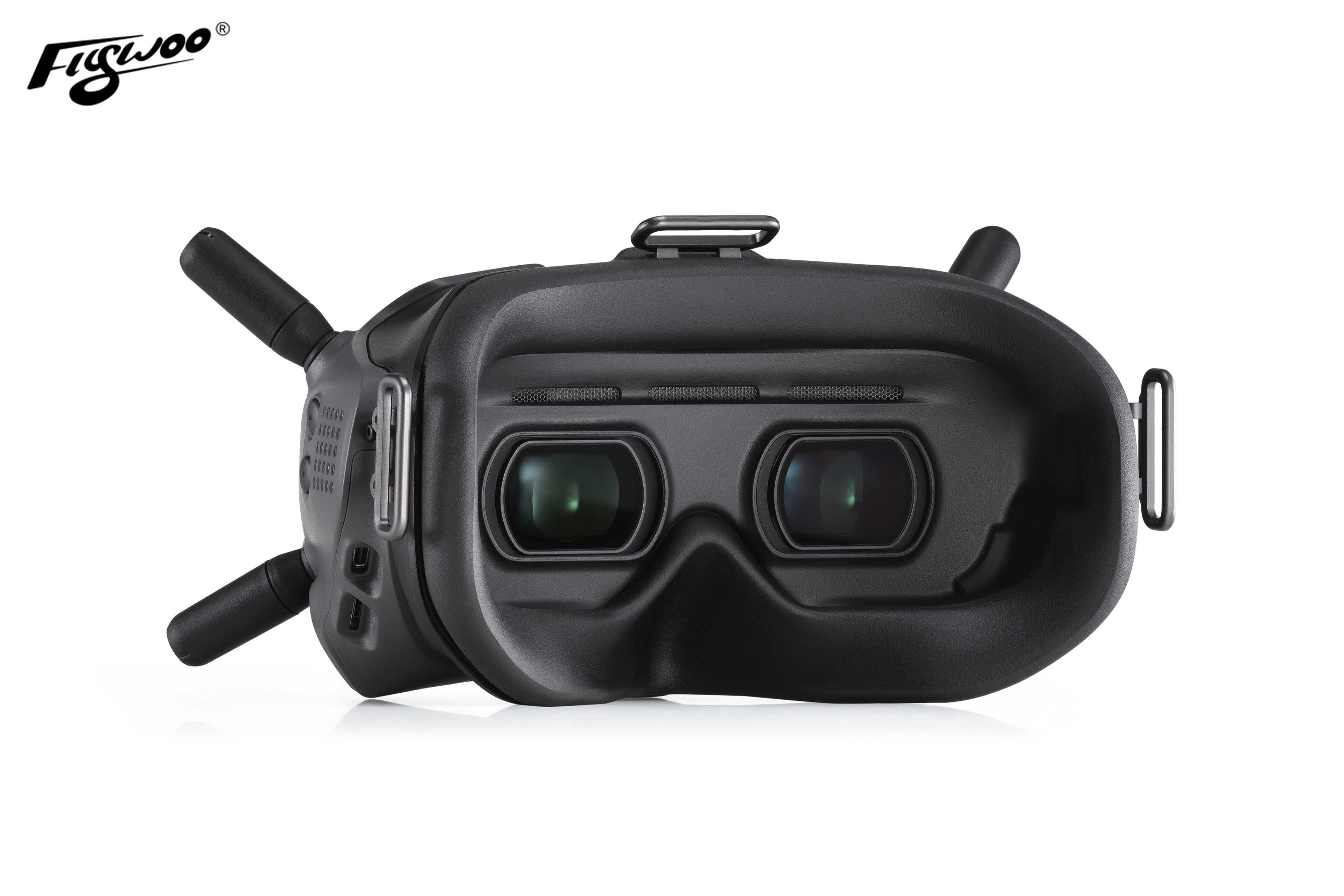

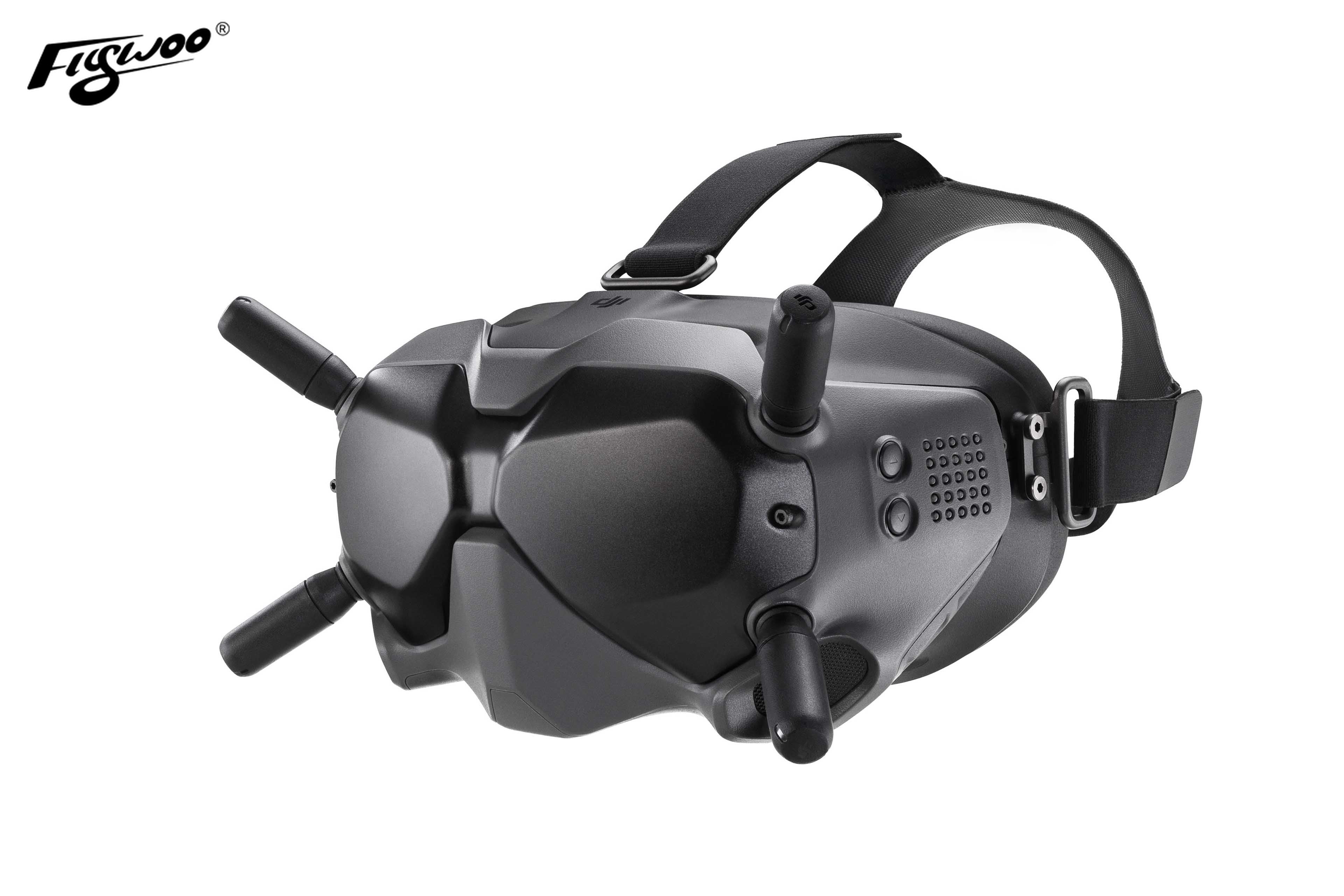

DJI FPV Goggles V2
Weight: Approx. 420 g (headband and antennas included)
Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen): 1440 × 810
Screen Renew Rate: 144 Hz
Communication Frequency: 2.400 - 2.4835 GHz*; 5.725-5.850 GHz
*Only supports 5.8Ghz when used with DJI FPV Air Unit
Transmitter Power (EIRP): 2.400 - 2.4835 GHz
FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm
5.725-5.850 GHz
FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillar Distance Range: 58 -70 mm
Supported Storage Card: microSD cards with storage capacities of up to 256GB.
DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V (Max.)
Type: LiPo 2S
Charging Temperature: 0℃ to 45℃
Energy: 18 Wh
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
*Only supports 5.8Ghz when used with DJI FPV Air Unit
Compatibility
DJI FPV Air Unit
DJI FPV Remote Controller
Package Includes:
DJI FPV Goggles V2 (inc. foam padding) × 1
DJI FPV Goggles Battery × 1
DJI FPV Goggles Power Cable (USB-C) × 1
DJI FPV Goggles Antenna (Dual Band) × 4
Headband × 1
USB-C cable × 1
Sleeve × 1
Note: These goggles require the DJI FPV Air Unit in order to work. However, using the DJI FPV Remote Controller is optional. The DJI Remote Controller is useful if you want to use their built-in Tx system.
