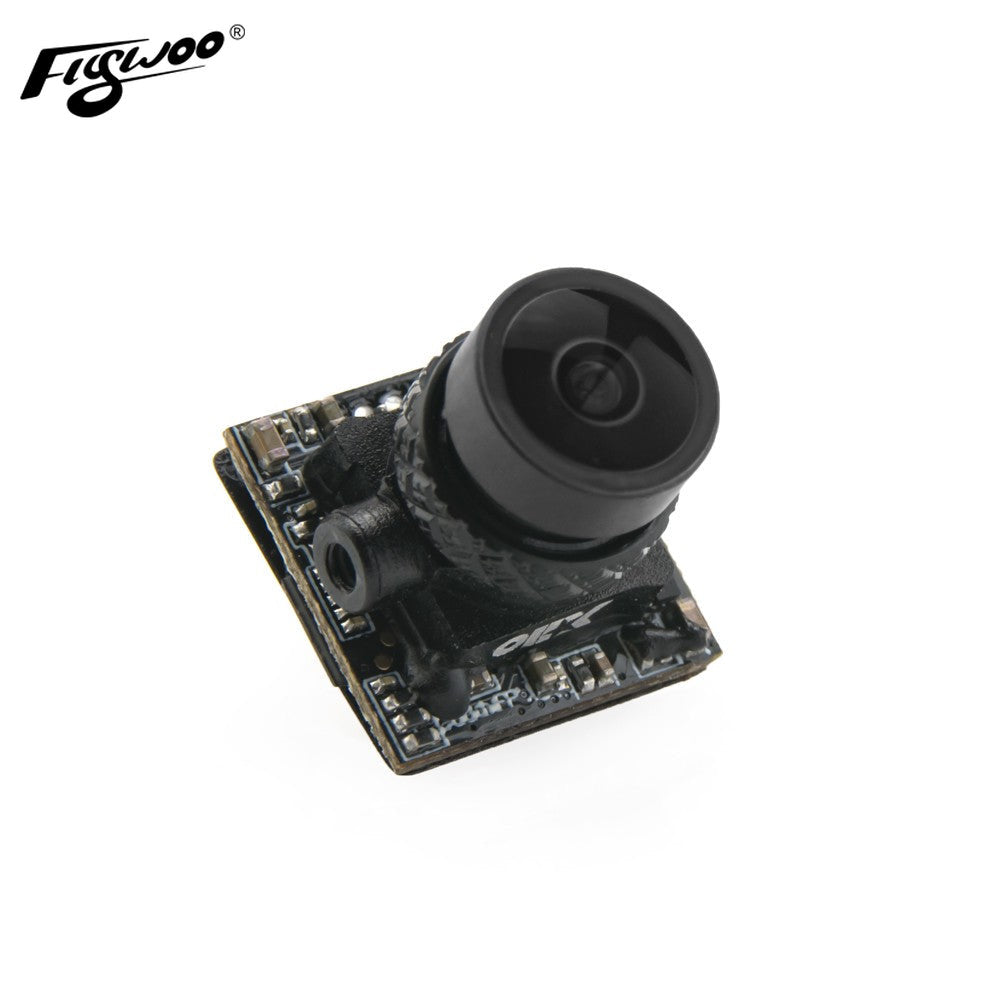

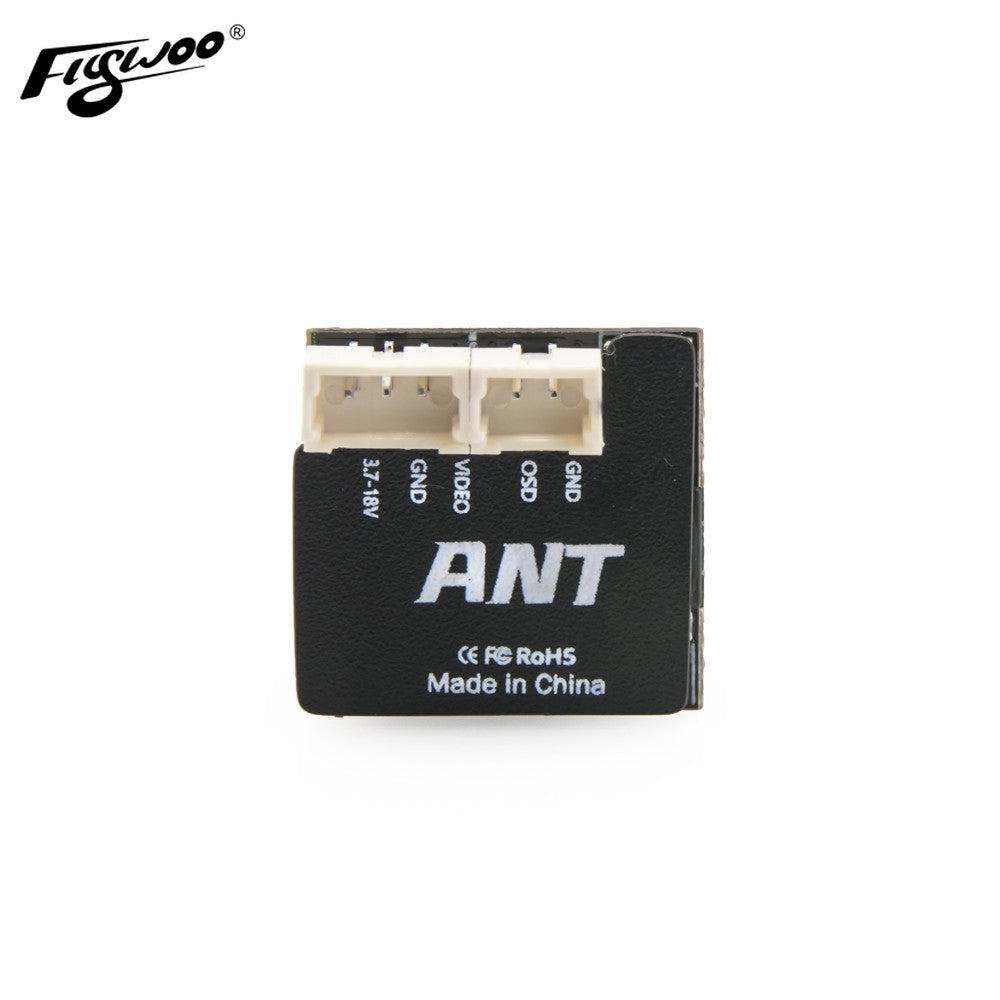

Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14)

In stock
  • Description
  • Reviews
  • Description
  • The Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14) is a new generation of nano cameras. This 14x14mm ultralight budget-friendly camera only weighs 2g and supports OSD Menu, 3.7-18.V, Global WDR, NTSC or PAL, CVBS video output, and many other cool features! A special feature about this camera is that it includes 3D DNR, which gives you a full clarity image, so no need to worry your image looking grainy or noisy when flying. You can mount the Nano into a 19mm bracket (included) to fit bigger builds!

    Available in 4:3 or 16:9 camera ratio


    • Model: Caddx Ant - 1200TVL 1.8mm FPV Nano Camera (14x14)
    • Image Sensor: 1/3" CMOS Sensor
    • Horizontal Resolution: 1200TVL
    • TV System: NTSC & PAL (Changeable)
    • Menu: Support
    • Image: 16:9 or 4:3
    • WDR: Global WDR
    • Min. Illumination: 0.001Lux@F1.2
    • Lens: 1.8mm
    • Color: Black
    • Synchronization: Internal
    • Auto Gain Comtrol: Yes
    • BLC: Yes
    • Electronic Shutter: PAL: 1/50~100, 000; NTSC: 1?60~1000, 000
    • S/N Radio: >52dB (AGC OFF)
    • Video Output: CVBS
    • DNR: 3D DNR
    • Dimensions: 14*14mm(with bracket to 19*19mm)
    • Wide Power Input: DC 3.7-18V
    • Work Temperature: -20C~+60C
    • Work Humidity: 20%~80%
    • Weight: 2g (N.W.)
