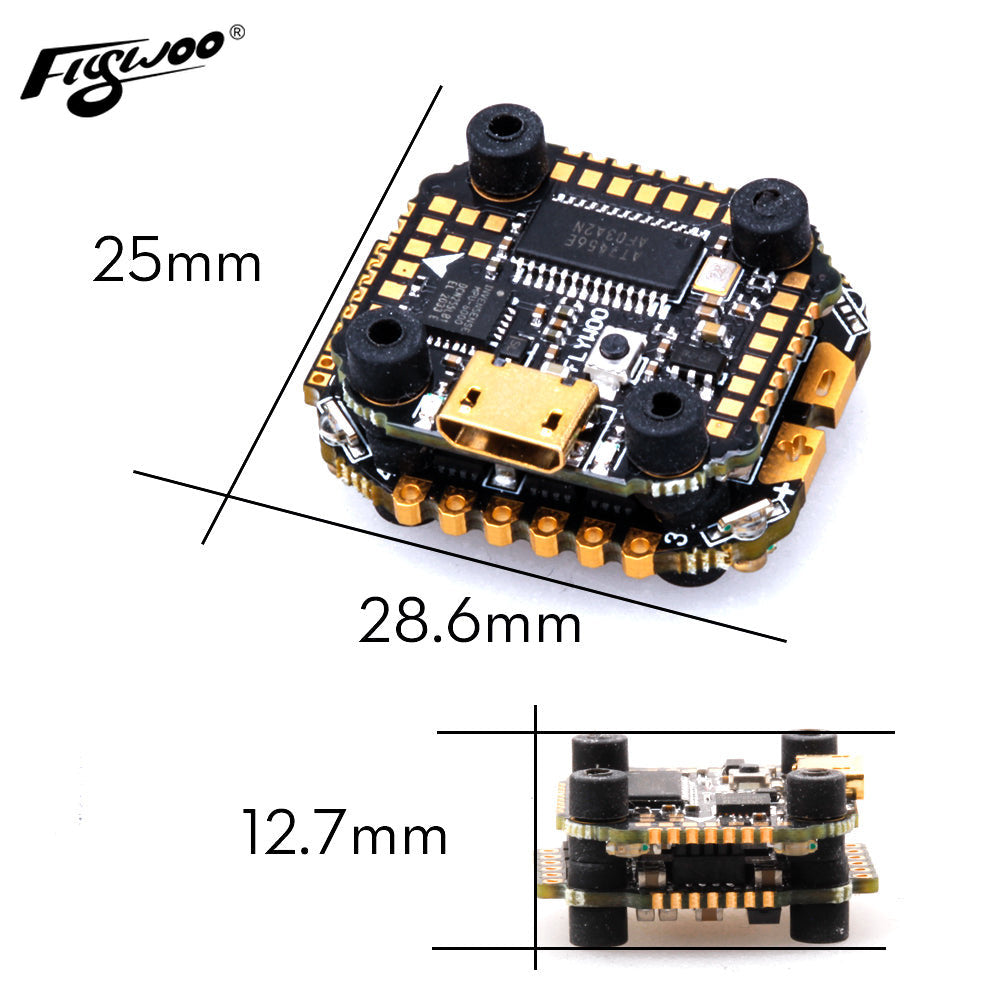

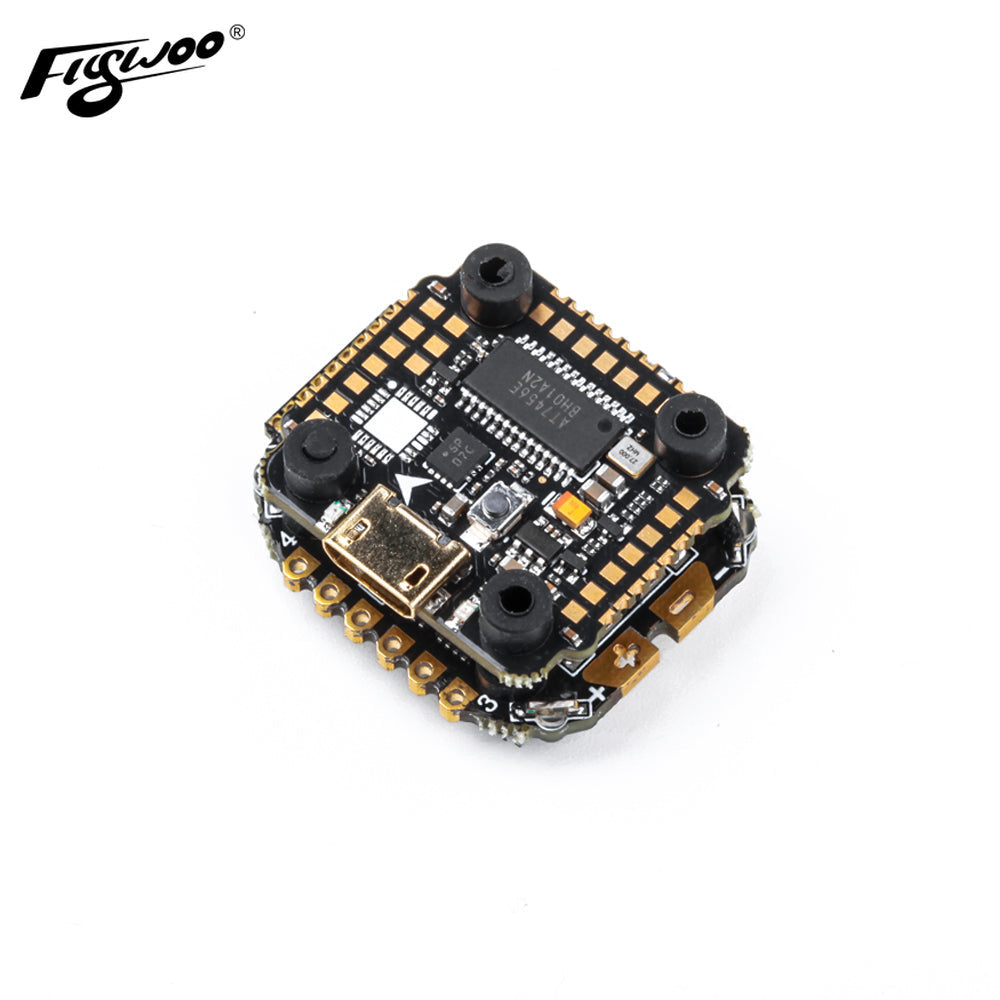

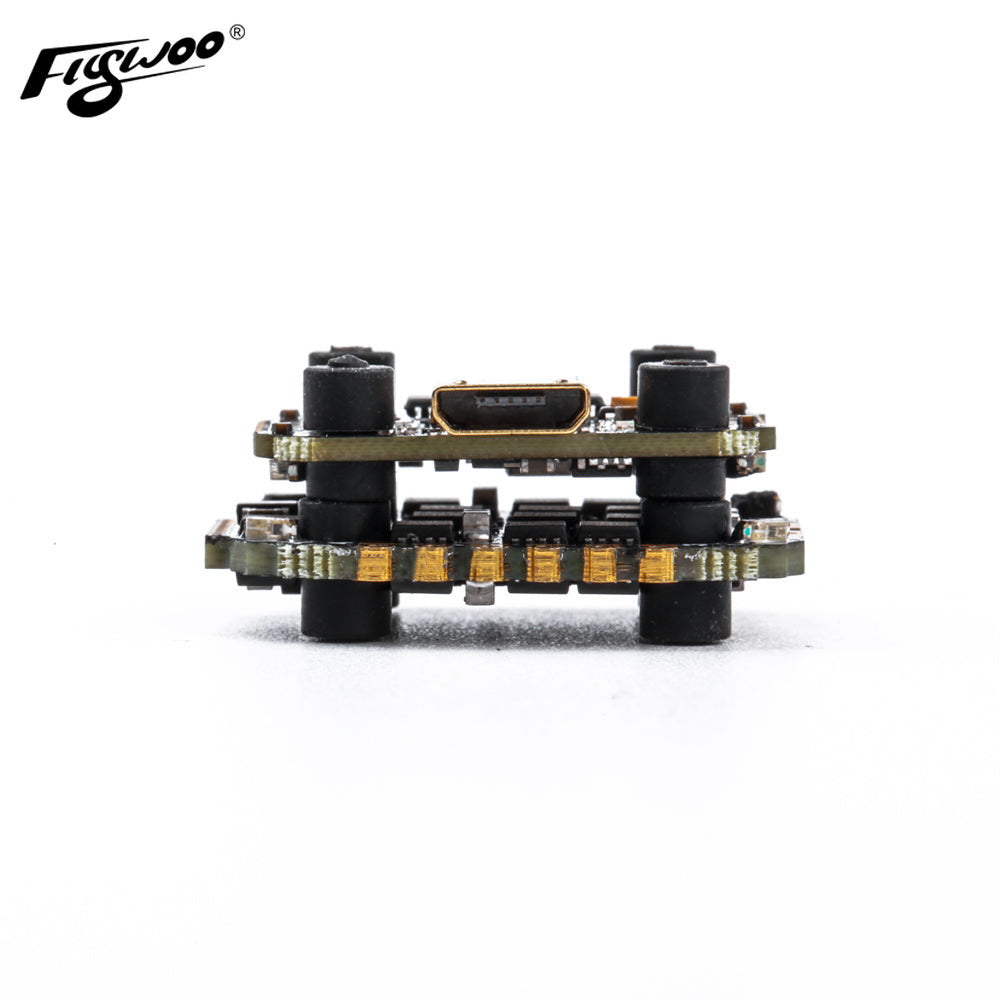

This is a Flywoo another smallest but most spowerfu l GOKU 405 Nano flight controller packed with features including a barometer, 16MB blackbox, 6 complete hardware serial ports, I2C functionality and WS2812 LEDs on each corner.
It is specifically designed to be pin mounted to the Goku BS13A / 35A 4in1 16x16 ESCs but can also be soldered via pads. The programmable WS2812 LED on each corner provide low profile lighting for this tiny FC
Features
- F405 BGA MCU
- Barometer
- 5V 2A BEC
- Black Box 16MB
- 6 UARTS
- WS2812LED
Specifications
GOKU GN405 Nano16X16 FC
- MCU: STM32F405 BGA
- IMU: ICM42688 \ MPU6000
- Barometer: SPL06
- input voltage ： 2-6S
- Onboard LED：WS2812*4
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
- PPM and PWM receivers are not supported.
- Onbord 16Mbytes for Blackbox logging
- 5V Power Out: 2.0A max
- 3.3V Power Out: 0.5A max
- Dimensions: 22x22mm
- Mounting Holes: Standard 16/16mm square to center of holes
- Weight: 2.3g
- Firrmware : FLYWOOF405NANO
BS35A BLheli_S 2-6S 4in1
- Weight: 2.5g
- Mounting Hole: 16x16mm (M3)
- input voltage ： 2-6S
- - Support Oneshot, Multishot, DShot150/300/600
Wiring diagram
