0.4g Flywoo 2.4G ExpressLRS ELRS EL24E / EL24P

Save 10%

Receiver: 【No.A048】ELRS EL24P 2.4G w/T Ant
Price:
$14.39 $15.99
Stock:
In stock
  • Description
  • Reviews
  • Description
  • ELRS receiver user manual

    In order to prevent the receiver from not working due to the interruption of the BF/WIFI update, it is recommended to purchase a CP2102 programmer module to update the receiver firmware.

    The Flywoo 2.4GHz Elrs Nano Series Receiver is an Open Source Program Based on Expresslrs, the Lightweight, the Lightweight, Minimal Size, Use ESP8285 MCU. So You Can Upgrade Firmware by WiFi, That's Too Simple, divided into two Version EL24E / EL24P.

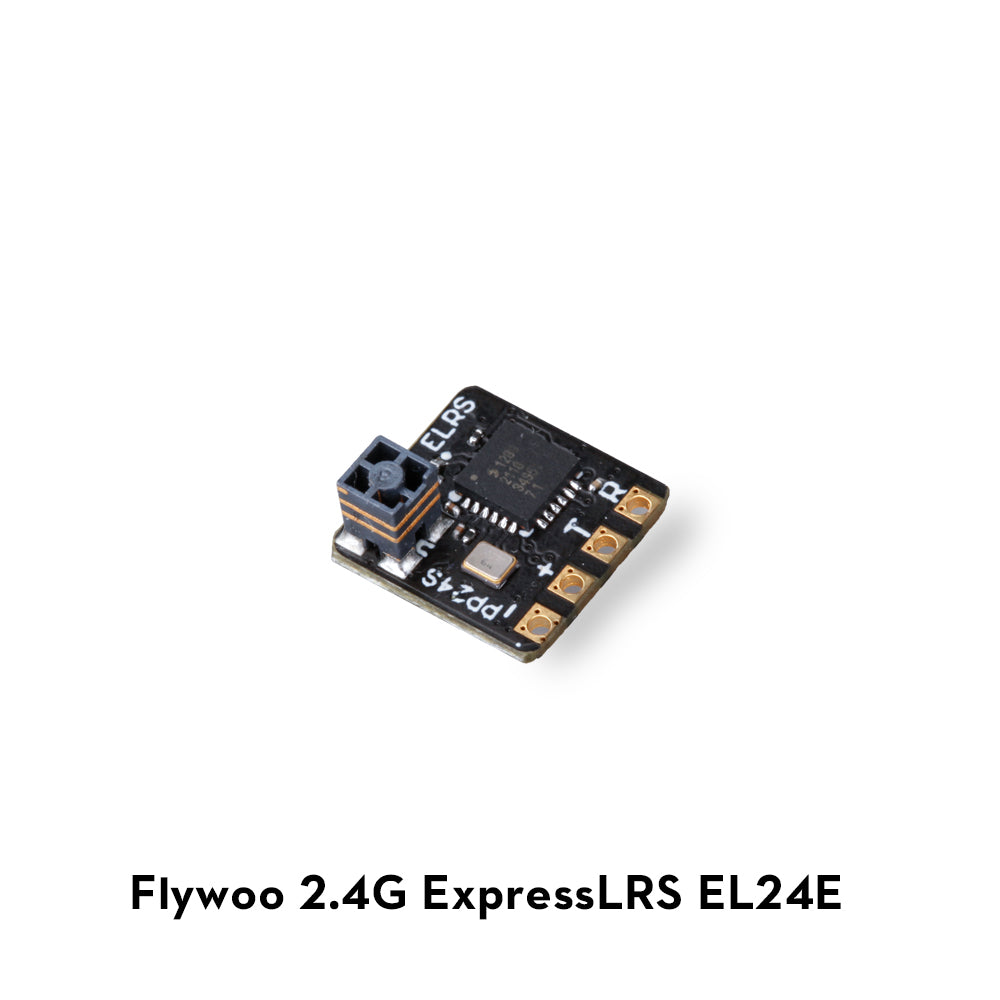

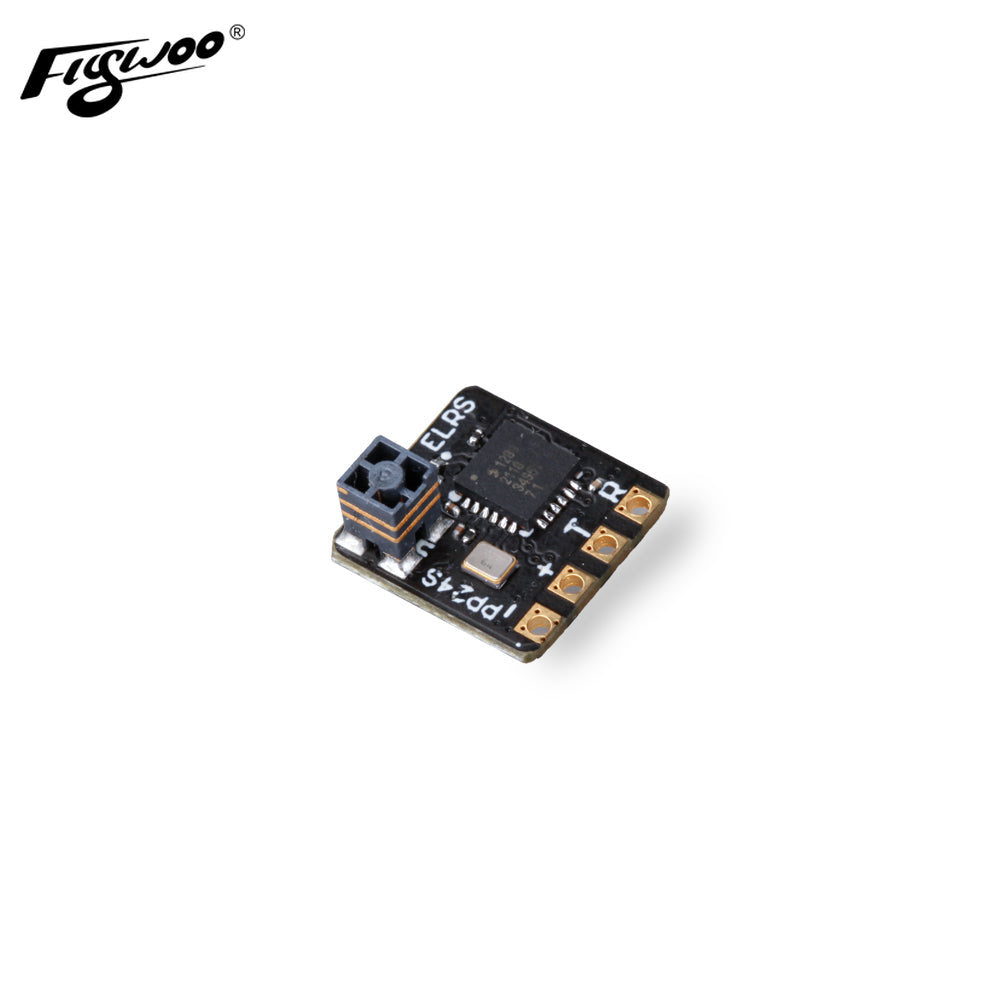

    1. EL24E: ESP8285 MCU, SX1280 RF CHIP, it has a Built-in Ceramic Antenna, Which Is Super Light and Small in Size.

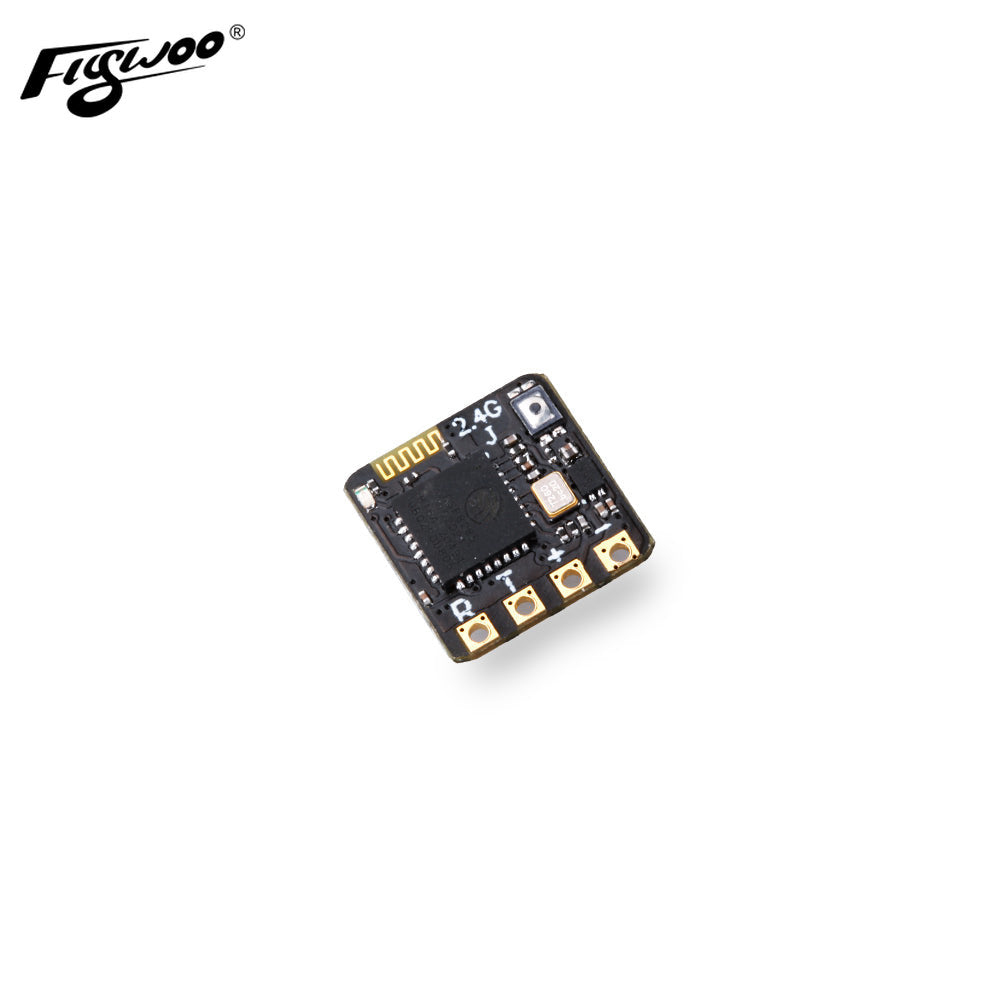

    2. EL24P: ESP8285 MCU, SX1280 RF CHIP, use IPX ports, connect external T-type antennas, farther distance, stronger signal

     Due to the low-latency and high-refresh-rate rf module, They is the Ultra Light and nano size of the Ultra Light and Nano Size.

    Specifications:
    EL24E Nano Receiver

    • Type: ISM
    • ESP8285 MCU
    • SX1280IMLTRT RF Module
    • SMD Ceramic antenna
    • Frequency Range: 2400 MHz to 2500 MHz
    • Maximum receive refresh rate: 500Hz
    • Minimum receiver refresh rate: 25Hz
    • Working voltage: 5v

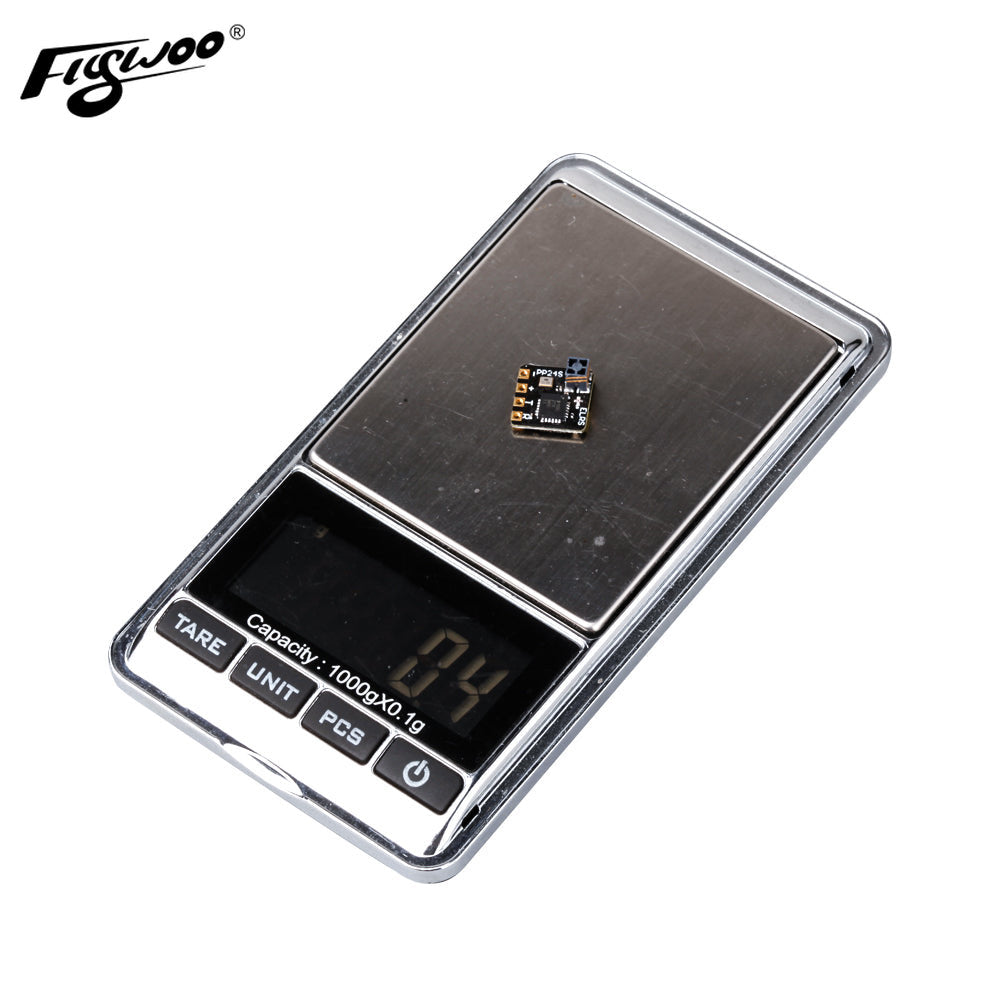

    • Weight: 0.4g
    • Dimension: 10.8mm*11mm*6mm
    • Peak gain: 3.7dB

    EL24P Nano Receiver

    • Type: ISM
    • ESP8285 MCU
    • SX1280IMLTRT RF Module
    • Frequency Range: 2400 MHz to 2500 MHz
    • Maximum receive refresh rate: 500Hz
    • Minimum receiver refresh rate: 25Hz
    • Working voltage: 5v
    • Weight: 0.4g
    • Dimension: 10.8mm*11mm*6mm
    • Peak gain: 3.2dB

    Package include 1pcs 40mm half-wave dipole antenna

    Notes:

    currently our EL24E/EL24P pre-loaded firmware are Official versions, you can upgrade the official firmware when Official perfect target available.

    More details

    https://github.com/ExpressLRS/ExpressLRS

    Bind procedure:

    - Supply power to the EL24E/EL24P rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode

    - Insert the 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.

    - Receiver LED status meanings:

    EL24E/EL24P RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

  • Reviews
  • Customer Reviews

    Based on 8 reviews
    100%
    (8)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    M
    Matthias Kempe
    Alles bestens

    Sehr guter Elrs Empfänger, Support von Flywoo ist auch top.

    D
    Daniel Novet
    CP2102

    Pins need to be connected the same way you would connect the receiver to the FC: RX to TX and TX to RX.
    Also, the receiver might need to be put into bootloader-mode (pushing the button on the receiver while plugging the module into the USB-slot).

    Had to use this to recover a "soft-bricked" EL24P which I tried to flash to latest firmware (2.5.1). While the LED was constantly on in a dimmed state and flashed bright every second, I could not re-flash the receiver in any state: I had to remove two capacitors as per instruction by email from flywoo. After removal of the caps I left the pads non-connected and the receivers needed to be in bootloader-mode in order for the firmware-upgrade to take place.
    Worked fine, an uneventful flash as we came to be used to with ELRS.

    Though I despise the idea of having to first connect the receiver to a different module instead of connecting directly to the FC and flash by betaflight-passthrough, this seems to be a little helpful tool I will keep.

    P
    Pascal Daoust
    Elrs

    Very nice good service fast shiping

    P
    Peter Bumps
    Express lrs is the best

    Works great highly recommend 👌

    K
    Kenneth Phang

    0.4g Flywoo 2.4G ExpressLRS ELRS EL24E / EL24P

    Customer Reviews

    Based on 8 reviews
    100%
    (8)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    M
    Matthias Kempe
    Alles bestens

    Sehr guter Elrs Empfänger, Support von Flywoo ist auch top.

    D
    Daniel Novet
    CP2102

    Pins need to be connected the same way you would connect the receiver to the FC: RX to TX and TX to RX.
    Also, the receiver might need to be put into bootloader-mode (pushing the button on the receiver while plugging the module into the USB-slot).

    Had to use this to recover a "soft-bricked" EL24P which I tried to flash to latest firmware (2.5.1). While the LED was constantly on in a dimmed state and flashed bright every second, I could not re-flash the receiver in any state: I had to remove two capacitors as per instruction by email from flywoo. After removal of the caps I left the pads non-connected and the receivers needed to be in bootloader-mode in order for the firmware-upgrade to take place.
    Worked fine, an uneventful flash as we came to be used to with ELRS.

    Though I despise the idea of having to first connect the receiver to a different module instead of connecting directly to the FC and flash by betaflight-passthrough, this seems to be a little helpful tool I will keep.

    P
    Pascal Daoust
    Elrs

    Very nice good service fast shiping

    P
    Peter Bumps
    Express lrs is the best

    Works great highly recommend 👌

    K
    Kenneth Phang

    0.4g Flywoo 2.4G ExpressLRS ELRS EL24E / EL24P
