Walksnail Avatar VRX

Save 18%

Price:
$179.99 $219.99
Stock:
In stock
  • Description
  • Reviews
  • Description
  • About this product

    The Walksnail Avatar VRX transmits 1080P/60fps with industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. Enjoy clear HD video to take your FPV experience to the next level!

    Choose just the VRX or one of the combo kits which include the VTX and camera.



    Features

    • Lightweight Design - 83g
    • Max transmission distance of more than 4km
    • Supports 1080P 60FPS or 720P 100FPS
    • Supports Betaflight Canvas Mode

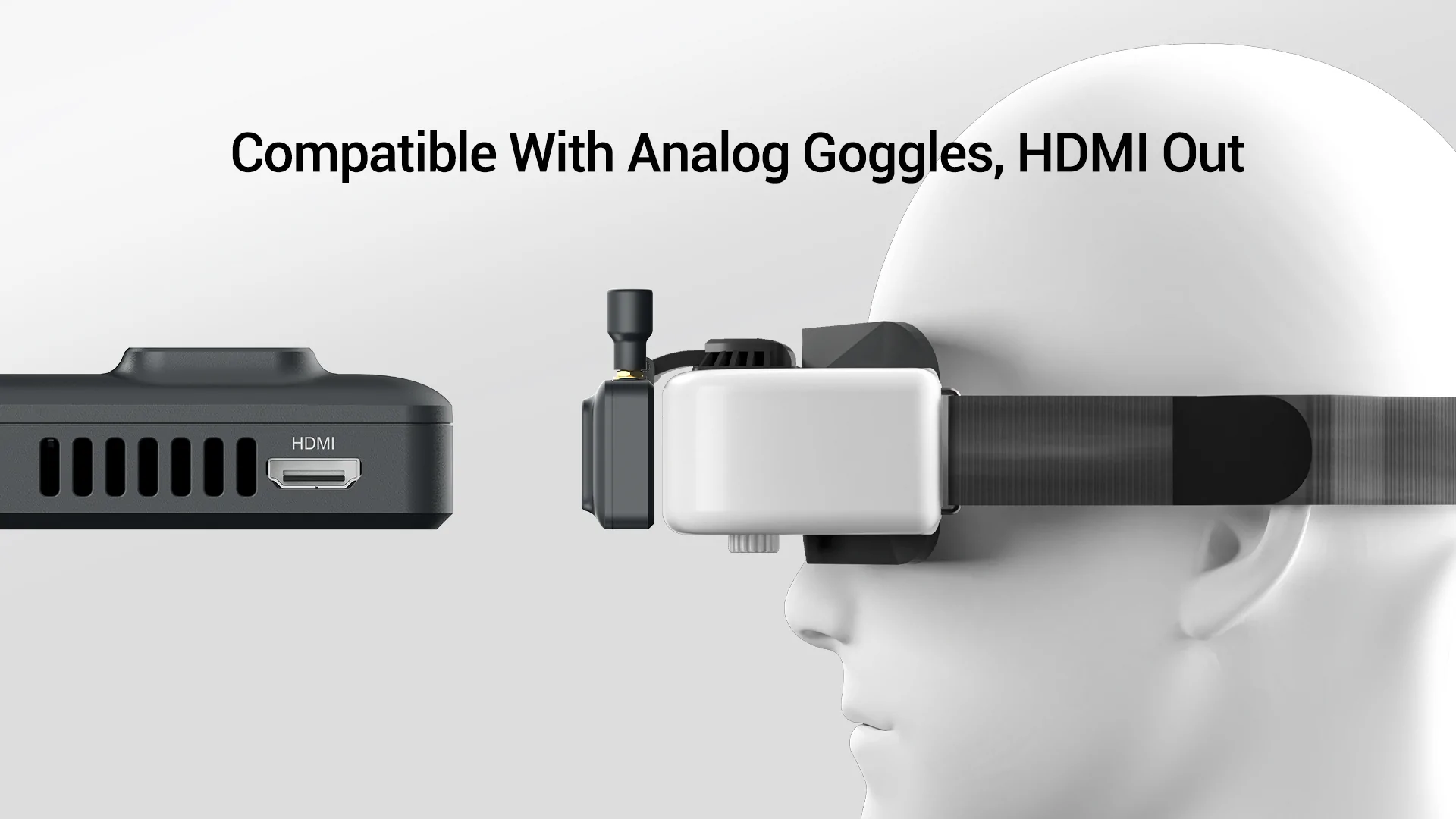

    • Compatible with Analog Goggles
    • HDMI Out

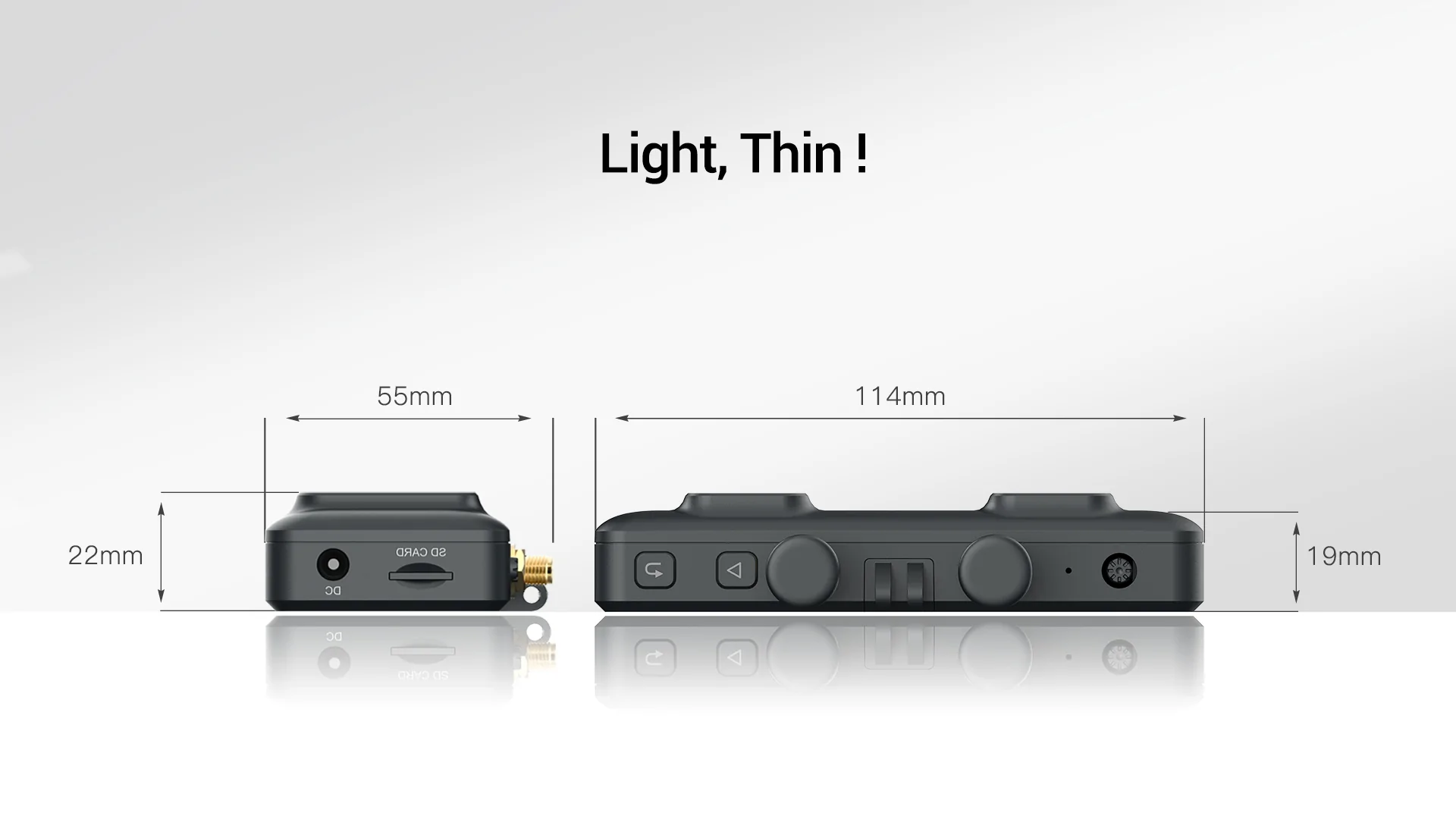

    Lightweight design, ultra-thin experience
    Walksnail VRX is only 83g and comes with 114*55*22mm size, easy to carry.

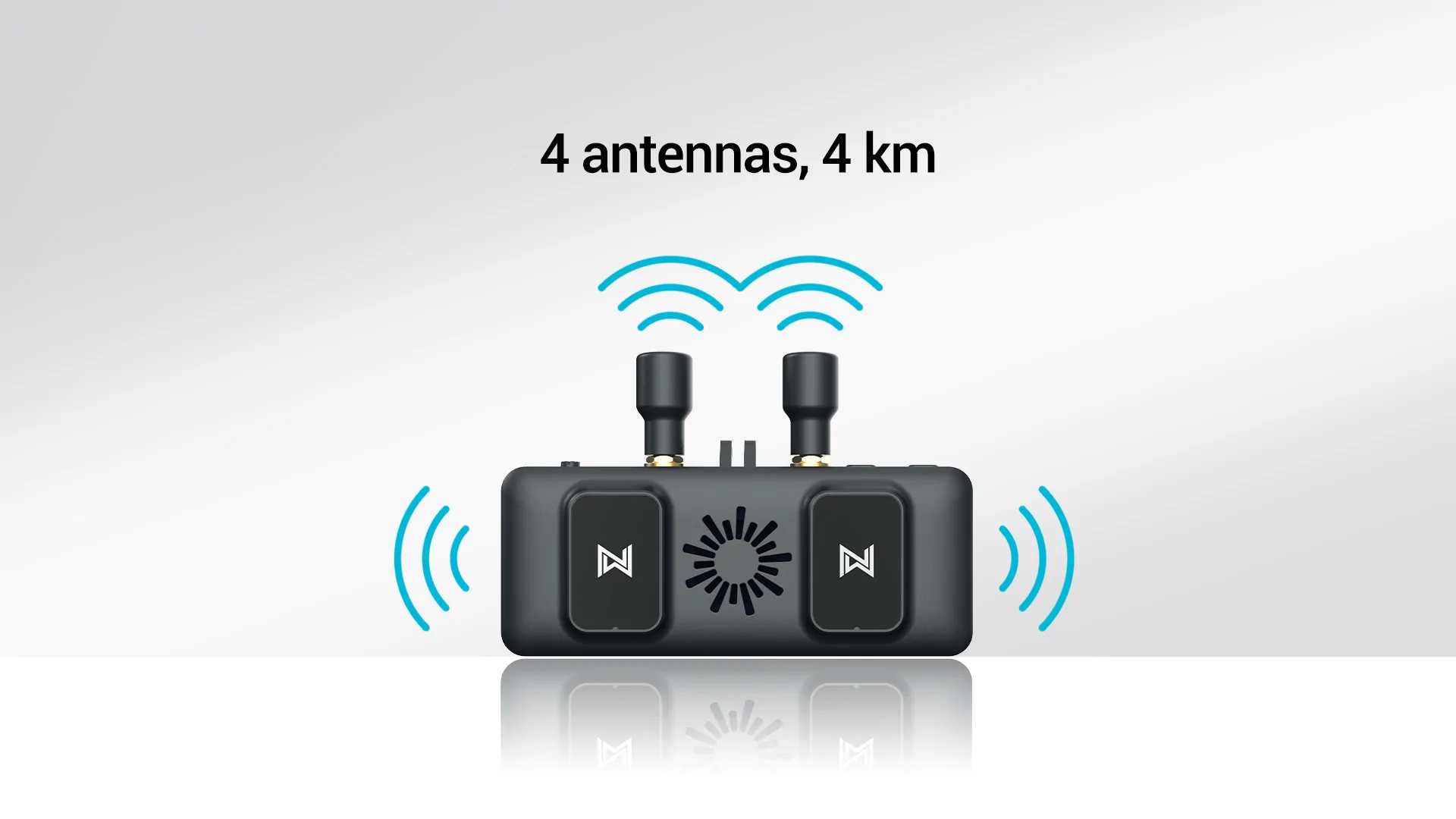

    Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km

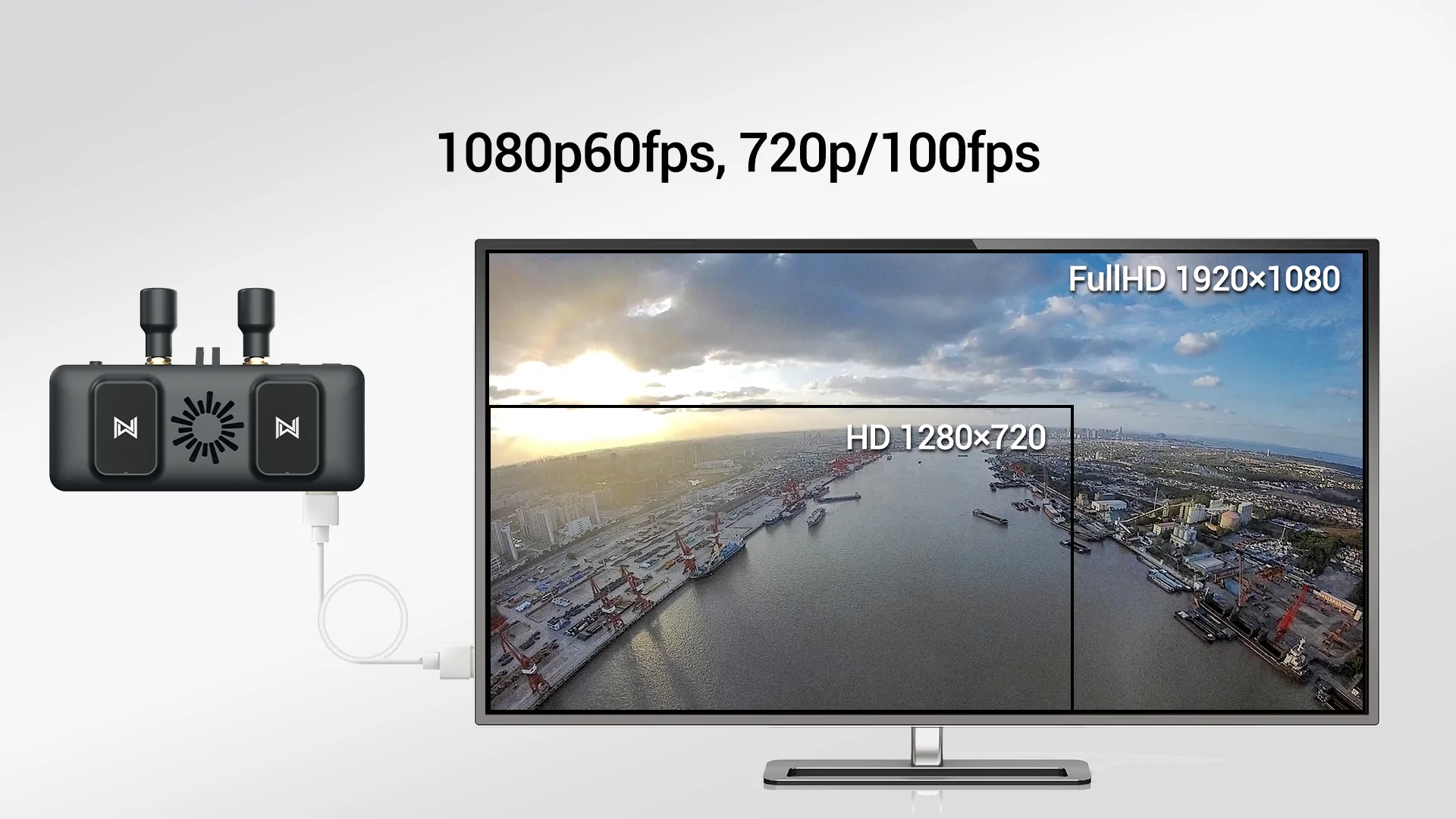

    1080P/60FPS
    Walksnail VRX adopts industry-leading H.265 encoding technology,
    which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
    The HD picture quality takes you to experience the fun of flying a drone.

    HDMI output ensures you enjoy uncompressed audio and video signals from the Walksnail HD system.

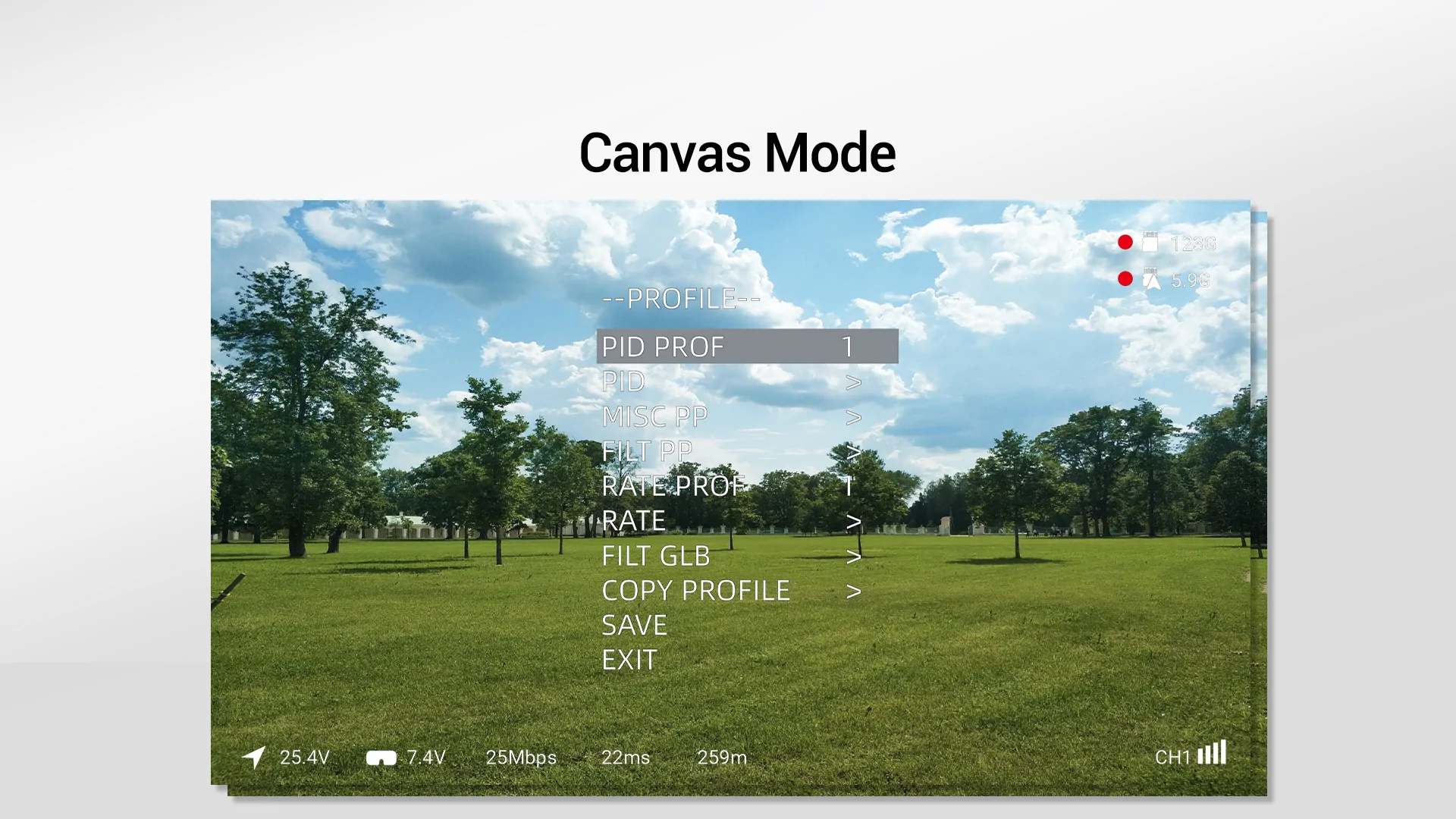

    Canvas Mode
    Supports betaflight full OSD display, supports betaflight, inav, kiss full osd display
    you can easily adjust the parameters you want by remote control.

    Specifications

    AVATAR Camera

    • Image Sensor: 1/2.7”
    • Resolution: 1080P/60fps,720P/120fps,720P/60fps
    • Ratio: 16/9 - 4/3
    • Lens: 2.1mm
    • FOV: 170°
    • Aperture: F2.0
    • Shutter Rolling shutter
    • Min.Illumination: 0.001Lux
    • Weight: 3.5g/6g
    • Dimensions: 14*14*17mm/19*19*22mm
    • Coaxial Cable: 90mm/140mm

    VTX

    • Communication Frequency: 5.725-5.850GHz
    • Transmitter Power: (EIRP) FCC: <30dBm;CE:<14dBm;SRRC:<20dBm; MIC: <25dBm
    • 1/O Interface: JST1.0*6(Power in)JST1.0*4(USB)
    • Mounting Holes: 25.5*25.5mm
    • Dimensions: 33*33*9.5mm
    • Storage: 8G
    • Recording: 1080p/720p
    • Weight: 16g
    • Operating Temperature: -20-40℃
    • Channels: 8
    • Wide Power Input: 6V-25.2V
    • Supported FC System: Betaflight
    • OSD: Canvas mode
    • Latency: Average delay 22ms
    • Antenna: 2(IPEX)

    Googles Antenna

    • Model: Red bird
    • Polarization: LHCP
    • Bandwidth: 5.6GHz-6.0GHZ
    • Average Gain: 1.9dBi
    • Radiation Efficiency: ≥97%
    • VSWR: ≤1.3
    • Cross-Polar Rejection: -15to-30dB
    • Connector: RP-SMA
    • Dimension: H24.8mm*R15.3mm
    • Weight: 4.2g

    Avatar HD VRX

    • Communication Frequency: 5.725-5.850GHz
    • TransmitterPower(EIRP): FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
    • I/O Interface: HDMI,microSD card slot, DC5.5*2.1mm
    • HDMI output: 1080p60fps,720p100fps,720p60fps
    • Power Input: 7-21V(2S-5S)
    • SDCard: Support256G
    • System: AvatarHDsystem

    Additonal Suggested Parts

    HD STUBBY ANTENNAS

    Includes

    Avatar VRX

    • Avatar VRX X1
    • RedBird Antenna X2
    • HDMI Cable X1
    • 2in1DCPowerCable X1

    Avatar HD Micro KIT

    • Avatar HD Micro X1
    • 4 Pin USB Cable X1
    • 6 Pin Power Cable X1
    • M2x3/4/5mm Screws X4
    • M1.2x1.5mm Screws X2

    Avatar HD Nano KIT

    • Avatar HD Nano X1
    • 4 Pin USB Cable X1
    • 6 Pin Power Cable X1
    • M2x3/4/5mm Screws X2
    • M1.2x1.5mm Screws X2
    • 14-19mm Bracket X1

    Avatar Mini 1S KIT

    • Avatar Mini 1S X1
    • 4 Pin USB Cable X1
    • 6 Pin Power Cable X1
    • M2x3/4mm Screws X2
    • M2x16mm Screws X4
    • M2 Screw nut X4
    • 2.1x3.4x1mm Gasket X5
