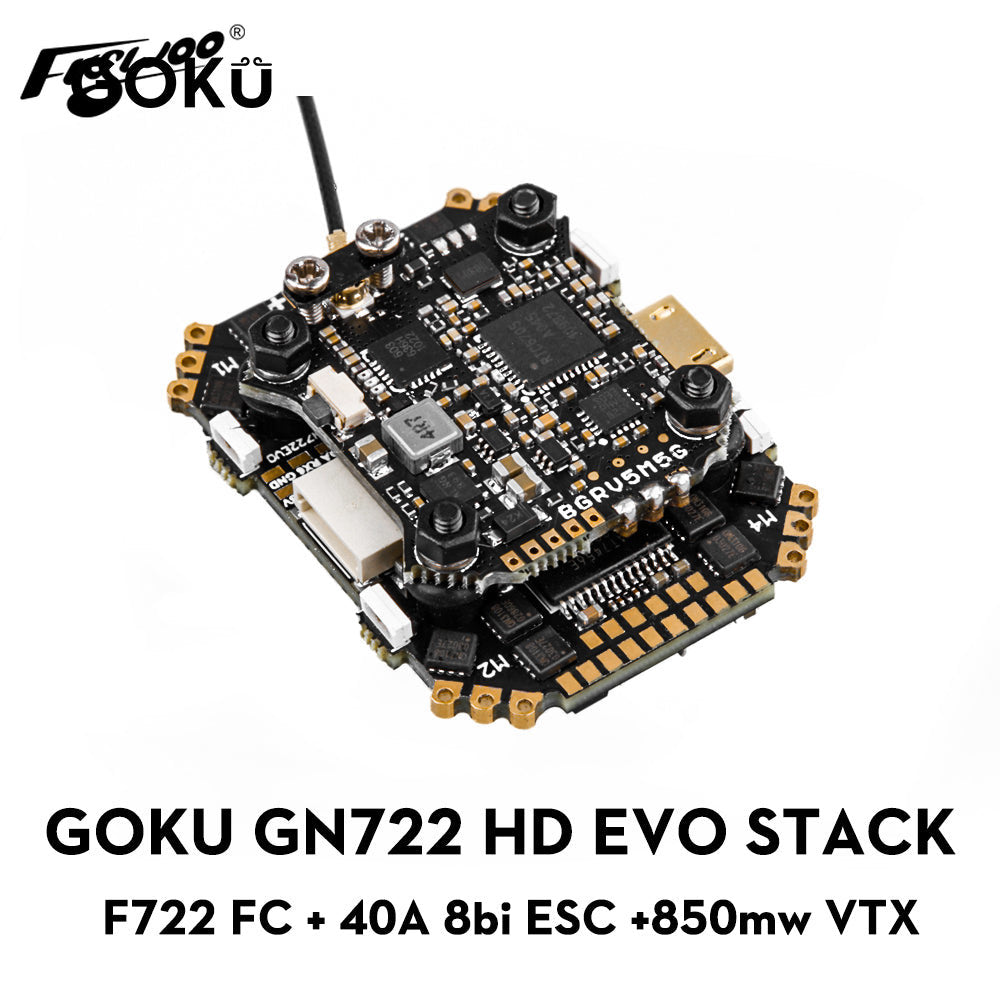

【No.C412】GOKU GN722 HD EVO 40A AIO +HM850 850MW VTX STACK (20x20 ) ( MPU6000 )


Price:
$109.99
Stock:
Sold out
  • Description
  • Reviews
  • Description
  • Use powerful F722 chip and BLHELI_S ESC firmware, integrate 5V/9V dual BEC, barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C and other functions are all open.

    Specifications

    • MCU: STM32F722 32bit processor,216MHz, 512Kbytes Flash
    • IMU: MPU6000 (SPI)
    • Barometer: BMP280
    • Onboard LED:WS2812*4
    • USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
    • 6 hardware UARTS (UART1,2,3,4,5,6)
    • Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
    • PPM and PWM receivers are not supported.
    • Onbord 16Mbytes for Blackbox logging
    • 9V Power Out: 1.5A max
    • 5V Power Out: 2.0A max
    • 3.3V Power Out: 0.5A max
    • Dimensions: 41x32mm
    • Mounting Holes: Standard 20mm square to center of holes
    • Weight: 8.5g

    • Built-in 40A BL_S 4in1 ESC
    • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300,Dshot600
    • Input Voltage: 2-6S Lipo
    • Continuous Current: 40A
    • Firmware: BLHELI_8

    GOKU HM850 5.8Ghz ufl 850mw vtx w/ AGC Microphone

    Specifications

    • Input Voltage: +7-28V Input
    • Channels: 40CH
    • Power: PIT/25/50/100/200/850mw
    • Microphone: Built-in high quality AGC mic
    • Antenna: IPX / UFL
    • Size: 30.5mm×3.5mm×3mm
    • Weight: 3g
    • Control Mode:IRC(RX)/Button
    • Raceband: 5362-5945 MHZ

    Q&A :
    1、 Betaflight Firmware target: FLYWOOF7DUAL
    2、INAV Firmware target: FLYWOOF7DUAL
    3、GOKU GN722 HD EVO 40A AIO  Wiring Diagram  : ( LINK )
    4、GOKU HM850 VTX TABLE,The same as HM600 TABLE : (LINK)
    5、GOKU HM850 VTX  instruction  : ( LINK )
