Product Description

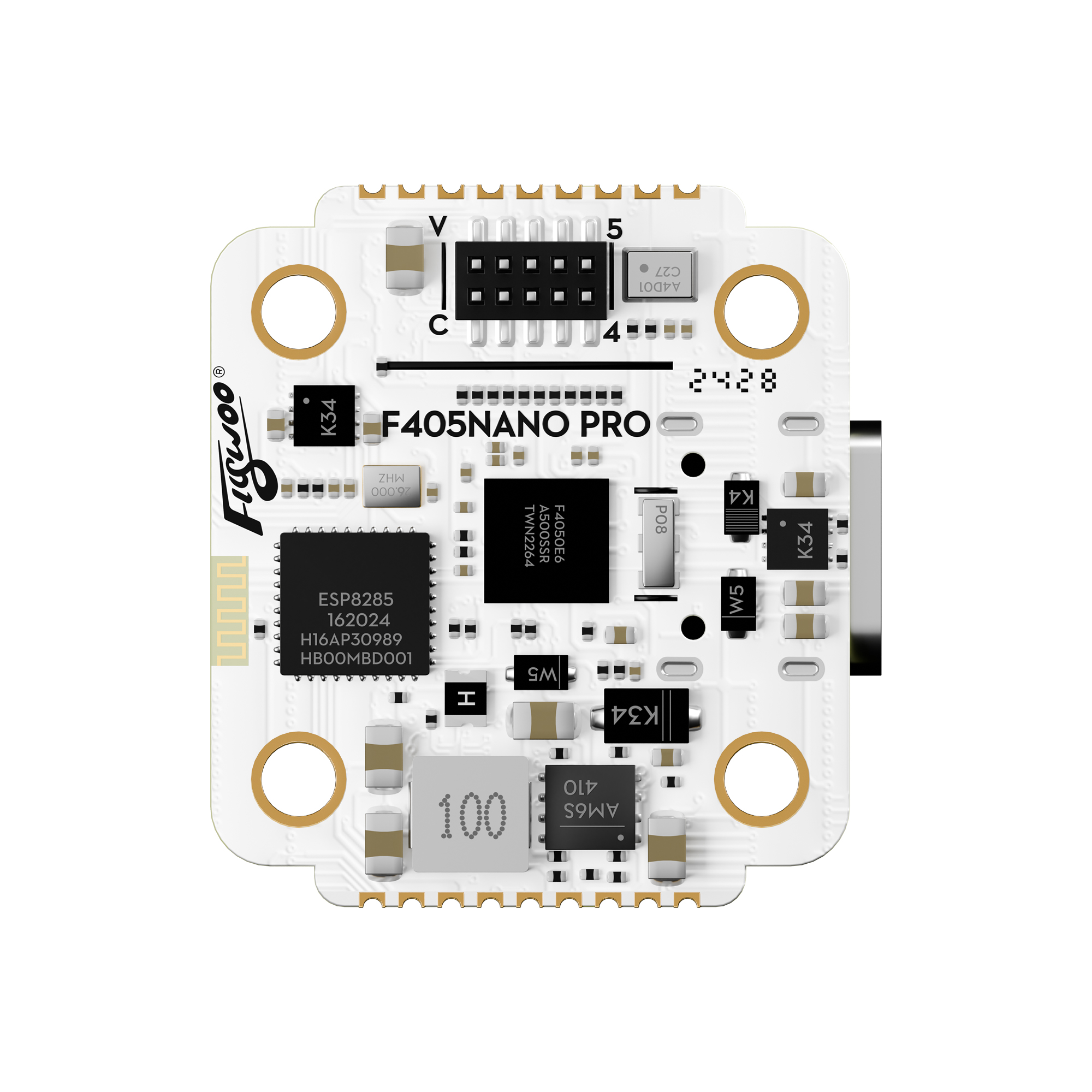

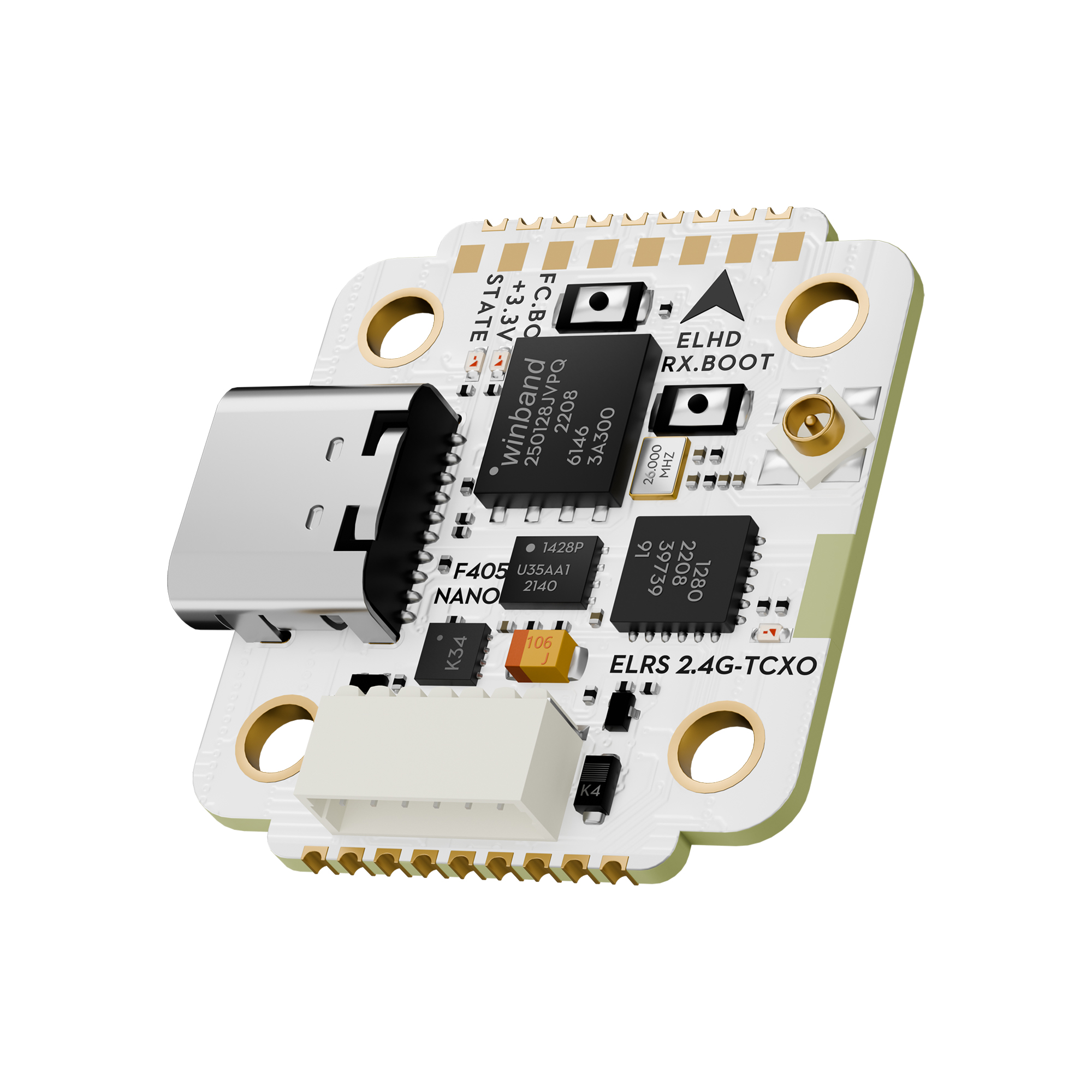

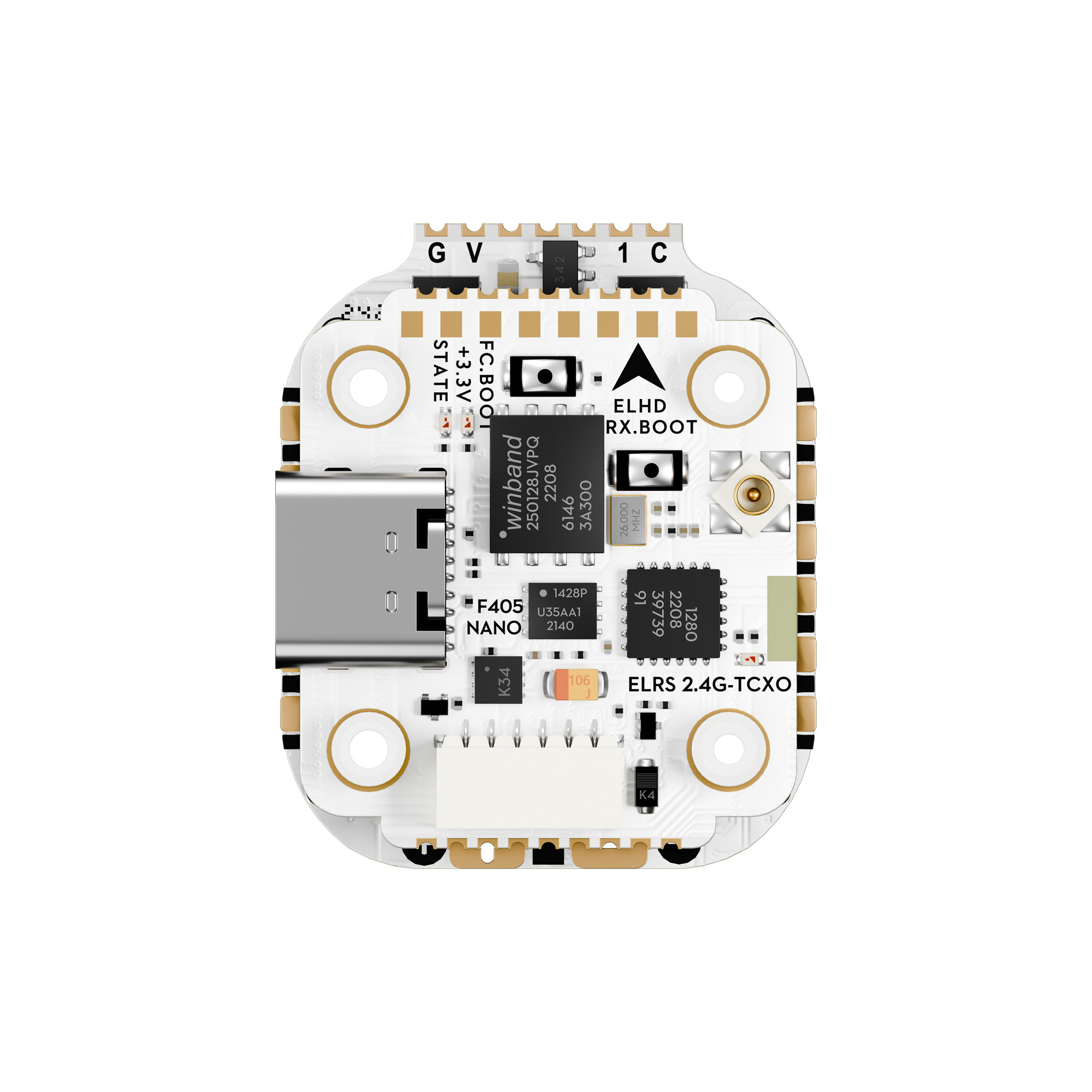

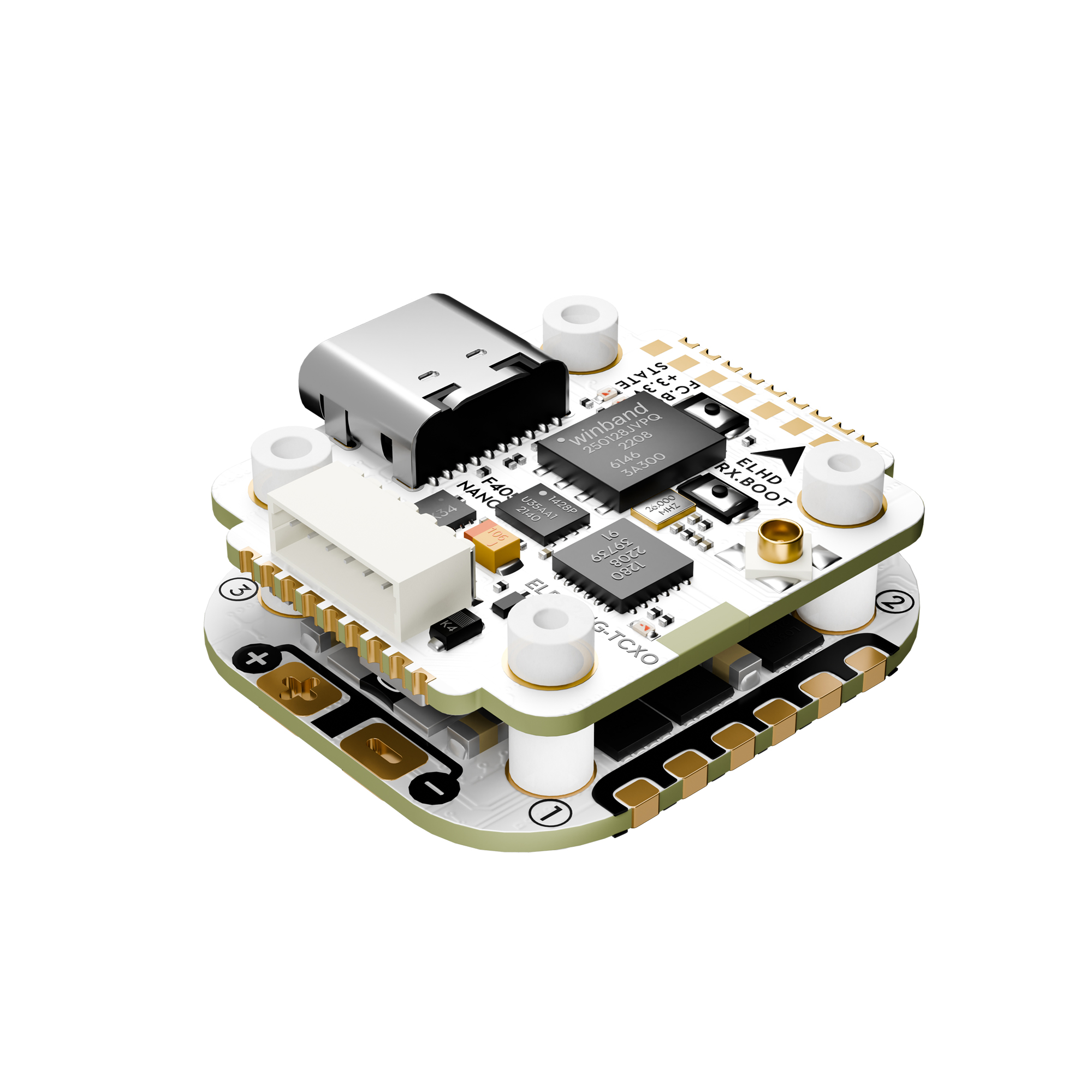

The Flywoo F405 NANO has been completely upgraded! We have further minimized and integrated the FC layout based on the original design. The new Flywoo GOKU GN405 Nano FC V3 w ELRS 2.4g is compact and features a USB-C universal port that is compatible with current mainstream data cables. It also supports the DJI O3 interface, allowing compatibility with high-quality digital transmission modules. Additionally, it has a complete set of six UART ports. Importantly, this flight controller is equipped with a TCXO ELRS high-precision receiver, making it an ideal solution for space-saving in micro drones. This flight controller is compatible with both QUAD and HEX drones, and users can switch between different ESC models. The latest three ESC models include: the 20A (QUAD) plug-and-play ESC, the 20A (HEX) plug-and-play ESC, and the high-performance 35A (QUAD) ESC. These options meet your compatibility needs for different drones, ensuring you have fun during your flights!
Highlights
-
16x16 mounting holes with a compact design
-
Built-in TCXO ELRS receiver
-
Direct plug-in for DJI O3\O4 Air Unit
-
FC/ESC pin header interface, compatible with QUAD/HEX
-
Built-in barometer
-
Equipped with a 16MB black box
-
Universal USB-C interface
|
|
Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4g 16x16
|
|
|
STM32F405 BGA |
|
|
ICM-42688P(SPI) |
|
|
|
|
|
DP310 |
|
|
16MB |
| USB Port Type |
Type-C |
| IMU(Gyro) |
ICM42688P |
|
|
(1,2,3,4,5,6) |
|
|
7.4V - 24V / 2 - 6S lipo |
|
|
5V 2A / 3.3V 0.5A |
|
|
25mm x 23mm x 8mm |
|
|
M2 16X16mm |
|
|

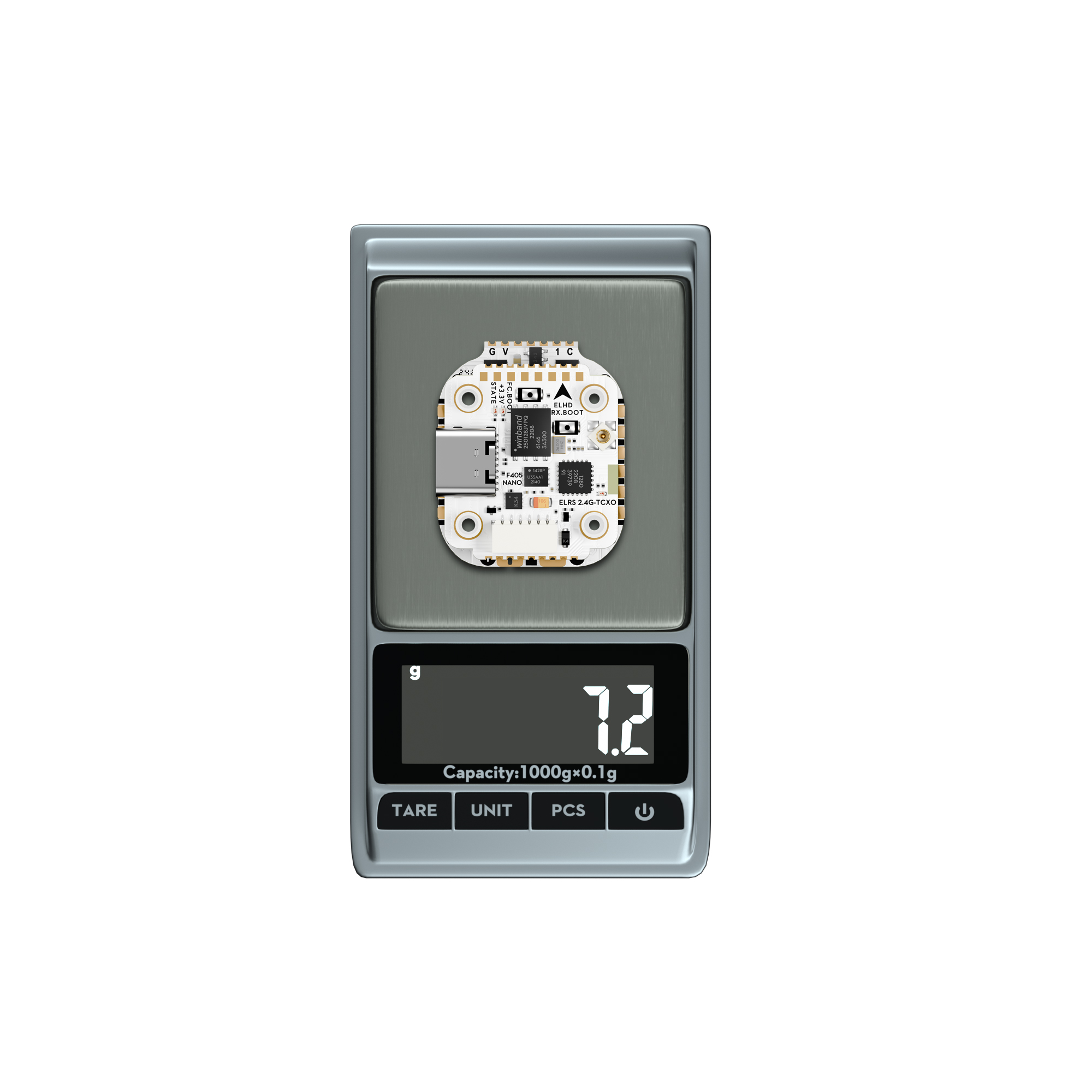

3g (FC), 7.8g (FC+20A), 9.4g (FC+20AHEX), 6.5g (FC+35A) |
|
|
GOKU BS 20A ESC w/ LED V3 16x16
|
| ESC MCU |
BB21F16G |
| POWER LED |
YES |
| Continuous current |
20A |
| Input |
2-4s lipo |
| Supports |
PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
|
| Size |
27×33mm board,16mm mounting holes (M2) |
| Weight |
4.5g |
|
|

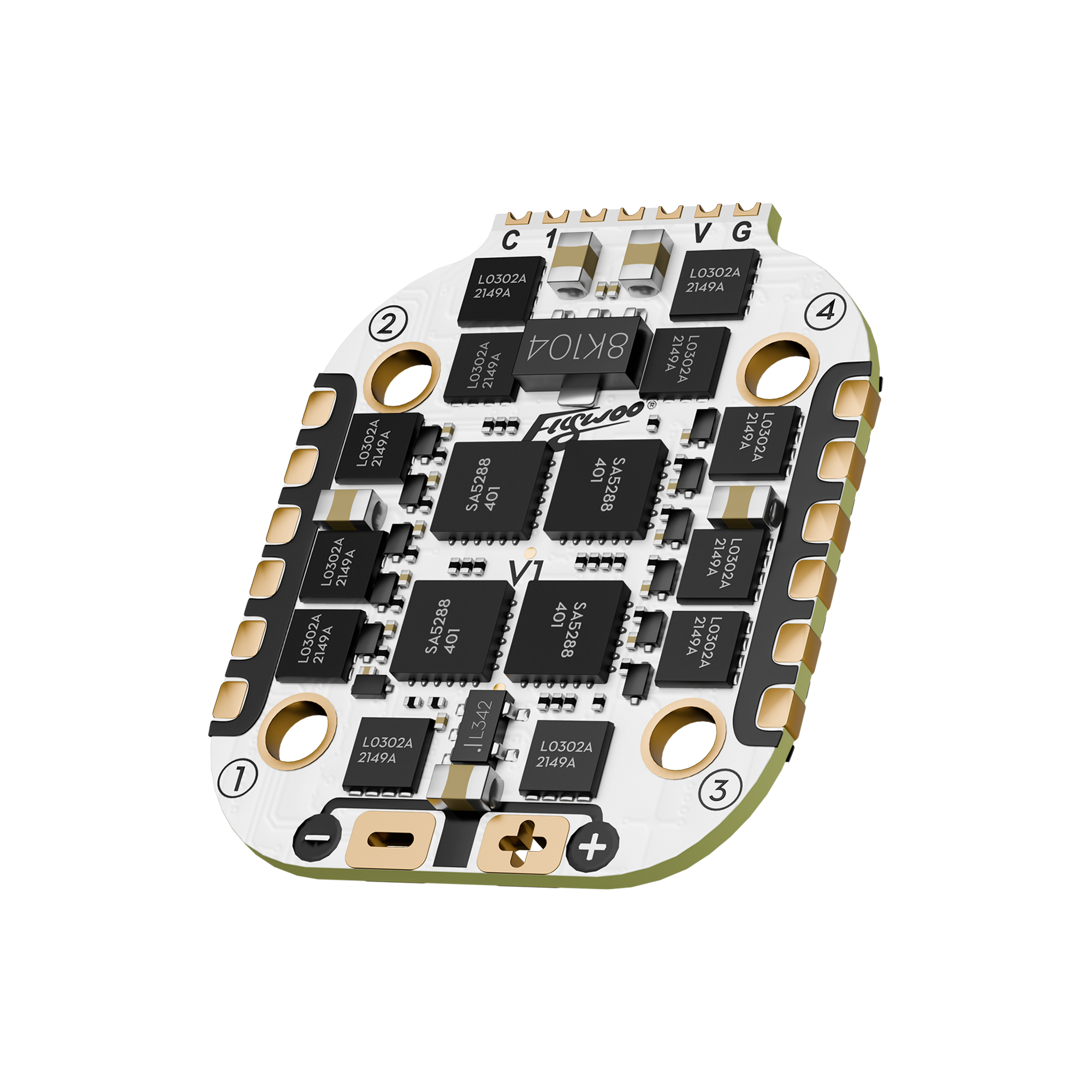

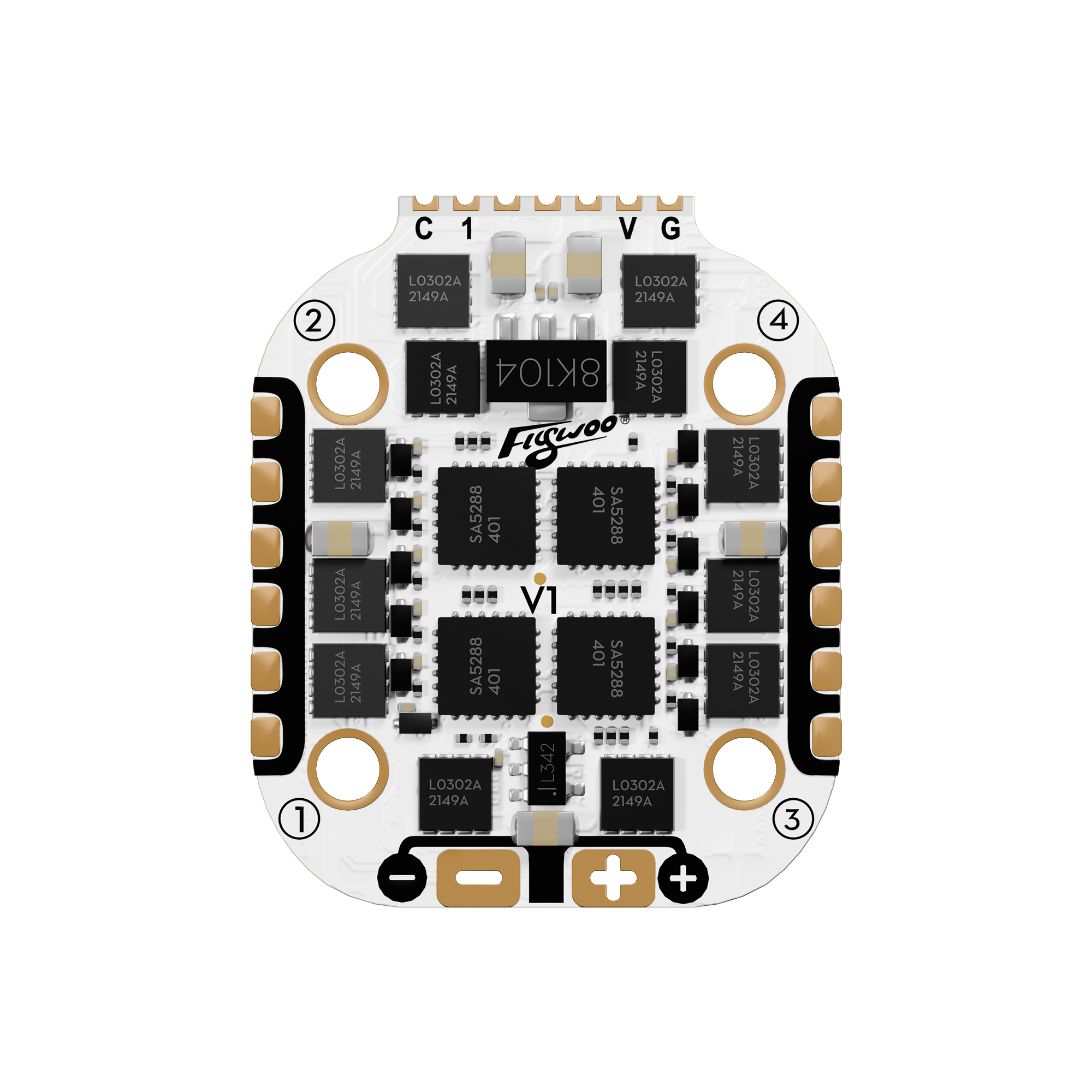

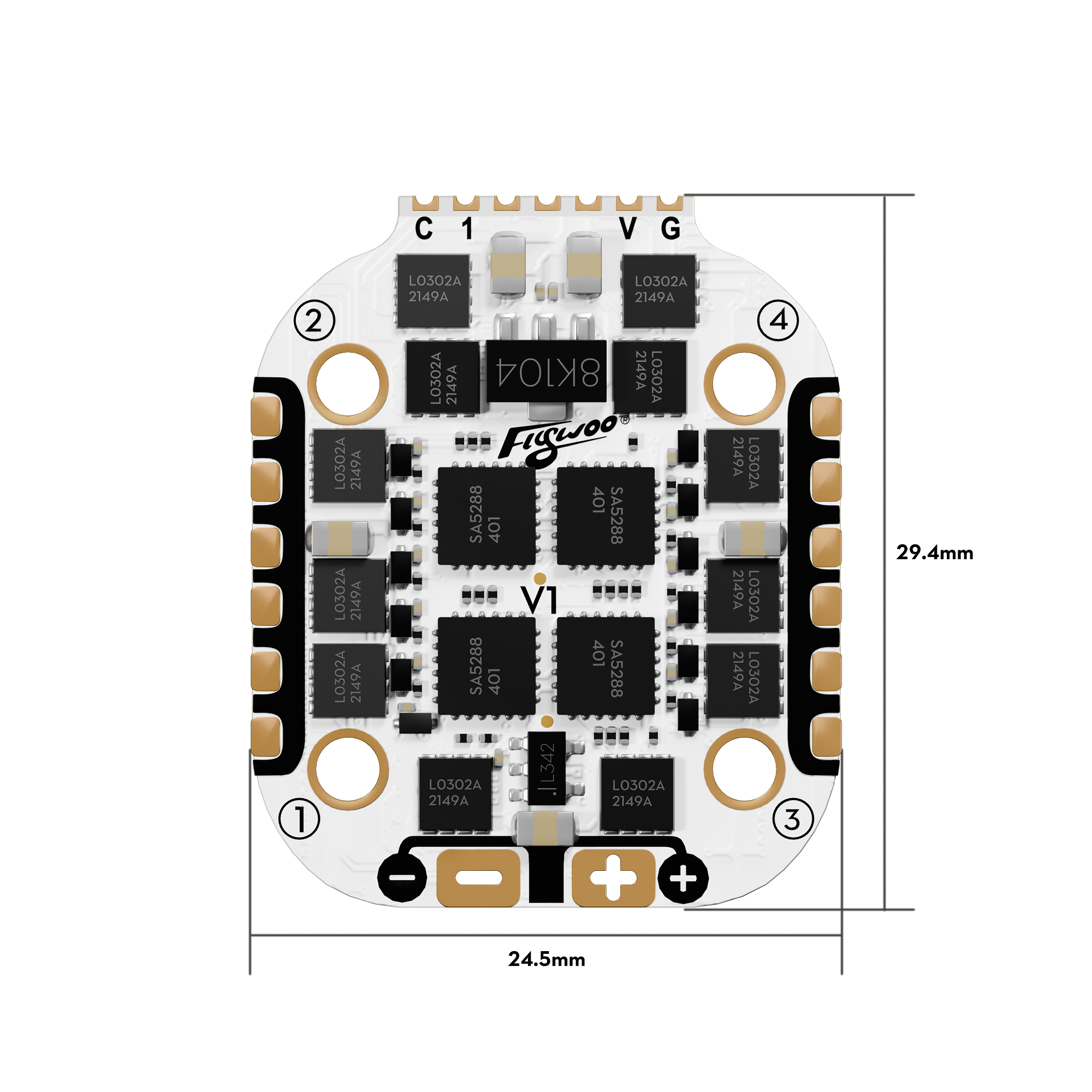

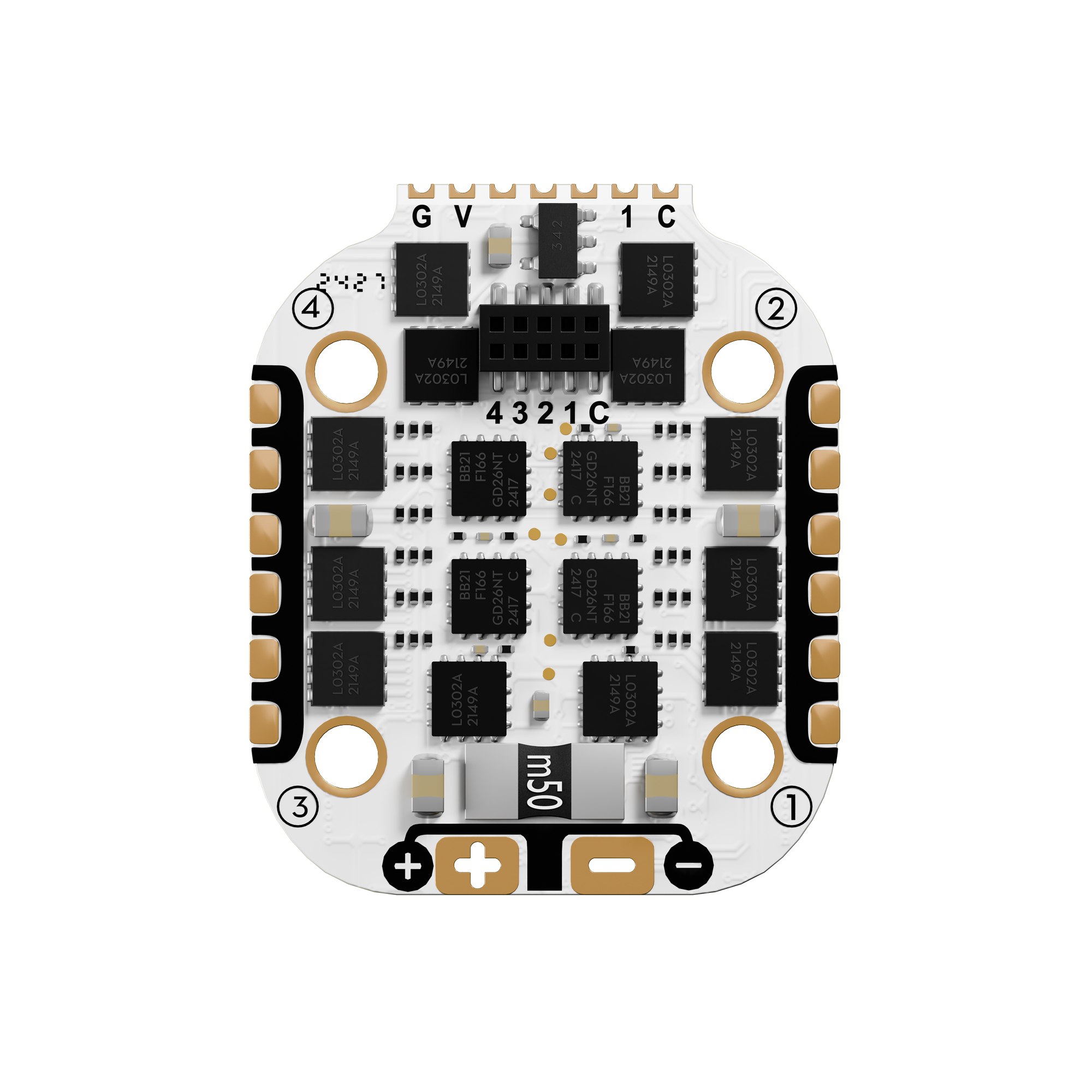

GOKU BS 20A ESC w/ LED V3 16x16
|
| ESC MCU |
BB21F16G |
| POWER LED |
NO |
| Continuous current |
35A |
| Input |
2-4s lipo |
| Supports |
PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
|
| Size |
27×33mm board,16mm mounting holes (M3) |
| Weight |

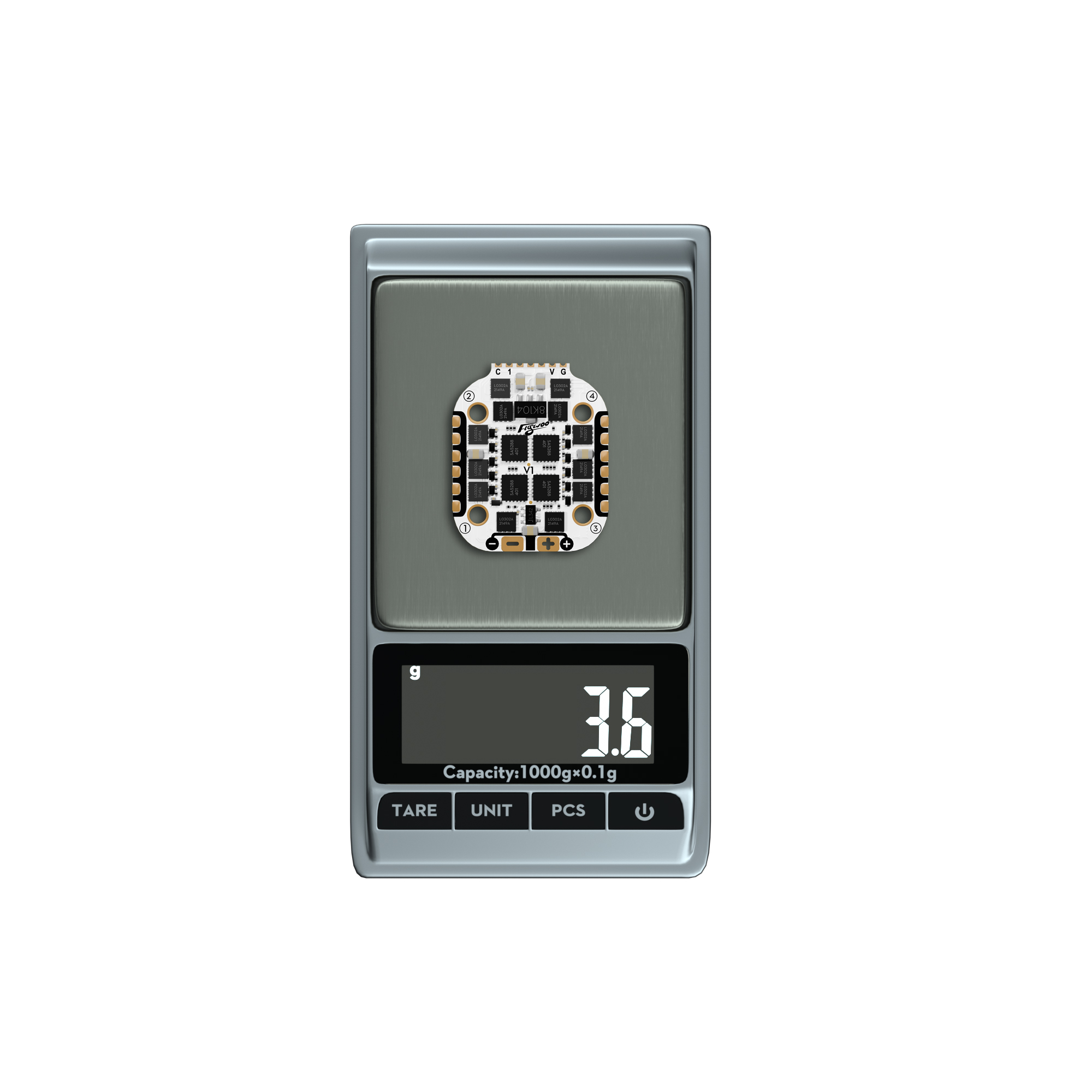

3.6g |
|
|
GOKU HEX BS 6-IN-1 20A ESC w/ LED V3 16x16
|
| ESC MCU |
BB21F16G |
| POWER LED |
NO |
| Continuous current |
20A |
| Input |
2-4s lipo |
| Supports |
PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
|
| Size |
33×35mm board,16mm mounting holes (M3) |
| Weight |
6.4g |
