【No.C107】GOKU F4 20A STACK V2.2 ( MPU 6000 ) 16mm X 16mm (FC ESC )


Price:
$75.99
Stock:
Sold out
  • Description
  • Reviews
  • Description
  • PRODUCT DESCRIPTION

    GOKU F4 V2.2 FC
    GOKU411 V2.1 Stack 20A BLHELI_S

    Specification:
    MCU: STM32F411
    IMU: MPU6000 (SPI)
    USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
    2 hardware UARTS (UART1,2)
    2 Software serial port
    1 I2C port for compass/baro
    Onboard LED:WS2812*8(FC*4/ESC*4)
    Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
    PPM and PWM receivers are not supported.
    Onbord 8Mbytes for Blackbox logging
    5V Power Out: 2.0A max
    3.3V Power Out: 0.5A max
    Dimensions: 23.5x23.5mm
    Mounting Holes: Standard 16mm square to center of holes
    Weight: 6.5g

    GOKU BS20A 4-in-1 ESC
    Built-in 20A BL_S 4in1 ESC
    Support BLheli / BLHELI_S
    Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
    Input Voltage: 2-6S Lipo
    Continuous Current: 20A
    Firmware: BLHELI_S

  • Reviews
  • Customer Reviews

    Based on 3 reviews
    67%
    (2)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    33%
    (1)
    B
    Bogdan Florescu
    Works as expected

    Really satisfied with the bought product.
    I was worried that soldering would be difficult on such a small board, but I've managed just fine.

    L
    Lordprimate
    oops not a one star review

    I dont know why that turned into a one star review. I just need to get information.

    L
    Lordprimate

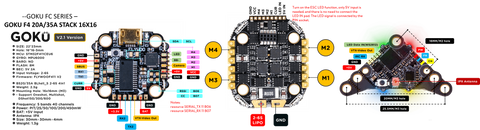

    instructions are not clear what is the red writing by ESC on instructions

    Hello, i cannot read the instructions in the picture. I cannot find a better quality picture. Please advise what the red writing is to the upper left of the ESC

    Sorry, I have re-uploaded, please check
