【No.C105】GOKU GNF4 13A STACK V2.2 ( MPU 6000 ) 16mm X 16mm (FC ESC VTX625 )

Save 10%

$78.29 $86.99
Sold out
  • Description
  • FLYWOO TX-NANO AND VTX625 Instructions
  • Reviews
  • Description
  • FLYWOO TX-NANO AND VTX625 Instructions
  • FLYWOO GOKU F411 FC INAV Firmware Download

    VTX625 TABLE

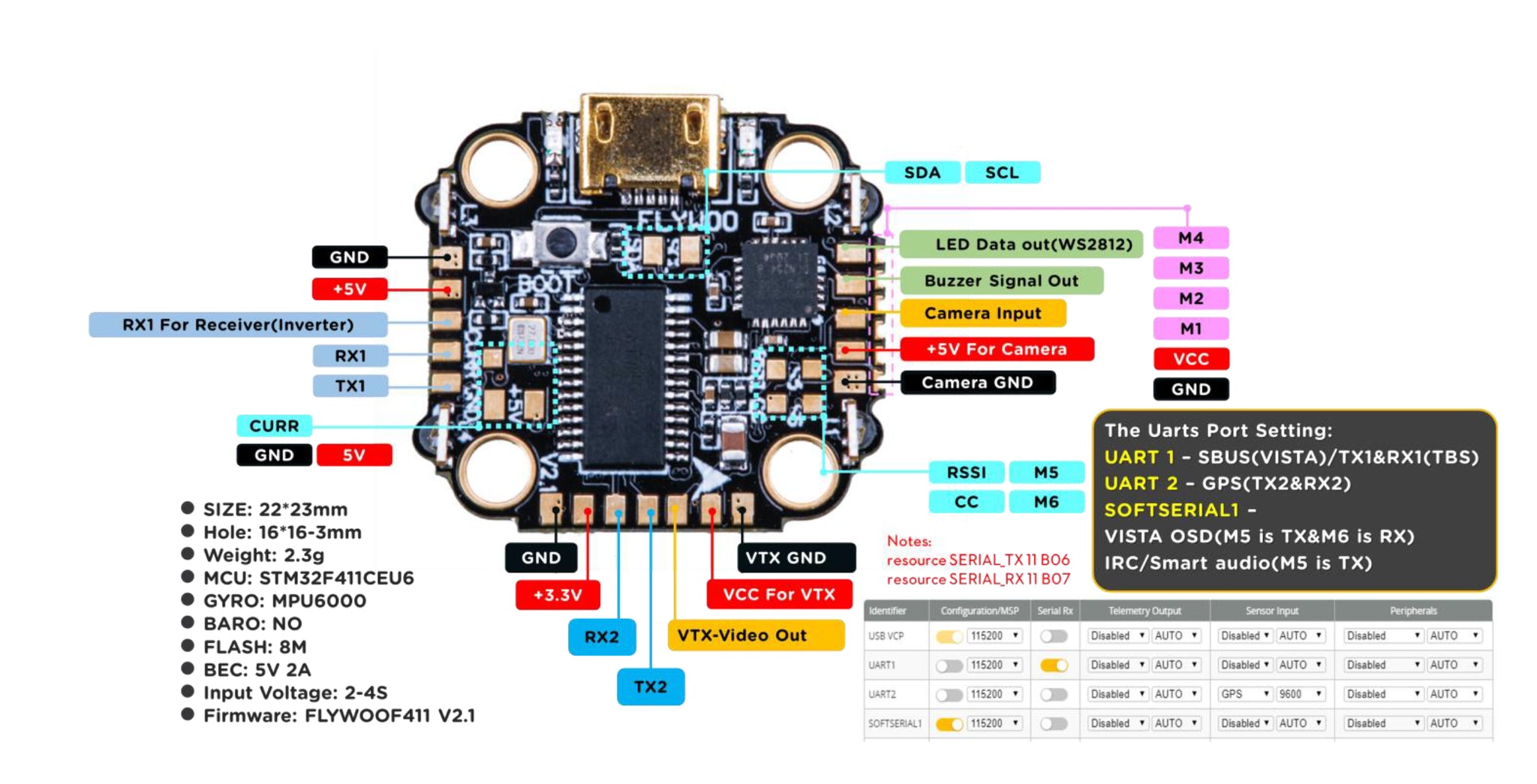

    GOKU F411 FC V2.2:

    MCU: STM32F411
    IMU: MPU6000 (SPI)
    USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
    2 hardware UARTS (UART1,2)
    2 Software serial port
    1 I2C port for compass/baro
    Onboard LED:WS2812*8(FC*4/ESC*4)
    Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
    PPM and PWM receivers are not supported.
    Onbord 8Mbytes for Blackbox logging
    5V Power Out: 2.0A max
    3.3V Power Out: 0.5A max
    Dimensions: 23.5x23.5mm
    Mounting Holes: Standard 16mm square to center of holes
    Weight: 6.5g


    Model: GOKU BS13A ESC
    ESC MCU: BB21F16G
    Continuous current: 13A
    Input:2-4s lipo
    Supports Dshot600 ,Oneshot,Multishot
    Size: 24×24mm board,16mm mounting holes (M3)
    Weight: 2.6g

    GOKU VTX625

    Output Power: PIT/25mW/50mW/100mW/200mW/450mW Switchable
    Control Mode: BFOSD Control(RX)/Button
    BAT: 5V
    LED: 4*WS2812LED
    Video System: NTSC/PAL
    Antenna: IPEX
    Size: 31MM*31MM
    hole: 16*16mm/20*20mm/25.5*25.5mm
    Weight: 3g
