Notice:
1. If the BEC input is a 6S battery, a 6S voltage capacitor needs to be added.
2. If the BEC input is FC or ESC, no capacitor is needed
Flywoo 12V Bec is the first module equipped with a switch
Description:
Brand name: flywoo
Item name: 5V/12V 2A Switch BEC module
Input voltage: 2-6S
BEC Output: 5V/2A, 12V/2A (default 5V/2A)

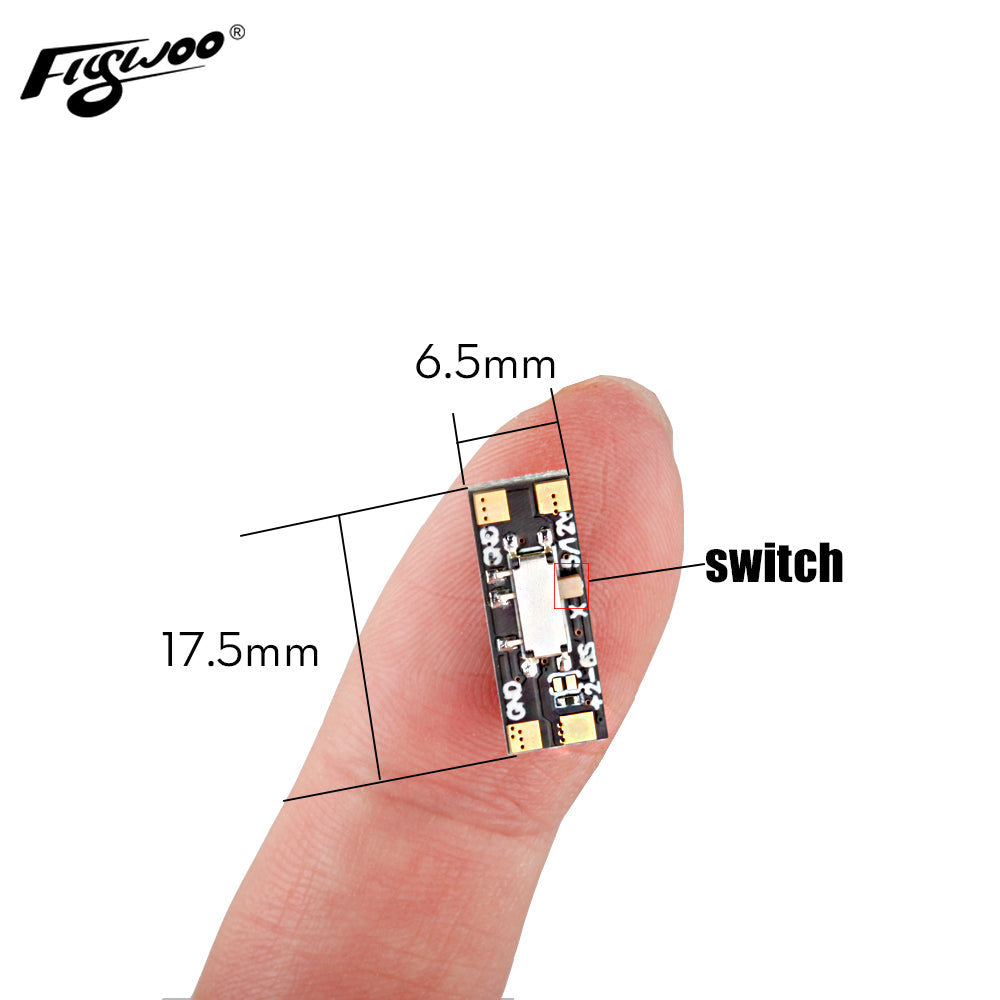

Size: 17.5*6.5mm
Weight:0.5g
Features:
Switch BEC mode
High-efficiency synchronous
Wide 5V to 26V Input voltage range
When 5V output, input can be 5-26V
When 12V output, input needs 12V-26V.
Voltage output can be 5V or 12V adjustable. (default 5V)
Package included:
1 x flywoo 2-6S BEC
1 x connecting cable set
